Novelties from Bella Plast - finishing strips for building insulation systems by the "light-wet" method

BP14 RF – okapnik zwijany NOWOŚĆ (patent UP PL UE UK UA)

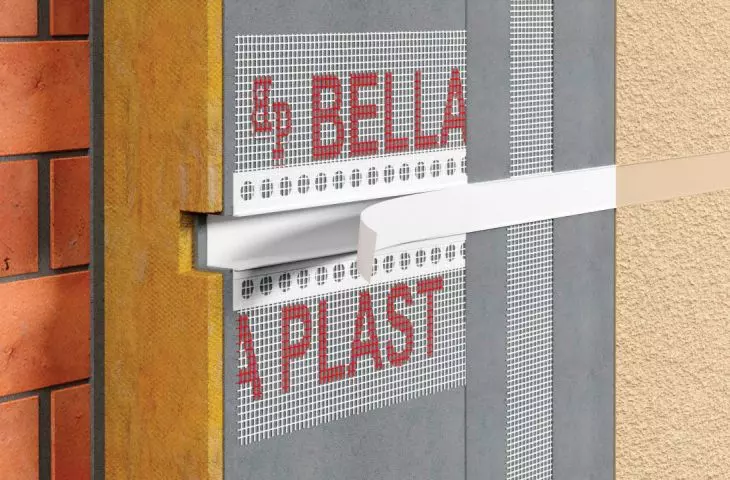

BP11 H3NS - PVC skirting board for rustication with a lost element

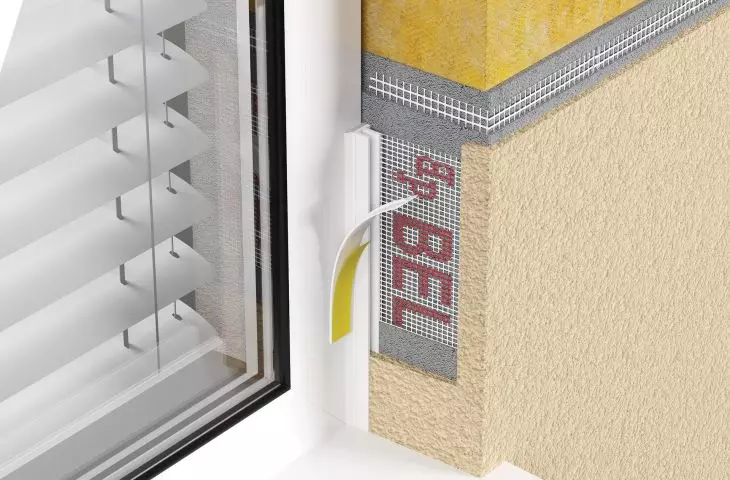

BP13 MIDI - window expansion joint strip

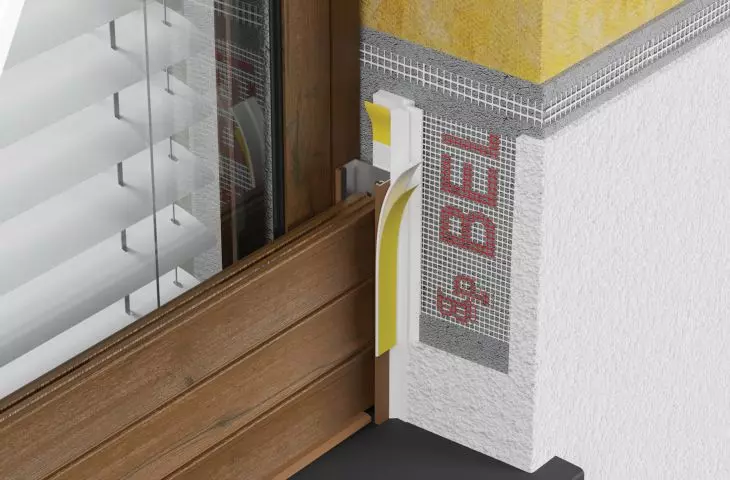

BP13 R expansion strip for roller shutter guides

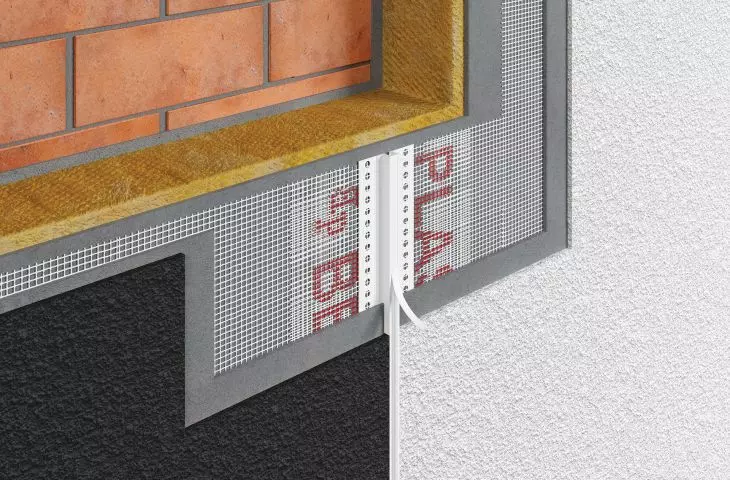

BP15 EXT flush-mounted expansion joint strip black-white

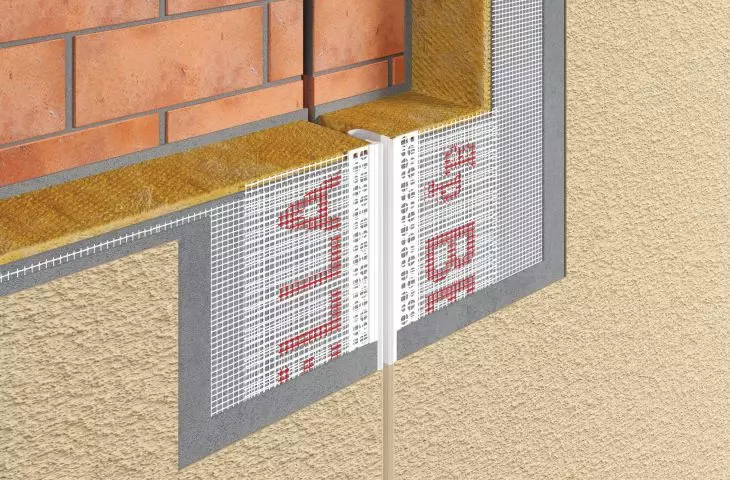

BP15 façade PVC expansion joint strip type E

For more than 25 years, Bella Plast has been a leader in the production of trims and profiles for thermal insulation systems.

BP14 RF - rolled drip cap NEW (patent UP PL EU UK UA).

COMPREHENSIVE FINISHING OF EACH FACADE EDGE

Bella Plast finishing profiles ensure technically correct termination and fusion of the system layers in places where there is an edge, i.e. an area within which all layers of the system: thermal facing, glass mesh, adhesive and plaster terminate. The profile is designed to securely weld these layers together without the possibility of delamination in the future.

BP13 R expansion strip for roller shutter guides

Therefore, it is worth taking care of the proper selection of profiles and thus ensure the durability of the thermal insulation facade for many years and increase its aesthetic and design qualities.

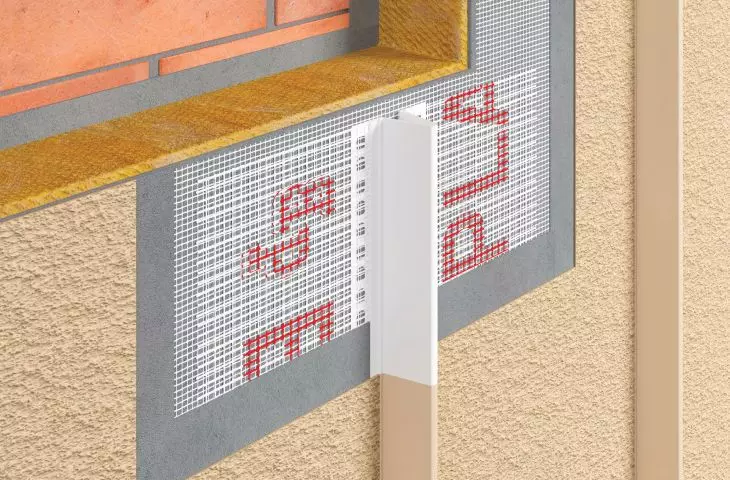

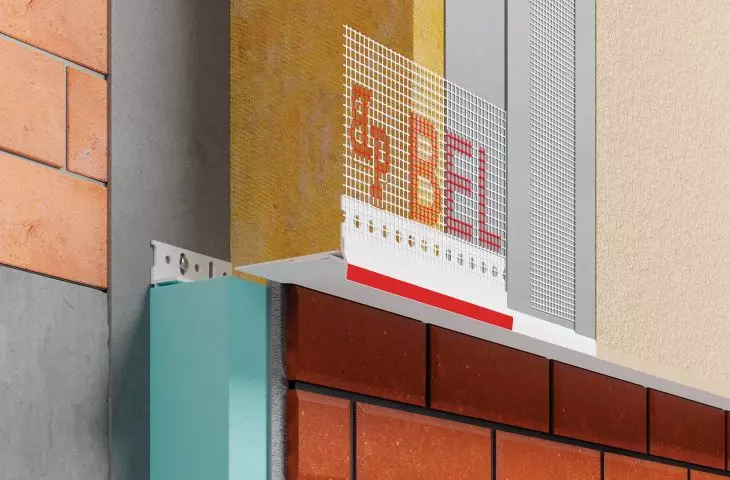

The basic edges in the BSO elevation include: the joint between the plaster and the window frame - here we use expansion joint strips (BP13 series, BP13 R - expansion joint strip for roller shutter guides - NEW), any elements (shapes) protruding outside the elevation e.g., balcony, terrace, bay window or bay window. balcony, terrace, oriel, or most commonly: the lower end of the façade over a retracted plinth - here we install drip caps (BP14 series, BP14 RF - roll-up drip cap NEW, BP30S COK series - NEW), then all corners: around windows, doors, or the corner of the building - here we use reinforcing angles (BP10 series, BP23 S) and more specialized profiles: system expansion joint (BP15E, BP15 EXT) or (BP16 angular) in the place of the course of the division of buildings (set on separate footings) or when the horizontal span of the facade exceeds 15 m). And many, many others, including decorative rustication strips (BP11 series + accessories), decorative imitation sheet metal "on the seam" (BP19) or finishing facade strips (BP22 series) used at the border of the change of plaster grain and/or its color.

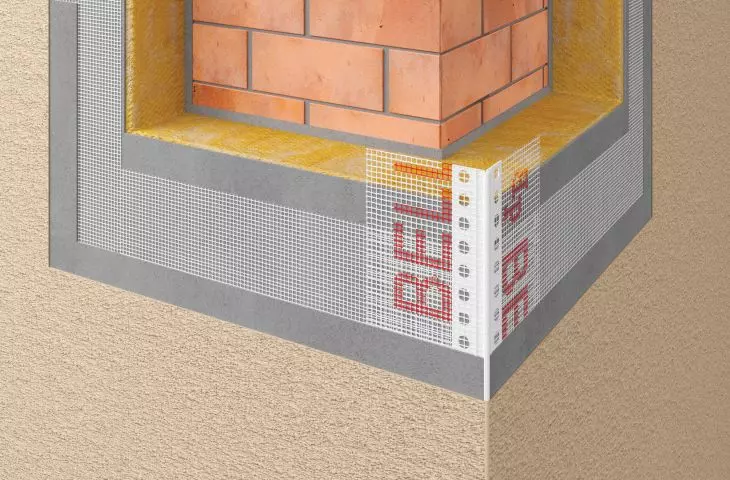

BP23 S reinforcing angle

Architecture studios are welcome to contact us to receive free CAD models of our products as well as catalogs and office gadgets: zamowienia@bellaplast.com.pl

BELLA PLAST Team
