Leviat a world leader in connection, fastening, concrete reinforcement, assembly and transportation technology. CRH, is part of the world's leading construction materials business. It employs nearly 3,000 people at 60 locations in North America, Europe and the Asia-Pacific region, providing flexible and tailored services worldwide.
Halfen HIT thermal insulation fasteners
© LEVIAT POLSKA

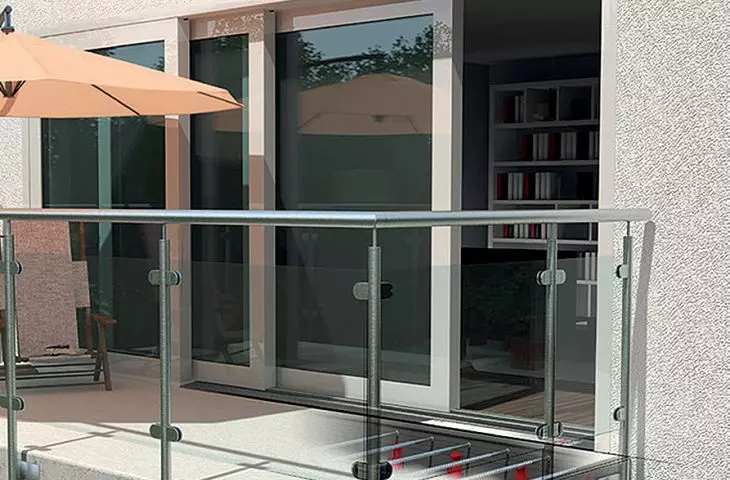

HALFEN HIT thermal insulation connectors
Thermal Insulation Fasteners are used in numerous applications: from cantilever balcony to loggia to cornice and so on.
Advantages:
- Energy certification for 80 mm of insulation thickness when used in cantilevered and freely supported balcony panels.
- Provides high thermal insulation and REI120 fire protection.
- The symmetrical nature of the elements reduces installation errors.
- Can act as a fire barrier within external composite thermal insulation systems (ETICS).
- Meets the requirements of the German Energy Conservation Ordinance (EnEV) with Ψ values approved by the German Institute of Building Technology (DIBt).
- European Technical Assessment ETA and CE marking.
- HIT-SP ZVX is a passive building certified component.
- Robust elements, suitable for transportation and installation.
- Elements with lengths of 25 cm, 50 cm and 100 cm for quick installation.
- Elements up to 30 cm in height.
- Software available to optimize design solutions.
Acoustic insulation system for staircases
© LEVIAT POLSKA

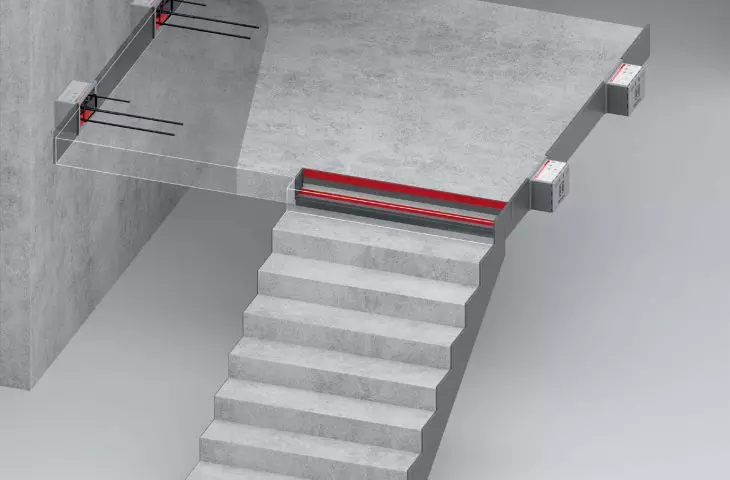

Acoustic insulation system for staircases
The use of the HALFEN acoustic insulation system makes it possible to significantly dampen and isolate the construction of staircases and landings from the supporting structure of the building. HALFEN acoustic insulation system meets the requirements for protection against impact sounds.
HBB sound insulation component:
- Excellent impact sound insulation values, tested in accordance with DIN 7396.
- Self-adhesive tapes with protruding film for easy removal.
- Two heights, suitable for landings and stairs.
- Variant for prefabricated elements without filling.
- HBB-SET can be ordered with HBB-Box and HBB VV bracket reinforcement.

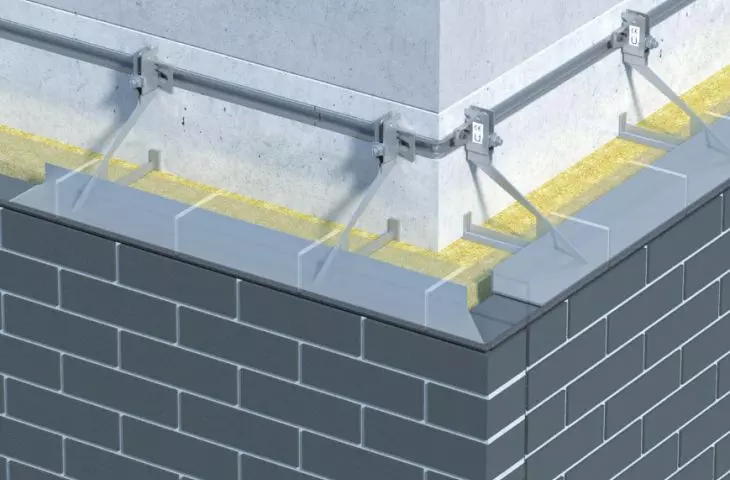

HK5 bracket used in the corner
© LEVIAT POLSKA
HTF Sound Insulation Element:
- Excellent impact sound insulation values, tested in accordance with DIN 7396.
Self-adhesive tapes with protruding film for easy removal.
Light gray color to match precast components - eliminating the need for additional finishing.
Concrete facade systems
Reliable fastening systems for various types of permanent concrete facades. These products are used for suspended concrete facades and concrete sandwich facades.
Recommended systems and solutions: façade panel hangers, balustrade and attic supports, sandwich panel anchors, flat anchors.

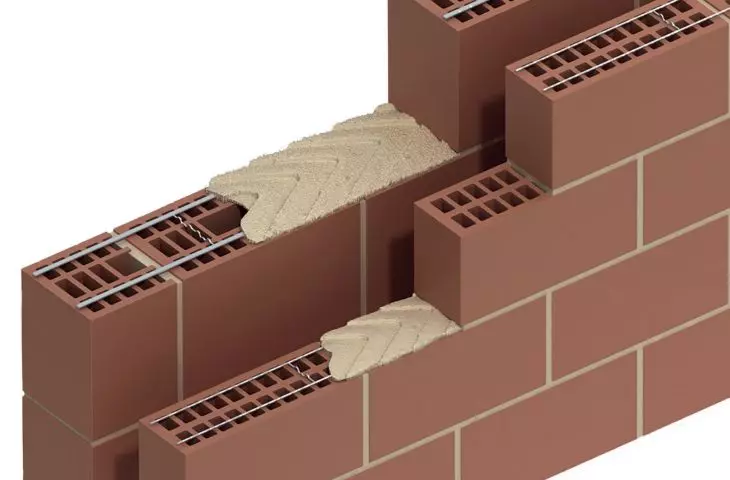

AMR reinforcement
© LEVIAT POLSKA
Systems for masonry facades
Cantilever anchors and a complementary assortment for facing masonry provide permanent and secure anchorage of clinker brick facades. They serve to take up the dead weight of the facing brickwork and transfer it to the building's supporting structure.
Wire anchors and reinforcement are essential for the strength and stability of the masonry. Steel reinforcement in the mortar joint improves the statics of the wall, providing additional resistance to lateral loads, such as from wind.
HK5 system brackets
© LEVIAT POLSKA
Systems for natural stone facades
Facade structures made of natural stone are usually suspended and ventilated from behind. They must therefore be securely and reliably attached to the building structure.
Recommended systems and solutions: body anchor, mortar set anchor, substructure.
For more information, visit the company's LEVIAT POLSKA page on the A&B portal.
