DUCTO MULTI duct fan coils ( fancoils ) are unique and innovative devices that allow independent cooling or heating of 2 to 5 zones / rooms. Each zone can be set to an individual temperature or shut down.
This is a significant leap in capabilities compared to standard duct fan coil units, which are dedicated to one zone. They are ideal, for example, for serving a single apartment or a small office.
Thanks to inverter fan motors, the required amount of air is regulated automatically, which reduces energy consumption and makes these units extremely quiet. DUCTO MULTI are designed for horizontal installation, thanks to their low height can be placed, for example, in the ceiling or other enclosures.

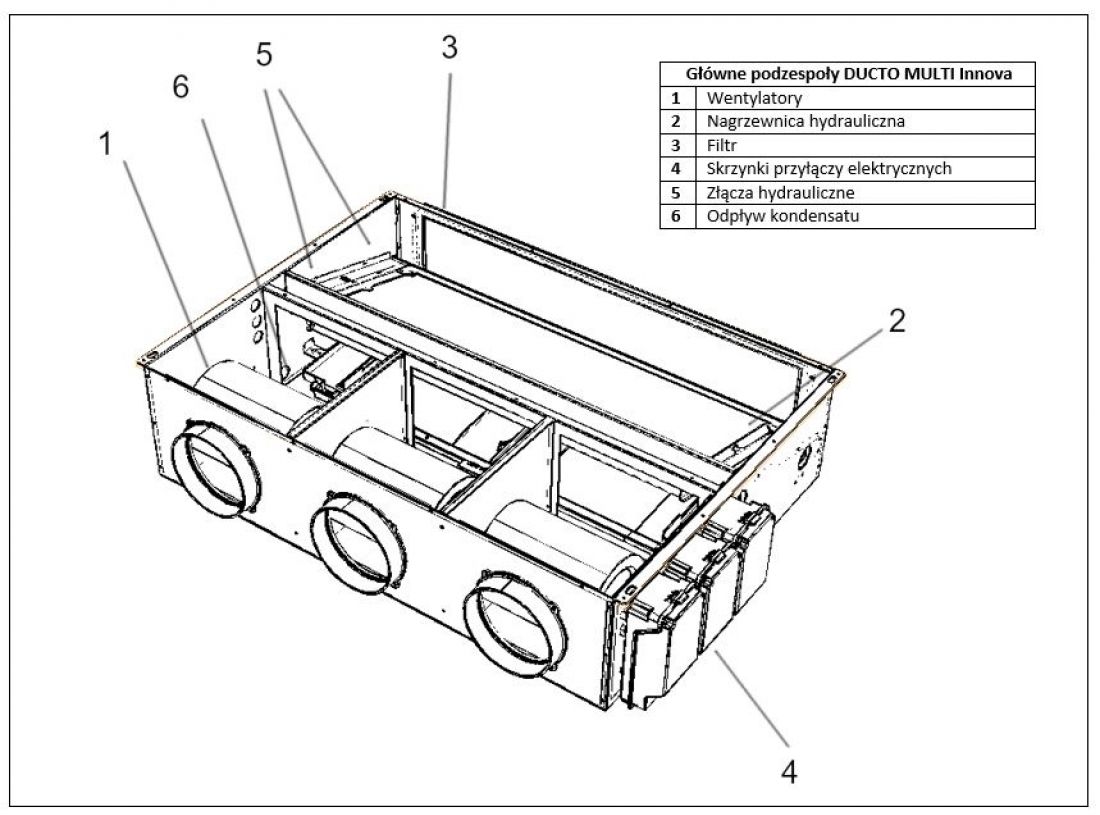

Duct fan coil units DUCTO MULTI
© EKO-INSTAL
Currently there are 5 models with cooling power from 3.8 kW to 8.1 kW and heating power 3.9 kW to 9 kW. The maximum cooling power per zone in the Multi Ducto is 2.1 kW while heating is 2.2 kW.
As for the control option, we have a choice of several types of wall-mounted controllers that must be connected to the fan coil by wire. The first is the classic SMART TOUCH control panel with thermostat and temperature and relative humidity probe. The second is more advanced with a WiFi module that allows control via the InnovAPP app.

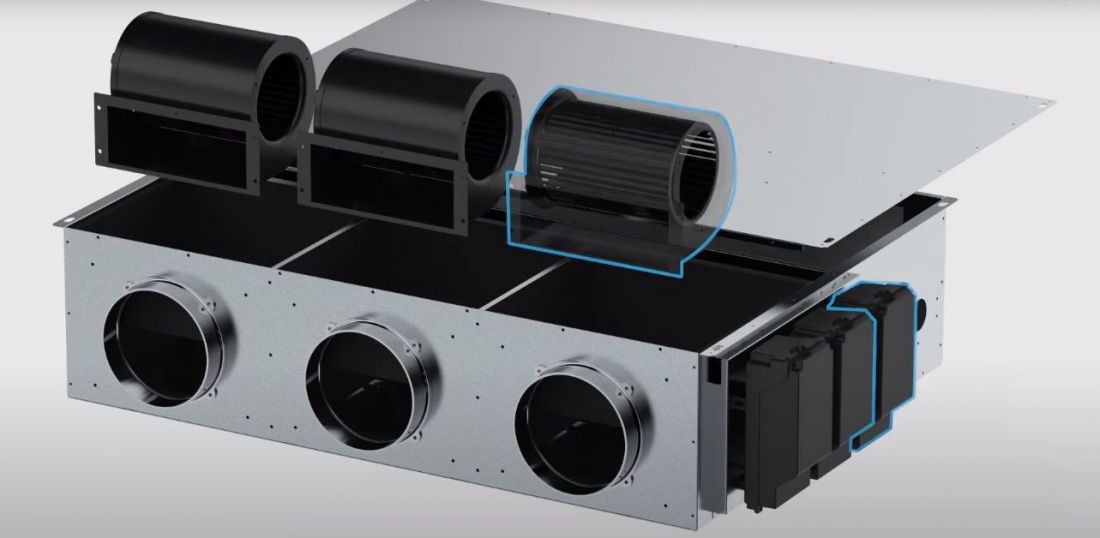

DUCTO MULTI duct fan coil units ( fancoils )
© EKO-INSTAL
