Work submitted for the competition
"Best Diploma Architecture".
The subject of the study is a conceptual design for a holiday resort of the Silesian University of Technology, located at 18 Wiejska Street in Jastrzębia Góra. The main objective of the project was to create a facility designed for approximately one hundred people, functioning all year round. The key architectural objective was to design a building that would fit harmoniously into the seaside landscape, while at the same time stand out from other resorts in the vicinity.

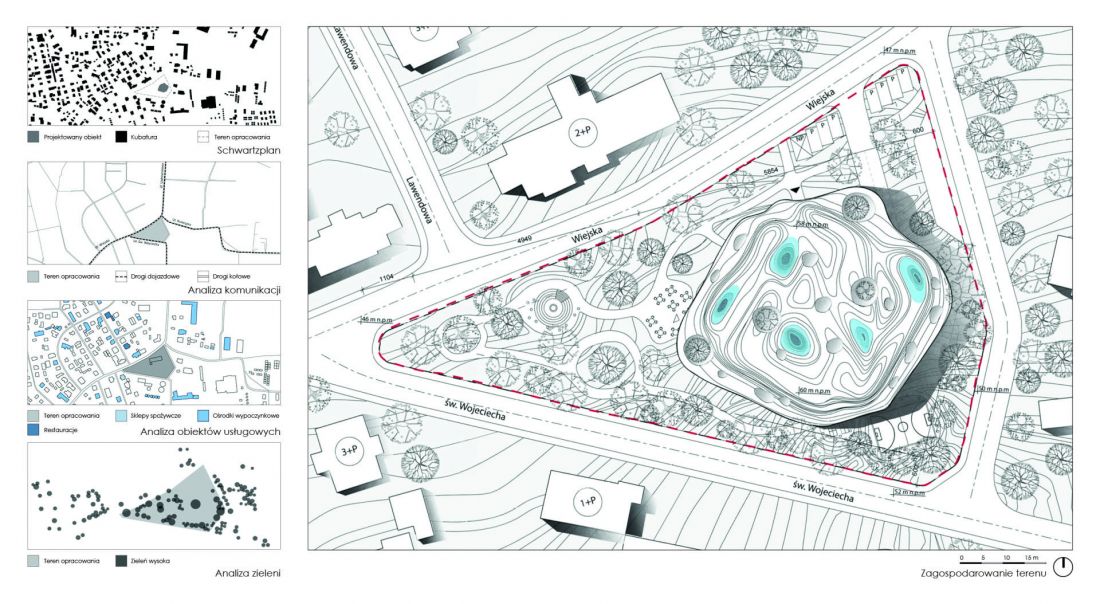

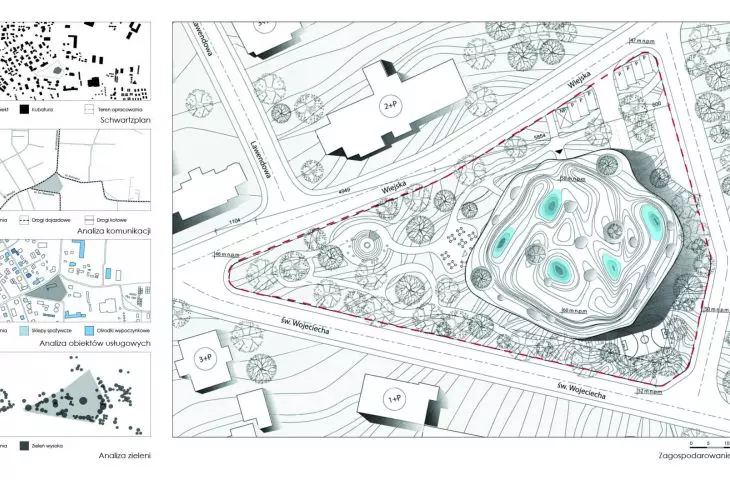

urban analysis and site development
© Dorota Cichoń

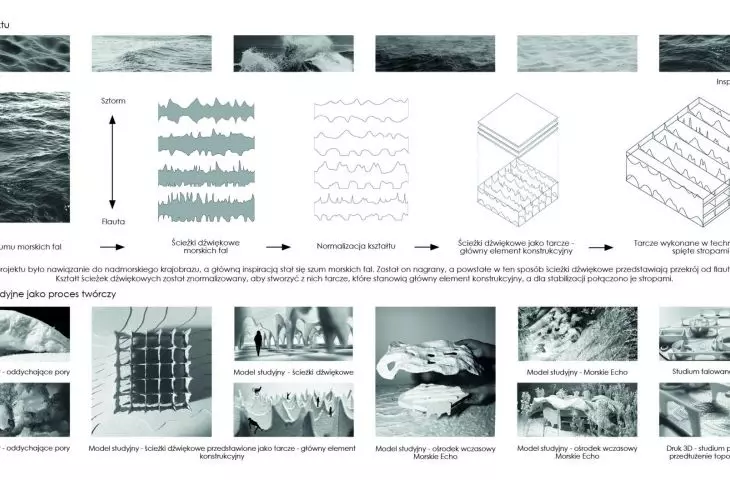

The building's form was inspired by the sounds of the sea waves, which were recorded and then presented in the form of wooden discs made with CLT technology. The rhythmic transition from calm waves to a storm was meant to symbolize the various possibilities for spending time at the resort - from relaxation to activity. The building's roof, which resembles a sea surface, is the result of the organic shape of the shields and plays an important role both functionally and aesthetically. Depressions have been created on the roof, which have been flooded with water, creating water troughs where guests can relax while enjoying the landscape, including the view of the sea.

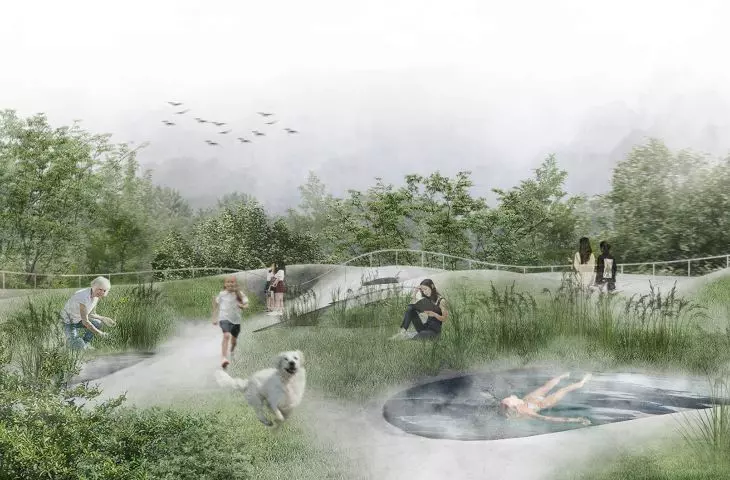

visualization of the roof
© Dorota Cichoń
An important element of the project was the continuation of greenery - both at ground and roof level. An artificial topography treatment was used, creating a seamless transition between the building and the surroundings, including loosely spaced vegetation that provides privacy and gives the facility a mysterious feel. As a result, the center, while open, also provides an intimate atmosphere.

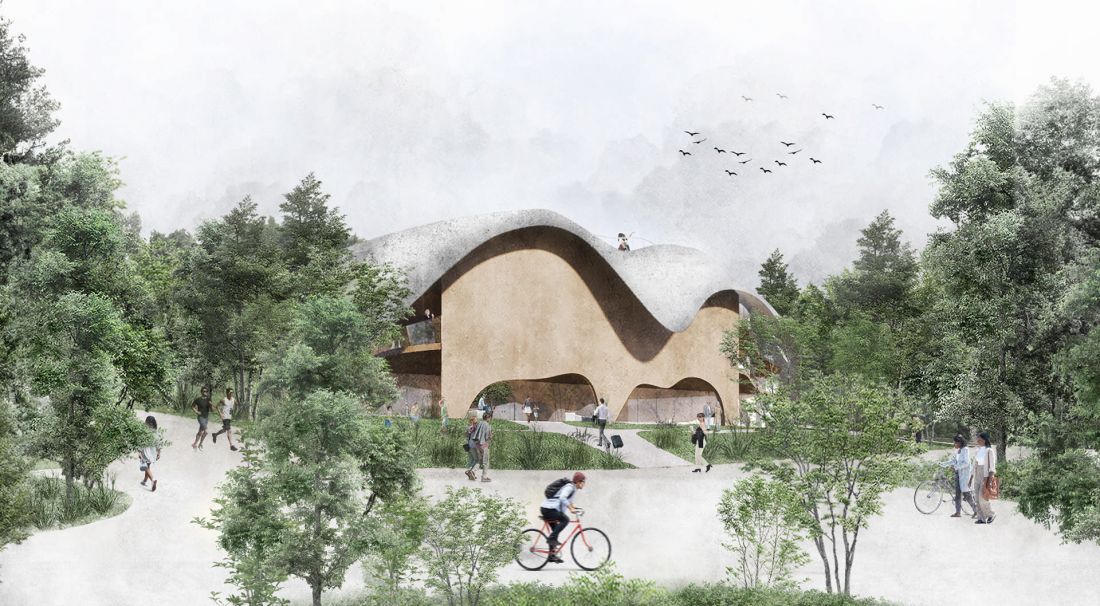

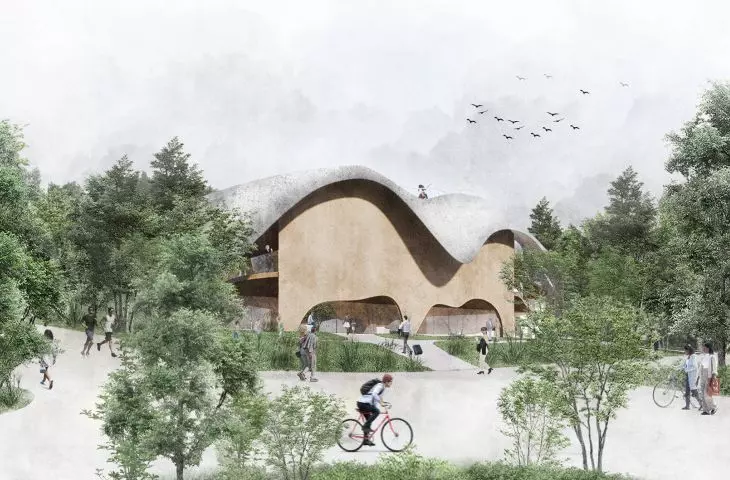

visualization of the entrance area
© Dorota Cichoń
The center offers a rich infrastructure both outside and inside the building. On the first floor, which is open-plan, there is a restaurant and spaces for relaxation and meetings. With plenty of greenery, ponds and glass walls, guests can enjoy a tropical-like atmosphere even in winter. On the roof of the building, thermal baths have been designed as an additional attraction, allowing guests to relax surrounded by nature, overlooking the sea.

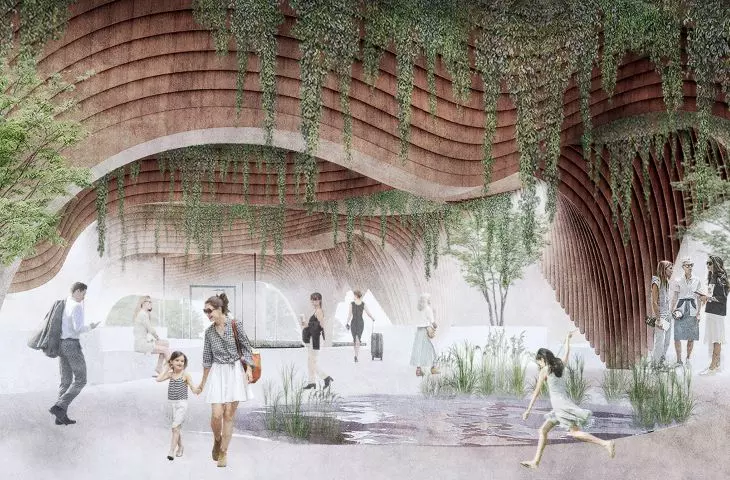

interior visualization
© Dorota Cichoń
The resort was designed with a strong emphasis on ecology. The building's construction is based mostly on CLT-glued wood, which helps reduce the carbon footprint. This technology not only provides good thermal insulation, but also benefits the environment by storing carbon dioxide. In addition, the manufacturing process of glulam is less energy-intensive than other building materials. The use of lightweight timber construction also reduces the load on foundations, thus reducing material consumption.

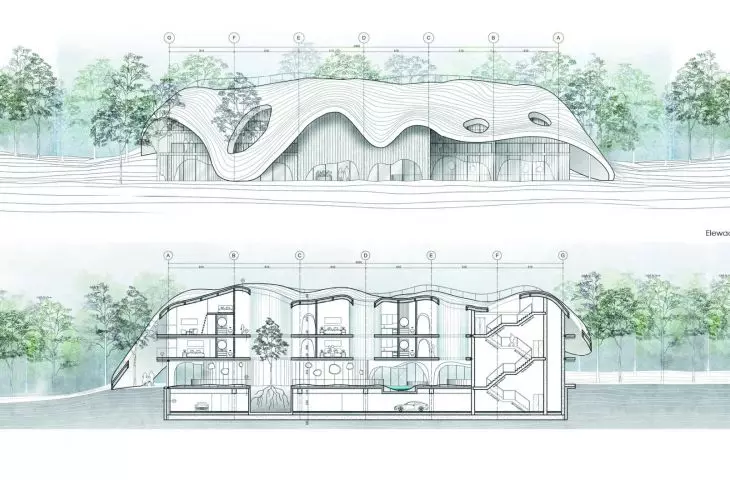

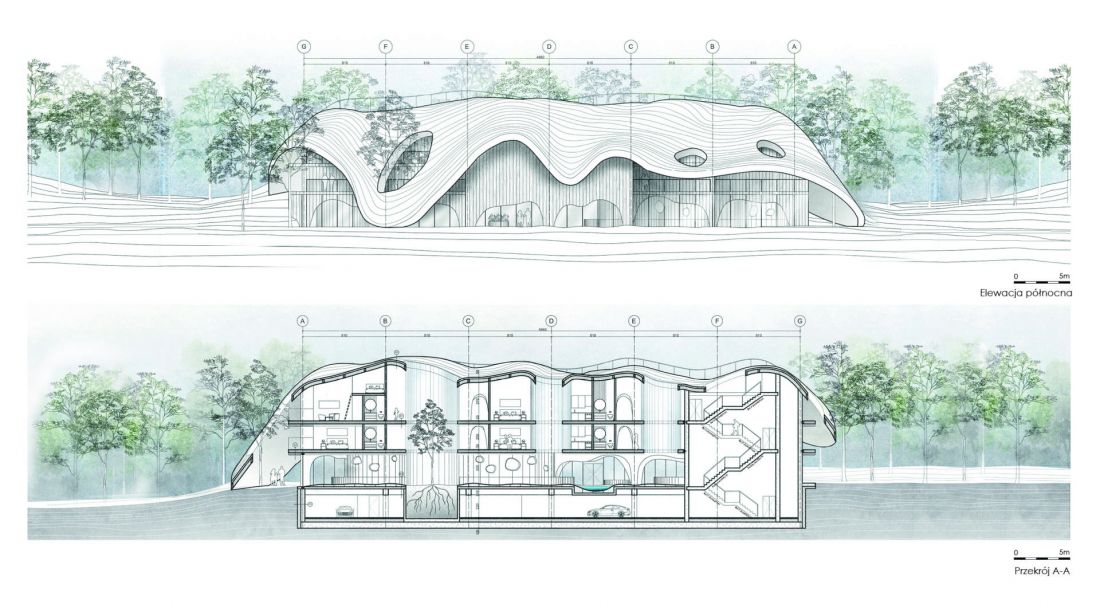

North elevation and cross-section A-A
© Dorota Cichoń
The designed center also takes into account environmental protection by preserving existing vegetation and planting new trees. The plot includes the installation of rainwater tanks, which will be used for watering vegetation and in toilets as so-called gray water. An important element of the project was also to create a bird-friendly space - many feeders and shelters were installed.

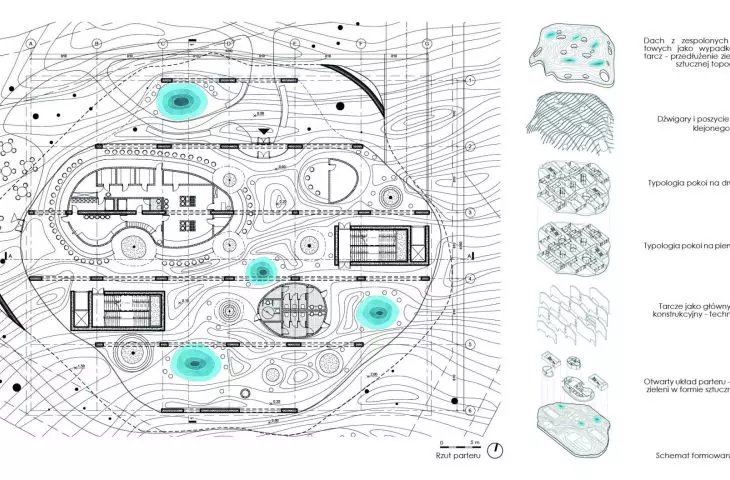

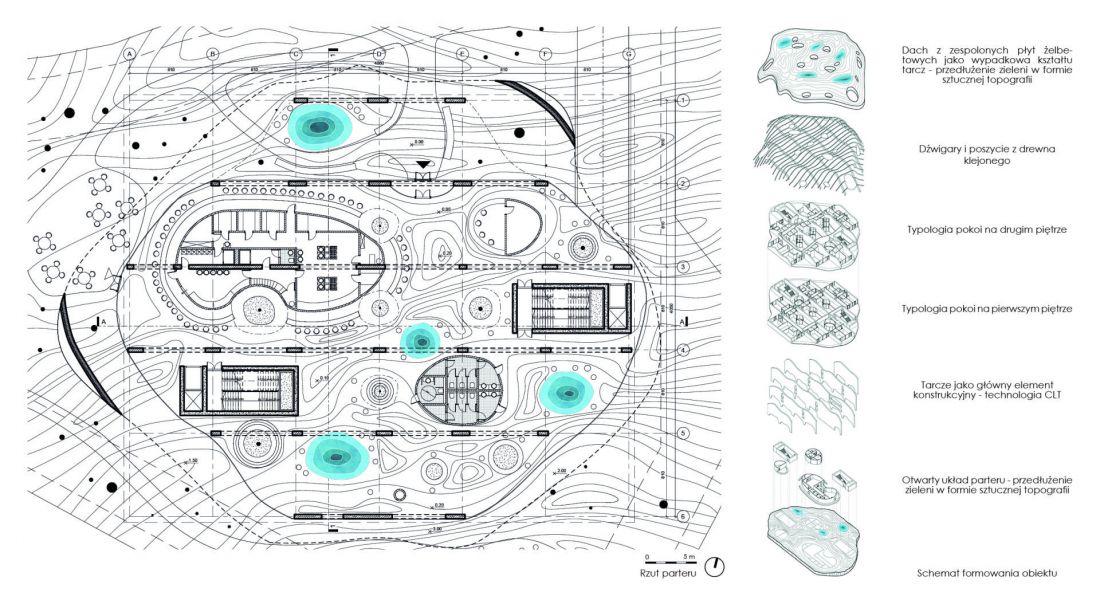

first floor plan
© Dorota Cichoń
In addition to ecological solutions, the center's design takes into account the needs of people with disabilities. The spaces are accessible, with wide corridors, elevators and an open plan, allowing people to move freely around the building. Thus, the center is friendly to all users - both those seeking quiet relaxation and those who prefer active forms of leisure.

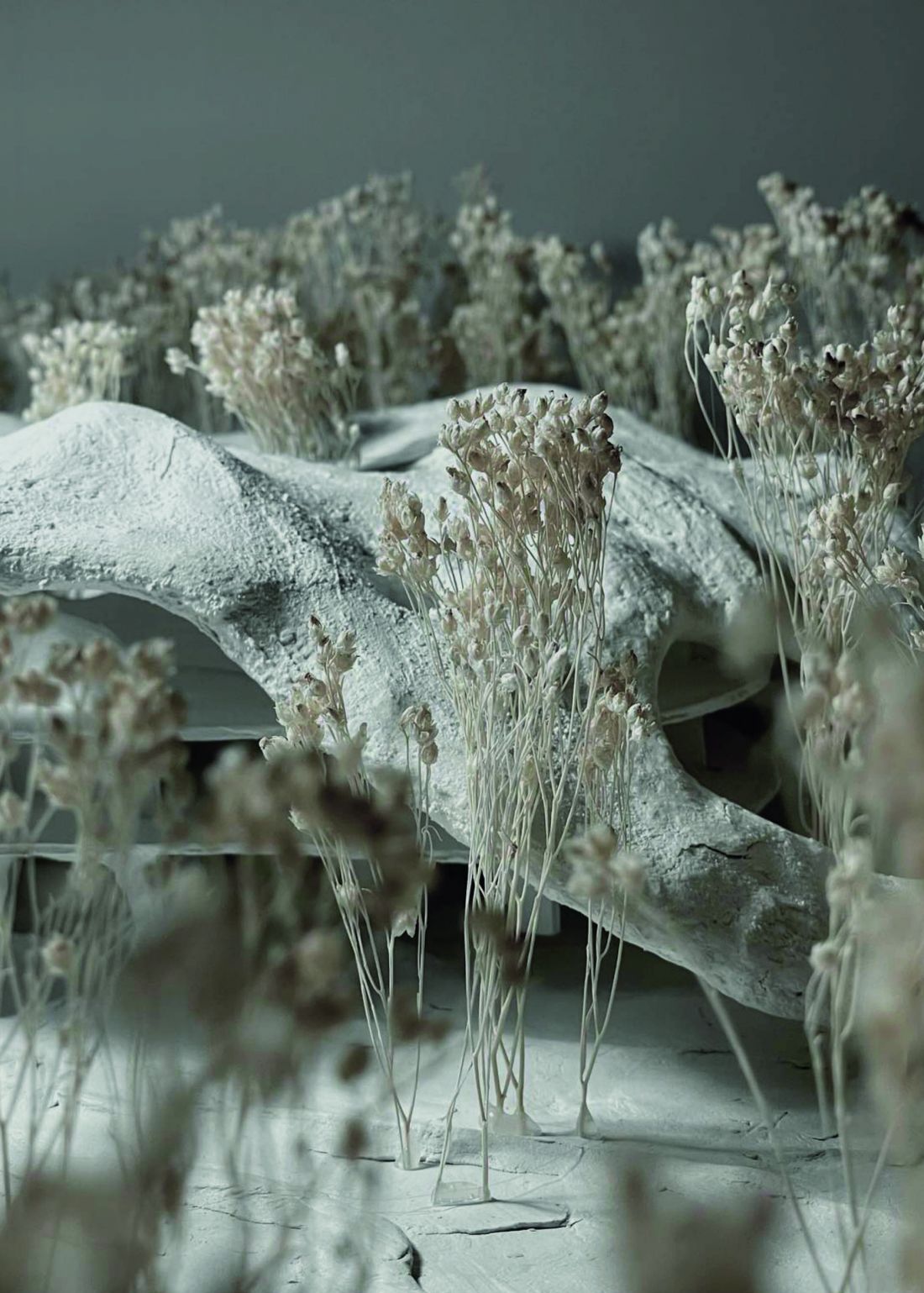

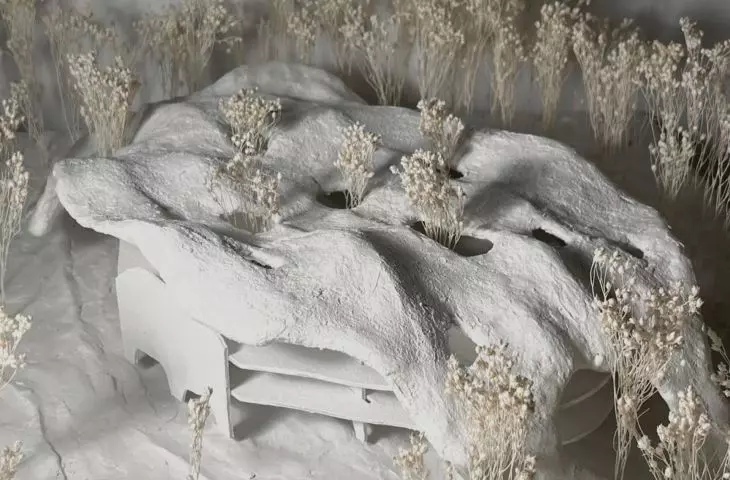

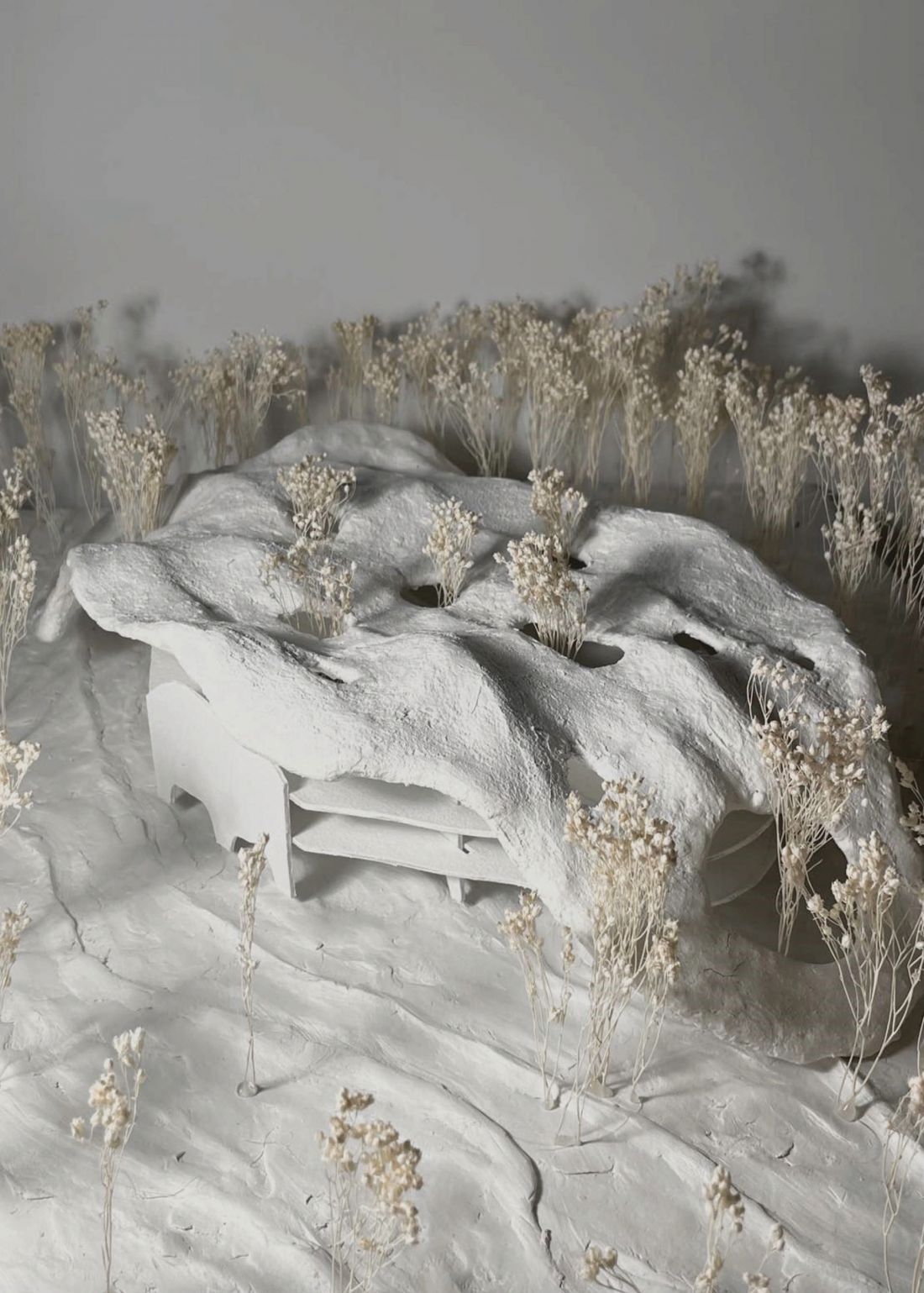

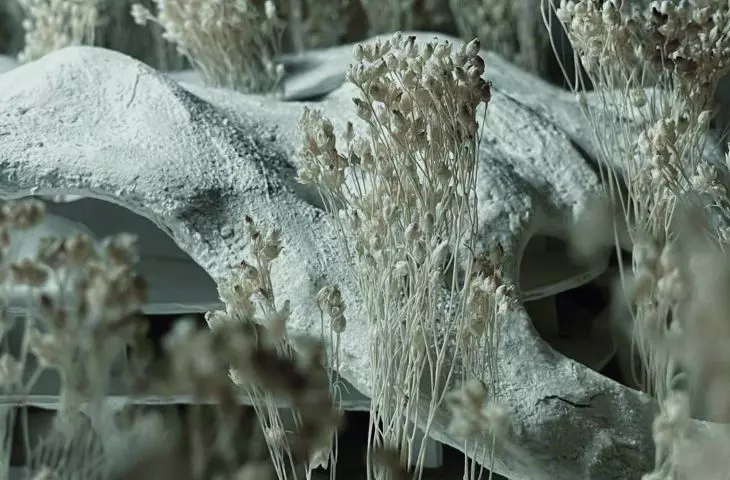

mockup
© Dorota Cichoń
In summary, the design of the Silesian University of Technology holiday resort is a modern, ecological and functional proposal that seeks to blend into the seaside landscape of Jastrzebia Gora. The use of natural materials, such as CLT-glued wood, contributes to environmental protection while giving the building lightness and elegance. The building's innovative roof and its proximity to nature make the resort stand out from other resorts, offering guests an unforgettable experience.
Dorota CICHOÑ
Illustrations: © Author
