SolaX specializes in photovoltaic solutions and the SolaX product range in various application scenarios, including commercial and industrial. The C&I sector requires efficient operation and reliable safety. SolaX strives to meet the demands of the market and therefore releases compliant solutions.
The main products among on-grid solutions for C&I are X3-MEGA 2 and X3-FORTH.
The X3-MEGA G2 and X3-FORTH are ideal propositions - they are the most powerful and highest safety standards for SolaX in the company's history.

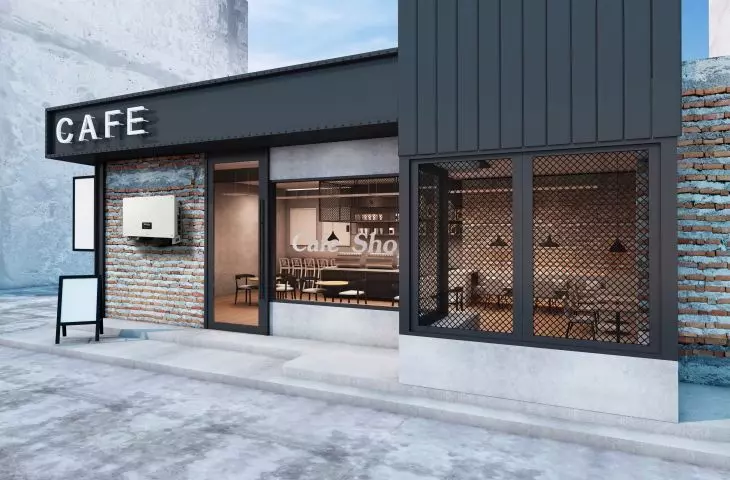

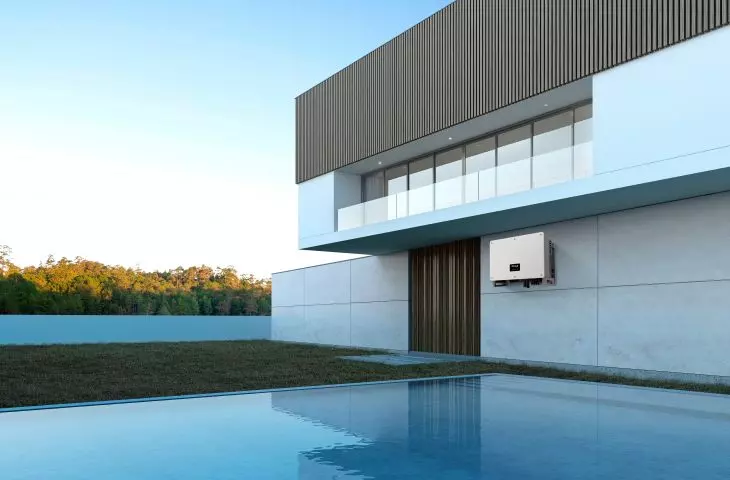

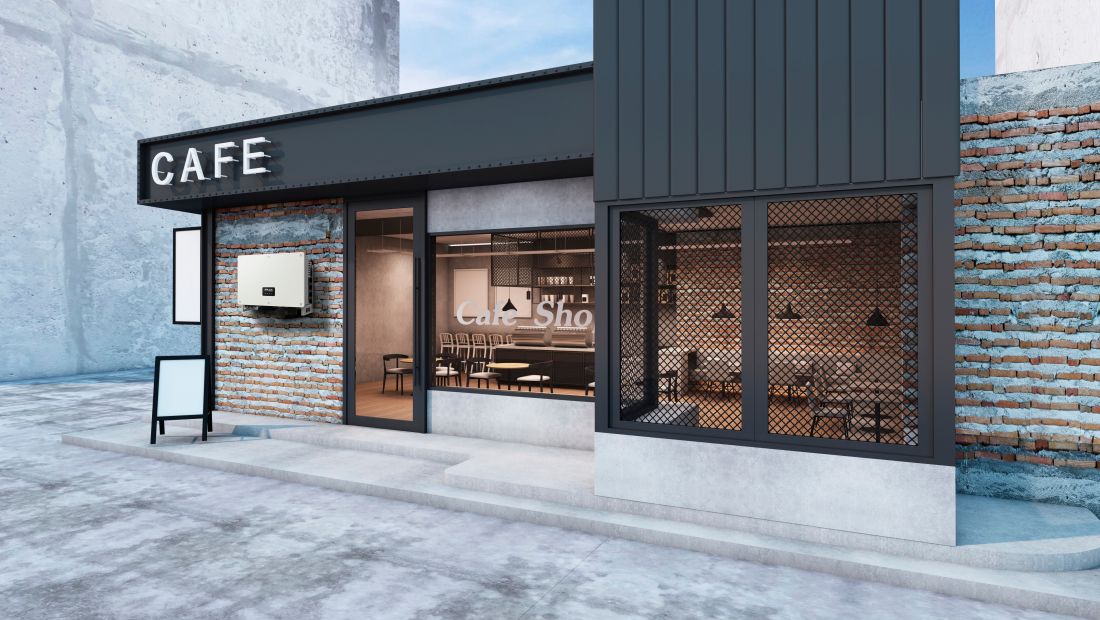

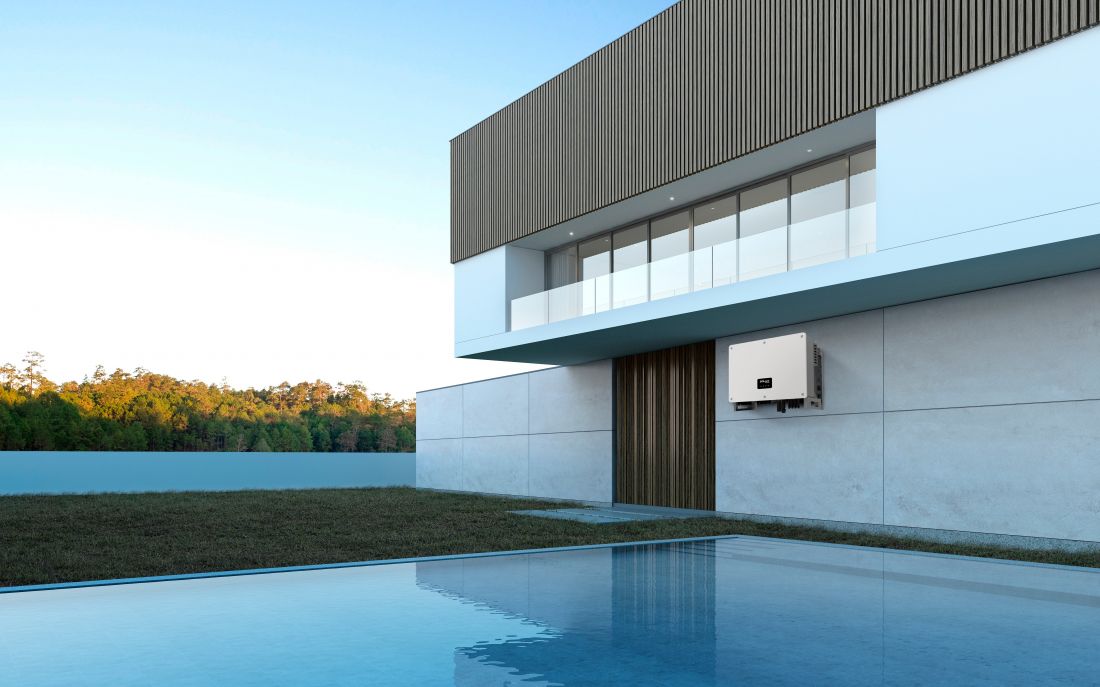

X3-Mega G2
© SolaX Power
X3-Mega G2
© SolaX Power
X3-Mega G2
© SolaX Power

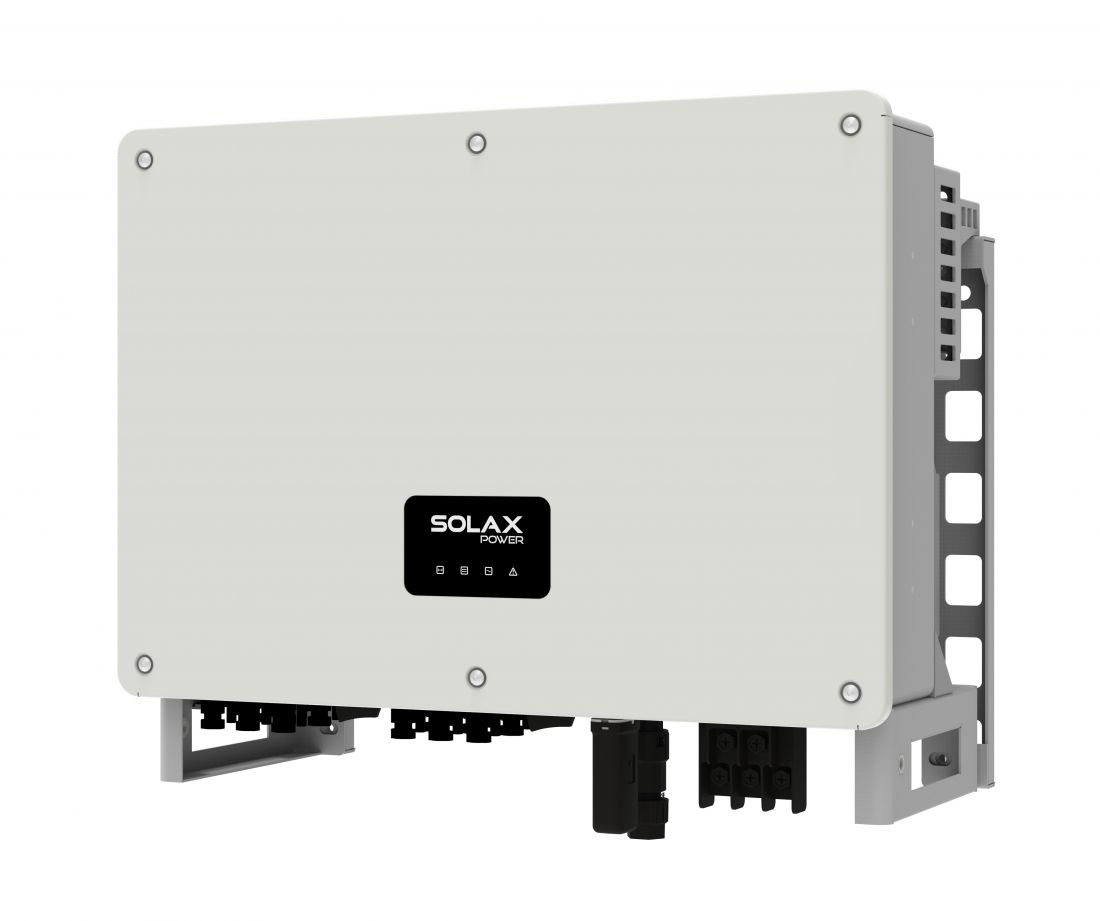

X3-Mega G2 inverter (40/50/60kW)
TheX3-MEGA G2 offers 40/50/60kW of power. The product follows consistent SolaX principles - simple but elegant. Compared to Generation 1, the X3-MEGA G2 is 28% smaller and 34% lighter, making it easier to install. The IP 66 rating ensures a compatible installation environment and long life cycle. Type II SPD safety level is the default, and Type I is optional.
X3-MEGA G2features:
- 98.4% maximum efficiency,
- max. 6 MPPT, 2 strings per MPP tracker,
- 32A max MPPT current,
- 80~1000V MPPT voltage range,
- 150% PV oversizing on input, 110% overload on output,
- AFCI protection (optional),
- IP66 protection level,
- AC and DC SPD (type II) inside, type I SPD is optional,
- built-in export power control,
- intelligent I-V curve diagnostics supported,
- aluminum AC cable connection available,
- current measurement for each PV chain,
- night reactive power compensation,
- 24-hour operation monitoring (optional),
- power line communication (PLC) (optional),
- intelligent air cooling technology for long fan life,
- advanced heat dissipation technology.

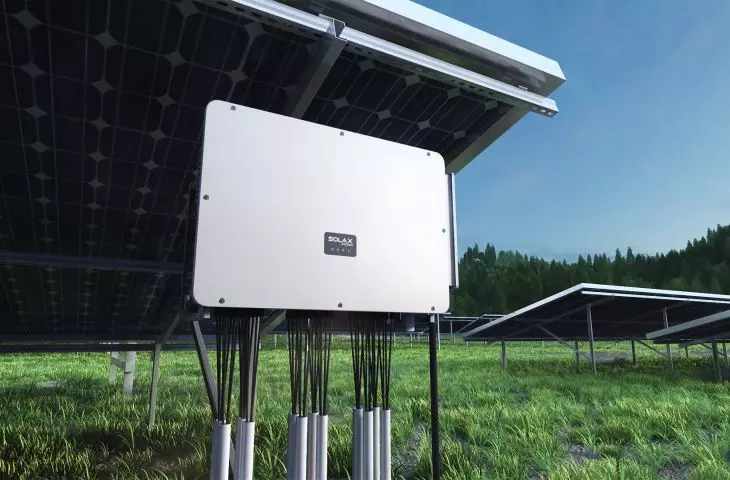

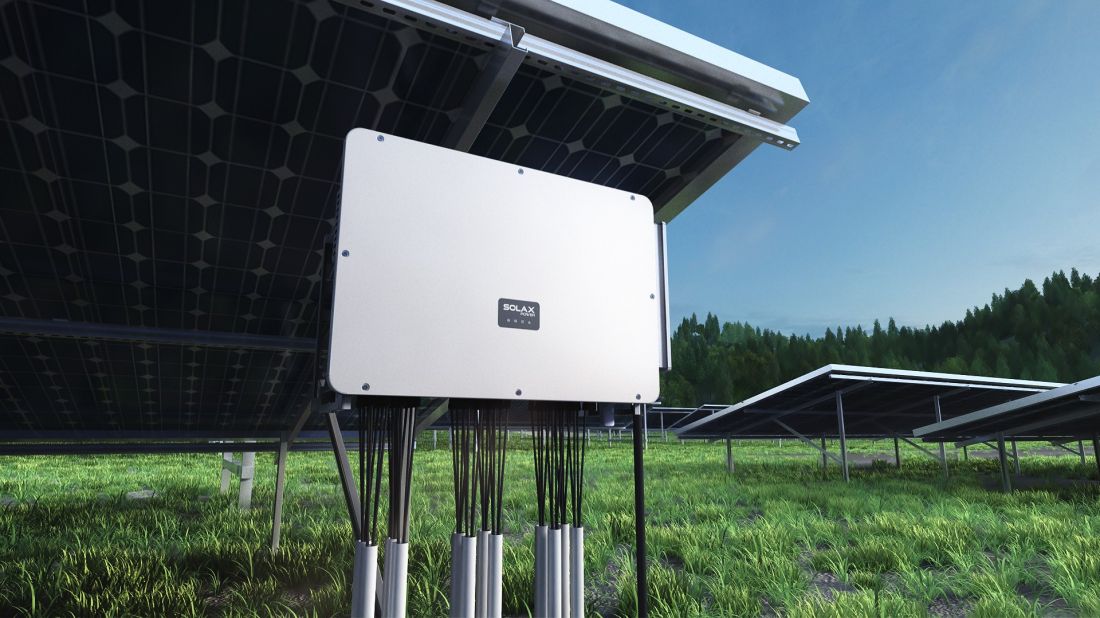

X3-Forth
© SolaX Power
X3-Forth
© SolaX Power
X3-Forth
© SolaX Power

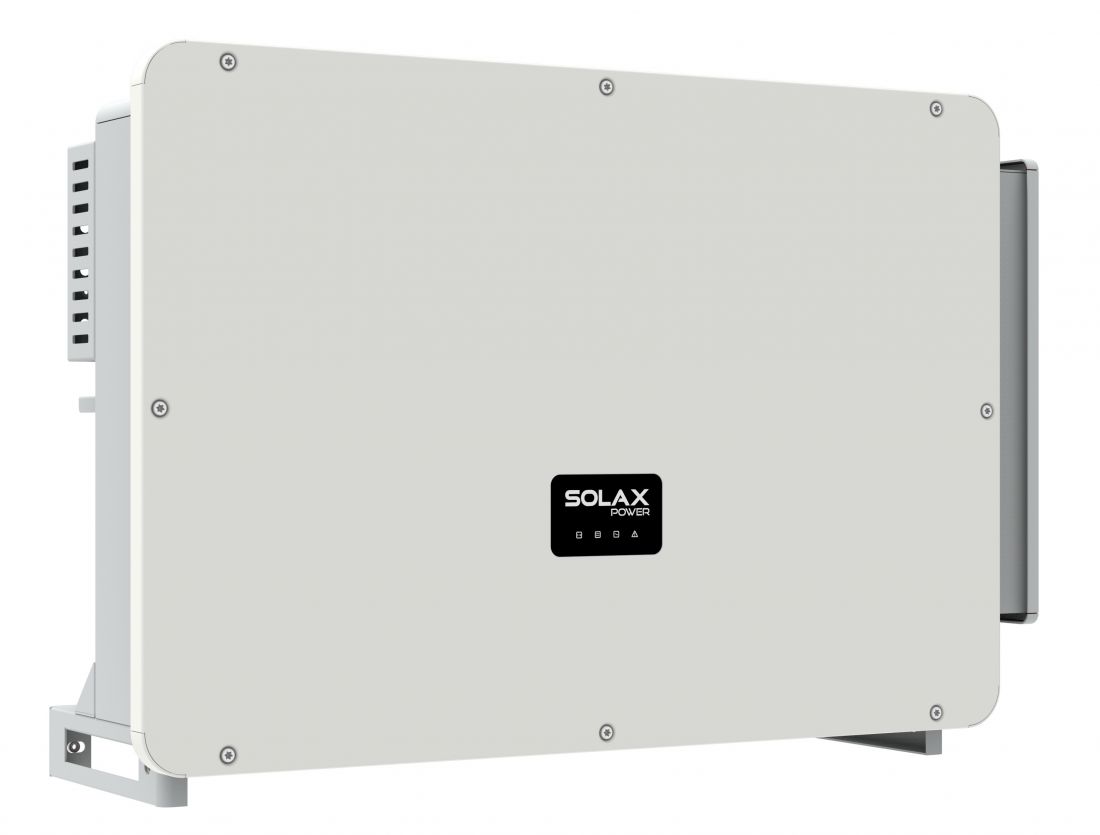

X3-Forth (80-150kW)
The X3-FORTH is rated at 80-150kW and is the maximum power product in the SolaX product series. I-V curve diagnostics enables the inverter to detect any malfunctions and helps owners respond quickly to increase profits. Support for PLC communication with fewer cables makes installation easier. SVG function provides better power quality to the grid. AFCI protects the product from fire hazards, ensuring safe operation.
© SolaX Power
X3-FORTHfeatures:
- maximum efficiency up to 99%,
- MPPT voltage range 180~1000V,
- 12 MPPT max, 2 strings per MPP tracker,
- 150% PV oversizing on input, 110% overload on output,
- max 32A MPPT current,
- IP66 protection rating,
- AFCI protection (optional),
- AC terminal temperature detection,
- SPD AC and DC (type II) inside, SPD type I + II is optional,
- built-in export power control,
- remote setting and updating,
- 24-hour operation monitoring,
- support for intelligent I-V curve diagnostics,
- night reactive power compensation,
- aluminum AC cable connection available,
- power line communication (PLC) (optional),
- fuseless design with intelligent chain current monitoring,
- intelligent air cooling technology for long fan life,
- advanced heat dissipation technology.

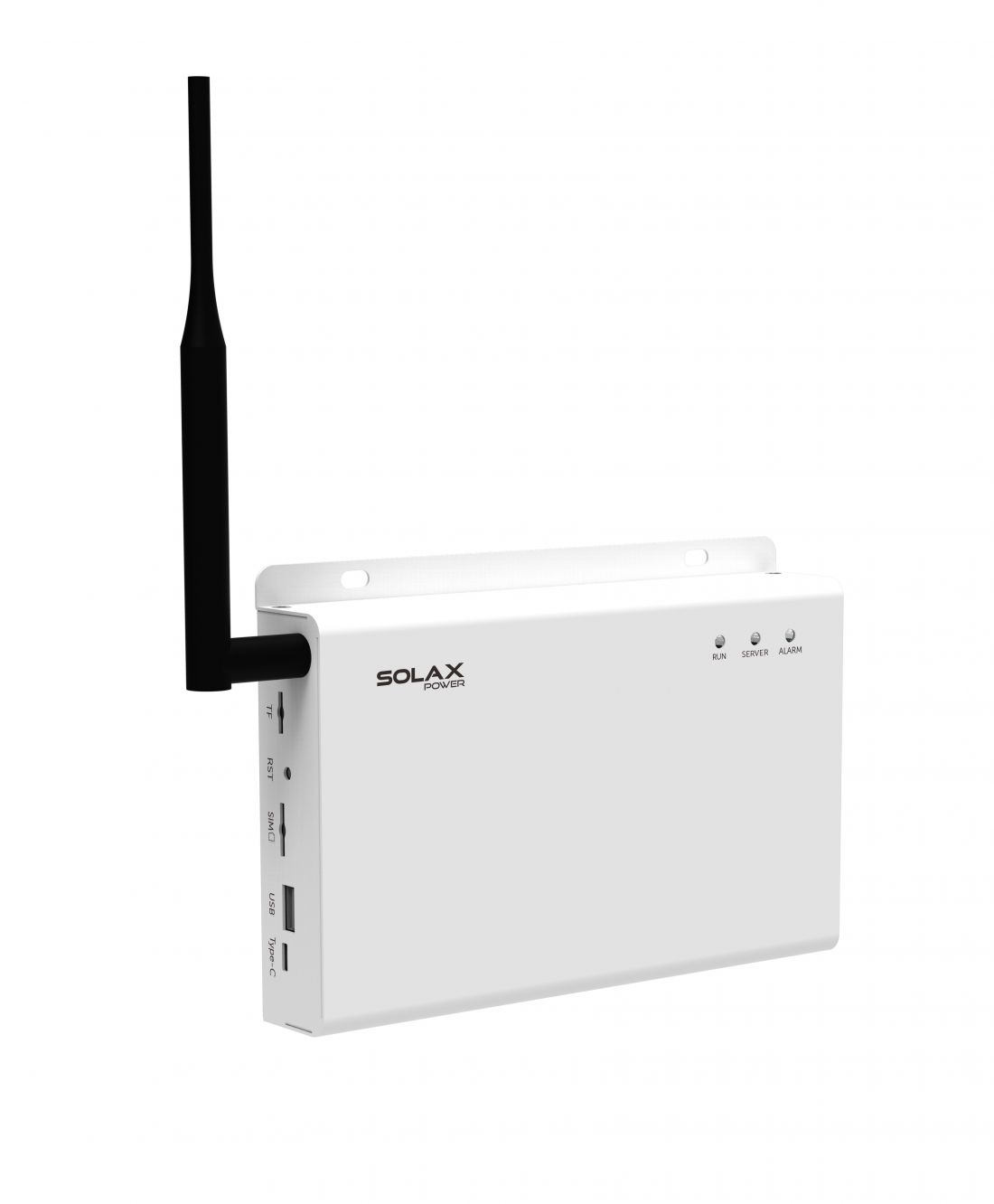

SolaX DataHub 1000
© SolaX Power
SolaX DataHub 1000
TheSolaX DataHub 1000 is a network solution that includes 3 ports, each supporting up to 20 inverters. The total system connection can be expanded to 60 with a full system capacity of 9 MW. Your power plant can be more flexible with the SolaX DataHub 1000. For example, a 1.36 MW station with 10 parallel X3-FORTH 136 kW systems or a better solution, 9 parallel X3-FORTH 150 kW systems.
For more information, visit the company's SolaX Power Polska page on the PdA portal.
