Fenko
The task of the ventilation cowl in single-family dwellings is to ensure proper values of gravitational draught in ventilation ducts. The fan works as a gravitational cowl at times when atmospheric conditions allow it. Necessary for this is the right temperature difference and external air movement (wind).
Fenko
© UNIWERSAL
In such cases, the negative pressure induced in the ventilation duct, is often sufficient to achieve the correct level of ventilation air flow removed from kitchens, bathrooms or toilet rooms.
Whenatmospheric conditions do not allow it or there is a need to increase the ventilation draft, the user can turn on the mechanical operation of the fan in the first gear (speed 1000 1/min) or in the extreme case: the second gear (speed 1400 1/min). The maximum amount of air that the fan is able to extract from the room is, for mechanical operation, respectively, 120 m³/h for the first gear, and 180 m³/h for the second gear of the motor operating speed.
These capacities are greater than or equal to typical bathroom fans mounted in the wall inside the room. However, the acoustic nuisance of their operation occurs outside the cavity room. The sound pressure level is low at 33 dBA and 41 dBA, respectively, and does not cause annoyance outside the ventilated room.
An innovation is the fact that a DC motor is installed in the fan, whose operation is based on the fact that it is powered from a 230 V single-phase outlet. Inside the motor the conversion of alternating current to direct current takes place. This makes it possible to achieve a very low installed power level of 9.5 W / 6.2 W respectively.
Mag-200
© UNIWERSAL
Mag-200
Mag-200 fan is a hybrid unit with higher efficiency than Fenko. When using MAg-200/EC fans (27 Watt electronically commutated motor), hygienic norms of rooms for a building with a total height of up to five floors were achieved. Ventilation duct with a diameter of 200 mm. The maximum capacity of the Mag-200/EC fan is 400m3/h and with static backpressure resulting from the flow characteristics, which means that it can not be used for higher buildings. For eight-story buildings, tests were carried out on the Mag-200/AC fan (50-watt asynchronous motor with a rotating stator), whose maximum capacity — 800 m³/h allows for simultaneous ventilation of rooms in the analyzed building.
Vero-150
© UNIWERSAL
Vero-150
Vero-150 type fans are mounted on the roof and support the kitchen hood. This ensures proper ventilation of the kitchen. The fan is made entirely of plastic, it is a polyester-glass laminate permanently dyed in any color.
The properties of the laminate (glass fiber imbued with polyester resin) mean that the product is marked by high strength and resistance to the corrosive effects of atmospheric conditions and air flowing through it. The material used makes it possible to achieve the final lightness of the structure and interesting design of the product.
Three-speed roof fan Vero-150 for kitchen ventilation allows you to effectively eliminate odors emitted during cooking. The fan is mounted externally on the chimney and is connected to the kitchen hood with the help of ventilation fittings. The fan rotor, radial with backward-bent blades, is designed to make the fan low-noise and highly efficient. The fan motor is three-speed, this allows you to select the amount of air sucked out of the hood so that it is appropriate for any intensity of steam and other kitchen odors.

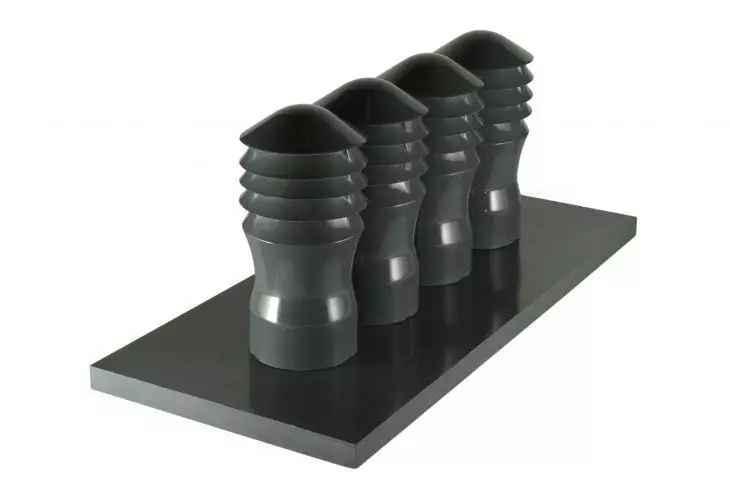

Zephyr
© UNIVERSAL
Zephyr
Zefir vents are the latest design of gravity vents that protect the ventilation duct from outside air. It also prevents rainwater from entering the ventilation duct. It is made of durable and aesthetically pleasing colored polyester-glass laminate (laminate colors available according to RAL — basic ash 7001).
Temperature resistance of Zephyr 60°C, it is possible to make it from vinylester laminate with temp resistance of 100°C or from stainless steel. ZeFir ventilator systems are also designed in a multi-element design on a common manifold covering the ventilation outlets from above, as well as in an assembly arrangement with typical PVC pipes ∅150 mm and ∅250 mm.
