KONSPORT is a fence manufacturer for more than 25 years. It specializes in the production of metal fences (from light and simple models to massive, built-up structures), designed mainly for single-family houses. Among the most popular models, it is worth mentioning P82 and PS004, or products from the Verticale line. An interesting solution is the DIVERSO model, in which it is the customer who designs the fence pattern, or the XPS line, where the main filling of the fence is extruded polystyrene.

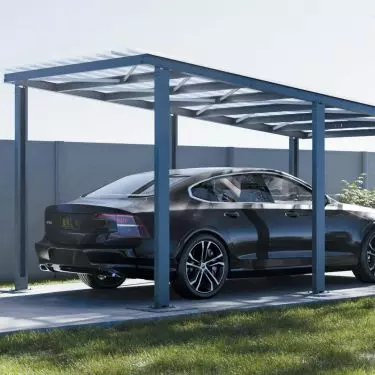

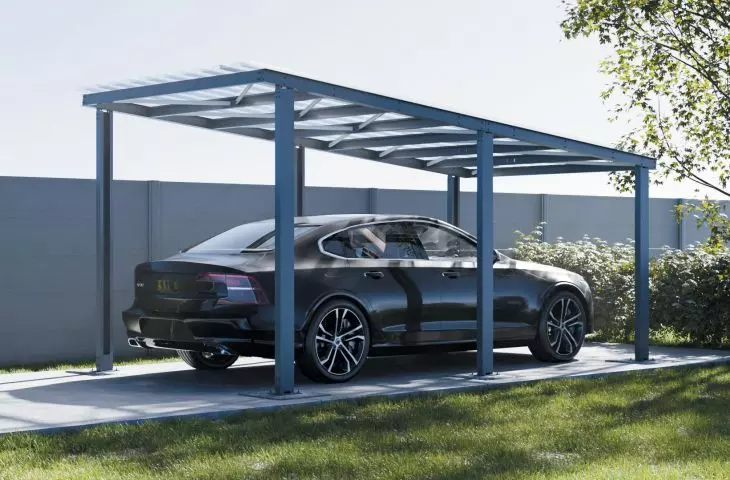

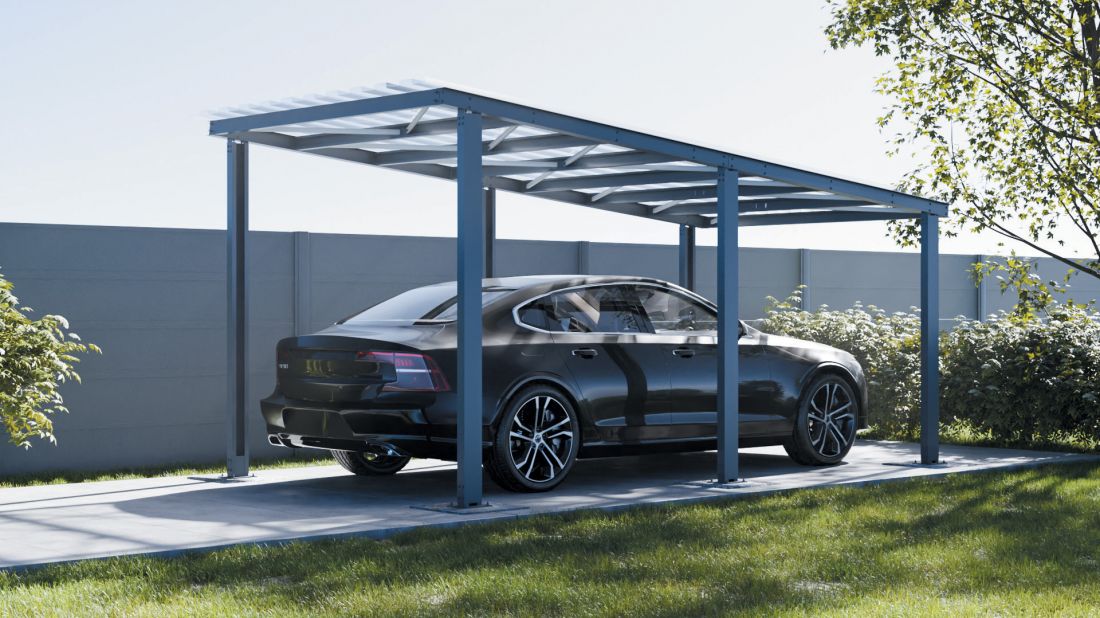

Carport with polycarbonate roof
© KONSPORT
CARPORT - A MODERN CARPORT WITH THE OPTION OF A ROOF MADE OF PHOTOVOLTAIC PANELS
Innovative photovoltaic products have been added to Konsport's offerings, one of which is the Carport. This is a lightweight, durable and weatherproof structure, shaped like a carport. It protects vehicles, garden tools from rain, snow or hail, and, in a variant with a roof of photovoltaic panels, allows the production of electricity.

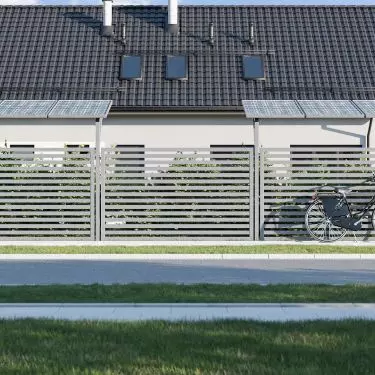

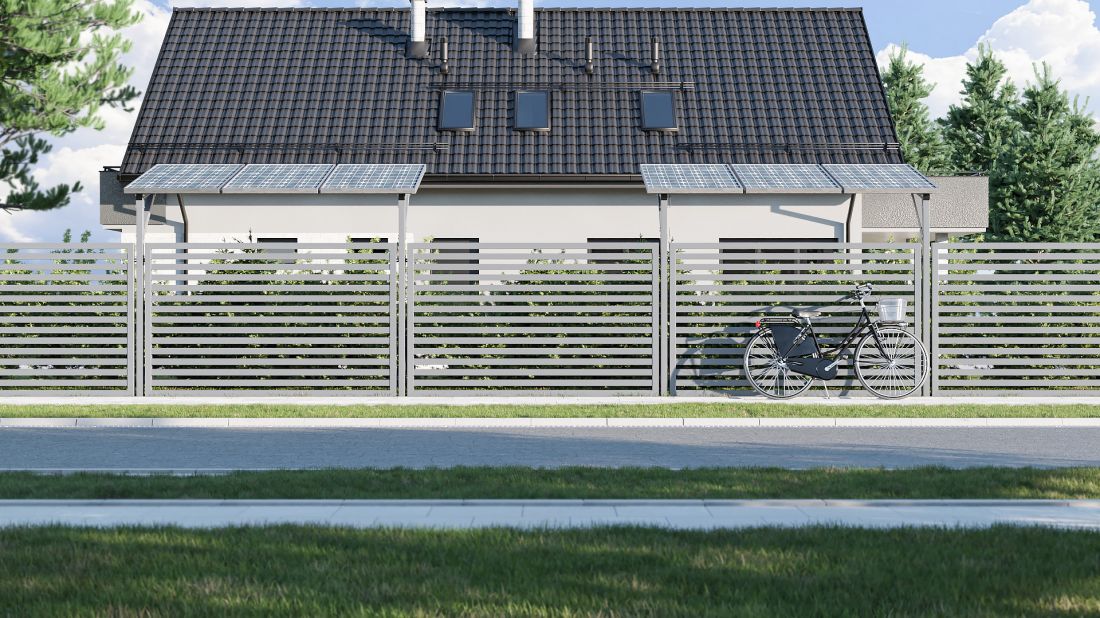

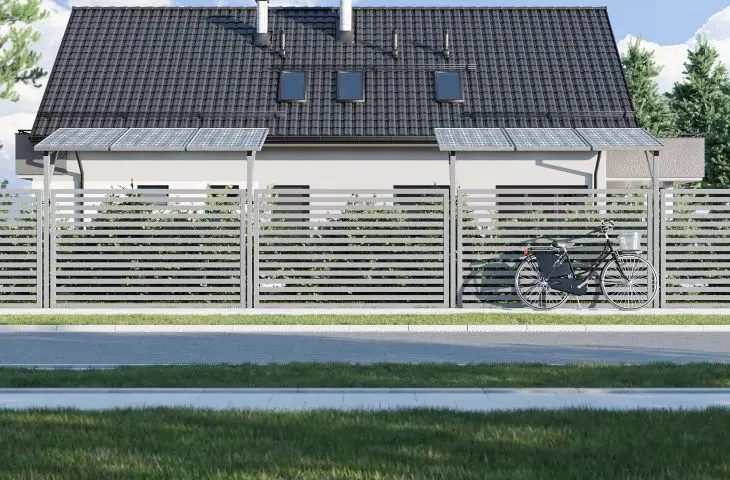

Fence posts with preparation for installation of photovoltaics
© KONSPORT
Carport is a carport for self-assembly, which comes in three variants:
- with preparation for trapezoidal sheet metal roofing
- with preparation of the roof for installation of photovoltaic panels
- with preparation for polycarbonate roof*.
* roofing of photovoltaic panels, polycarbonate and trapezoidal sheet is not part of the product.

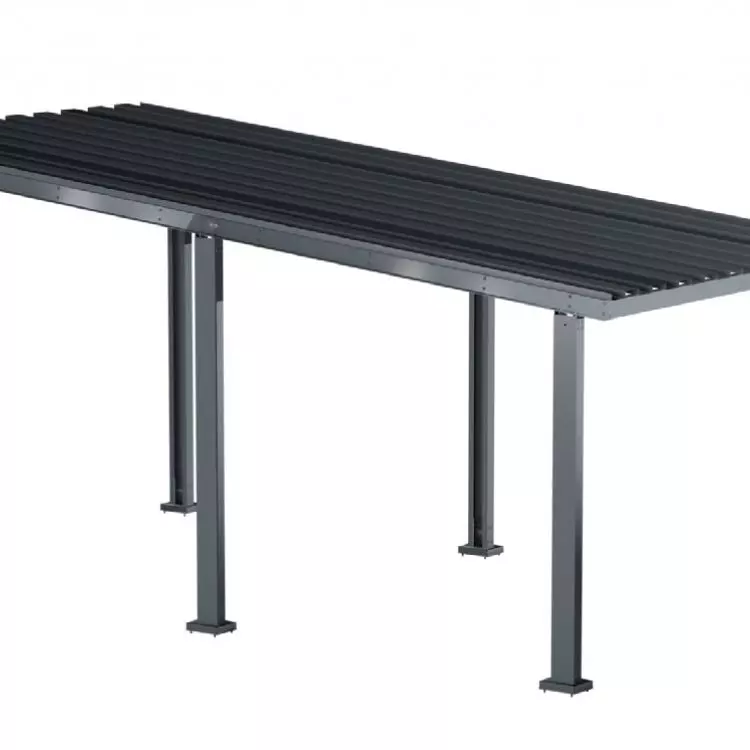

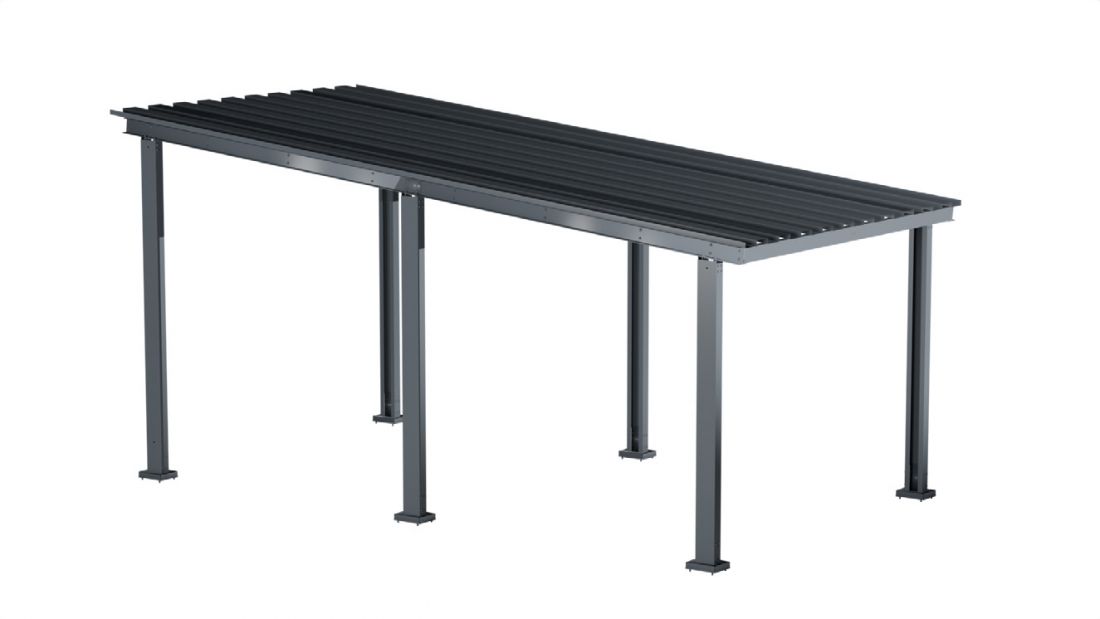

Carport with preparation for trapezoidal sheet metal roof assembly
© KONSPORT
Carport steel structure consists of the following elements:
- Main posts - channel section 160/60/40/2.5 mm
- Main transoms - double channel (twin) 120/50/2,5 mm
- Roof purlins - channel section 110/40/15/2.0 mm
- Roof bracing - channel 40/20/1.2 mm
- Channel - 50/30/13/2 mm (only in version with roof prepared for installation of photovoltaic panels).

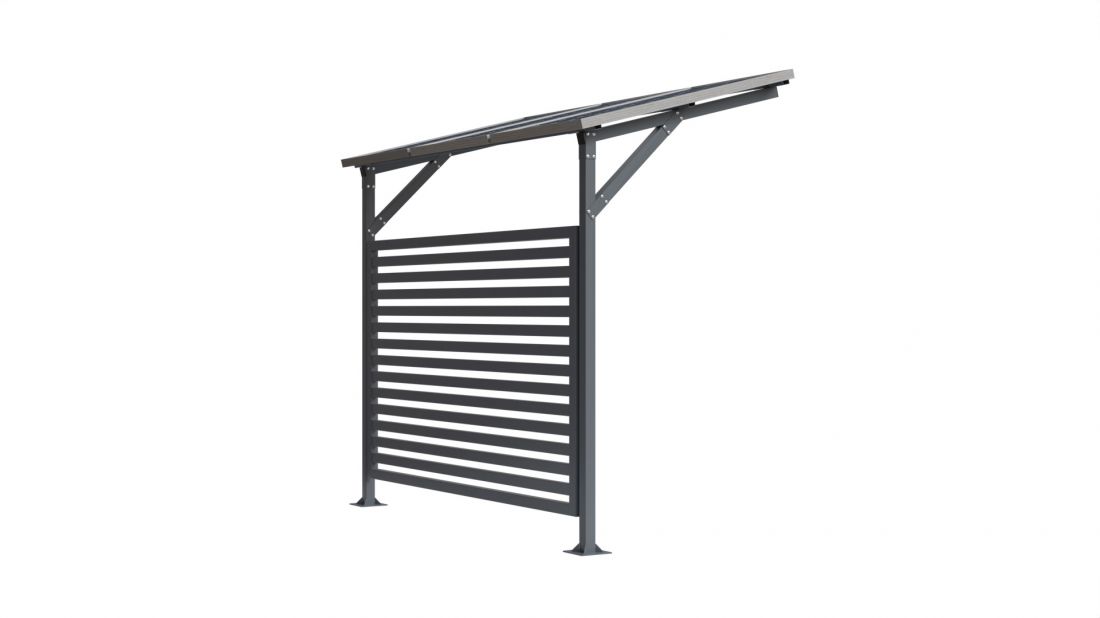

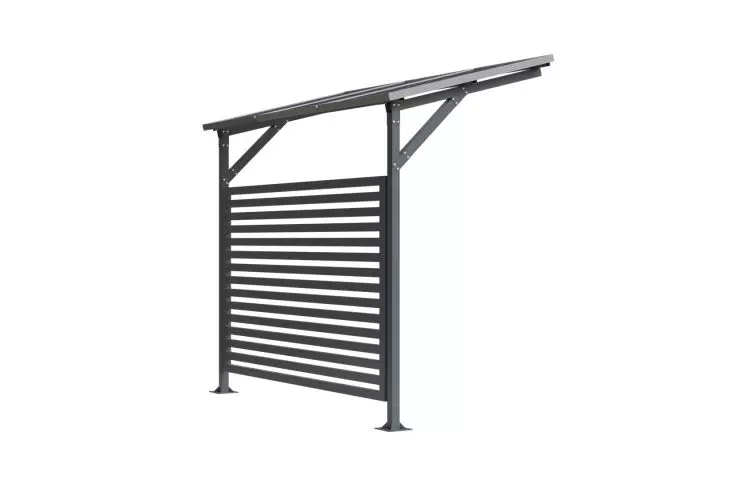

Poles with preparation for installation of photovoltaics and spans between the poles. It is possible to install almost any span from the Konsport line of fences
© KONSPORT
The carport should be mounted on foundation footings of 600/600 mm and a minimum depth of 800 mm using mounting bases.
Each carport can be expanded with another twin segment, allowing to enlarge the covered space. The extension increases the width of the structure by 3 meters and has the same roofing as the base module.

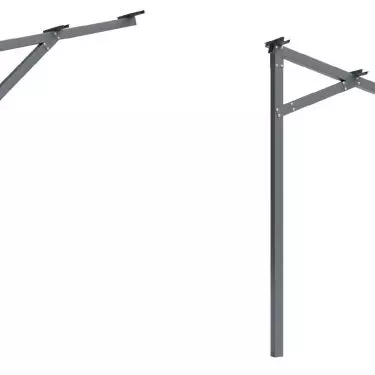

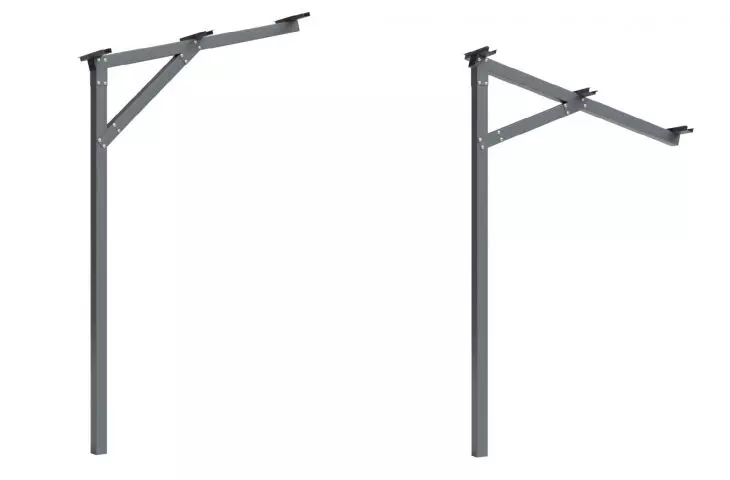

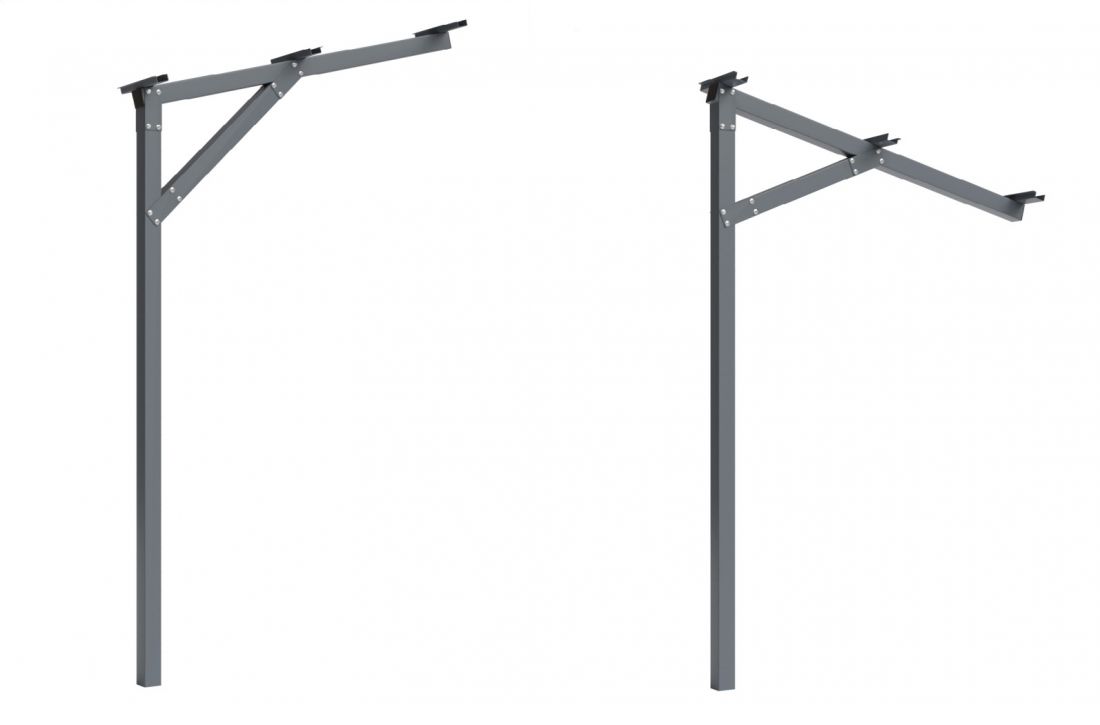

Posts with preparation for installation of photovoltaics in 2 available variants (facing upwards and downwards).
© KONSPORT
FENCE POSTS WITH PREPARATION FOR INSTALLATION OF PHOTOVOLTAIC PANELS
Another novelty in Konsport's offer is a steel post prepared for mounting photovoltaic panels. The company offers a wide range of post heights and the possibility to adapt the post, both in structures that require concreting in the ground and for anchoring with a metal footing (post on the brand).
The posts can be used directly as a structure for photovoltaic panels and as elements of a fence. It is enough to install Konsport spans between the posts over which the panels will be placed. The posts have been prepared so that the panels can be directed upward or downward, depending on the direction of the sun.

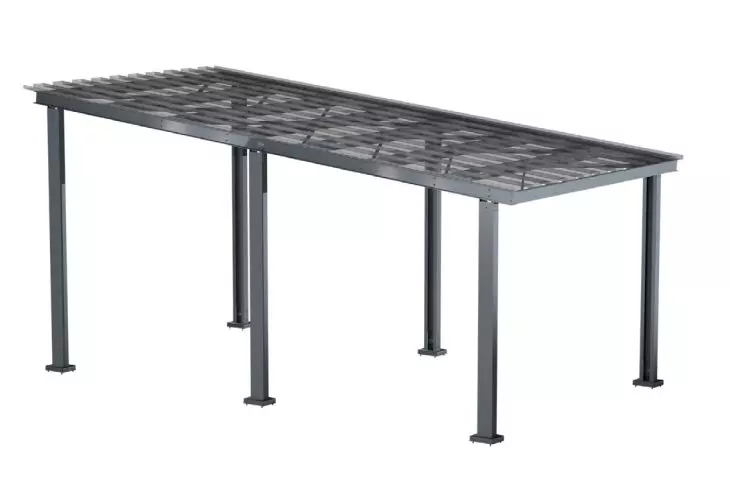

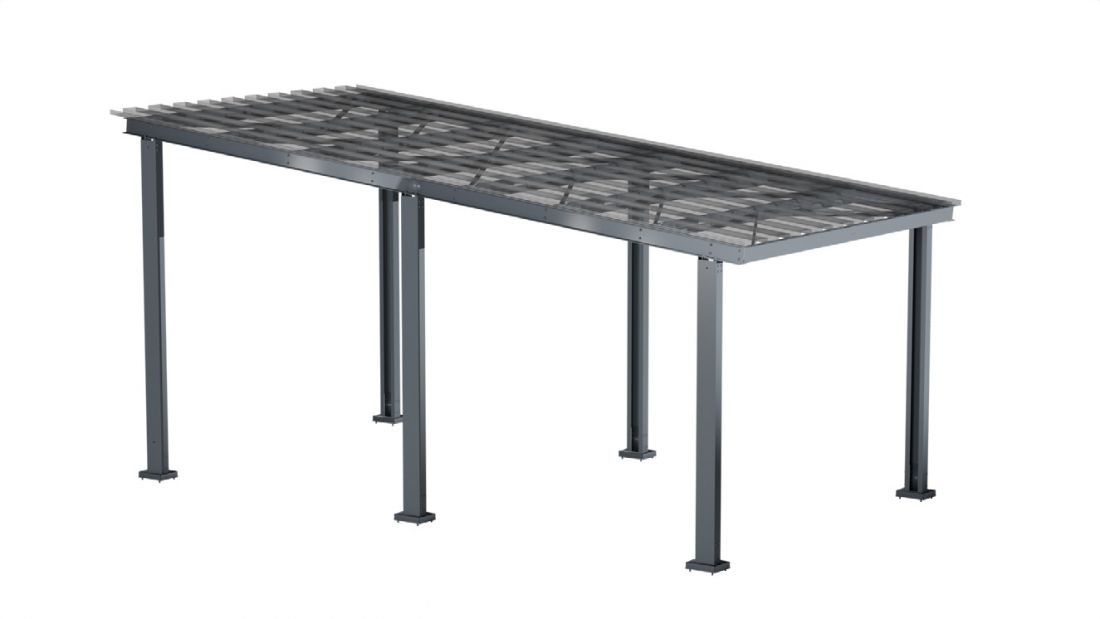

Carport with preparation for installation of polycarbonate covering
© KONSPORT
Detailed offer:
- Available heights (Posts on brands): 1500, 1700, 1900, 2100, 2300, 2500 mm
- Available heights for in-ground concrete posts: 2500, 2700,2900, 3100, 3300, 3500 mm.

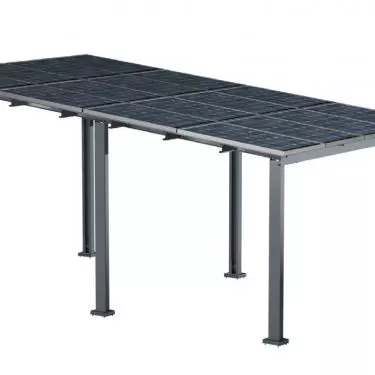

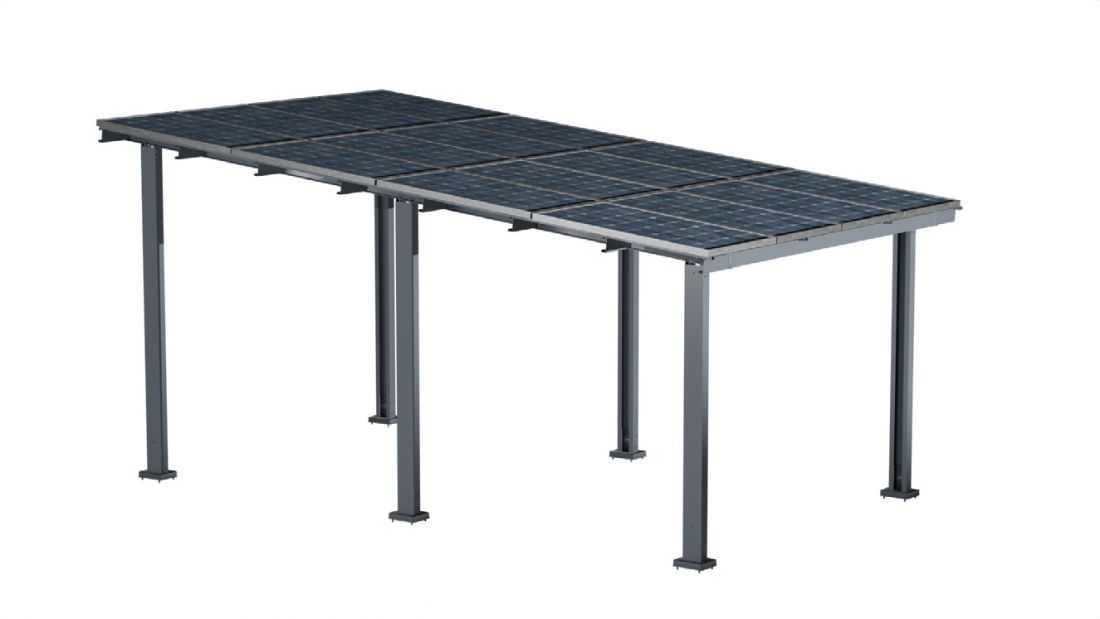

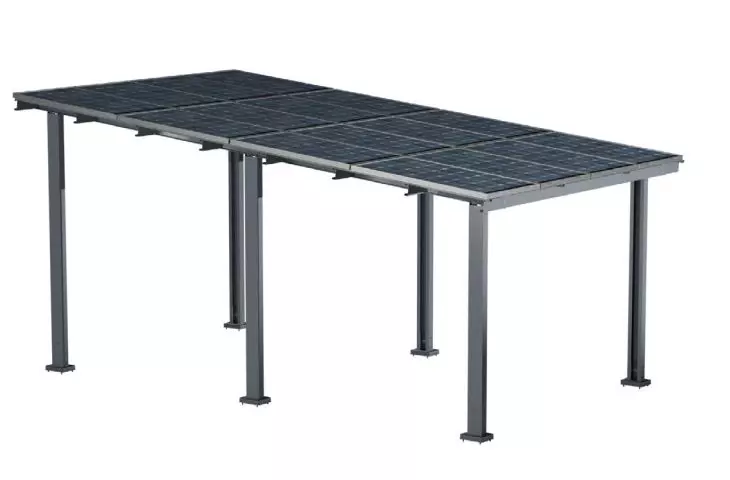

Carport with preparation for installation of photovoltaic panels
© KONSPORT
