Black Crystal. Good 32 by APA Wojciechowski Architects.

25 of April '22
Technical data
Name: Dobra 32 Apartments
Investor: Powiśle BJK
Location: Poland, Warsaw, Powiśle
Studio: APA Wojciechowski Sp. z o.o.
Architect: Marcin Grzelewski
Author cooperation: Tomasz Chmielewski, Maciej Drążkiewicz, Anna Drzewiecka, Magdalena Fiołka, Jarosław Kubik, Magdalena Maciąg, Paweł Majewski, Iwona Matuszczyk, Joanna Nowosadzka, Kamil Rusinek, Izabela Trzcińska
Interior Architecture:
APA Wojciechowski Architects
Landscape architecture: APA Wojciechowski Architekci
Construction: PF-Projekt
Technical facade design: Studio Profil
General contractor: Technico facility engineering

Areas:

  • land
  • buildings
  • usable
  • total



436 m²
436 m²
3 712 m²
4 004 m²

Cubic capacity: 14 456 m³

Calendar:

  • design
  • implementation


2018
2021

At the intersection of Dobra and Zajęcza streets in Warsaw's Powisle district, a corner building - an apartment building designed by a team from APA Wojciechowski Architekci studio - has recently been erected. Housing a total of eighteen apartments, the building is adjacent to such city attractions as the Powiśle Power Plant, the Copernicus Science Center and the University Library. How does the modern building fit into one of the most fashionable parts of the capital?

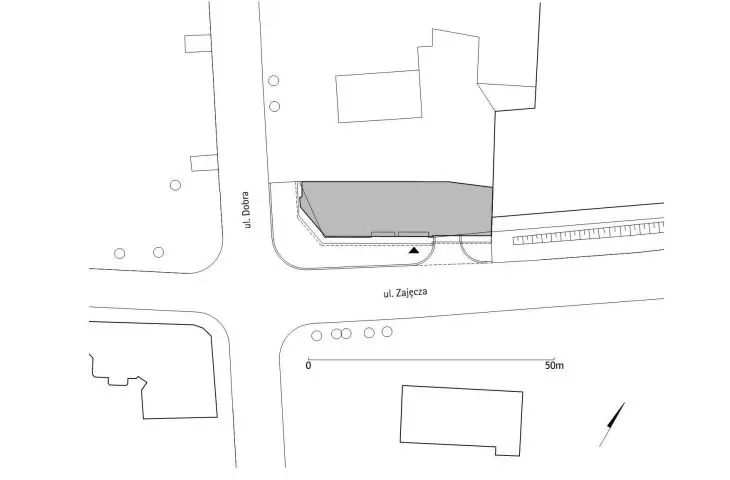

sytuacjasytuacjasytuacja

situation

© APA Wojciechowski Architects

The longer side of the block, designed on a near-trapezoid plan, encloses the frontage of Zajęcza Street, while the shorter side shapes the corner on the side of Dobra Street. In the monochromatic and seemingly monolithic building one can notice a certain "vibration" - a subtle breaking of the elevation line, cutting of the corner, delicate differences in textures or play of light penetrating through openwork panels on the facades.

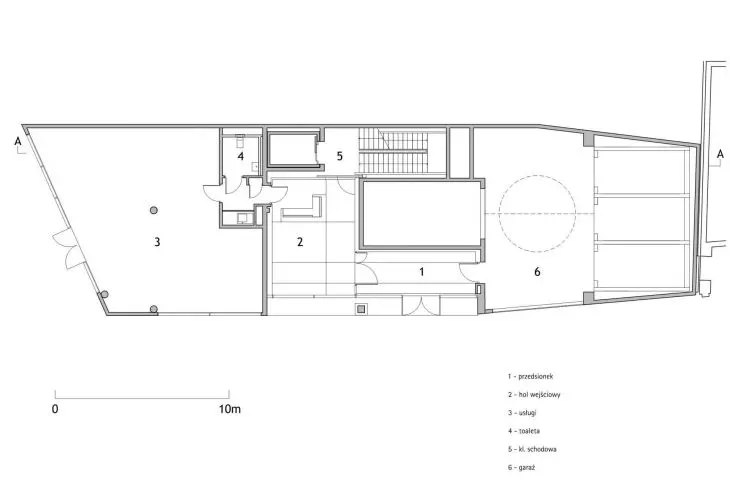

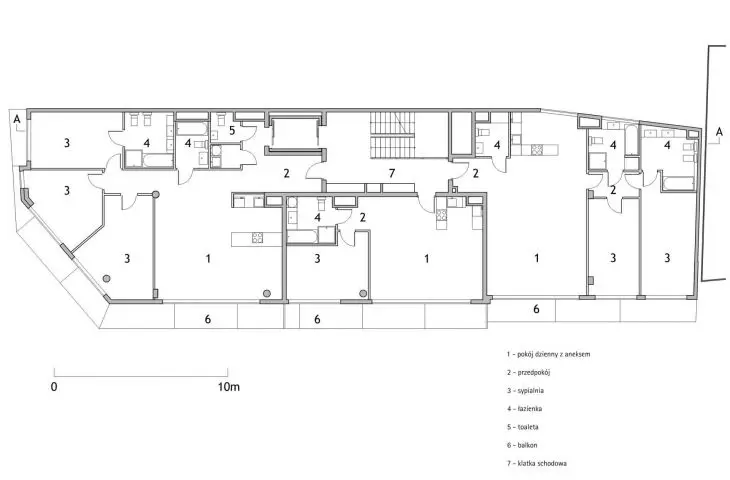

rzutfloorrzutfloorrzutfloor

floor plan

© APA Wojciechowski Architects

like a precious stone

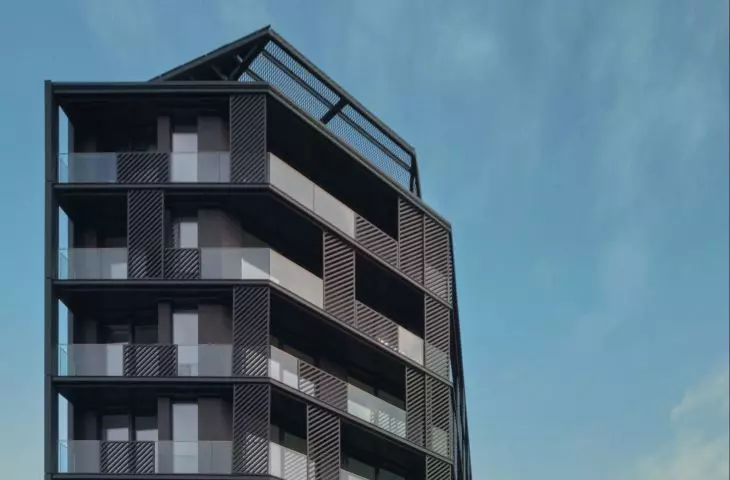

The architects of the Warsaw-based studio APA Wojciechowski Architekci wanted above all, as they explain, the corner of the building to be carved like a precious stone, and at the same time to bring to mind associations with the simple and multifaceted structure of crystal.

apartamentowiec zlokalizowany jest na skrzyżowaniu ulic Dobrej i Zajęczej na warszawskim Powiślu architektom zależało na tym, aby narożnik budynku wyrzeźbiony był niczym szlachetny kamień

Photo: Maciej Drążkiewicz

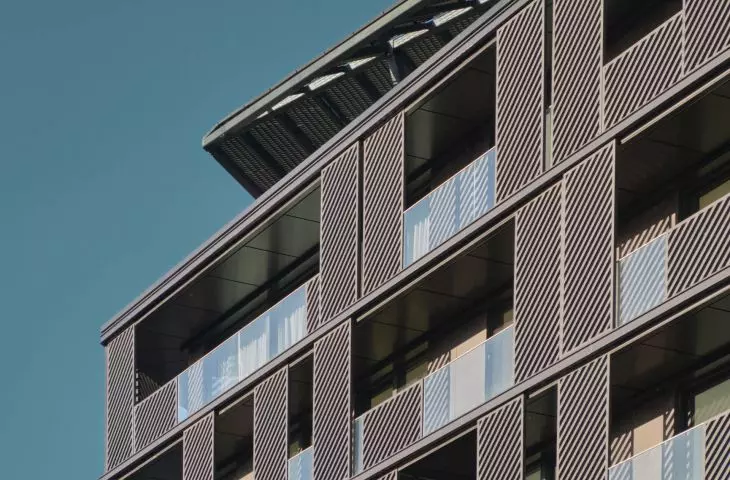

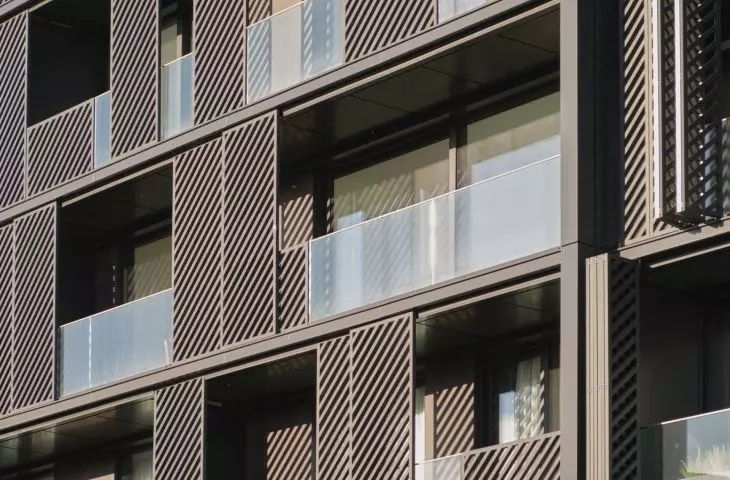

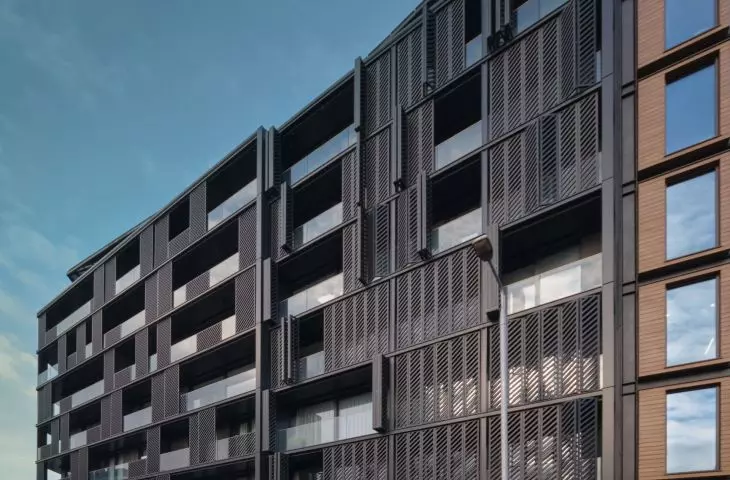

The building is characterized by subdued colors, harmonizing with neighboring office buildings, and subtlety of details. The large glazed fac ades on the street side have been withdrawn into the balconies, providing an additional outer shell in the form of fixed and sliding openwork panels to protect the interiors from excessive sunlight and overheating, the designers explain.

Inspired by Powiśle

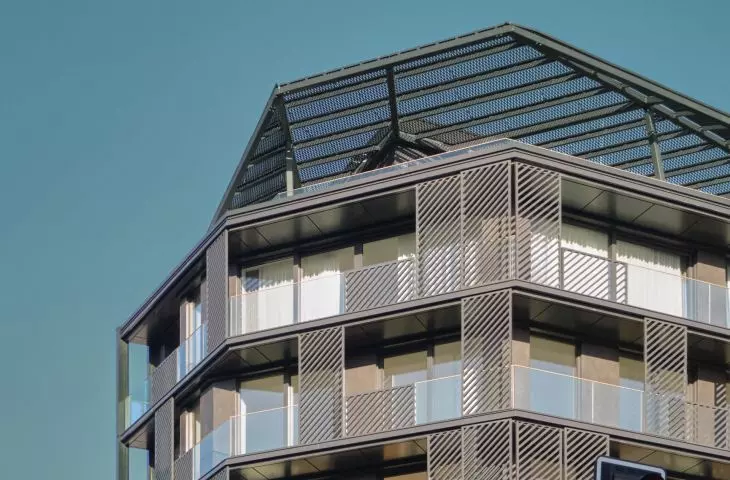

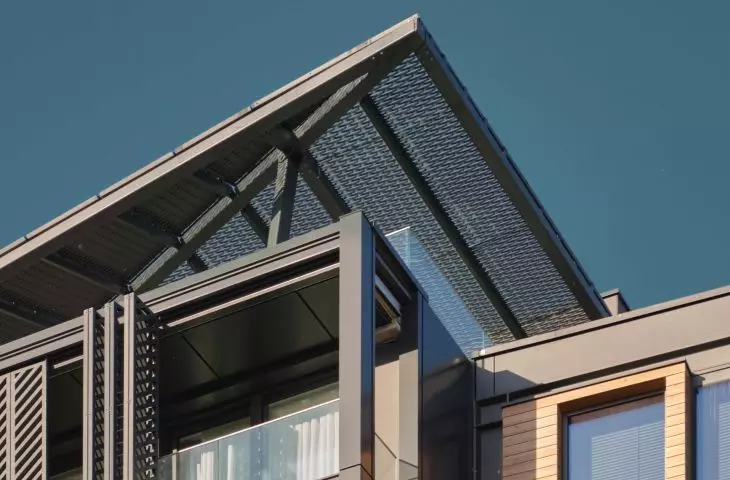

The building is divided into three parts - the first floor, which is set back deep into the plot, six repetitive floors making up the main body of the building, and an openwork can opy crowning the whole, providing shade on the terraces of the highest apartments.

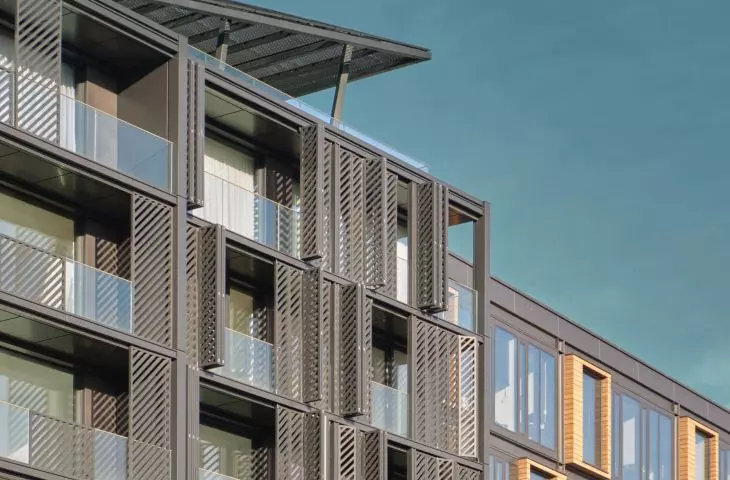

Its three-dimensional geometry, divided into triangular elements, inclined at different angles, and slightly canted edges over the corner and over the eastern end of the building, will result in a dramatic aesthetic effect, which may be associated with the broken form crowning natural crystals or the canopies of the platforms of the Powiśle station by Arseniusz Romanowicz and Piotr Szymaniak, the architects add.

całość wieńczy ażurowe zadaszenie elewacje zdobią ażurowe panele

Photo: Maciej Drążkiewicz

elegant shabby chic

The dark body, according to the architects' assumption, is to be associated by the public with good quality, durability and sophistication. The designers decided on a narrow range of colors - the building is dominated by elegant shades of graphite and anthracite close to black, differentiated by the structures of selected materials.

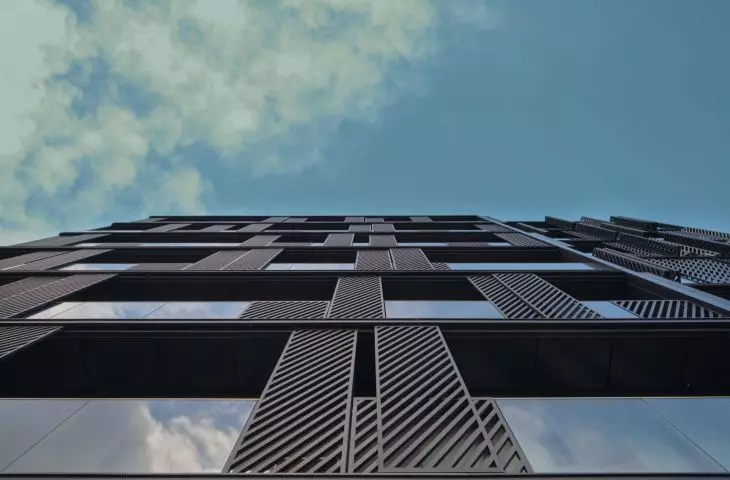

The facade received a stone cladding and from sinters of similar texture. Sliding facade panels, the openwork canopy over the building and other necessary flashings of the facade and terraces were made of aluminum sheets, painted in a dark color, the architects enumerate.

forma zadaszenia kojarzyć się może z zadaszeniami peronów stacji Powiśle stałe i przesuwne ażurowe panele chronią wnętrza przed nadmiernym słońcem i przegrzewaniem

Photo: Maciej Drążkiewicz

The stone cladding of the first floor and the railings on the balconies and terraces are varied by small accents of gold-colored sheet metal.

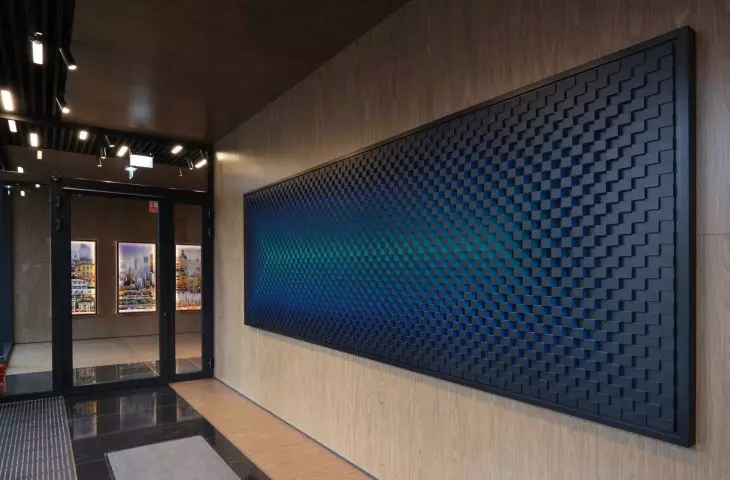

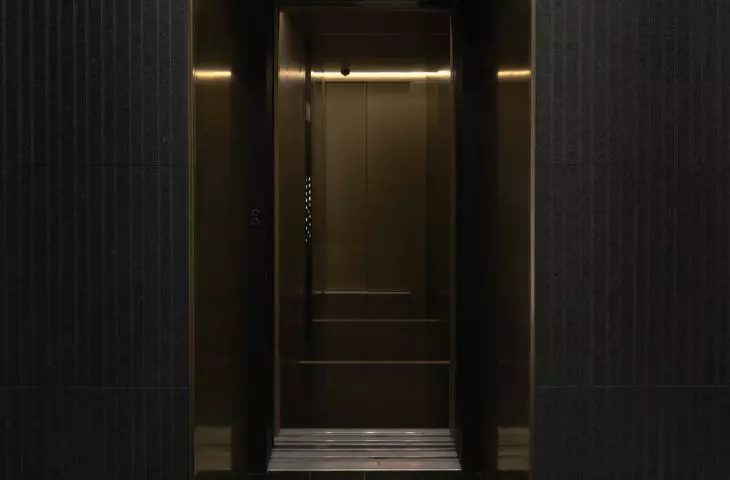

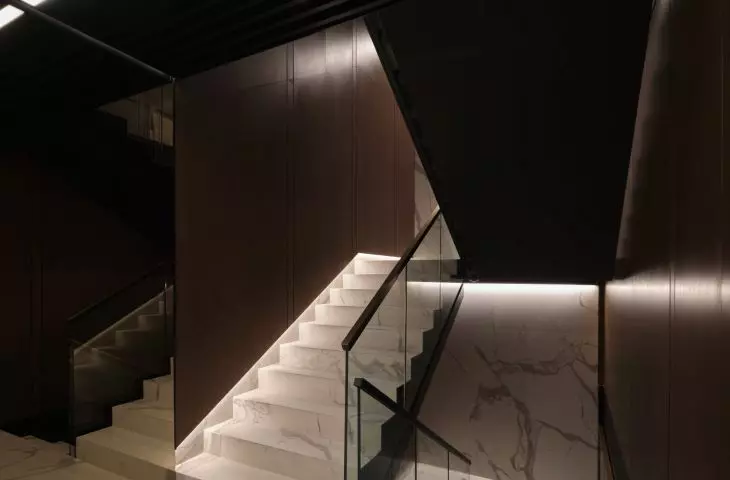

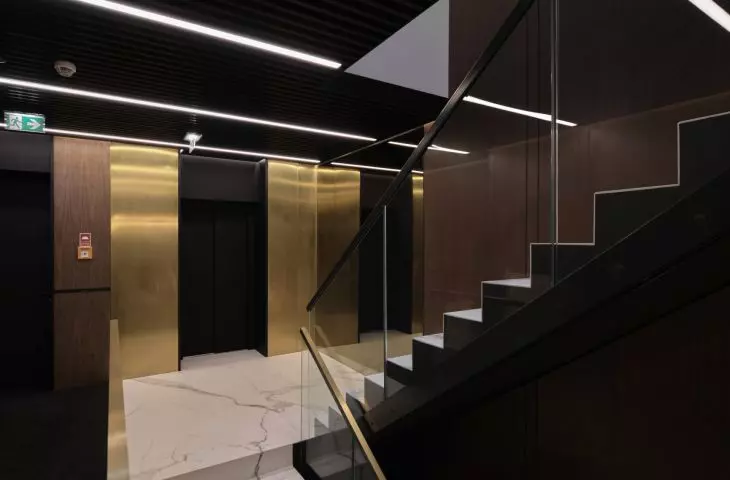

Theinterior of the apartment building is consistent with the exterior. Designed by the same studio, the spaces inside the building are kept in dark, elegant colors interspersed with gold accents.

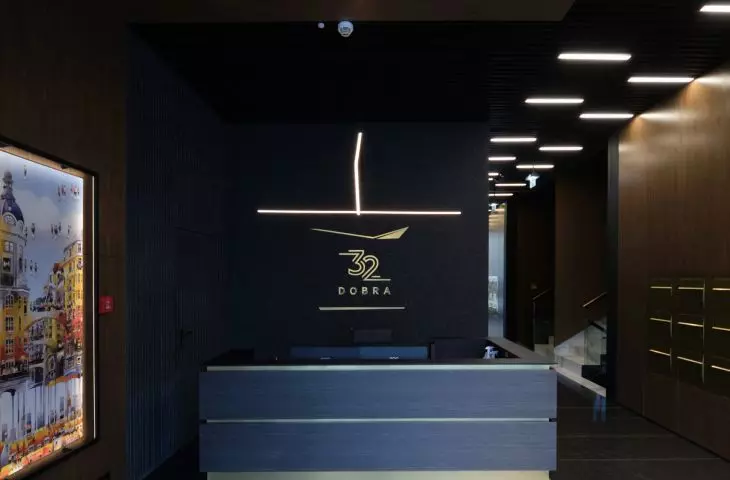

recepcja we wnętrzu dominują ciemne kolory przełamane złotymi akcentami

Photo: Maciej Drążkiewicz
