Insulation system from the inside with mineral ECOVARIO and RENOTHERM panels
Insulating exterior walls from the inside has never been a popular solution. The risk of moisture formation inside the structural partition and the appearance of mold on the wall are the most common reasons for abandoning such an insulation method. A safe solution to this problem are mineral and ecological EcoVario and RenoTherm panels, which, in addition to excellent thermal insulation properties, are highly vapor-permeable and actively capillary. The forming condensate in the wall in autumn and winter is absorbed by the porous board and automatically evaporated into the air. Such a method allows the structural partition to function safely and correctly.
Properties and advantages of EcoVario and RenoTherm systems
© ECOVARIO
EcoVario - thermal insulation from the inside and safety

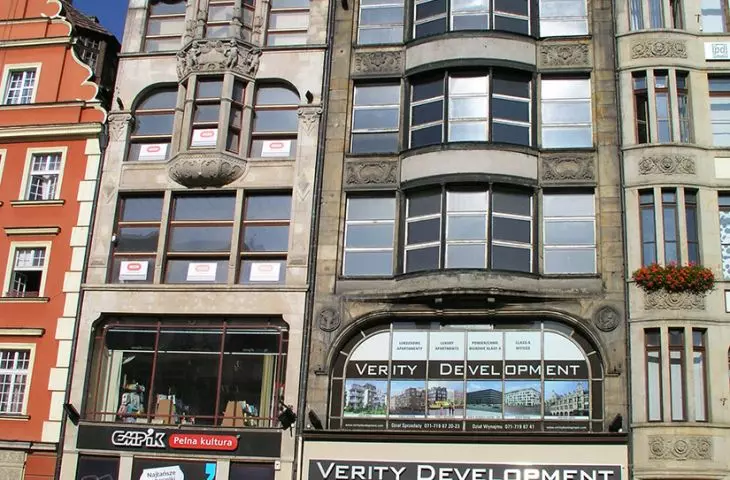

Thermal insulation from the inside is used in buildings where it is not possible to use traditional external insulation. The very lightweight and multi-porous EcoVario panels are thus used for insulating walls and ceilings of buildings with historic facades and public utilities, often with decorative and historic facades. They can also be successfully used in new buildings, such as sports and entertainment venues (arenas, stadiums) as insulation of ceilings of garages and underground parking lots, passages, basements, as well as ventilation shafts. The panels additionally absorb noise and, due to the non-flammability of the material (class A1), provide fire safety. Thanks to the use of insulation from the inside, we can also raise the air temperature in buildings used seasonally or occasionally in a very short time.
RenoTherm - insulating from the inside and improving the microclimate
To insulate historic buildings with high moisture requirements, RenoTherm panels are used, which are additionally characterized by very high capillary activity. The vapor-permeable board automatically regulates the relative humidity of the indoor air and keeps it at a constant, safe level. In this way, it improves and provides a healthy microclimate for the people in them.
Features and advantages of EcoVario and RenoTherm systems
© ECOVARIO
Application of RenoTherm panels:
- buildings with half-timbered ("half-timbered") construction
- libraries, museums, galleries
- conference rooms
- basements, cellars adapted for catering and office purposes.
Features and advantages of EcoVario and RenoTherm systems
© ECOVARIO
Features and advantages of EcoVario and RenoTherm systems
- natural, ecological and friendly material
- low thermal conductivity coefficient of the material λ=0,040 W/(m-K) allows significant reduction of heating costs and energy savings
- increase in property value
- a real sense of thermal comfort and cozy interior
- provides a friendly and healthy microclimate of the premises
- technically correct and safe thermal insulation
- protects against the development of moisture and mold
- non-flammable material (class A1)
- ease of installation.
Installation at a glance

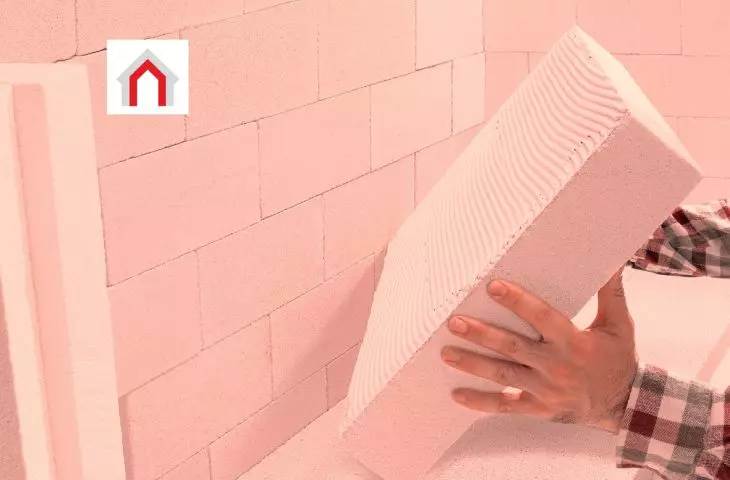

Before starting installation work, check the stability and evenness of the substrate. Ecovario and RenoTherm panels are glued full-surface to the wall using the comb method with RenoKSL adhesive mortar. In the next step, the same mortar is applied to the glued boards, combed with a toothed trowel and embedded with fiberglass reinforcing mesh, and then trowelled. Finally, we cover the smoothed boards with a paint coat with high water vapor diffusion, such as silicate paint for interiors, lime or chalk paint.
Natural and environmentally friendly EcoVario and RenoTherm boards are effective, safe and healthy solutions in construction.
Properties and advantages of EcoVario and RenoTherm systems
© ECOVARIO
O
RENOVARIO moisture and mold control system
Mold can form and grow in places where favorable conditions exist: moisture, proper temperature and substrate. The causes of mold formation are generally well-known: excessive indoor moisture production (washing, cooking, drying) in tandem with inadequate ventilation, wall frosting, workmanship errors and associated so-called "thermal bridges" and others. At low outdoor temperatures and high relative humidity of the indoor air in insufficiently insulated areas, condensation can occur. As a pictorial example, we can use, for example, the phenomenon of fogging of the mirror after taking a bath. An effective solution to this problem is the use of the Renovario climate board system, which prevents the formation of condensation water and fogging, and at the same time improves the thermo-humidity comfort of the rooms. The high degree of capillary rise of the material causes rapid and self-evaporation of condensate, and the alkaline pH further protects against unwanted mold.
Features and advantages of EcoVario and RenoTherm systems
© ECOVARIO
O
The use of the Renovario climate panel system
- protects the wall surface against moisture and mold
- eliminates unpleasant musty smell in the room
- improves the thermal comfort of the building
- regulates and provides a healthy microclimate in the room

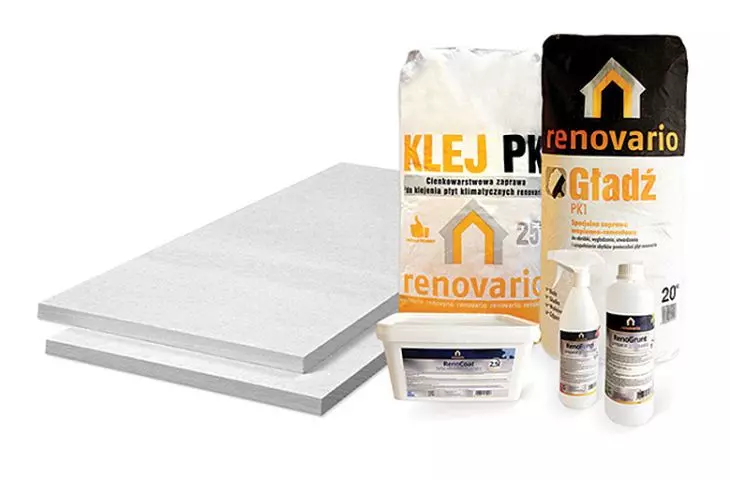

In addition to the Renovario Climate Plates, the system consists of special installation components, which, thanks to their properties, ensure the proper and trouble-free functioning of the actively capillary system:
- RenoFungi fungicide (for removing fungus)
- PK adhesive mortar (for gluing the panels)
- RenoGrund primer (for priming the panels)
- Gładź PK1 smoothing compound (for smoothing the boards)
- RenoCoat silicate paint (for painting smoothed slabs).
The Renovario Climatic Tile System is a professional, complete and effective renovation system for removing moisture and mold from wall and ceiling surfaces.
For more information, visit the company's Ecovario Sp. z o.o. page on the PdA portal.
