VRF Rotenso system in Shell Gdynia
An air conditioning system in commercial premises is an absolute standard. Investors' expectations of air conditioning have long since ceased to be limited solely to providing thermal comfort in the building.

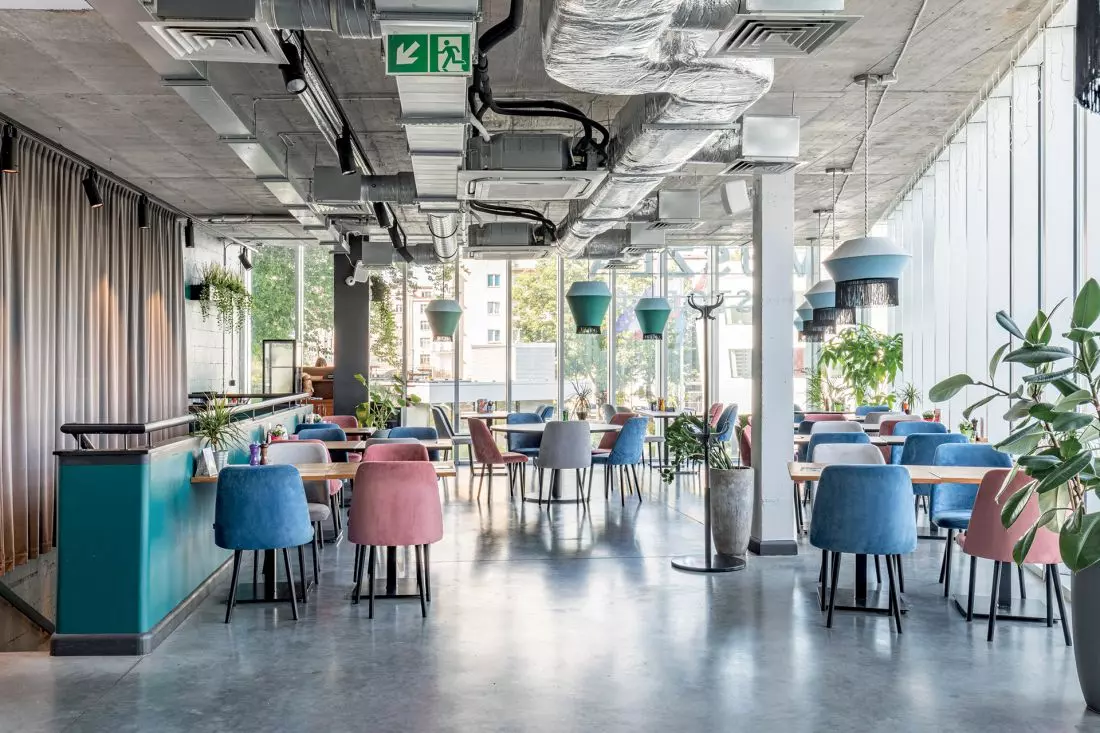

An uncovered Rotenso RVF air conditioning system is an element of interior design
© ROTENSO
Design of Rotenso air conditioners
An important task of air conditioners is also to complement interior design. For this reason, the Rotenso product range includes both room air conditioners in glamorous style in various colors with panels imitating a sheet of mirror, such as the Versus Mirror series, as well as minimalist in form and completely matte like Rotenso TETA, which fit perfectly in modern interiors with satin or matte walls. The same diversity applies to the design of air conditioners designed for expanded commercial VRF air conditioning systems. The trend of exposing installation components is also becoming increasingly popular.

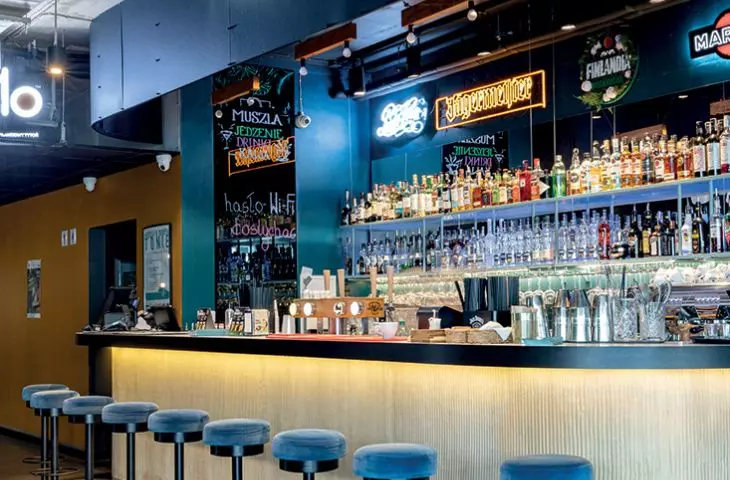

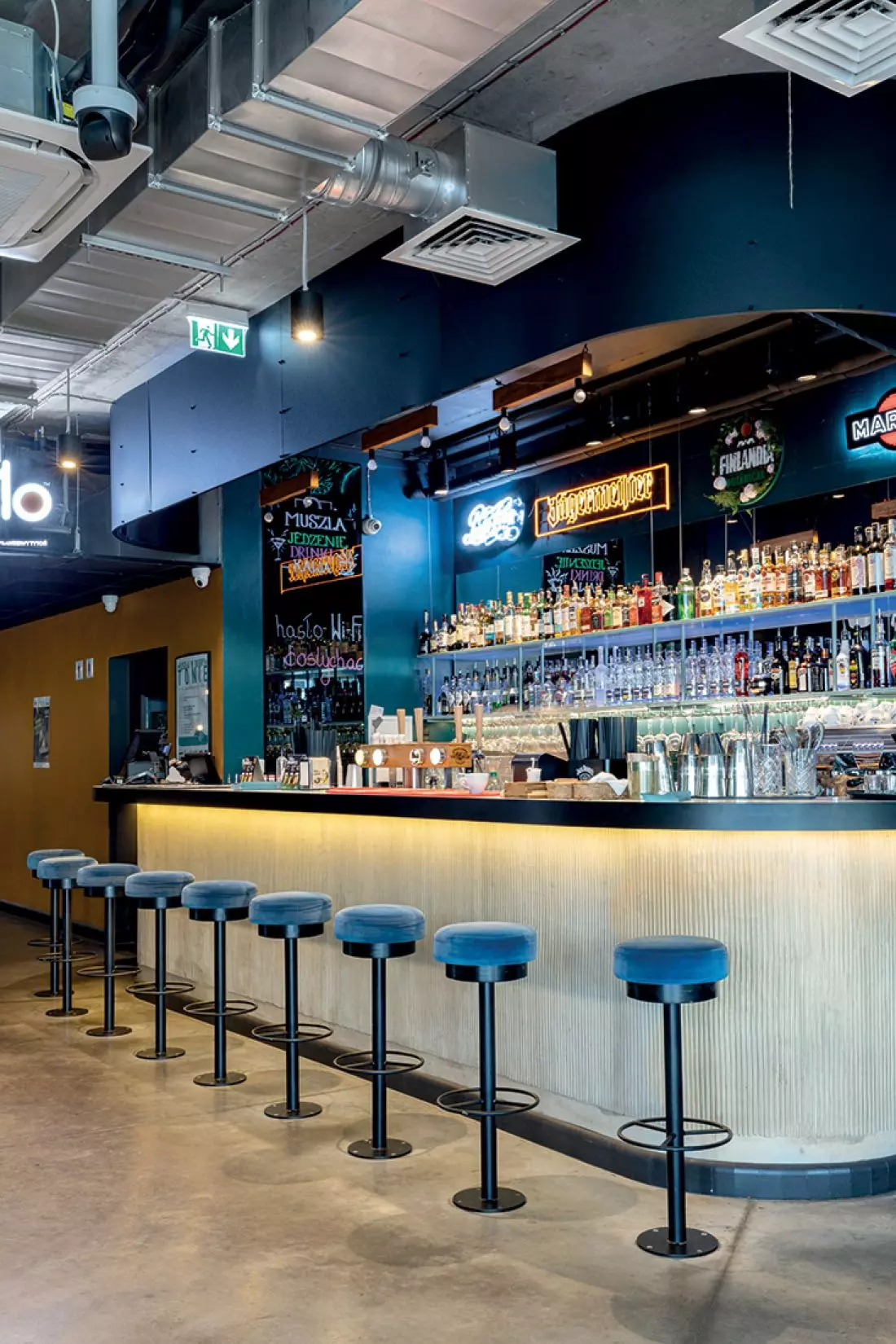

RVF air conditioning system
© ROTENSO
Air conditioning in Shell Gdynia
Located on Grunwaldzki Square, between the Musical Theater and the Gdynia Film Center, the Gdynia Shell forms an important accent of the city's prestigious modernist zone. Created in 2019, as a result of an expansion, the new building impresses with its harmonious combination of the historic part of the building with the glass wings of the superstructure. In the beautiful interiors of the unique building, which houses the restaurant, every detail has been perfected.

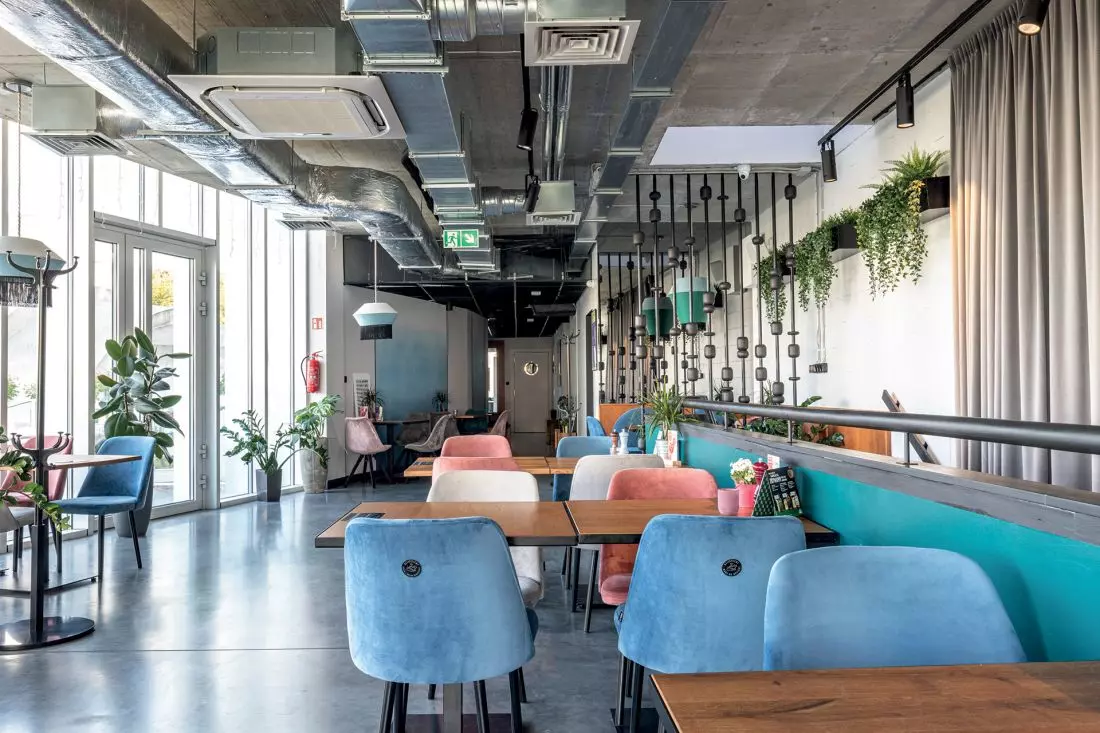

An uncovered Rotenso RVF air conditioning system is part of the interior design
© ROTENSO
Air conditioning installation as a consistent element of interior design
The facility's unique atmosphere is created by the spacious interiors of the consumption rooms. The fully uncovered air conditioning system installation complements the economical yet distinctive design of the premises. Tenji cassette air conditioners with 360° perimeter supply - here uncovered - were suspended from the ceiling, designed as standard. The refrigerant pipes were placed in simple troughs of galvanized sheet metal. In this way, the austere installation of the system blended perfectly into the modernist design of the premises, which was the designers' intention. This type of solution is commonly appropriate in modern commercial buildings, where exposed installations are part of the interior architecture.

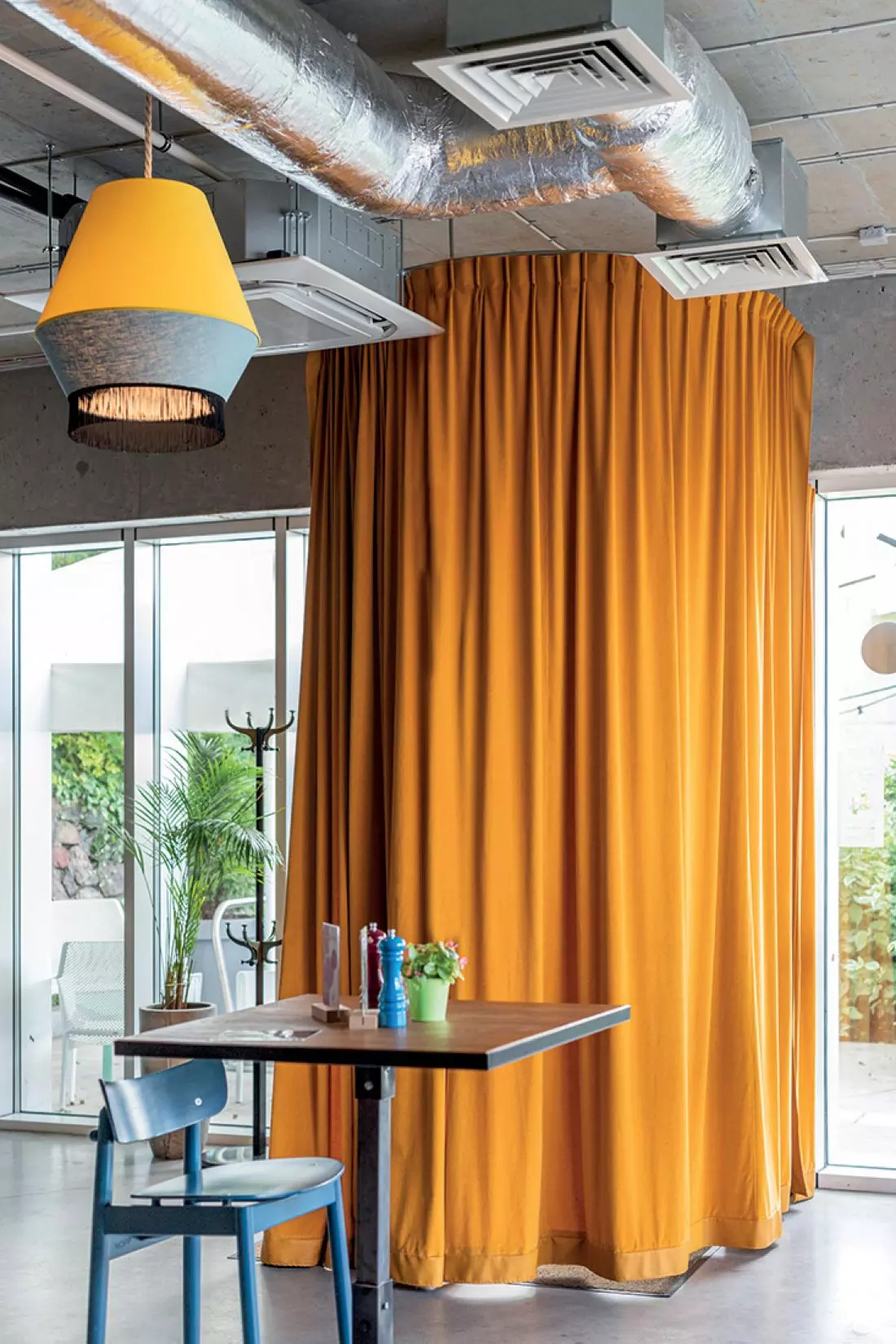

RVF air conditioning system
© ROTENSO
Technology - commercial air conditioning systems
Shell Gdynia takes full advantage of the potential of the iconic site of the former concert shell. Due to its purpose, investors analyzing the design concept of the air conditioning system attached particular importance to the parameters related to loudness. It was assumed that the operation of the system at maximum efficiency could not interfere with the acoustics of musical events that will be held here regularly. The VRF Rotenso system met these expectations. What's more? The Rotenso V5 RVF system can operate in heating mode even at extremely low temperatures down to -30°C. Cooling mode operation is possible at an outdoor temperature of 55°C. The use of a three-pipe - two-pipe system eliminates restrictions on the length of the installation, which can be up to 1,000 meters and allows the connection of up to 100 air conditioners.
For more information, visit the company's ROTENSO page on the PdA portal.
Invited to contact Rotenso air conditioning systems department: systemy@rotenso.pl
