Solutions profiled to meet expectations
Today it is difficult to imagine modern building facades without large glazing. A glass facade adds visual lightness to the structure, optically enlarges the space, and provides a panoramic view from inside.
HTM Gliwice
© YAWAL
Achieving such effects would not be possible without the right technology. Its development has been handled by Yawal for more than 30 years. Many years of experience and the selection of innovative solutions place the company among the leading suppliers of architectural aluminum profile systems. The systems produced by Yawal represent the highest quality and modern technology.
selected systems:
facade
FA 50N - is a system that allows the design and construction of lightweight mullion and transom curtain walls. It is classified among the best curtain walls available on the market.
FA 50N HI - is a system with the highest thermal insulation properties. Modern and energy-efficient, with very high water and wind resistance, it will prove useful in both office and public buildings. To obtain such excellent parameters allows the unique system of foam insulator and the possibility of using double glazing.
FA 50N SL - is used to make structures that form a flat surface from the outside. It combines the advantages of a classic mullion and transom facade with the aesthetic appearance of a structural facade.
FA 50N SW - is a structural window system. It has a universal character, it allows you to make a parallel sliding, swinging or casement window in the facade, with mechanically or structurally fixed glazing.
FA 50N RW - a system that allows the construction of modern roof windows installed in skylights, roofs and conservatories built on the basis of FA50 N and FA50N SL facades. It ensures optimal ventilation of rooms. Distinguished by the highest performance on the market, it is characterized by excellent thermal insulation and high tightness thanks to a new EPDM central gasket and three lines of condensation drainage.
FA 50N INV - a modern system that allows you to make windows embedded in the supporting grid of the FA 50N and FA 50N SL mullion and transom curtain wall. It gives you the possibility to construct inward-opening windows of the curtain wall with tilt-turn, tilt-turn, turn or tilt function. Its characteristic feature is that the window frame and sash are invisible on the outside of the curtain wall.
window and door with thermal insulation
TM 77HI - the use of spacers between the aluminum profiles has made it possible to obtain excellent parameters of thermal insulation, acoustic, security and protection against wind and water. The role of thermal insulation is fulfilled by chambered thermal insulators with filling.
Boroteka
© YAWAL
TM 77HI VENT - is a ventilation window. This solution draws structurally from the popular TM 77HI system and allows the creation of high windows (up to 3 meters) opening inwards. The system is compatible with ROTO AL DESIGNO and SOBINCO hardware. It is possible to install a ventilation window in the facade. It is a safe way to ventilate the room. Its design guarantees the safety of the user.
TM 102HI - a system designed for passive and energy-efficient construction. It meets the highest requirements in terms of strength, quality and aesthetics of the shaped objects. Significantly reduces the access of cool air to the interior of the building in winter, and in summer it protects against excessive heating.
fireproof
TM 75EI - the system for making fireproof walls and doors with fire resistance classes from El 30 to El 60, also allows the creation of smoke-proof structures.
TM62EI - is used to make fire-rated walls and doors with fire resistance class EI 30. The role of insulation in the profiles is fulfilled by thermal breaks made of glass fiber reinforced polyamide.
TM 90EI YAWAL FIRE BLOCK 120 - the system is used to make building partitions of fire resistance class EI 120.
TM 77EI - a system of three-chamber thermally insulated aluminum profiles designed for constructing openable windows with the properties of fireproof partitions. It combines excellent thermal insulation and fire resistance at the level of EI 30 achieved through the use of appropriate glass and cooling elements inside the aluminum profiles.
sliding doors
DP 180 Primeview - a system for making windows and lift-and-slide doors for external development. It is a modern solution based on aluminum profiles with thermal breaks. Its design affects the reduction of thermal energy losses, and thus reduces the operating costs of designed buildings.
Moreview - a system of large-size sliding doors with narrow profiles completely hidden in the floor, walls and ceiling. It gives the possibility to construct doors with a height of up to 4 meters and a maximum weight of the sliding leaf of up to 1200 kg. The innovative design allows the installation of glass panes side by side without aluminum elements visible from the outside.
windows and doors without thermal insulation
PBI 50N - the system is used to make partitions and structures for internal installation that do not require thermal insulation. The depth of the profile (50 mm) makes it one of the strongest on the market in this group.
special
YAWAL SUN PROTECTION - is a system of aluminum profiles designed for making facade blinds, or so-called light breakers. Fixed version light-breakers can be mounted on the facade or building facade at different angles in relation to the angle of incidence of light. A more advanced solution are movable breakers, which allow any control of the position of the shades. The control system gives the possibility to simultaneously close or open all the sunshades installed on the building. Appropriate placement of the breakers allows complete darkening of the room, which is especially important for conference rooms.

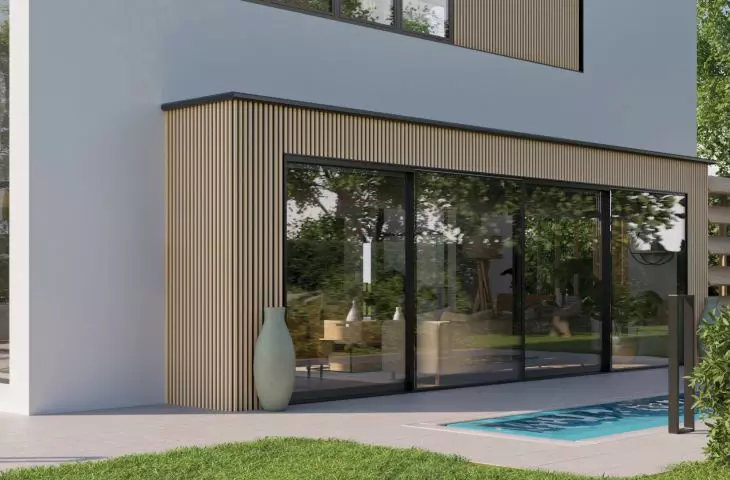

Vertiline system
© YAWAL
Vertiline - a system of profiles that allows decorative aluminum cladding. It can be used in both single-family and residential construction. Aluminum lat hs can be installed inside and outside the building, and are elegant, modern and stylish. They can be arranged vertically, horizontally or at any angle.
