Architectural aluminum profile systems highest quality and modern technology

27 of November '22

MONOPOLIS ŁÓDŹ

...

Today it is difficult to imagine building facades without large glazing. A glass facade adds lightness to the structure, optically enlarges the space, provides a panoramic view.

CUSTOMIZED SOLUTIONS

Achieving such spectacular effects would not be possible without technology. Its development has been handled by Yawal S.A. for more than 30 years. Many years of experience and a wide range of innovative solutions place Yawal S.A. among the leading suppliers of architectural aluminum profile systems. Systems produced by the company are of the highest quality and modern technology.

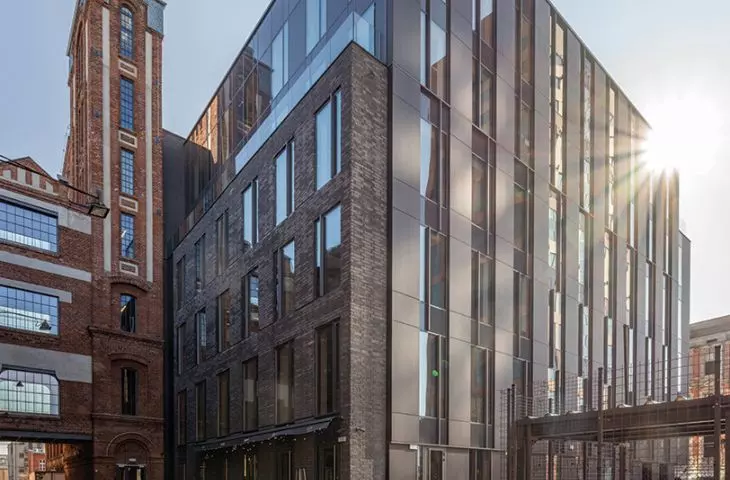

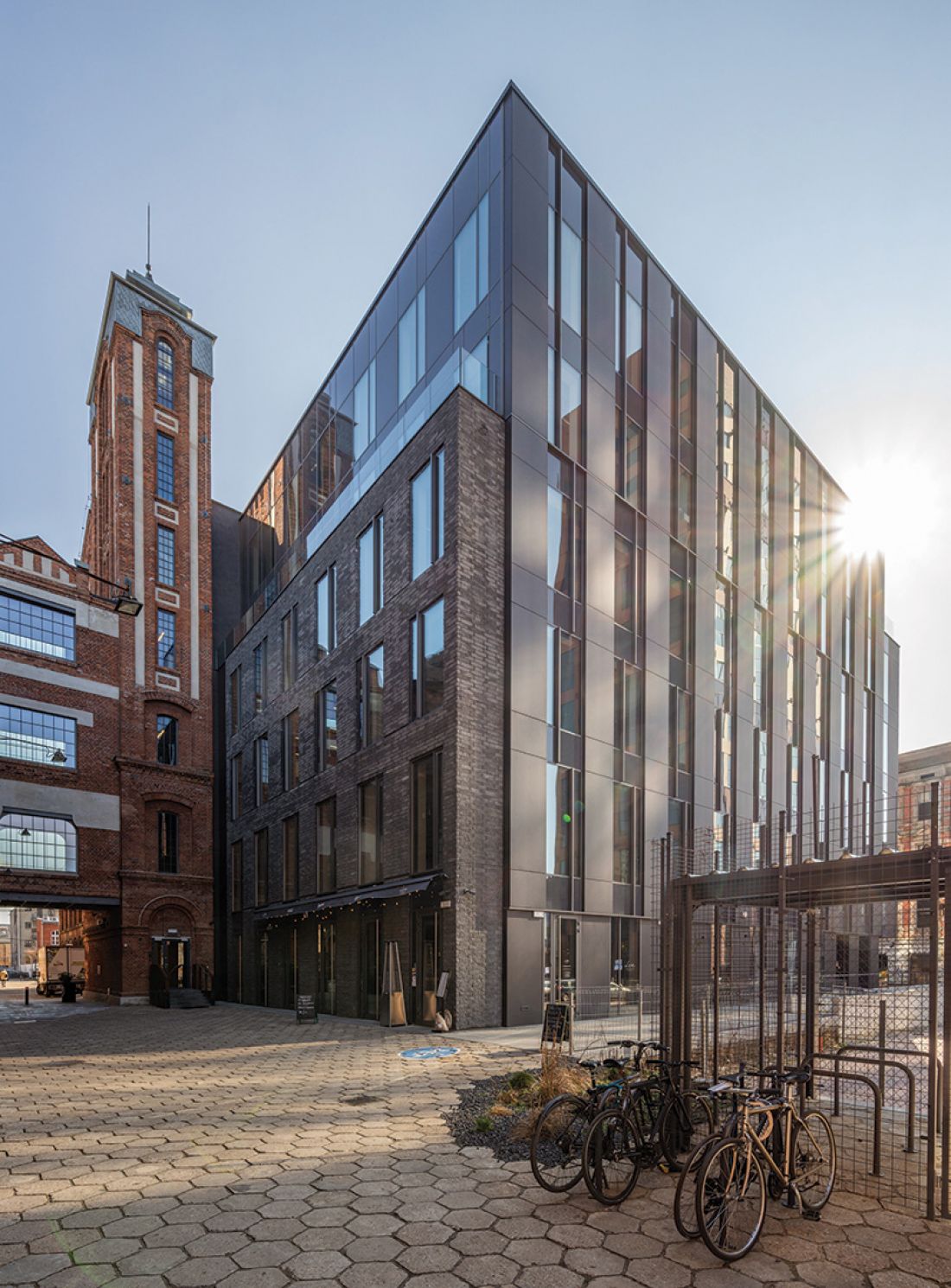

OFF PIOTRKOWSKA CENTER

SELECTED FACADE SYSTEMS

FA 50N - The system enables the design and construction of lightweight mullion and transom curtain walls. It is classified among the best curtain walls available on the market.
FA 50N HI- A system with the highest thermal insulation properties. Modern and at the same timeenergy efficient, with very high water and wind resistance. Ideal for use in office and public buildings. The unique system of foam insulatorand the possibility of using double glazing allows to obtain excellent parameters.
FA 50N SL - The system is used to make structures that form a flat surface from the outside. It combines the advantages of a classic mullion and transom facade with the aesthetic appearance of a structural facade.
FA 50N SW - Structural window system. It is of a universal nature, which allows the construction of a parallel sliding, swinging or casement window in the facade, with mechanically or structurally fixed glazing.
FA 50N RW - A system that allows the construction of modern roof windows installed in skylights, roofs and conservatoriesbuilt on the basis of FA50 N and FA50N SL facades. It ensures optimal ventilation of rooms, supplying a large amount of fresh air. It is distinguished by the highest performance parameters on the market. It features excellent thermal insulation and high airtightness achieved through a new EPDM central gasket and three condensate drainage lines.
FA 50N INV - A modern system for making windows embedded in the supporting grid of the FA 50N and FA 50N SL mullion and transom curtain wall. It gives the possibility to construct windows opening to the inside of the curtain wall with tilt and turn, tilt and turn or tilt function. A characteristic feature of the system is that the frame and window sash are invisible on the outside of the curtain wall.

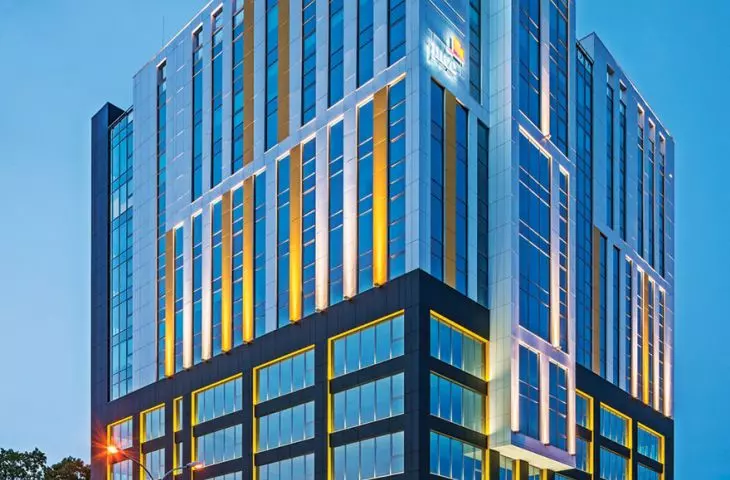

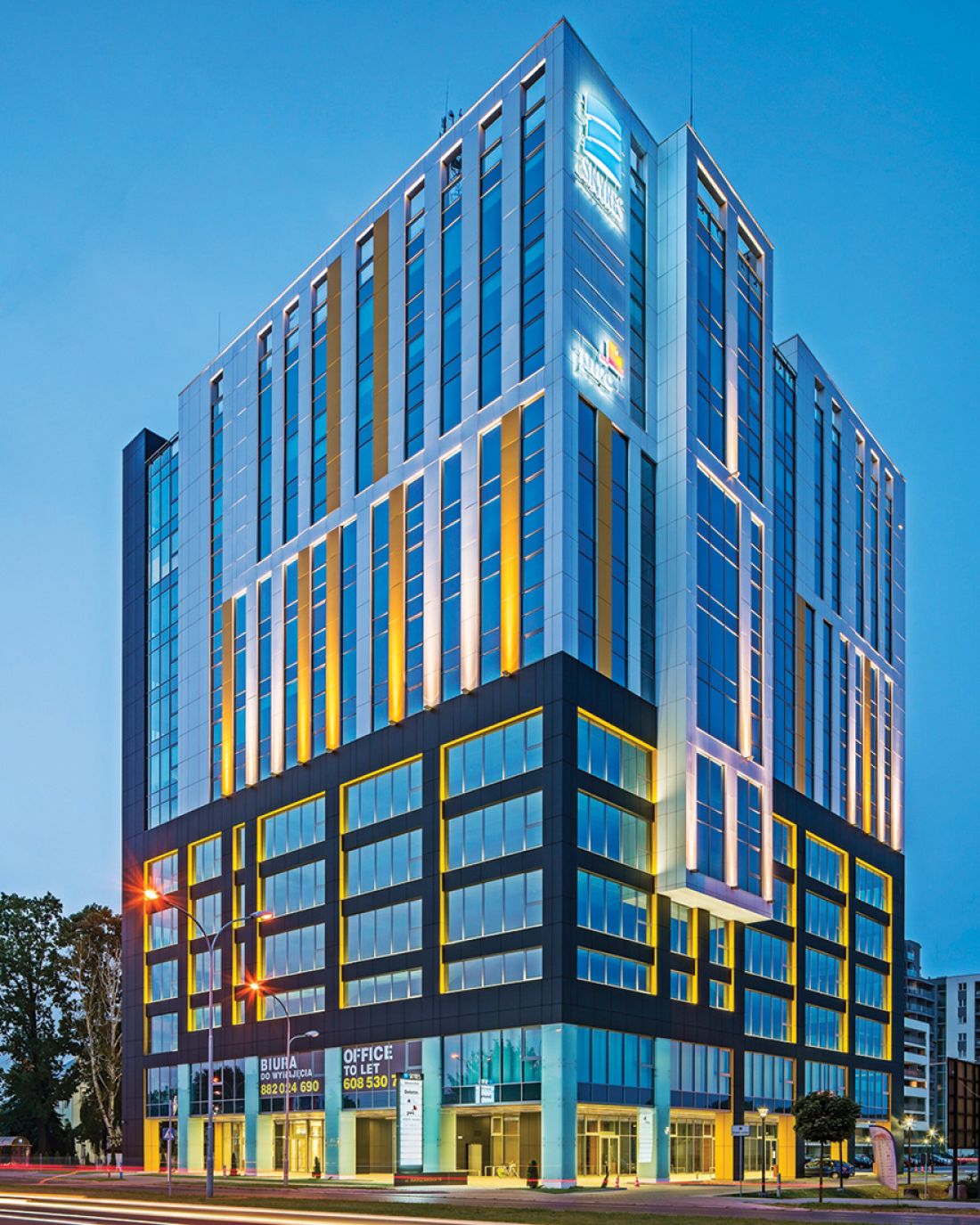

SKYRES RZESZÓW

SELECTED WINDOW AND DOOR SYSTEMS WITH THERMAL INSULATION

TM 77HI- Thanks to the use of spacers between the aluminum profiles , excellent parameters of thermal insulation, acoustic insulation, safety and protection against wind and water were obtained. The role of thermal insulation is fulfilled by chambered thermal insulators with filling.
TM 77HI VENT - ventilation window. The solution draws structurally from the popular TM 77HI system. It allows the creation of high windows up to 3 m opening inwards. The system is compatible with ROTO AL DESIGNO and SOBINCO hardware. It is possible to install a ventilation window in the facade. This is a safe way to ventilate the room. Thanks to its design, it guarantees the safety of the user. TM 77HI VENT window can be 3 m high.
TM 102HI - A system dedicated to passive and energy-efficient construction. It meetsthe highest requirements in terms of strength, quality and aesthetics of the shaped objects. Significantly reduces the access of cool air to the interior of the building in winter, and protects it from excessive heating in summer.

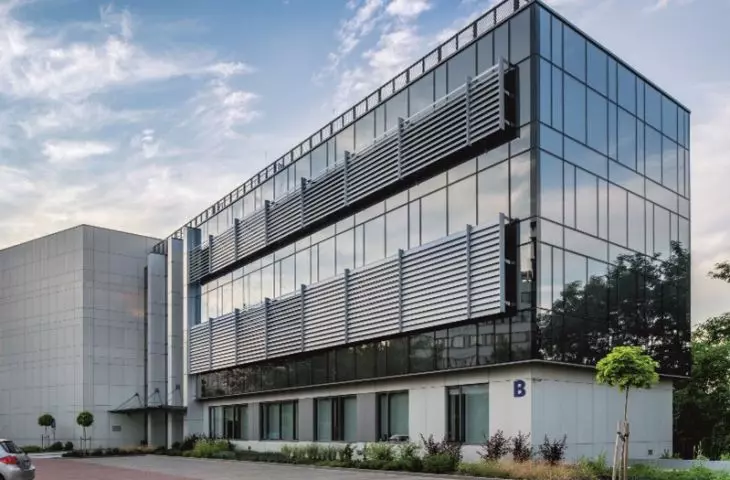

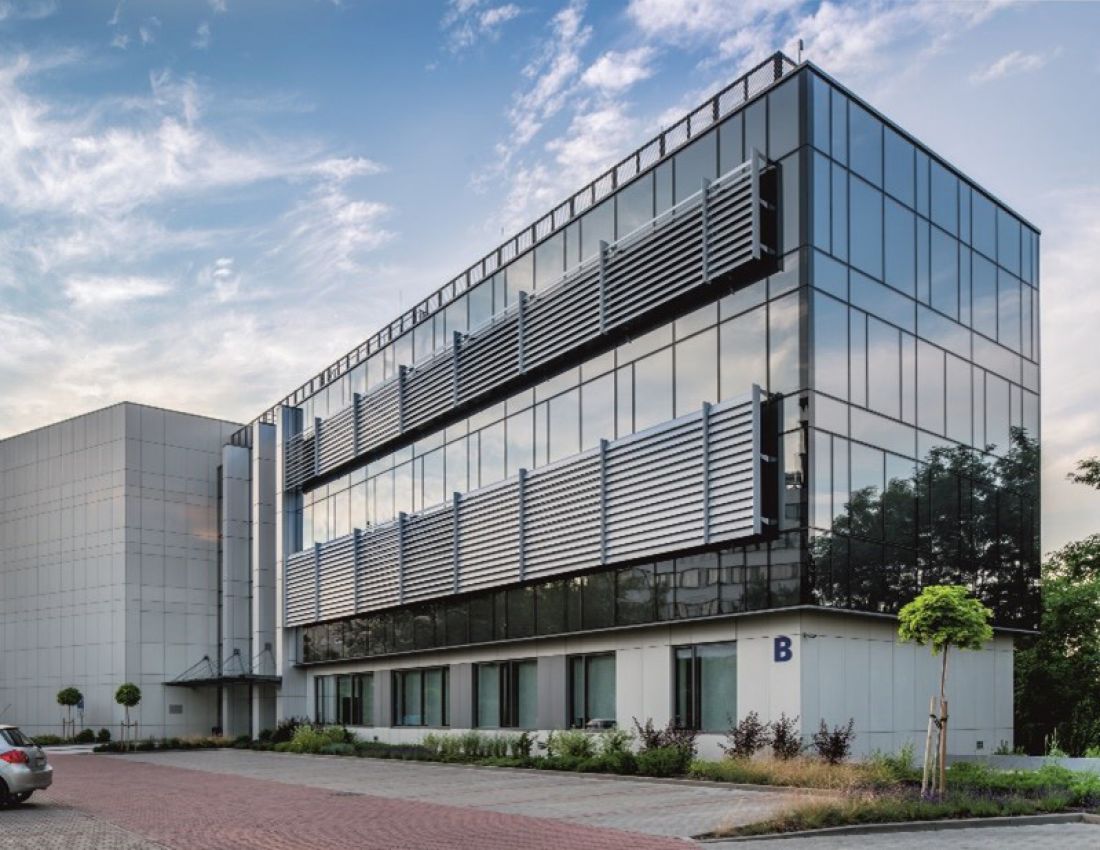

CENTRAL INSTITUTE FOR LABOR PROTECTION

SELECTED FIRE PROTECTION SYSTEMS

TM 75EI - A system for making fireproof walls and doors with fire resistance classes from El 30 to El 60. It also allows smoke-proof structures.
TM62EI - The system is used to make a wide range of fire-rated walls and doorswith fire resistance class EI 30. The role of insulation in the profiles is fulfilled by thermal breaks made of glass fiber reinforced polyamide.
TM 90EI YAWAL FIRE BLOCK 120 - The system is used to make a wide range of fireproof building partitions with fire resistance class EI 120.
TM 77EI - A system of three-chamber thermally insulated aluminum profiles designed to construct opening windows with fireproof partition properties. TM 77EI system combines two important performance features: excellent thermal insulation and fire resistance at the level of EI 30 achieved through the use of appropriate glazing and cooling elements inside the aluminum profiles.

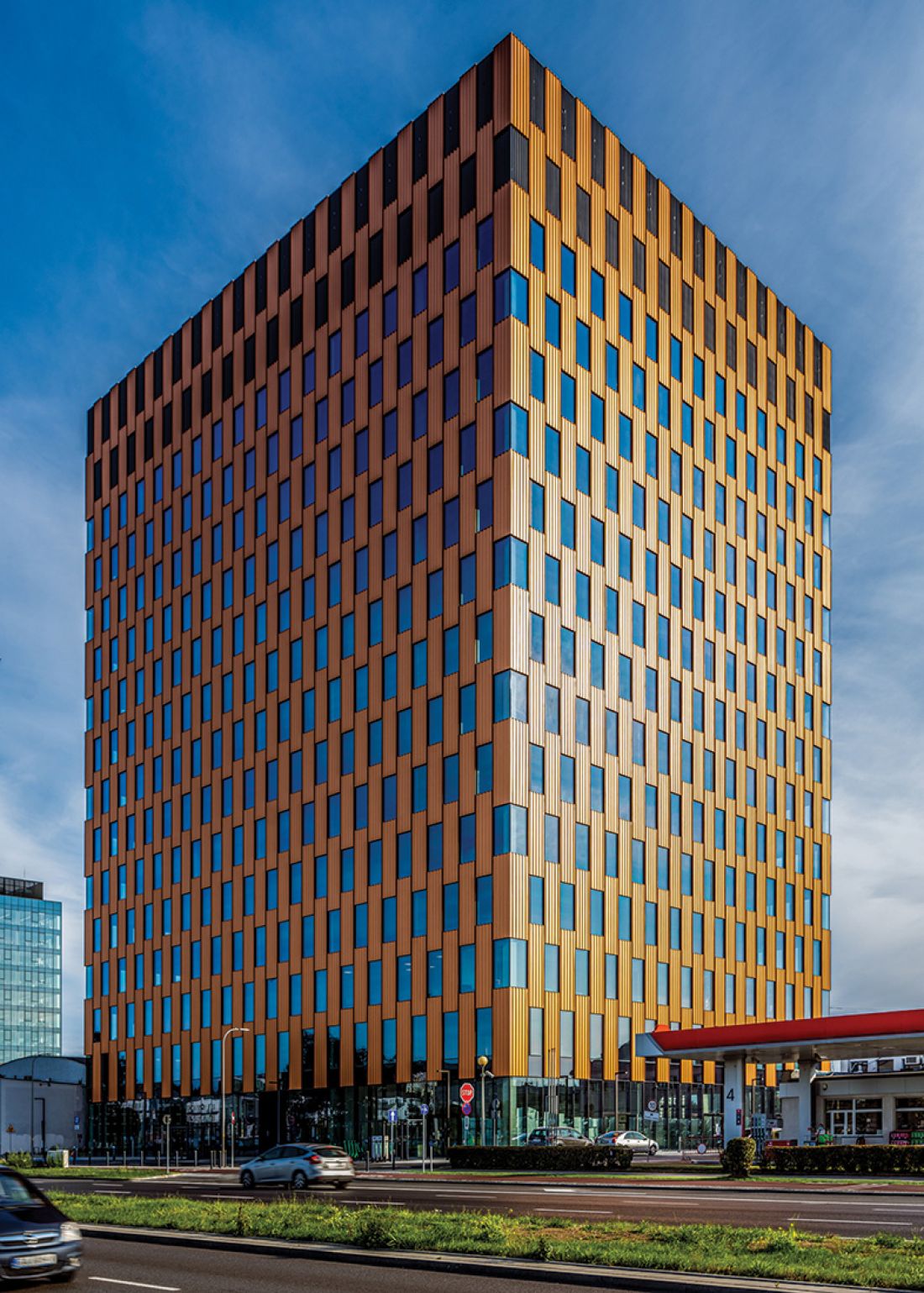

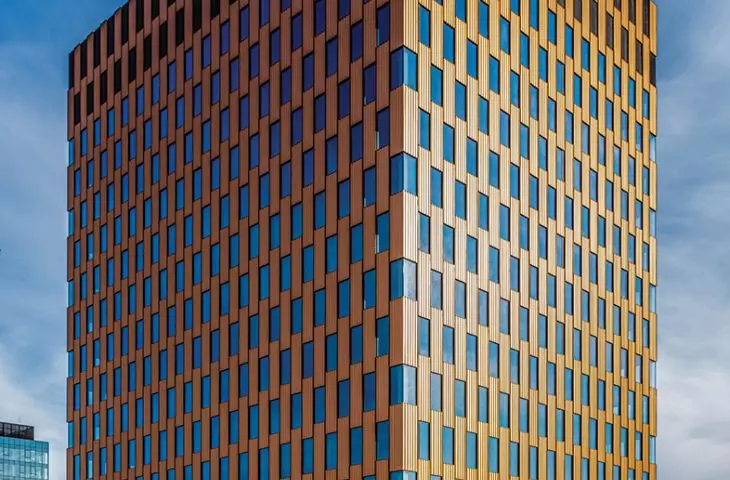

WAVE OFFICE

SELECTED SLIDING DOOR SYSTEMS

DP 180 Primeview - A system used to make lift-and-slide windows and doors for exterior development. The DP 180 Primeview system is a modern solution based on aluminum profiles with thermal breaks. The construction of the system has an impact on the reduction of thermal energy losses, and thus on reducing the operating costs of the designed buildings.
Moreview - A system of large-size sliding doors with narrow profiles completely hidden in the floor, walls and ceiling. Moreview gives the possibility to construct doors with a maximum height of up to 4 m and a maximum weight of the sliding leaf of up to 1200 kg. The innovative design allows glass panes to be installed side by side without aluminum elements visible from the outside.

SELECTED WINDOW AND DOOR SYSTEMS WITHOUT THERMAL INSULATION

PBI 50N - The system is used to make partitions and structures for interior development that do not require thermal insulation. The depth of the profile (50 mm) makes it one of the strongest on the market in this group.

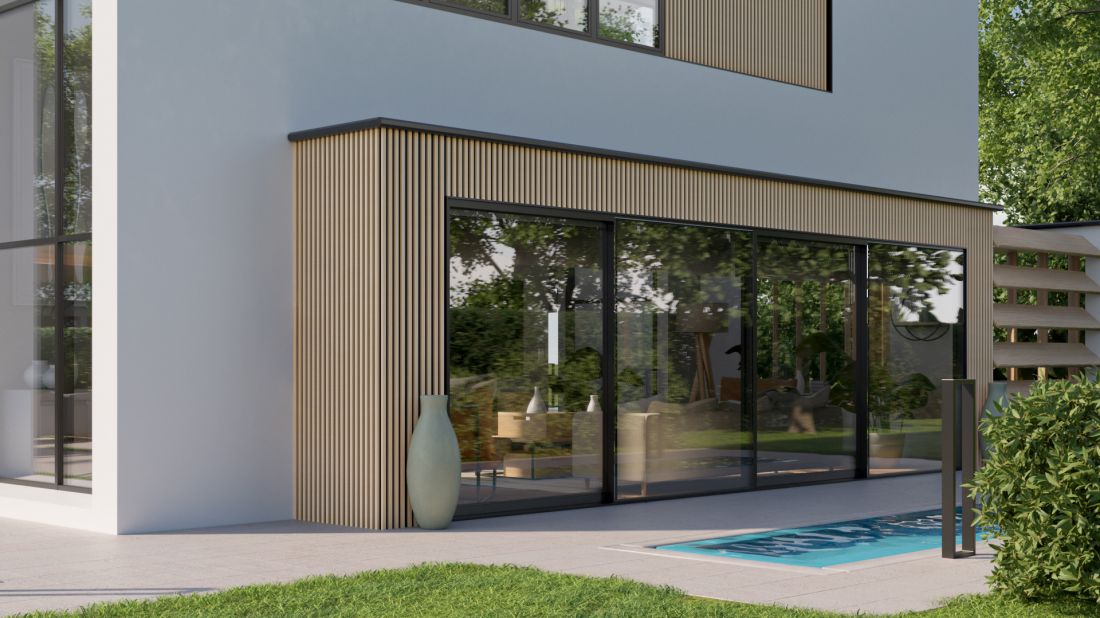

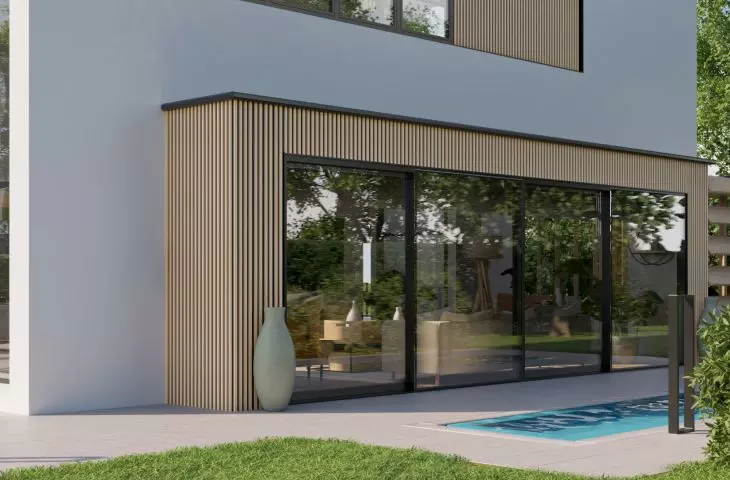

VERTILINE SYSTEM

SELECTED SPECIAL SYSTEMS

YAWAL SUN PROTECTION - a system of aluminum profiles designed for making facade blinds, so-called light breakers. Light-breakers are aluminum profiles installed on the facade or façade of a building. Breakers in the fixed version can be installed at different angles in relation to the angle of incidence of light. A more advanced solution are movable breakers, which allow any control over the position of the guards. The control system gives the possibility to simultaneously close or open all the sunshades installed on the building. Appropriate placement of the breakers allows complete darkening of the room, which is especially important for conference rooms.
Vertiline - A system of profiles that allows decorative aluminum cladding. It can be used both in single-family and residential construction, but also in various types of buildings. Aluminum laths, can be installed both inside the building and on external walls. VERTILINE laths are elegant, having both modernity and style. They can be arranged vertically, horizontally or at any angle.
