Paneltech PWW-S is a wall sandwich panel with a mineral wool core encased in coated sheets. A visible joint facilitates installation. The panel provides high thermal insulation, mechanical strength and the highest fire resistance in the Paneltech range.
application
PWW-S panels can be used as elements of external facades, internal partition walls and suspended ceilings.
properties
Thermal insulation: mineral wool with a density of 100 kg/m³ minimizes heat loss.
Durability: PWW-S panels are resistant to mechanical damage and deformation.
Fire resistance: The highest fire resistance parameters among Paneltech sandwich panels.
Installation: Vertical and horizontal installation provides design flexibility.
compatibility
PWW-S panels are compatible with:
Paneltech PW PIR-S: Standard panel with 40 kg/m³ PIR foam.
Paneltech PW PIR-SL (LITE): A lighter version with a PIR core with a density of 35 kg/m³.
Paneltech PWW-S LITE: A lighter version with mineral wool with a density of 85 kg/m³.
Paneltech PWS-S: A panel with a polystyrene core.
PWW-S panels are a versatile construction solution, offering high technical performance and ease of installation. They are ideal for the construction of buildings that require high fire and acoustic resistance, such as food processing plants, warehouse and production halls, car showrooms and retail and service pavilions.

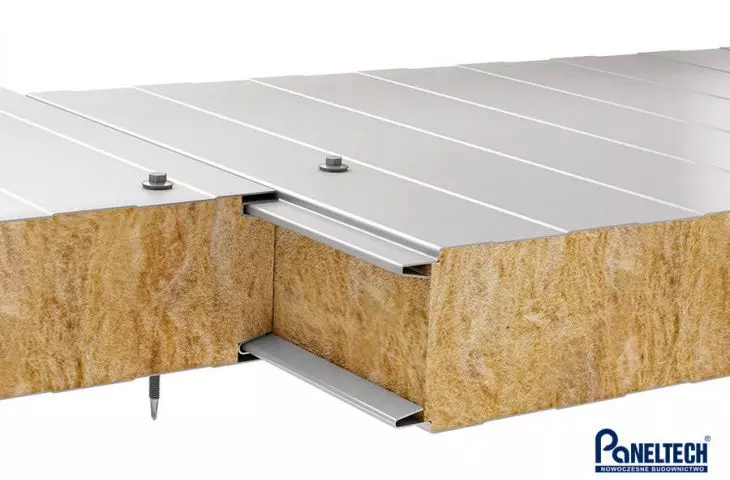

Paneltech PWW-S mineral wool wall panel with visible joint
© Paneltech
| thickness [mm] - weight [kg/m²] | 60 - 14,1 80 - 16,1 100 - 18,1 120 - 20,1 140 - 22,1 150 - 23,1 160 - 24,1 180 - 26,1 200 - 28,1 |
|---|---|
| modular width [mm] | 1130 (optionally 1000 or 1050) |
| length [mm] | 2000 ÷ 15800 |
| heat transfer coefficient Uc [W/m²K] for a given thickness | 0,66 - 6 cm 0,49 - 8 cm 0,39 - 10 cm 0,33 - 12 cm 0,28 - 14 cm 0,27 - 15 cm 0,25 - 16 cm 0,22 - 18 cm 0,20 - 20 cm |
| acoustic insulation Rw [dB] for a given thickness [mm] | 31 - 60, 80, 120, 140, 150, 160, 180 33 - 100 34 - 200 |
| reaction to fire | A2-s1,d0 |
| resistance to external fire | NRO |
| wall fire rating [mm] | NPD - 60 EI 30 (o<->i) - 80 EI 60 (o<->i) - 100 EI 120 (o<->i) - 120, 140, 150, 160 EI 240 (o<->i) - 180, 200 |
| anti-corrosive protection | external C1, C2, C3 (C4 ÷ C5), internal A1 (A2 ÷ A5) |
| organic coatings | SP 25, PU, AGRO, FOOD SAFE and other |
| external facing | galvanized steel 0.5 ÷ 0.6 mm |
| internal facing | galvanized steel 0.4 ÷ 0.5 mm |
| available profilation types | external facing: L - line, ML - microline, MF - microwave, MR - microgroove, G - smooth, inner facing: L - line, R - groove, G - smooth |
| insulating core | rock, inflammable mineral wool with a lamella fiber structure 100 kg/m3 |
| application | non-continuous application on external walls and as wall cladding, on the structural parts of walls and ceilings |
| wall application layout | vertical or horizontal |
