Paneltech PWW-D is a roof sandwich panel with a core made of mineral wool encased in coated sheet metal cladding.
application
PWW-D roof sandwich panels are ideal for the construction of roofs in buildings requiring high fire resistance, both in steel and wooden structures, offering excellent protection and insulation.
properties
Thermal insulation: 100 kg/m³ mineral wool core provides exceptional thermal insulation, minimizing energy loss.
Durability: PWW-D panels are highly mechanically strong, which protects the roof from damage and deformation.
Fire resistance: The panels have the highest fire resistance parameters, maximizing the fire safety of buildings.
compatibility
PWW-D panels are compatible with other Paneltech sandwich panel - PWS-D.

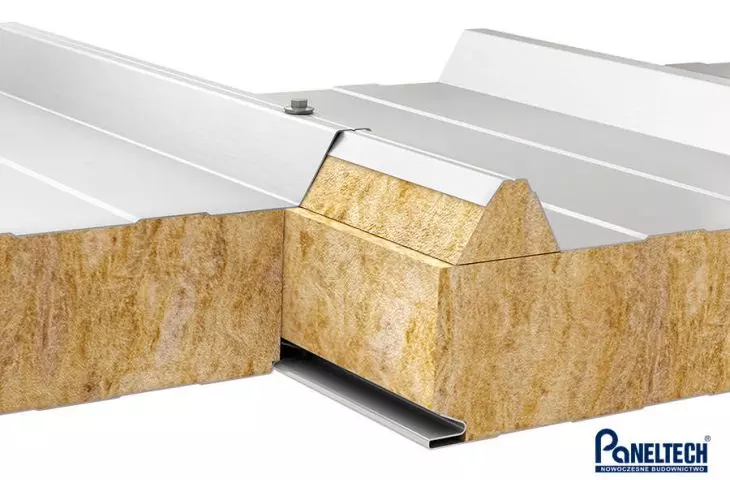

Paneltech PWW-D mineral wool roof panel
© Paneltech
| thickness [mm] - weight [kg/m²] | 80 - 16,8 100 - 18,8 120 - 20,8 150 - 23,8 160 - 24,8 180 - 26,8 200 - 28,8 |
|---|---|
| modular width [mm] | 1050 |
| length [mm] | 2000 ÷ 10000 |
| heat transfer coefficient Uc [W/m²K] for given thickness | 0,46 - 8 cm 0,38 - 10 cm 0,32 - 12 cm 0,26 - 15 cm 0,24 - 16 cm 0,22 - 18 cm 0,20 - 20 cm |
| acoustic insulation Rw [dB] | 31 |
| reaction to fire | A2-s1,d0 |
| resistance to external fire | Broof, Broof(t1) i Broof(t2) i Broof(t3) |
| roof fire rating | NPD - 80 RE 120 - 100, 120, 150, 160, 180, 200 |
| anti-corrosion protection | external C1, C2, C3 (C4 ÷ C5), internal A1 (A2 ÷ A5) |
| organic coatings | SP 25, PU, AGRO, FOOD SAFE and other |
| external facing | galvanized steel 0.5 ÷ 0.6 mm |
| internal facing | galvanized steel 0.4 ÷ 0.5 mm |
| available profilation types | external facing: T - trapezoid, internal facing: L - line, R - groove, G - smooth |
| insulating core | rock, inflammable mineral wool with a lamella fiber structure 100 kg/m3 |
| application | non-continuous application on roofs and roof covers |
