At least several hundred buildings are built in Poland every year, using Aluprof aluminum systems. The company's offer includes products that perfectly meet the requirements of green building, proving themselves in both commercial projects and private construction.
- Passive window and door system - MB-104 Passive
The MB-104 Passive system of windows and doors with a thermal barrier, available in SI and Aero variants, is characterized by the highest thermal insulation, which makes it meet all the requirements for elements used in passive construction. This system is designed for the production of various types of windows, doors, vestibules, showcases and spatial structures. In addition to excellent thermal insulation, providing a very low heat transfer coefficient for the opening window at UW from 0.53 W/m2K, it is also characterized by high acoustic insulation, water and air tightness, and exceptional structural strength. The parameters of constructions made of MB-104 Passive system elements exceed the current stringent requirements of regulations and standards, as confirmed by the Passive House Institute Darmstadt certificates obtained for the MB-104 Passive SI and MB-104 Passive Aero versions. Thanks to these properties, the MB-104 Passive system is dedicated to applications in energy-efficient and passive construction.

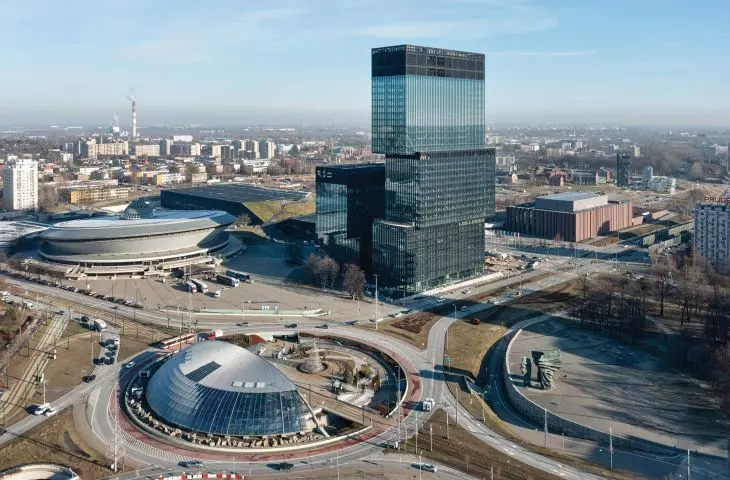

KTW, designed by Medusa Group
© Aluprof
- Window and door system - MB 86N
MB-86N is a product with exceptional parameters, offering versatile possibilities of adaptation to various user needs. The construction of the sections exists in two variants, adapted to the requirements of thermal energy saving: ST and SI. It is a series of windows with the highest tightness in its class (class E4800 Pa) and excellent thermal insulation (Uw as low as 0.62 W/(m2K)). The MB-86N system is also distinguished by the exceptional strength of its profiles, which makes it possible to create constructions with large dimensions and considerable weight. There is also a version of windows with a concealed sash, MB-86US, and an outward-opening window system with a thermal barrier, MB-86 Casement.

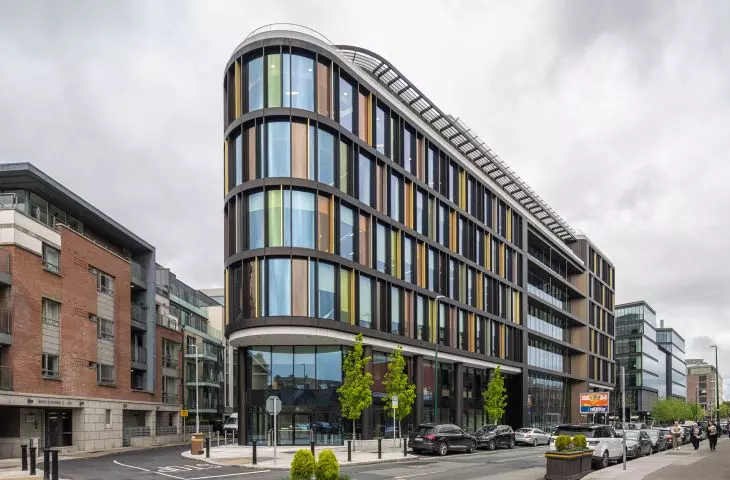

35 Shelbourne Road, Dublin, designed by RKD Architects
© Aluprof
- Window and door system - MB-79N
The MB-79N system is the most modern proposal in Aluprof's offer, providing an economical solution in the field of window and door systems. It is the successor to the very popular and widely used MB-70 system in the construction industry, introduced to meet the increased requirements of thermal insulation from 2021. The system is used to create a variety of constructions, including fixed windows, tilt and turn windows, tilt and slide windows, as well as exterior doors, both single- and double-leaf, and display solutions with doors. This innovative solution comes in three thermal variants: E, ST and SI. In addition, it forms the basis for MB-79N US concealed sash windows and MB-79N Casement outward opening windows.
- MB-MT50N
The facade system, designed in accordance with the guidelines of Cradle to Cradle certification, meeting the requirements of sustainable development and the idea of closed-loop economy, has been optimized in terms of shapes, profile parameters and accessories. The solutions used in it significantly facilitate the installation of the structure on the construction site. Particularly noteworthy are the excellent technical parameters: high air permeability in the AE 1950 Pa class, reliable waterproofing in the RE 1950 Pa class and excellent wind load resistance of 3000 Pa. This system is equipped with innovative insulators such as ABS/TPE or PET/PE. The Uf parameter for this facade can reach values from 0.55 W/(m2K).

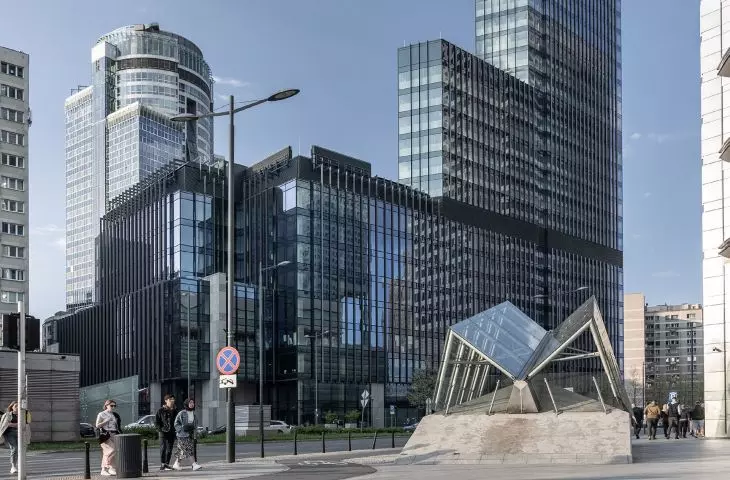

SKYSAWA design: Polish-Belgian Architecture Studio Sp. z o.o. project.
© Aluprof
- MB-SR50N HI+
The MB-SR50N HI+ mullion and transom system makes it possible to build facades with clear, narrow dividing lines, while ensuring the durability and strength of the structure. Among the advantages of this system are angle connections, allowing flexible shaping of aluminum buildings, a variety of aesthetic variants of facades and a wide selection of overlay profiles of different shapes, which makes it possible to obtain a variety of facade variants. In addition, the system offers a wide selection of opening elements, such as various types of windows and doors, including MB- RW skylight windows, MB-SR5N IW facade-integrated windows, and MB- SR50N OW tilt and parallel opening windows.

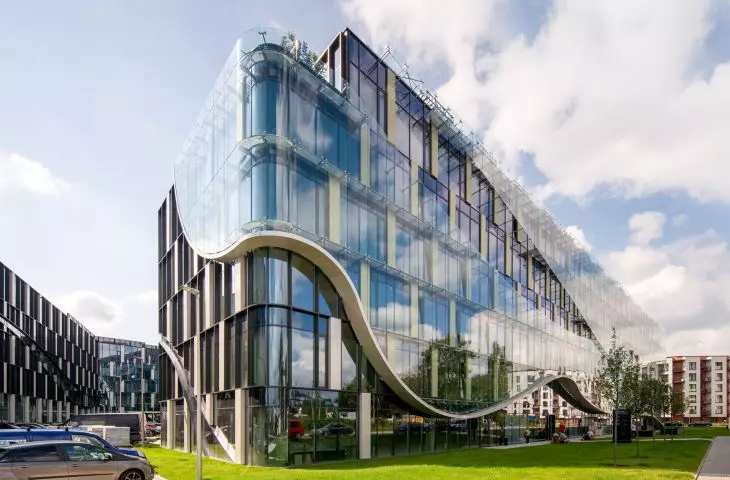

Ocean Office Park B, Krakow, designed by Cavatina Architects.
© Aluprof
- Lift-and-slide doors - MB-77HS
Thanks to the construction of the profiles, it is possible to create exclusive doors of large dimensions (mullion with a leaf weight of up to 600 kg), which can be filled with single- or double-chamber glass. The materials and technical solutions used contribute to a high level of thermal and acoustic insulation. The system is ideal for both single-family buildings and exclusive apartments or hotels. In addition, the special shape of the glazing bars and anti-burglary details enhance the anti-burglary properties. MB-77HS doors allow construction with a low threshold and have a narrow mullion width of just 47.5 mm. The system also allows installation of 90 and 270 degree corner doors with a movable mullion.

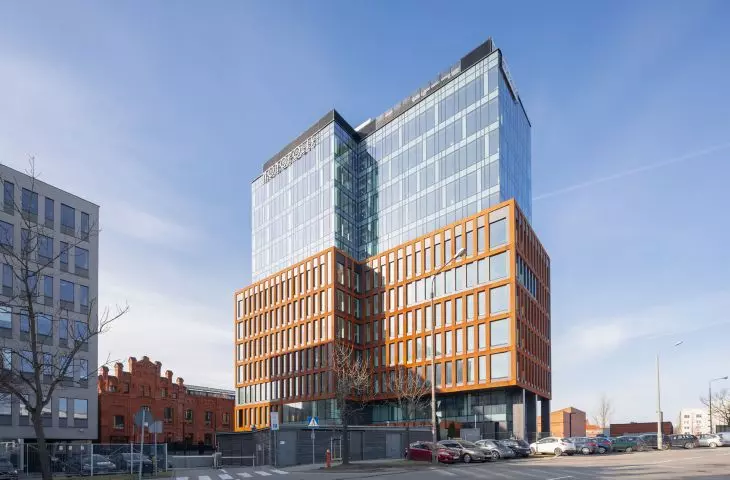

MONOPOLIS, Łódź, Designed by Grupa 5 Architekci Sp. z o.o.
© Aluprof
- Sliding door system with concealed frame - MB- SKYLINE TYPE R
MB-SKYLINE TYPE R is a modern large-size sliding door system, characterized by lightness and aesthetics. The system is based on narrow profiles, which give the structures a modern look while providing a panoramic view of the house surroundings. Above all, it is distinguished by completely concealed door leaf profiles, a narrow mullion and a flat frame. The sliding mechanism of the huge elements works practically silently, without requiring much force. The structures can reach an impressive height of up to 4 meters, and with the use of a surface actuator, the moving leaf can weigh up to 1,200 kg. This makes it possible to design spectacular glass walls. Doors created using this system give buildings a unique style and raise the profile of the entire project.

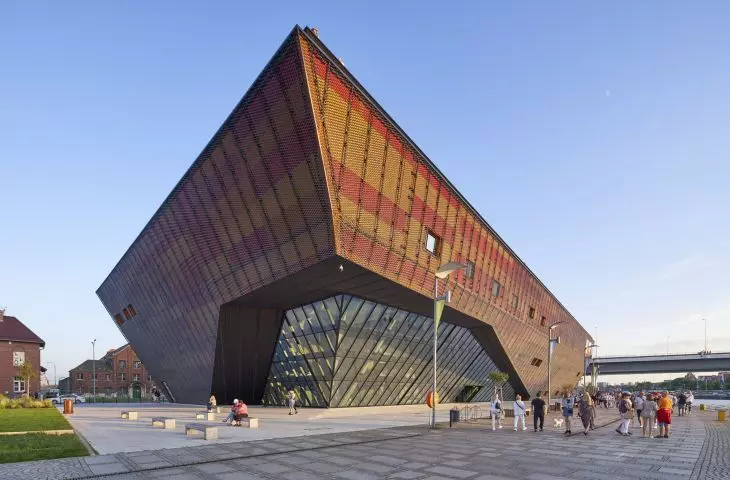

Maritime Science Center, Szczecin, designed by Piotr Plaskowicki Architect.
© Aluprof
- Interior wall systems - MB-HARMONY OFFICE
MB-HARMONY OFFICE is a new series of products designed for the construction of interior glass walls, the main idea of which is to create a system that is easy to prefabricate and quick to install. It is designed to provide a modern, lightweight design and user comfort. MB- HARMONY is a single-glazed system with a lightweight, geometrically designed structure that is easy to install. It is suitable for combining with tempered glass, laminated glass and acoustic version glass with a thickness of 10 to 12 mm.
On the other hand, MB-HARMONY DUO is a system designed for the construction of internal double-glazed walls, created mainly for office spaces with high acoustic requirements. Thanks to double glazing, it provides adequate acoustic insulation, which is important for work comfort and security of confidentiality in rooms intended for discreet conversations.
Aluprof system models for designing in BIM technology are available at www.architekci.aluprof.com
