Alufire's new fire wall systems. Aluminum and glass joinery Neo
The ALUFIRE company is launching three new Neo aluminum and glass wall systems in 2021, which feature minimalist profiles with a height of just 35 mm and the best sound insulation on the market of up to 56 db. The Neo series of joinery is ideally suited for buildings with enhanced aesthetics and requiring maximum noise attenuation. All three Alufire Neo glass wall systems have been tested by the ITB and have received European Technical Assessment (ETA) documents allowing CE marking.

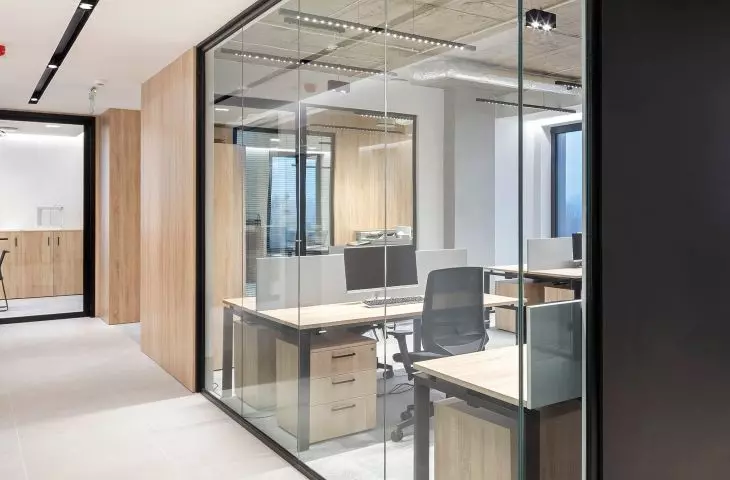

Minimalist and soundproofing aluminum-glass walls - an interior hit!
© ALUFIRE
Alufire Neo - three glass wall systems
Alufire Neo FR Line (EI15, EI30, EI60)
The system of frameless, glazed fire walls made of a low-height profile (35 mm) guarantees a visually light finish, and is consistent with the other products of the Alufire Neo family. Depending on the glass used, the height of each structure can reach up to 3400 mm with unlimited wall width.
- Sound insulation: Rw 38-52* db.
- KOT No. ETA-19/0533
Alufire Neo Office Line
Small and lightweight mounting profile with a height of 35 mm consistent with all products of the ALUFIRE Neo family. The single-glazed system is the basis of a whole series of products designed for the construction of partition walls in office spaces. It is distinguished by its high noise dampening parameters thanks to the innovative IsoSound solution, which reduces sound penetration inside the profile. The system is characterized by light and simple construction and versatility of use. Depending on the glass used, the height of each structure can reach up to 3400 mm with unlimited wall width.
- Sound insulation: Rw 33-40* db.
- KOT No. ETA-19/0532
Alufire Neo Office+ Line
A double-glazed system designed specifically for office spaces that require the most effective soundproofing. With unlimited width, the height of the structure can reach up to 3400 mm without the need for additional profiles. Thanks to the use of double glazing, the ALUFIRE Neo Office+ system is characterized by the highest acoustic insulation performance of all ALUFIRE Neo products, Rw reaches up to 56 db. Importantly, the design of the mounting profile with a height of 35 mm is consistent with other products in the ALUFIRE Neo series, which allows you to combine in the interior design of walls with fire resistance and classless both single and double glazing.
- Sound insulation: Rw 41-51* db and Rw 52-56 db** .
- KOT No. ETA-19/0531
The walls can be complemented with all-glass, aluminum and wooden doors.
* depending on the glass used
** with special soundproofing muntins between the glass panes

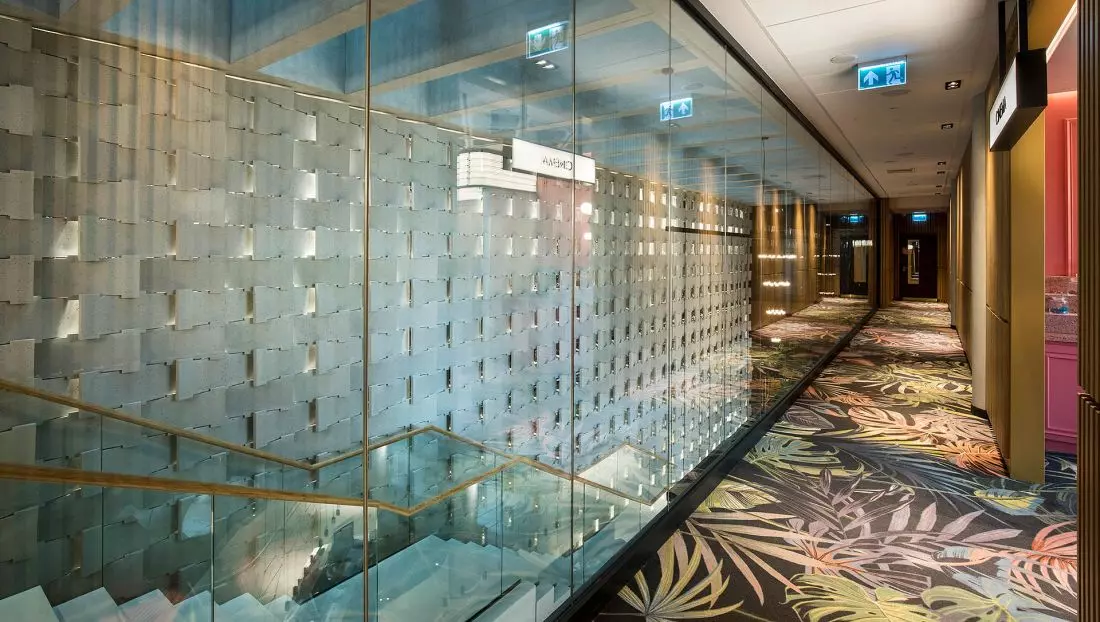

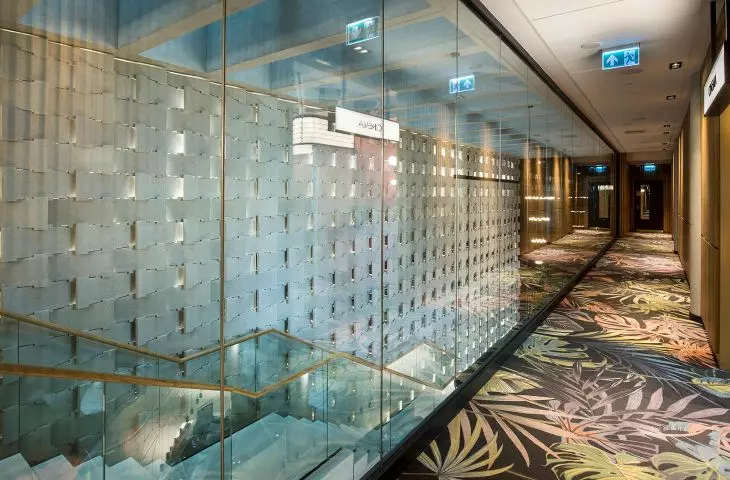

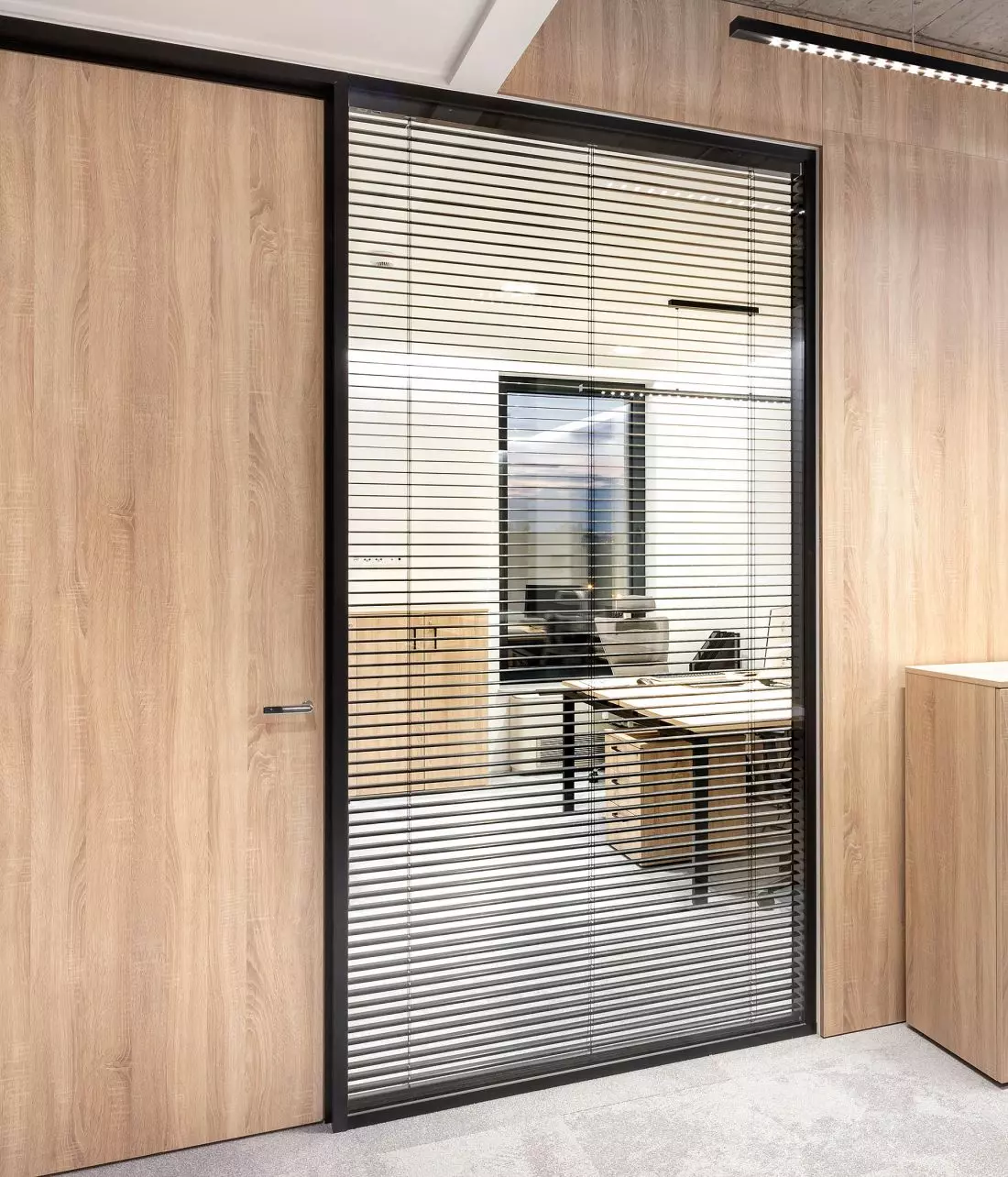

Minimalist and soundproofing aluminum-glass walls - an interior design hit!
© ALUFIRE
Bar-less fire protection systems
Alufire Vision Line (EI30, EI60)
Poland's first girderless aluminum system in EI30 and EI60 classes. The maximum height of AVL is 330 cm, and the wall length is unlimited. A unique feature of the system is the very thin width of the special fire-retardant silicone used to join the glass sheets, ranging from 4 mm to 6 mm. Thanks to this solution, the joining is almost unnoticeable. One of the most important features of the AVL system is the possibility of a "T " joint - the connection of three panes of fire glass without the use of aluminum profiles.
AVL walls can be complemented by Alufire EI30 and EI60 system doors with roller hinges, the visible part of which is only 2 cm. Classless wooden and all-glass doors are also available. It is also possible to use EI30-class wooden fire doors in AVL walls. Alufire Vision Line glass fire walls offer unlimited possibilities for visually enlarging the interior while maintaining fire safety. The system of frameless fire walls has the National Technical Assessment ITB-KOT-2019/0714 and the English BRE/LPCB certificate No. 1406a.An alternative to Vision Line is the Shadow Line system giving the possibility of installing frameless fireproof partitions up to 3.9 m high, and Office Line - a frameless system without fire resistance, compatible with the other systems.
Sound insulation:
- AVL Standard - Rw: 39 db,
- AVL Acoustic - Rw: 44 db,
- AVL Acoustic + - Rw: 47 db.
Muntin fire protection systems
Alufire Classic Line and Classic Line Doors
Classic Line products are the standard choice of top architects in Poland. The maximum height for fire walls is 4000 mm, except for the EI120 class, where this dimension can be increased up to 4200 mm. The maximum height for fire doors is 2750 mm, but in some cases the height of single-leaf doors can reach 3300 mm*. This proves that by meeting the needs of architects and using Alufire's reliable technology, we are very flexible.
Alufire's EI30 and EI60 aluminum fire doors conform to Class 4 strength requirements (i.e., under heavy and very heavy working conditions) and Class C5 (the highest mechanical durability of fire doors on the market). The range includes smoke-proof doors, with ventilation grille, aeration, etc. What's more, the Classic stile system has received ITB Technical Approval No. AT-15-6520/2016 and English BRE/LPCB certificates No. 1406a and 1406b.
For more information, visit the company's ALUFIRE page on the A&B portal.
