door leaf characteristics
Steel fire swing gates of DFM OS type are made as rebated gates with thick rebate and pressed from two steel sheets of 0.75mm thickness. They are made as double-leaf. The weight of the sash, which is lowered in comparison with traditional designs, has a beneficial effect on reducing the operating forces acting on the structure.
In the basic version, wings and frames are powder-coated in any RAL color. Gate type DFM OS are also available as a gate without fire resistance and as external gates.

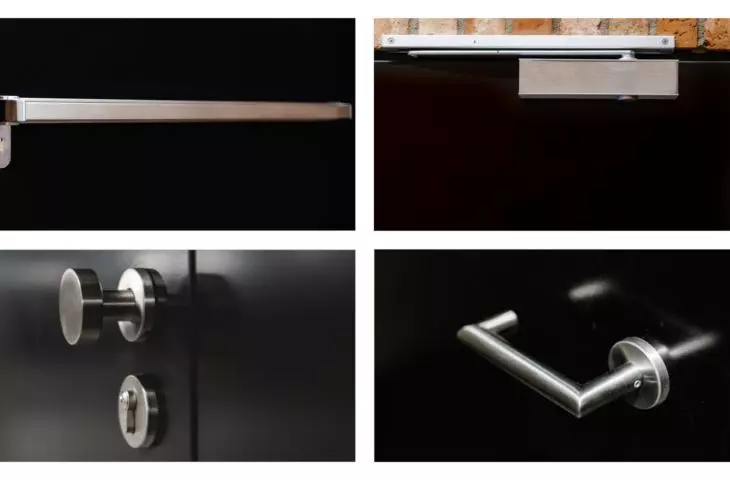

The gates in the standard version are equipped with:
- latch and lock,
- a set of stainless steel handles of the U-form type on a sign,
- cylindrical cylinder with a set of 3 keys,
- 3 or 4 3D adjustable stainless steel hinges (per sash),
- 2 anti-balance pins (per sash),
- rubber gasket and intumescent seal.
Optional equipment:
- door closers in accordance with EN 1154,
- stainless steel handles,
- rectangular glazing,
- ventilation grilles,
- bumpers (kick-plate) made of stainless steel
- Holders and electromagnetic jumpers,
- thresholds or self-climbing slats.
characteristics of frames
DFM OS type swinging fire doors are equipped as standard with internal steel frames made of galvanized steel sheet of gr. 1.5mm. Swinging doors without fire resistance of the DFM OS type are equipped as standard with aluminum frames, made of extruded aluminum profiles. An angle or embracing frame is available as an option.
