In Poland, more than 250 new buildings are built per year using Aluprof aluminum systems. The company offers products that perfectly meet the requirements of green building and perform well in both commercial and private construction.
- MB-104 Passive System of passive windows and doors
The MB-104 Passive system of windows and doors with a thermal barrier, in SI and Aero variants, with the highest thermal insulation, meets all the requirements for elements used in passive construction. This system is used to make: various types of windows, doors, vestibules, showcases and spatial constructions, which are characterized, in addition to excellent thermal insulation (for UW opening window from 0.53 W/m2K), also by very good sound insulation, water and air tightness and high structural strength. The parameters of windows made of MB-104 Passive system elements exceed the current requirements of the strictest applicable regulations and standards, which is why MB-104 Passive is a system dedicated to energy-efficient and passive construction, as confirmed by the Passive House Institute Darmstadt certificates obtained for the MB-104 Passive SI and MB-104 Passive Aero versions.

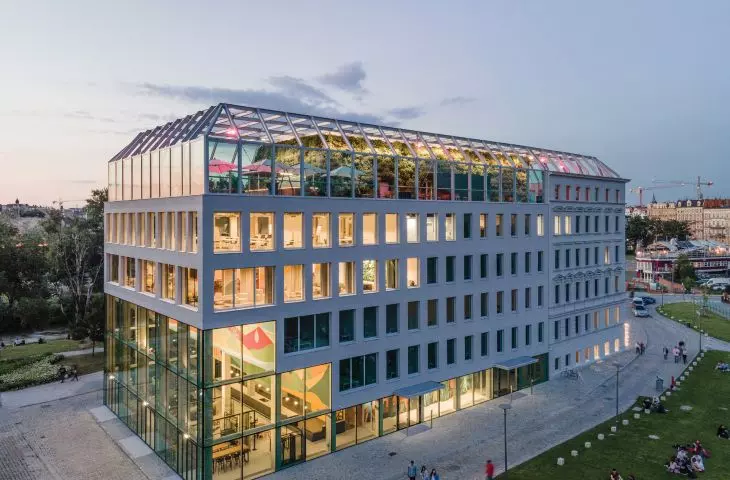

CONCORDIA DESIGN HUB POLAND, WROCLAW
© ALUPROF
- MB-86 Window and Door System
MB-86 is an innovative window and door system and the first in the world to use aerogel, a material with excellent thermal insulation. Three construction variants (ST, SI and AERO) guarantee the choice of the best solution, corresponding to the requirements and needs of users. In addition, the system is characterized by high strength profiles, which allows to make windows of large size and weight. It also has a two-component central gasket, increasing the thermal insulation of the space between the sash and the frame. Profile shapes are adapted to the installation of various types of perimeter fittings, including concealed hinges. At the same time, a wide range of glazing allows the use of all common types of glass (including two- and three-chamber glass, acoustic or burglar-proof). Thermal insulation UW from 0.72 W/m2K. The system meets the requirements of passive and energy-efficient construction.

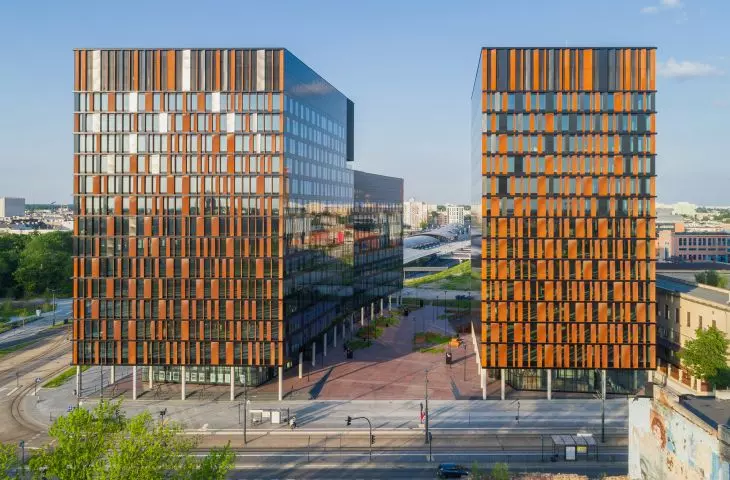

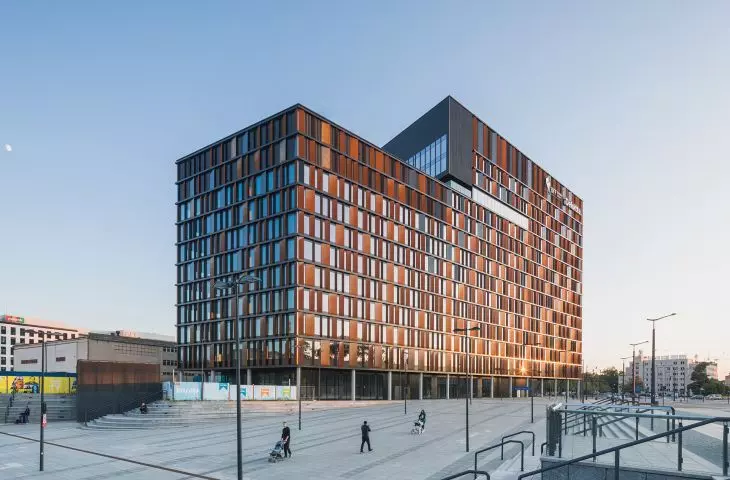

CITY GATE POLAND, LODZ
© ALUPROF
- MB-79N Window and Door System
The MB-79N system is the latest product in ALUPROF's range of window and door systems.It is the successor to the very popular and widely used MB-70 system in the construction industry, introduced to meet increased thermal insulation requirements from 2021. It is used to make a wide range of constructions, which include various types of windows and doors as well as showcase solutions with doors.

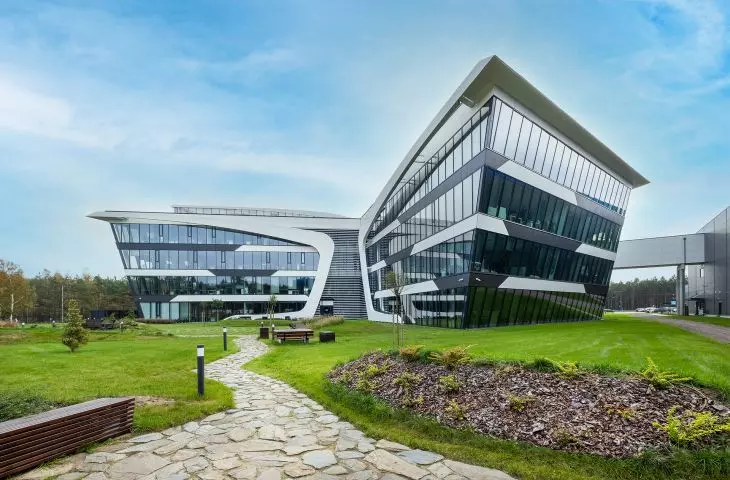

NEUCA POLSKA, TORUŃ
© ALUPROF
- MB-SR50N HI+
The facade with very good technical parameters is designed for the construction and execution of light curtain walls of hanging and filling type, as well as roofs, skylights and other spatial structures. In order to achieve optimal thermal and acoustic insulation and facilitate the installation of the facade, the MB-SR50N HI+ system uses an insulator made of PE material, which gives very good thermal insulation (Uf from 0.59 W/m2K), and its shape ensures the proper guidance of the screw during the glazing of the facade. This has a huge impact on the speed and simplicity of installation. The system makes it possible to build facades with visible narrow dividing lines, while ensuring the durability and strength of the construction. The advantages of the MB-SR50N HI+ system include: angular connections that allow free shaping of aluminum buildings, mullions and transoms with "sharp" edges that allow the construction of facade load-bearing structures with the appearance of a uniform truss, aesthetic variations of the facade and a number of overlay profiles of different shapes provide many variants of the facade image, a wide range of opening elements in the facade: various types of windows and doors, including MB-SR50N RW skylight windows integrated into the facade, as well as MB-SR50N OW tilt and parallel opening windows.

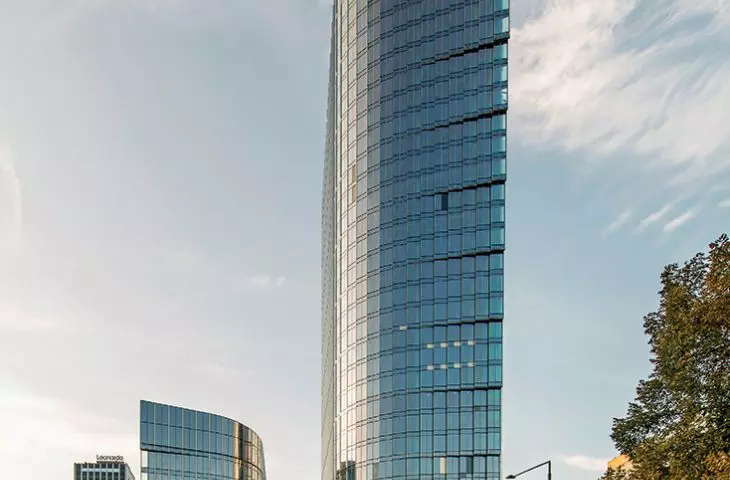

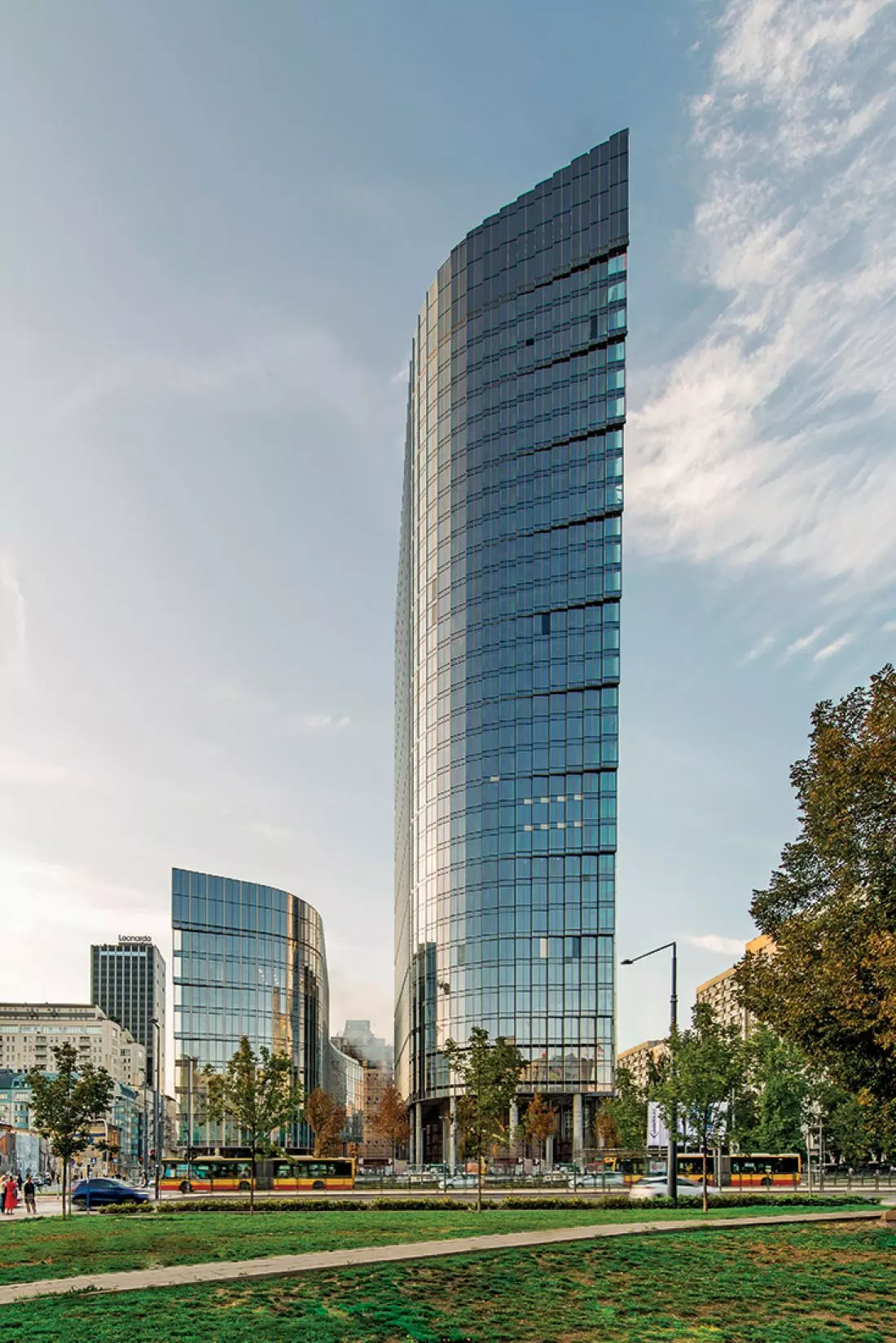

MINT LEGACY TOWER POLAND, WARSAW
© ALUPROF
- MB-77HS Lift-and-slide doors
The construction of the profiles allows exclusive doors of large dimensions to be made (leaf weight up to 600 kg), filled with one-, two- or three-chamber glass, while the materials and technical solutions used help achieve a high degree of thermal and acoustic protection. Thanks to its properties, the system is ideal for both single-family buildings and comfortable apartments or hotels. In addition, the closed shape of the glazing bars and anti-burglary details allow to achieve increased anti-burglary properties. MB-77HS doors allow the construction of a low threshold, with a narrow mullion width of only 47.5 mm, as well as 90 and 270 degree corner doors with a movable mullion. Lift-and-slide doors provide a convenient exit to a balcony, terrace or garden space. It is possible to make 90 and 270 degree corner doors with a movable post. A wide range of colors makes it possible to match the door to the decor of the environment.

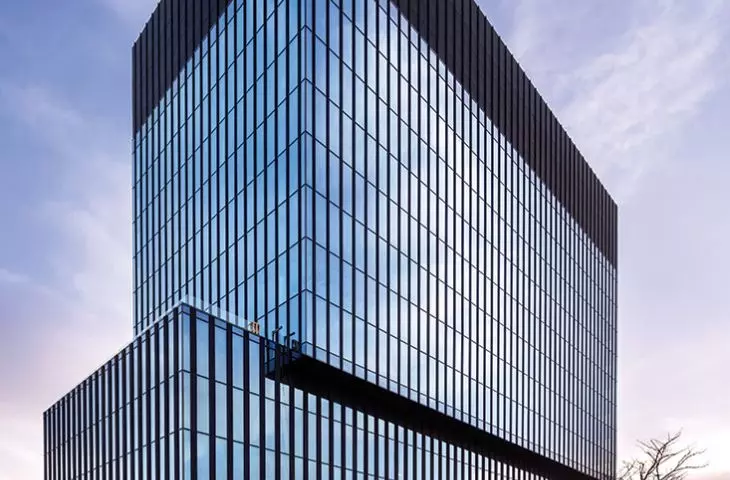

.KTW I POLSKA, KATOWICE
© ALUPROF
- MB-SKYLINE TYPE R Sliding door system with concealed frame
MB-SKYLINE TYPE R is a modern large sliding door system characterized by lightness and aesthetics. It is based on narrow profiles, thanks to which the structures gain a modern look, while providing a panoramic view of the house surroundings. MB-SKYLINE TYPE R is primarily a completely concealed door leaf profiles, narrow mullion and shallow frame. No great force is needed to move the huge elements, and the mechanism works almost silently. The maximum height of the structure is as high as 4 meters, and if we use a surface actuator, the moving leaf can weigh up to 700 kg. This gives the possibility to design spectacular glass walls. Doors made on the basis of this system give the building a unique style and raise the status of the entire investment.

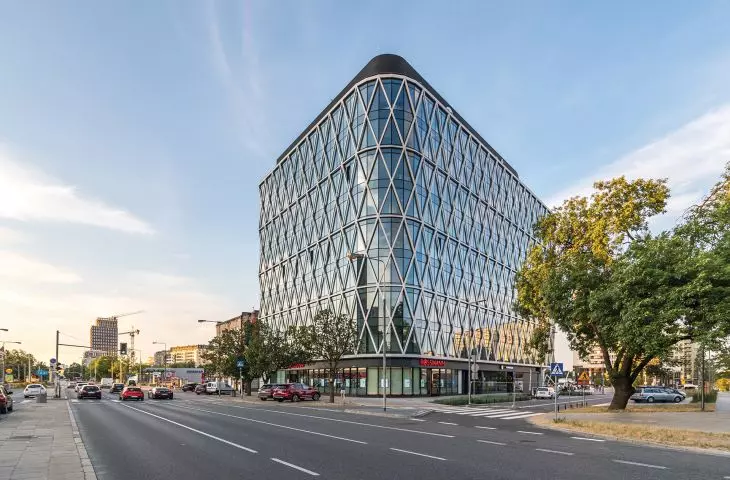

VILLA METRO POLAND, WARSAW
© ALUPROF
- MB-HARMONY OFFICE Interior wall systems
MB-HARMONY OFFICE is a new family of products for the construction of interior glass walls, the main idea of which is to create a system that is easy to prefabricate and quick to install, providing modern, lightweight design and comfort. MB-HARMONY is a single-glazed system with a geometrically lightweight, easy-to-install design. It provides for combining with tempered glass, laminated glass and acoustic glass from 10-12 mm. MB-HARMONY DUO is a system for the construction of internal double-glazed walls, the main purpose of which is any office space with very high acoustic requirements. Double glazing ensures the achievement of the insulation necessary to maintain both good working comfort and the security of confidentiality of conversations held in the rooms.
Models of Aluprof systems for BIM design are available on the site.
