Tailor-made air conditioning.
From the series "Air conditioning, ventilation, heating - technologies 2022"

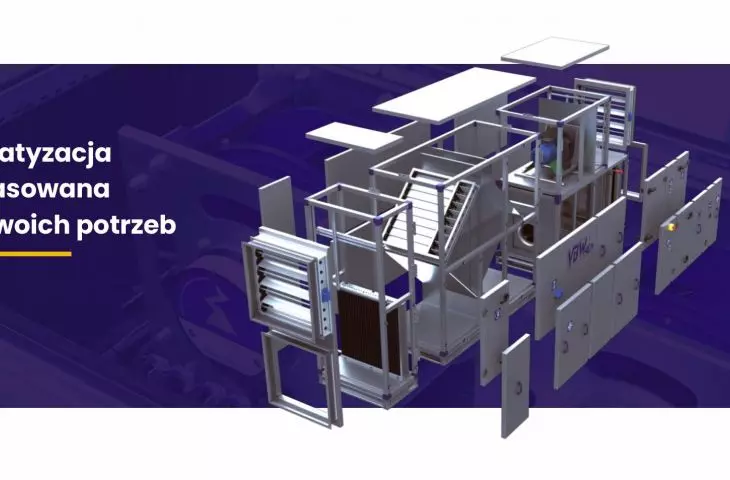

What characterizes today's market - and we're not just talking about the HWAC market, is INDIVIDUALISM. Everyone wants to feel special and be able to show off a product that has been prepared and tailored specifically for individual needs. That is why we have created sectional air handling units that give the customer the opportunity to tailor the product to the individual requirements of the facility.

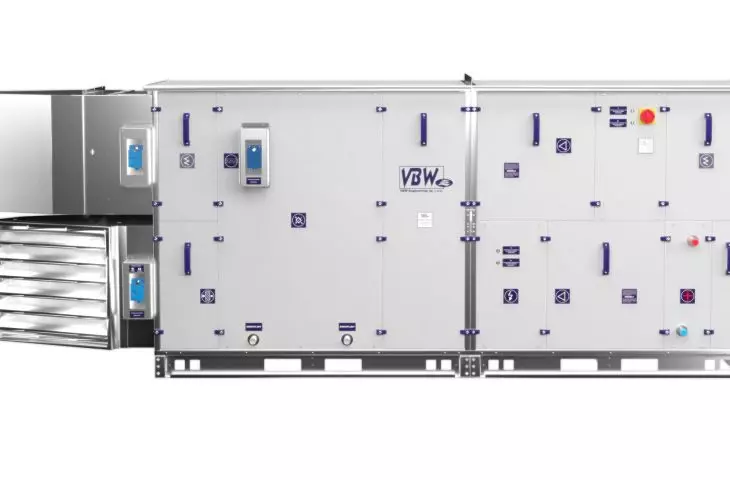

air handling units
© VBW Engineering

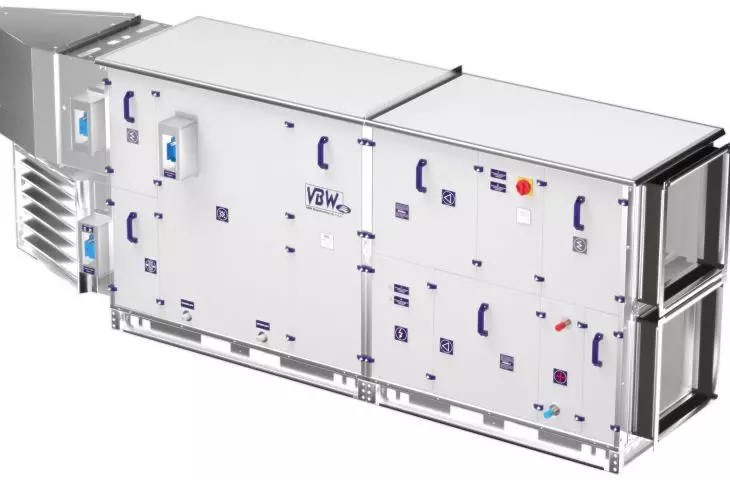

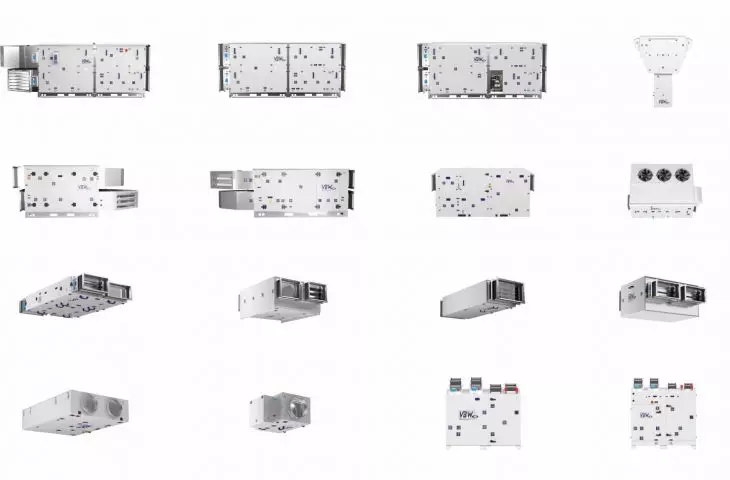

VBW Engineering manufactures air handling units in various sizes and standards. In addition, we are the only ones on the market to produce which can be customized in terms of:
- dimensional
- structural
- technical
- color
- In addition, in each sectional device we provide the possibility of individual selection:
- type of heat exchanger
- type of heater
- type of filtration section
- selection of fan sections
- individually configured automation with Plug&Play system
- selection of capacities up to 100,000 m³/h and more.
A customized air handling unit is a product tailored exactly to you, made to the highest standard every time, which will meet the expectations of the most demanding customers, designers and investors.
air handling units
© VBW Engineering

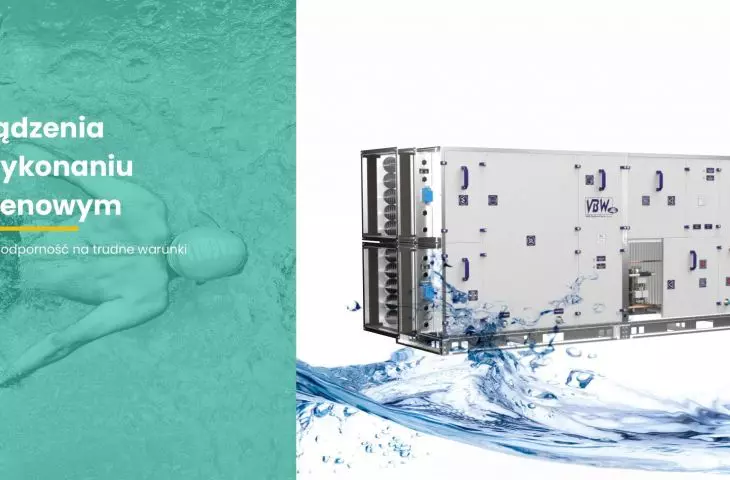

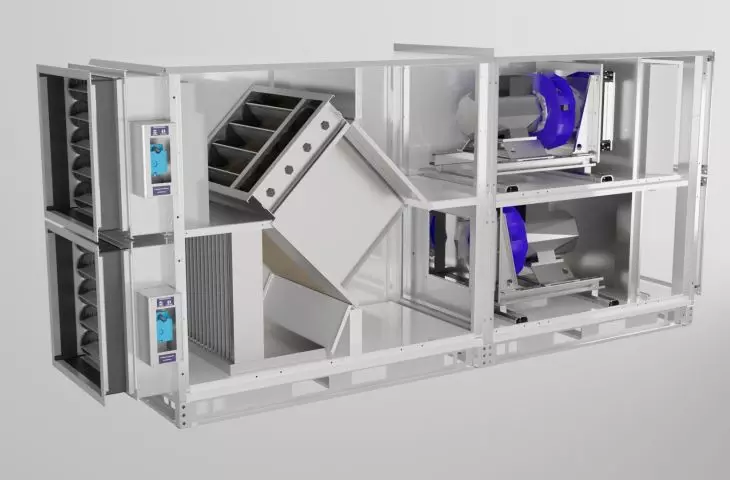

AHUs made to pool standard
Swimming pool air-handling units are specialized air-handling units with high resistance to corrosion and the effects of chlorine compounds. Equipping pool air-handling units with a heat pump significantly increases the heat recovery coefficient oand enables air dehumidification during summer periods, when supplying 100% fresh air does not ensure maintenance of the required air humidity. An additional advantage of using a heat pump in a pool unit is the ability to recover heat from the exhaust air and transfer it to heating the pool water. The pool units treat fresh air, as well as exhaust air from the pool hall, which is very humid and contains aggressive chlorine compounds.
Features of VBW Engineering's pool units:
- Heat pump fittings made of copper alloys
- Heat pump to increase heat recovery rates and provide significant savings
- Highly corrosion-resistant air handling unit
- High-efficiency AC or EC fans
- External components made of Magnelis ZM310 (e.g. frame and diaphragm of the unit, fan unit, filter guides)
- Unit tailored and matched to individual customer needs
air handling units
© VBW Engineering

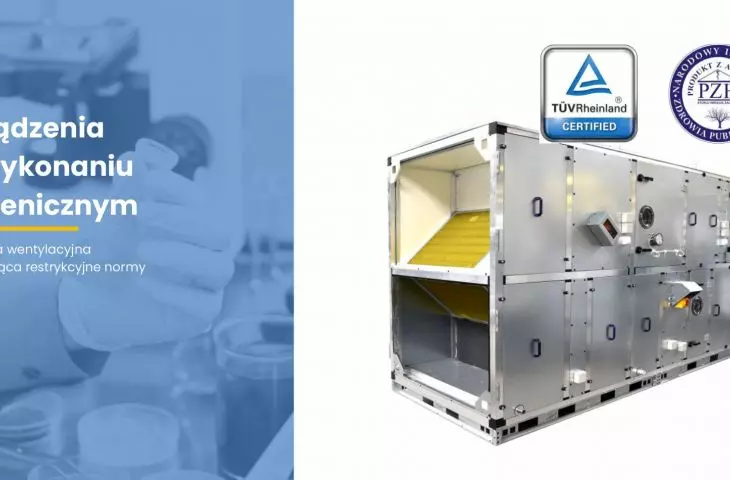

AHUs made in hygienic standard
High hygienic standard
Hygienic standard air handling units are designed for hospital facilities, pharmaceutical plants, laboratories and other rooms where maintaining cleanliness and sterility plays a key role.
Hygienic AHUs from VBW Engineering meet the strict requirements of the German DIN 1946-4 standard, confirmed by the TÜV Certificate and Hygienic Certificate, in terms of specific processing and high-quality materials used. All materials used meet health requirements and prevent the growth of microorganisms.
Features of VBW Engineering hygienic air handling units:
- Construction of surfaces in contact with treated air from at least galvanized sheet metal, coated with a layer of at least 25 um or powder-coated with a layer of 60 um
- Floor made of stainless steel (1.4301), or aluminum alloy (AlMg), shaped to allow easy drainage of water after washing the surface
- All fastening elements such as rivets, fixing screws, sheet metal screws, guides made of stainless steel
- Smooth interior surfaces
- Stainless steel drip trays for complete drainage of condensate
- Non-porous sealing materials
- Easy access to all components of the air handling unit
- Inspection windows (min. 150 mm diameter) and lighting in filter, fan and humidifier sections (window can be blacked out)
- Mechanical properties of the air handling unit housing:
- mechanical strength of the casing D2
- tightness of the casing L2
- heat transfer coefficient T3
- heat bridge coefficient TB3/TB4
air handling units
© VBW Engineering

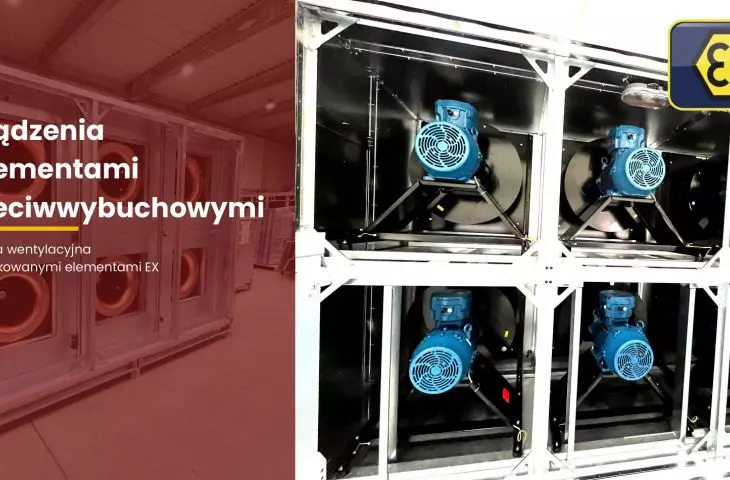

Air handling units made with explosion-proof elements
Explosion-proof ventilation units will find their application in buildings and rooms requiring special protection. Explosion-proof units are products designed for use in places where there is a likelihood of explosive compounds, liquids, gases, vapors or dust-air mixtures with flammable and explosive properties.
VBW Engineering uses EX safety components in its air handling units:
- Fan unit with ATEX EX II 2G c IIB T4
- Metal fan blades and connections (non-sparking)
- EX cushioned motors
- Filters (cannon, pocket) with ATEX
- Dampers with metal blades with ATEX
- Filter pressure measuring pres
- Fan pressure measuring pres
- EX damper actuators
- Metal door presses
- Metal handles and hinges
- EX reinforced flexible connections
- Corners, reinforcements, metal feet
- Special glands EX
- Special reinforced EX hoses and connections
- Metal flaps
- Special lighting in filter section and fan units with AREX
- All electrical connections protected on the operating side
- EX supply and exhaust
For more information, visit the company's VBW Engineering page on the PdA portal.
