Trims for thermal insulation systems of buildings using the "light-wet" method
Bella Plast has been a leader in the production of finishing strips and profiles for thermal insulation systems for over 25 years.
COMPREHENSIVE FINISHING OF EACH EDGE OF THE FACADE
Bella Plast finishing profiles ensure technically correct terminationand bonding of the system layers in places where there is an edge, i.e. an area within which all layers of the system: thermal facing, glass mesh, adhesive and plaster terminate. The profile is designed to securely weld these layers together without the possibility of delamination in the future.
Therefore, it is worth taking care of the proper selection of profiles and thus ensure the durability of the thermal insulation facade for many years and enhance its aesthetic and design qualities.

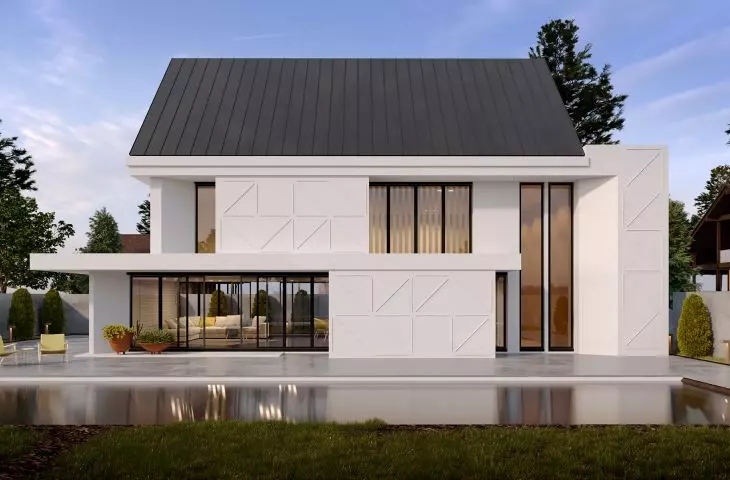

Single-family building - ETICS facade made with the use of finishing strips - Bella Plast
© BELLA PLAST
TYPES OF LISTS

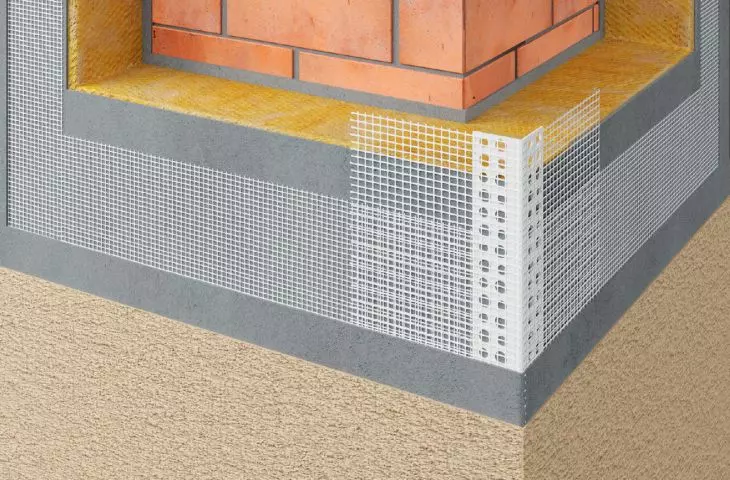

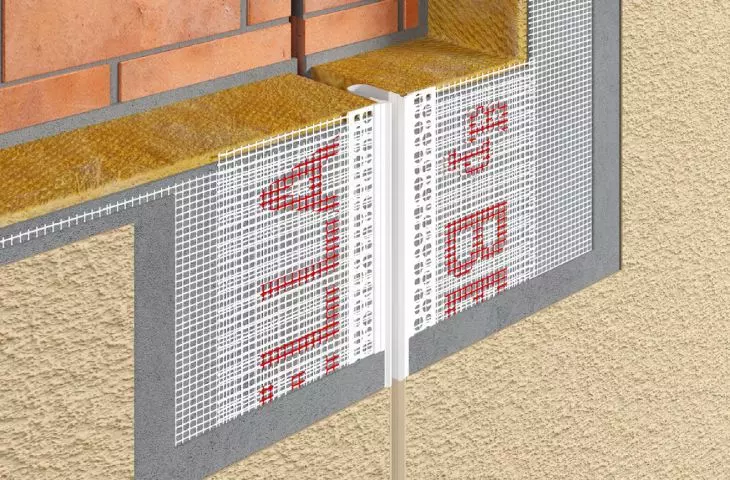

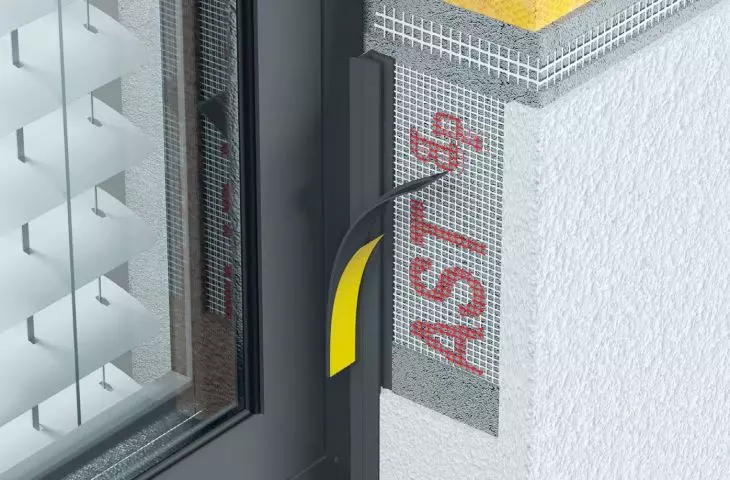

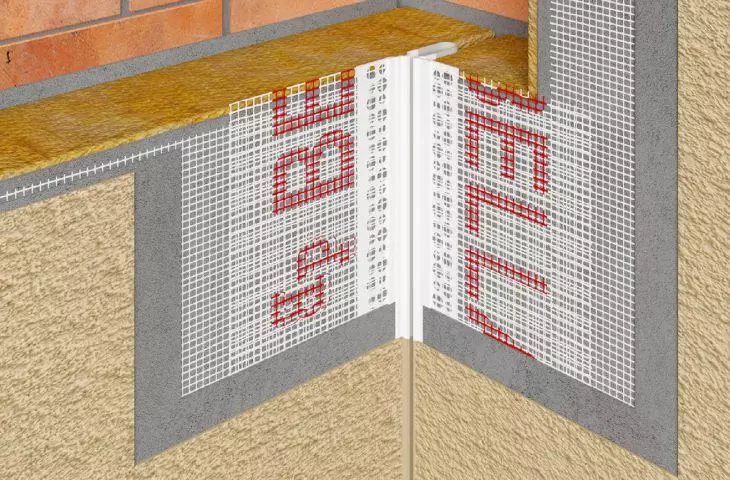

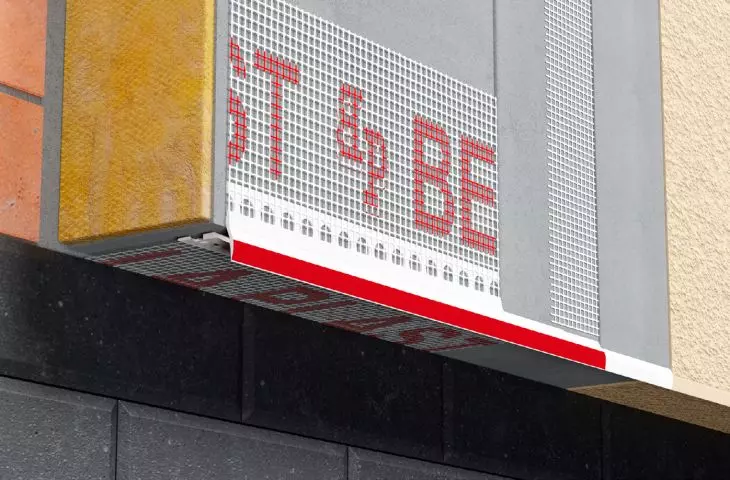

The basic edges in the BSO elevation (jointless thermal insulation systems) include: the joint between the plaster and the window frame - here we use expansion joint strips (BP13 series), any elements (shapes) protruding outside the elevation e.g. balcony, terrace, bay window or bay window. Balcony, terrace, oriel, or most commonly: the lower end of the facade over a retracted plinth - here we install drip caps (BP14 series), then any corners: around windows, doors, or the corner of the building - here we use reinforcing angles (BP10 series) and more specialized profiles: system expansion joint (BP15) or (BP16 angle) at the location of the course of the division of buildings (set on separate footings) or when the horizontal span of the facade exceeds 15 m).

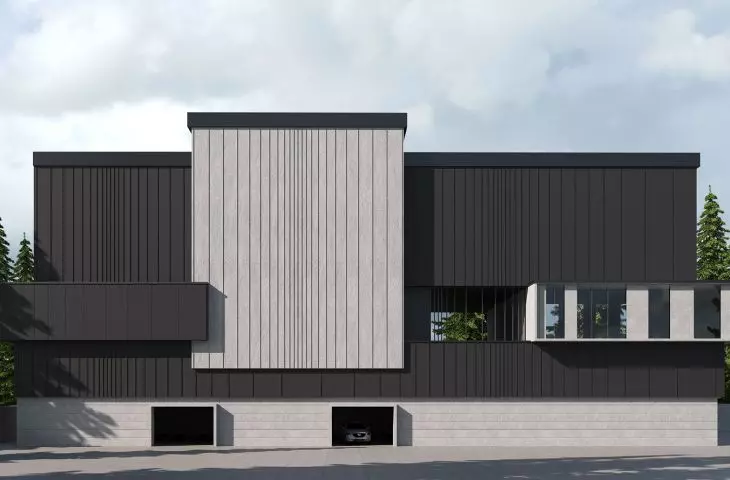

Service building slats BP19 and BP11H TS
© BELLA PLAST

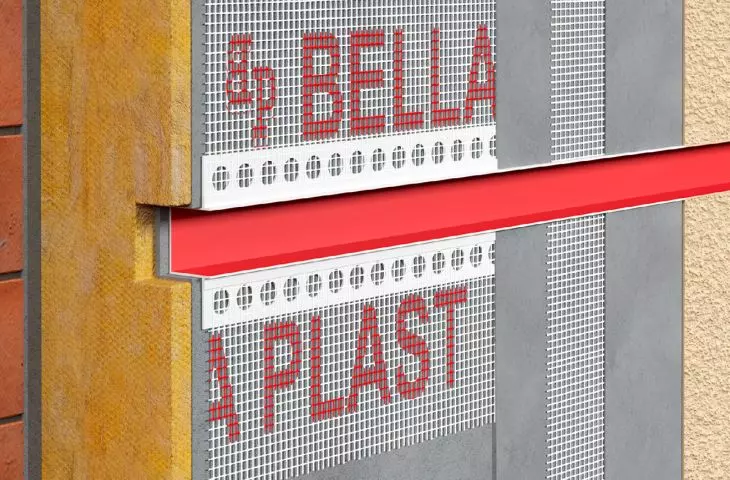

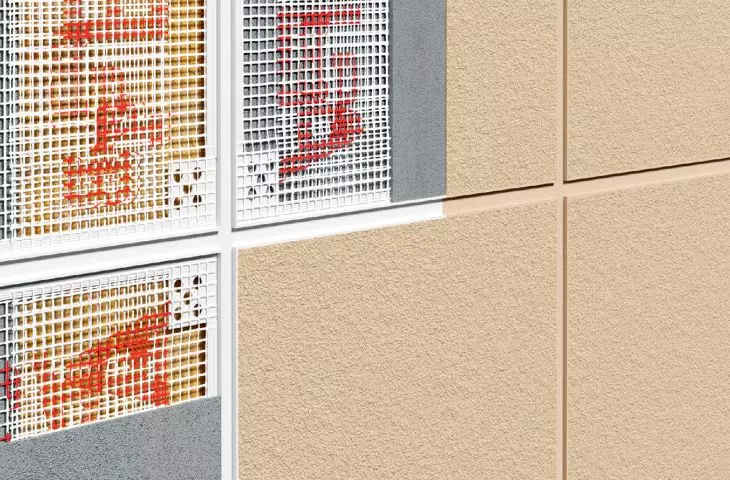

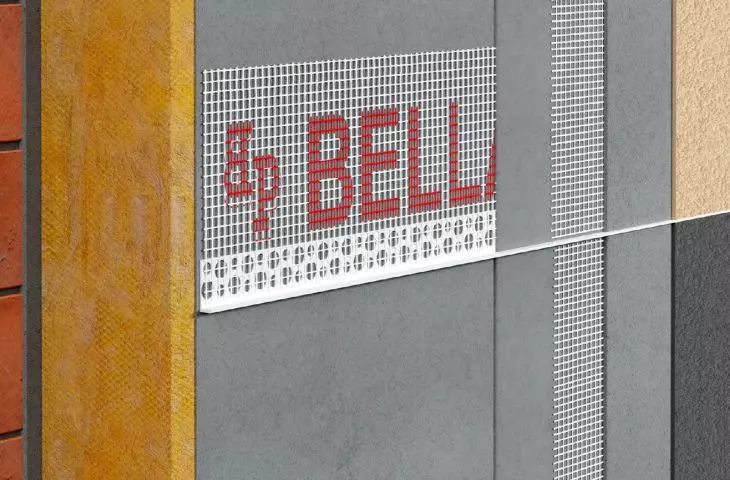

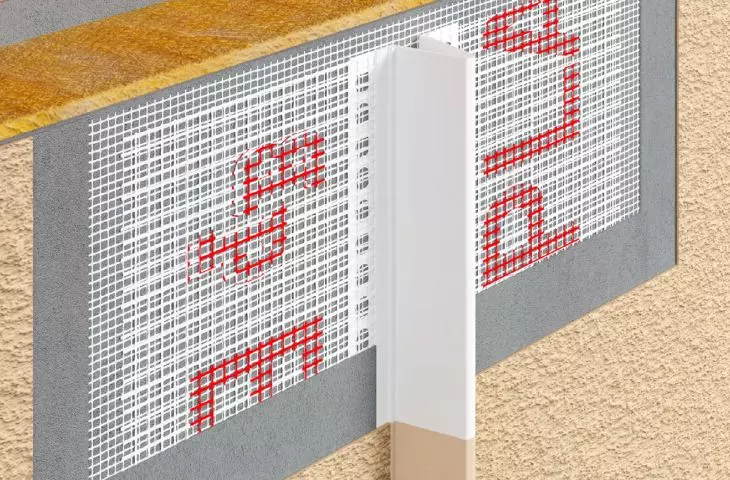

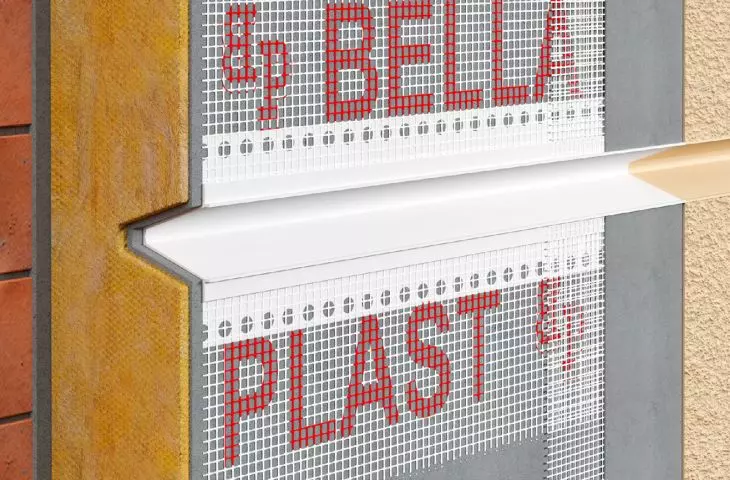

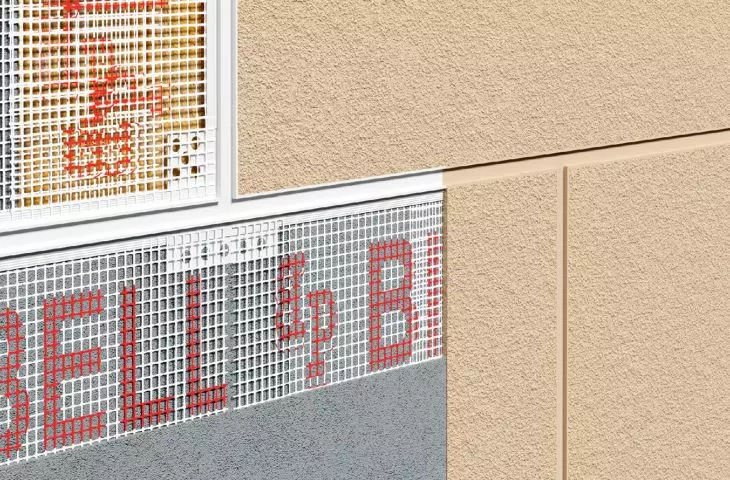

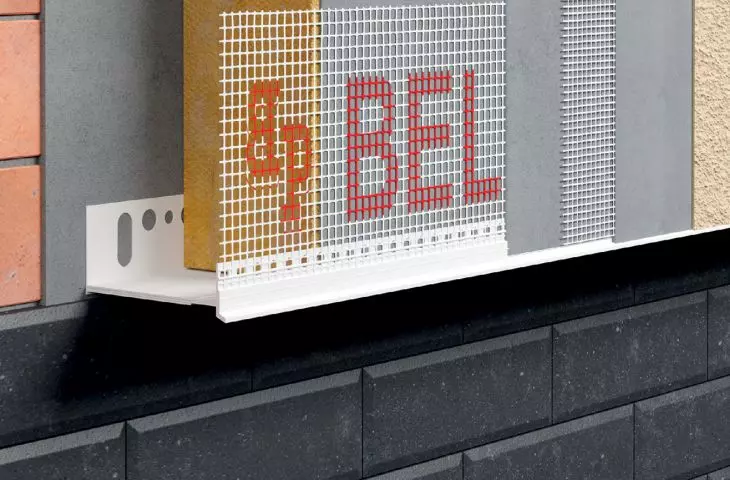

And many, many other products, including decorative rustication strips (BP11), decorative imitation sheet metal "on the seam" (BP19) most advantageously used with a triangular cavity rustication strip (BP11HTS) or finishing facade strips (BP22) used at the border of the change of plaster grain and/or its color. It is also recommended to use PVC start (plinth) strips (BP30S) as a lower base for polystyrene or mineral wool panels up to 220 mm thick. Interesting effects on the surface of the facade can also be achieved with the so-called surface-mounted rustication strips, that is, strips that do not require making a groove in the volume of the thermal insulation board (BP11 MINI S) - with a groove dimension of 7 mm wide, 3 mm deepmm as an ideal joint between imitation stone facade panels made with decorative plasters such as sandstone or granite, along with the necessary accessories in the form of system cross connectors (BP11 MINI MAX CC) and "T" shaped (BP11 MINI MAX TC).

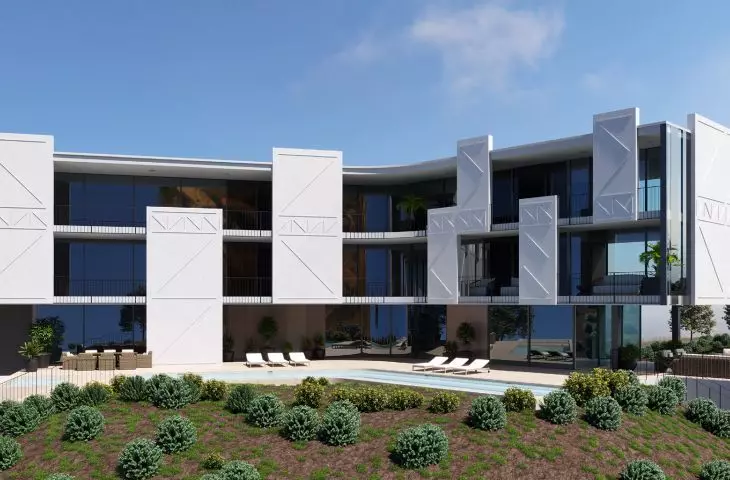

Hotel ETICS facade - BP19 decorative mouldings were used - Bella Plast
© BELLA PLAST
Bella Plast company has been cooperating with architectural studios for many years, providing both specific tools for designers in the form of ready *.dwg files of products and new products which significantly expand the scope of design solutions in facades using the "light-wet" method: bellaplast.com.pl/bella-plast-cad
