Openwork suspended ceilings
We present to you an offer of openwork suspended ceilings which are trusses of various mesh sizes and shapes, made of the highest quality modern material, whose physical and chemical parameters exceed similar products made of steel and aluminum.
The product we present can have a very wide range of applications as:
- openwork suspended ceilings or, after filling with special elements, full ceilings
- decorative ceilings, light diffusing louvered ceilings
- openwork interior walls, soffits, partitions, screens
- masking trusses, covering in the vertical or horizontal plane
- ceiling grilles, ventilation grilles
- layered ceilings - decorative
- mesh ceilings.

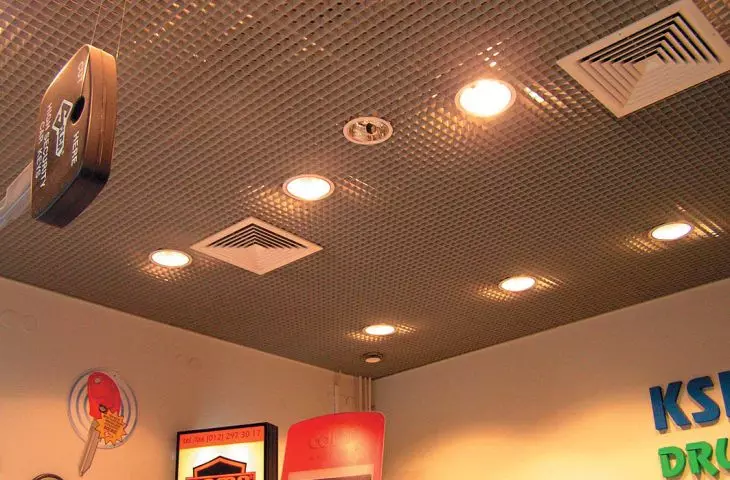

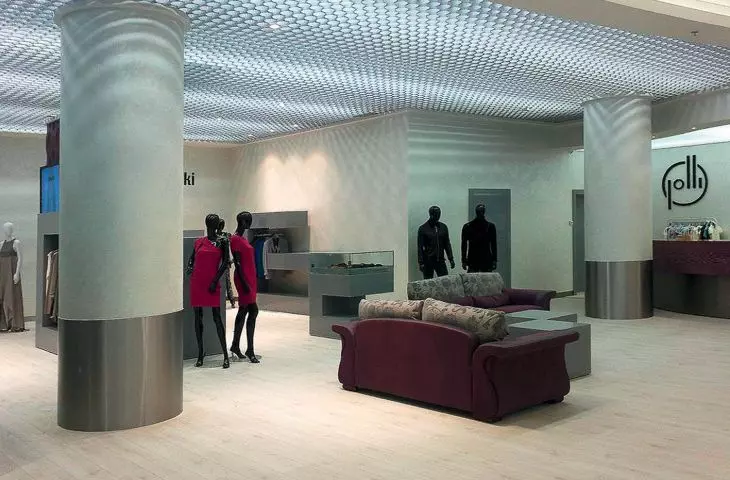

Lightweight openwork ceilings - open
© LASER
Description of the material
We offer you a product of the highest quality made of ABS plastic in standard version or ASA/PC in non-flammable version in Bs1d0 class, meeting the requirements of strict global and European Union standards with CE Certificate. The material we offer is resistant to impact, abrasion, diluted acids, concentrated bases, mineral oils, alcohols and water, as well as corrosion. The plastic is colored in the mass, which is one of its many advantages. These properties affect the durability and aesthetics of the product, which determines the high utility values proven in service.

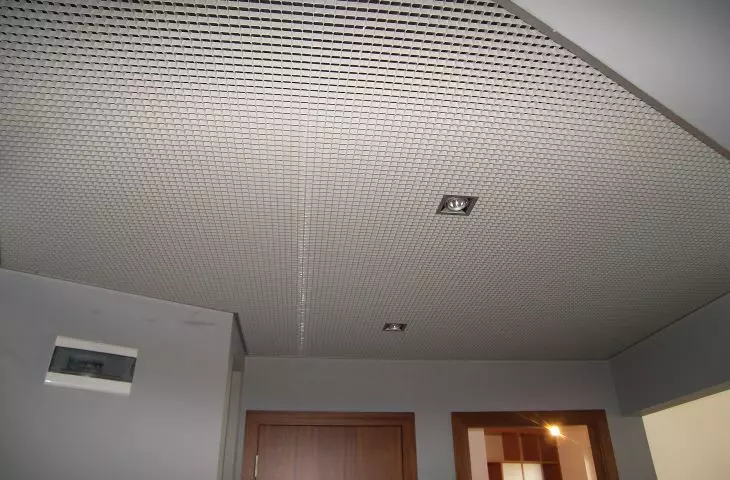

Openwork ceilings - open
Ceilings from the modules we offer are lightweight, they do not require a special support structure, and the system of hooks allows them to connect with each other to create a uniform horizontal or convex plane. The unique system of connecting modules makes it invisible, and allows easy installation and removal anywhere on the ceiling surface. Each module design, is marked with a code, which includes technical data. According to EN 12845:2004, open suspended ceilings can be used under LH and OH sprinkler sections, provided that the following conditions, among others, are met:
- the total open area of the suspended ceiling, including lamp fixtures, is at least 70% of the total ceiling area
- the smallest dimension of holes in the ceiling is not less than 0.025 m = 2.5 cm or not less than the thickness of the suspended ceiling.
Our ceilings meet the above conditions, and their open area is within 76 ÷ 94%.
Decorative ceilings

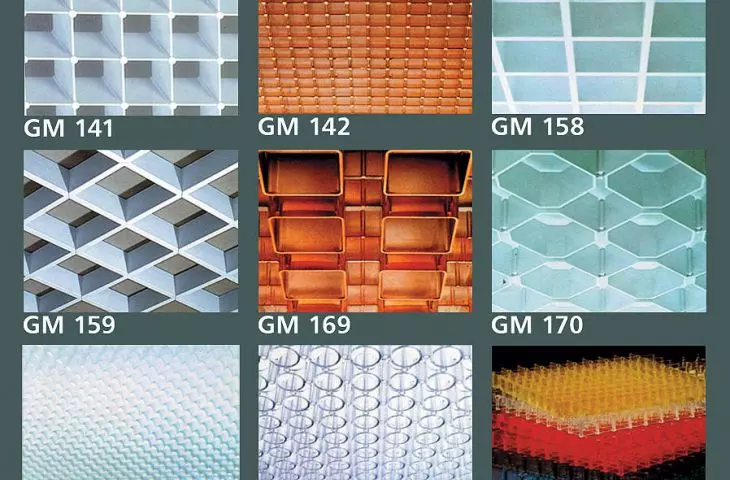

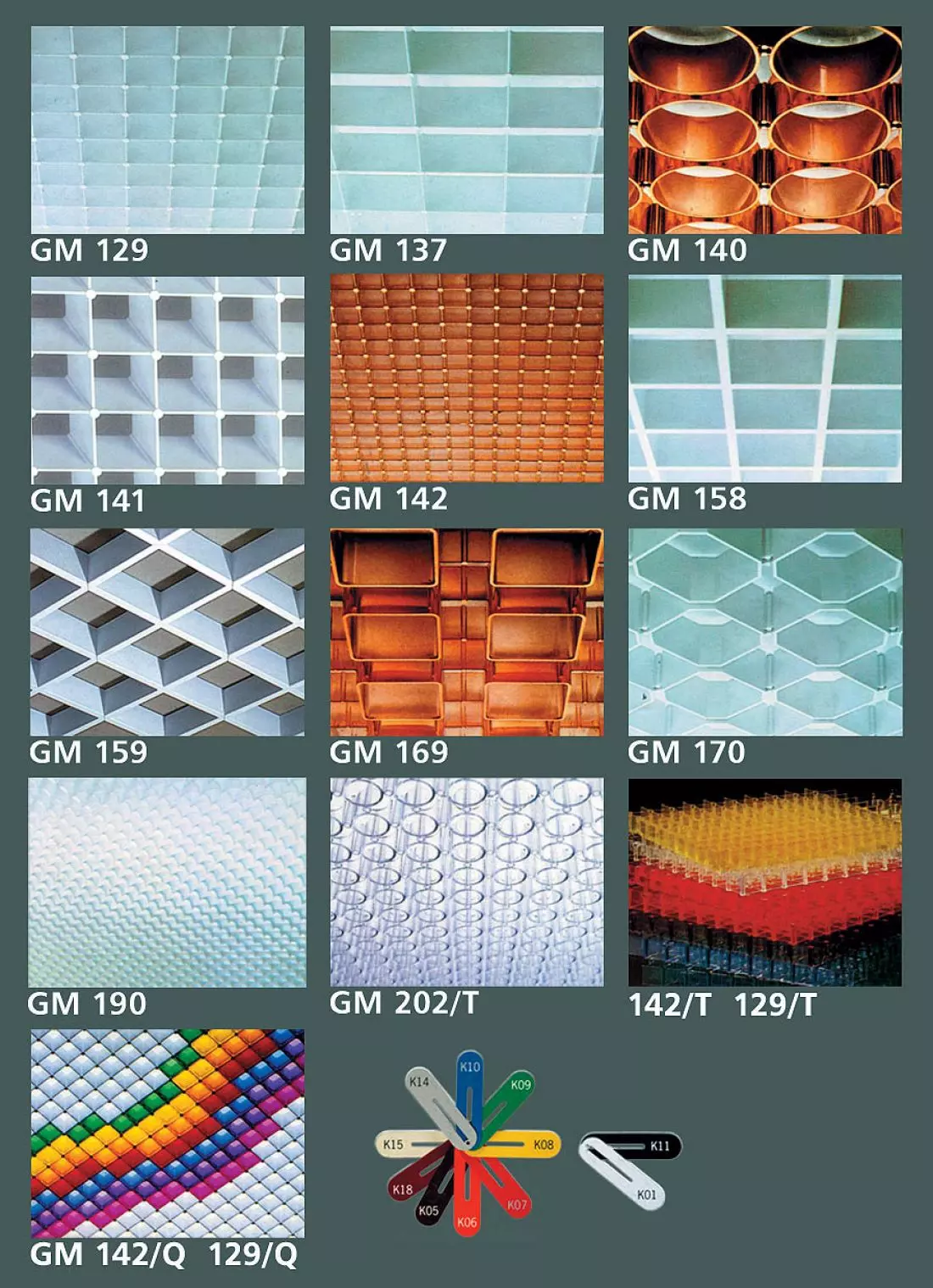

The modular system of connecting elements allows you todesign colorful patterns in the ceiling plane. Openwork surface filling elements, marked with the letter Q, are also available for products marked with codes 129 and 142, which increase the decorative possibilities, and are also used for attaching LED lighting terminals or fiber optic lighting.

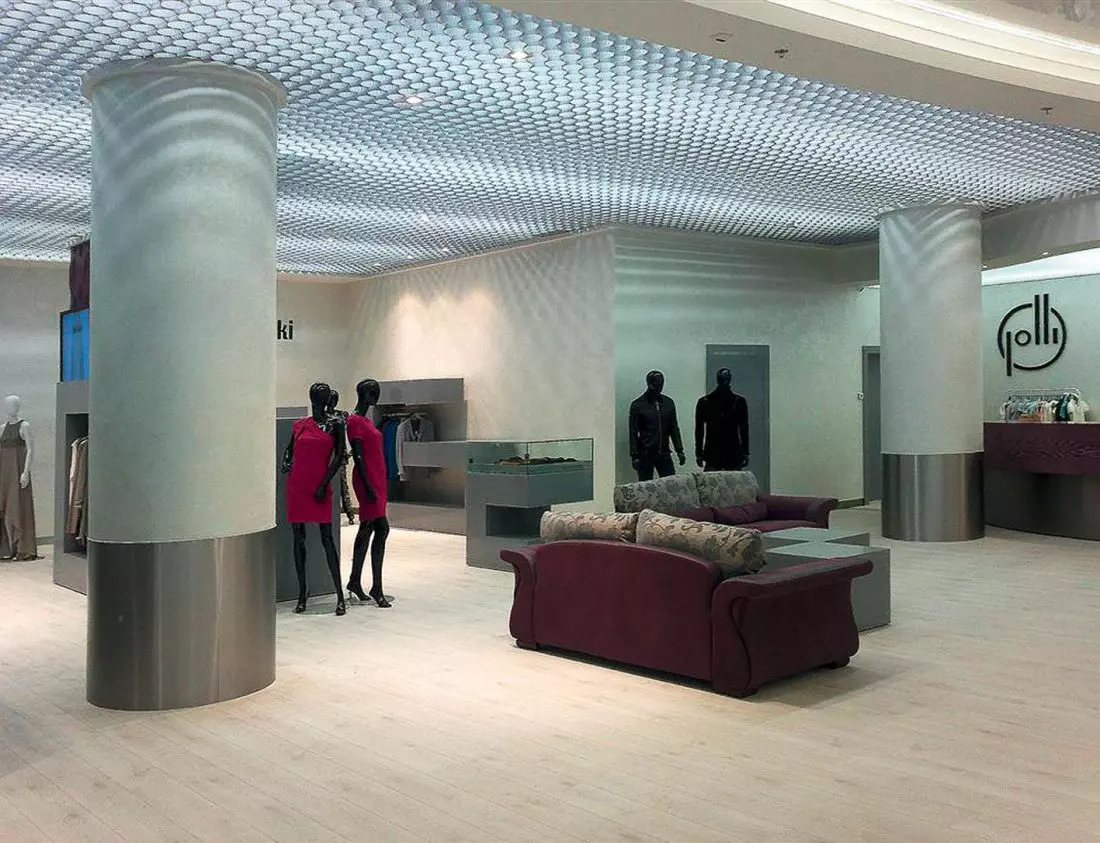

Lightweight openwork ceilings - open
© LASER
Layered ceilings - special

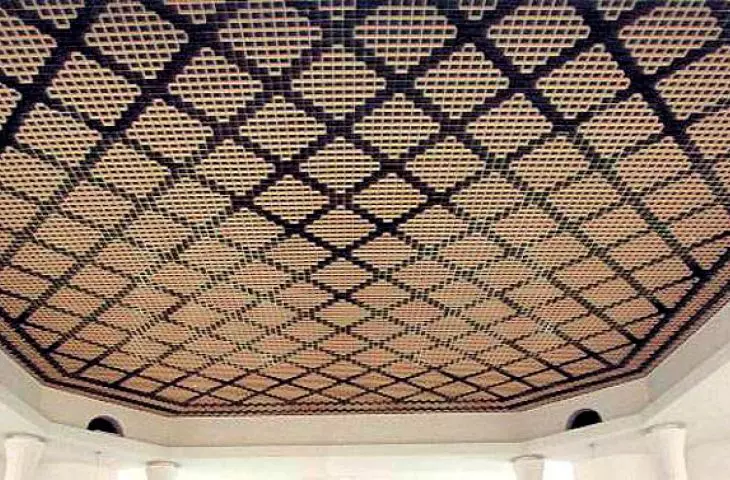

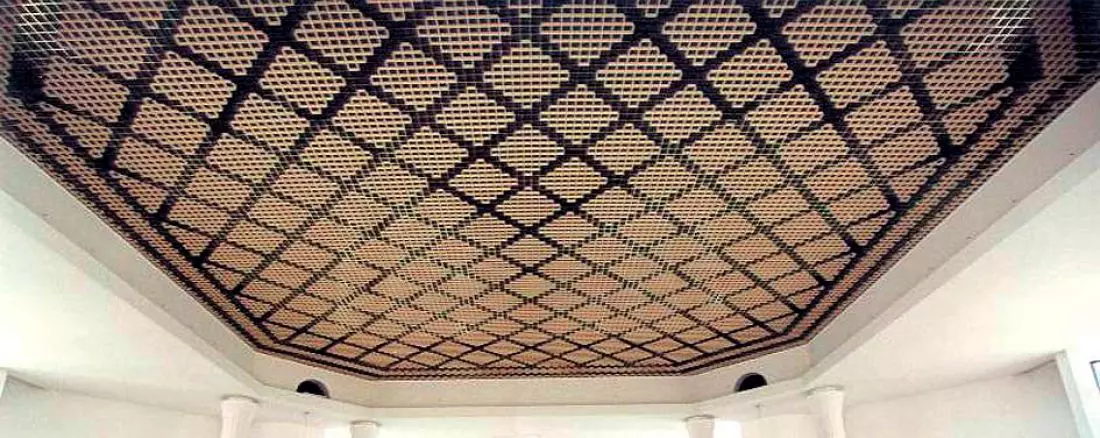

An example of layered ceiling solutions is the realization of 800 to 1,700m2, decorative-masked ceiling in several churches in Poland, consisting of two layers: an isothermic and sound-absorbing layer and a decorative-covering layer.
The self-supporting modular ceiling grid system, the negligible total weight of the system from 2 to 4 kg/m2 and the high resistance to deformation - elasticity of the material, allows the realization of the deflection of the suspension on the rope grid, attached to the load-bearing side walls of the object, without the need to fix and load the ceiling.
Grid ceilings
Are realized from PPP142 truss with the smallest mesh suspended traditionally using the ceiling grid structure, and also mounted in aluminum channel frames.
Grilles, trusses
Products coded 129, 141, 142 come in 600x600 mm modules, are also available in non-flammable version and can be used in other ceiling systems as elements of ventilation-masking grilles.
Colors
We have a wide range of colors available. In addition to standard colors, transparent clear and satin silver, gold, brass as well as wood imitation and fluorescent colors are also available.

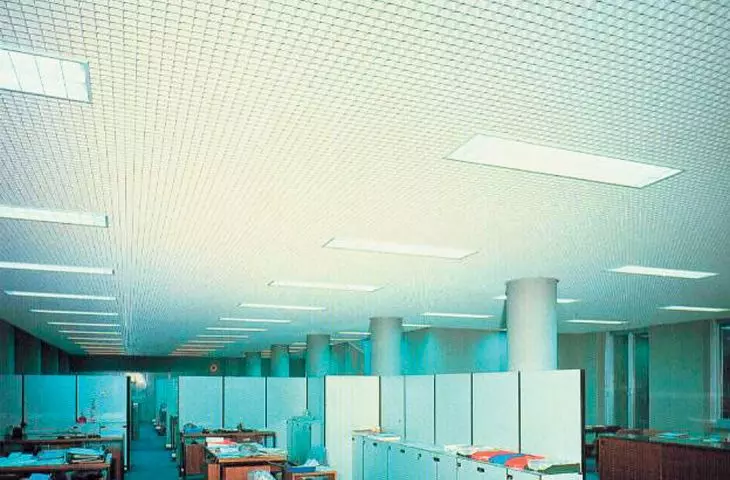

Light openwork ceilings - open
© LASER

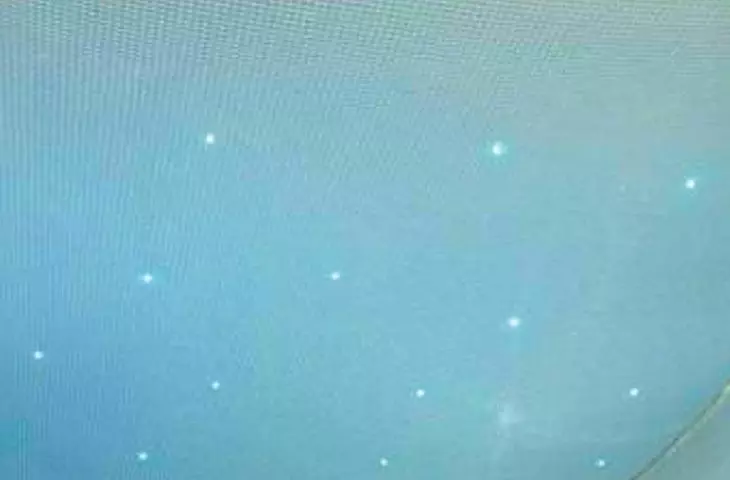

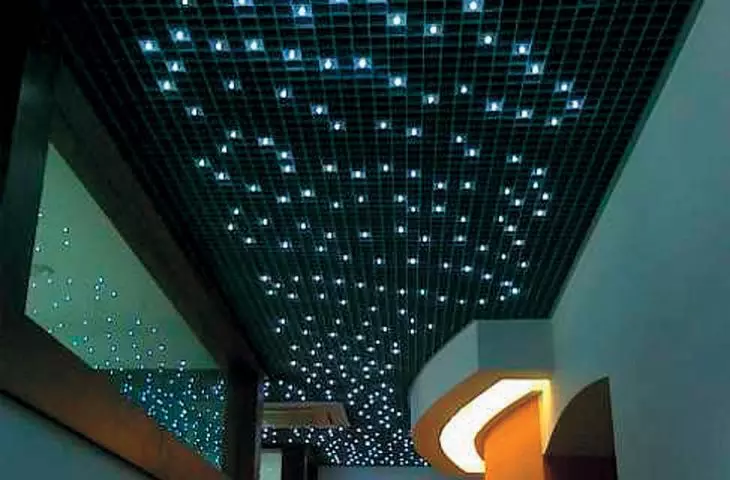

Decorative lighting
As standard, it is possible to install various light fixtures in the ceiling plane. When installing light sources above the ceiling, we achieve an interesting effect of its illumination. We have extensive experience in the design and installation of decorative fiber optic and LED lighting, used together with our ceilings.
***
The 25-year presence of our Company on the Polish market, many interesting realizations created during this time, as well as customer satisfaction, confirms the high utility and aesthetic qualities of the offered products.
To learn more about our offer and realizations, we invite you to visit our website www.sufitylaser.pl
We send a catalog with samples to those interested. For investors, we offer assistance at the stage from conceptual to detailed design, along with material and execution cost estimates. Please send inquiries to biuro@firmalaser.com If you have any questions or concerns, please contact a representative of our company.
