Prefabricated elements - reinforced and prestressed concrete from Consolis
Consolis CONSOLIS Polska Sp. z o.o. is part of the largest European concern, producing precast elements - reinforced and prestressed concrete. Our experience has been gained since 1893. Consolis CONSOLIS Polska Sp. z o.o. has two production facilities in Poland, in Gorzkowice, near Piotrków Trybunalski, and in Ostrów Wielkopolski.
Consolis prefabricated elements
© CONSOLIS

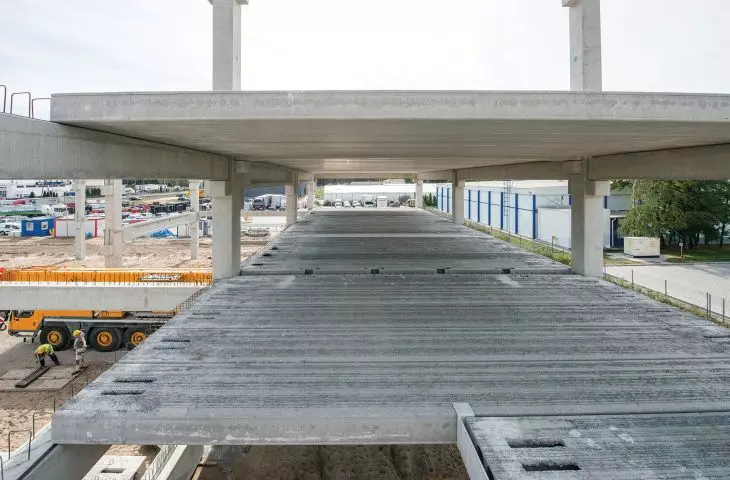

HC ceiling hollow core slabs
Consolis Poland is the largest manufacturer of HC prestressed hollow core slabs. Thanks to the element's selectable height and load capacity, smooth underside and efficiency of installation, they are one of the most popular solutions for ceiling cross-sections. They are produced on long tracks and then cut to the appropriate length using a circular saw. By default, they are cut at right angles, but it is also possible to cut on a slant or lengthwise (to reduce the width of the element). In such a ceiling, holes and cutouts can be made for the routing of installation passages and ventilation ducts. Their installation does not require temporary supports. Height [mm]: 200, 220, 265, 320, 400 and 500. width [mm]: 1200. maximum span [m]: 22 (for HC500 panels). Fire resistance: R60-R120.
Consolis prefabricated elements
© CONSOLIS

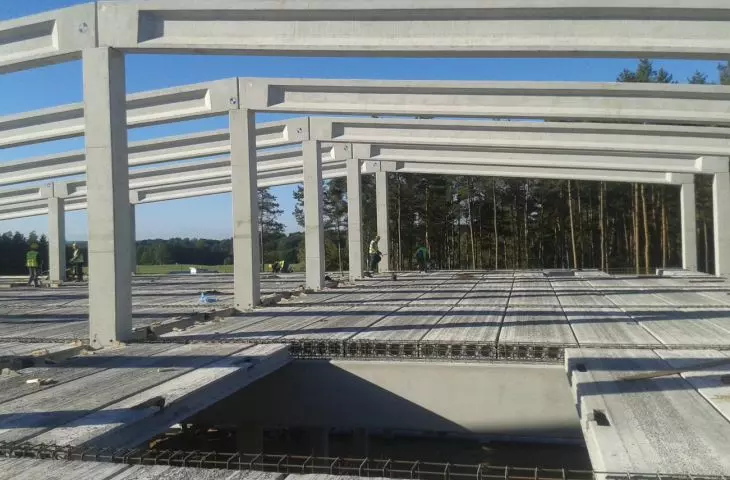

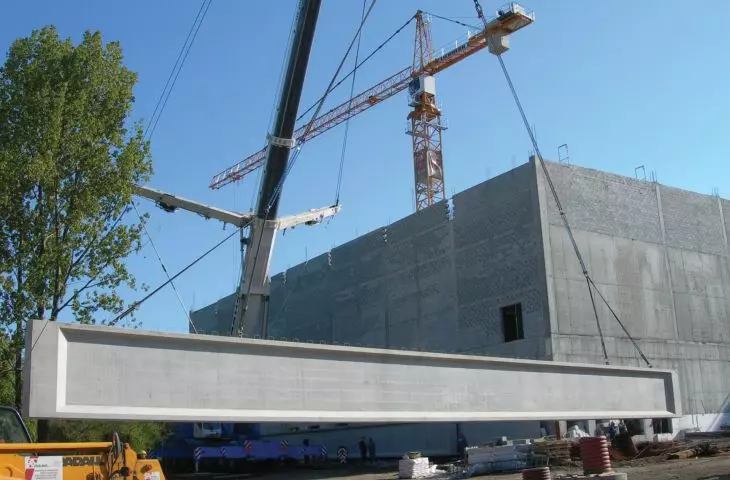

Columns, beams
Precastcolumns and beams are produced in various sizes, shapes and lengths. The surface of the concrete is smooth and the edges are chamfered. Prefabricated elements are equipped with all the necessary accessories for making connections such as steel brands, bars, etc., as well as the holes provided in the design. These elements are made of reinforced concrete or prestressed concrete and, depending on the type, have different spans, cross-sections and lengths. Pre-stressed prefabricated elements are made of C40/50 or C50/60 grade concrete. columns: max. length [m]: 24; min. cross-section [mm]: 300x300. Beams: max. length [m]: 40.
Consolis prefabricated elements
© CONSOLIS

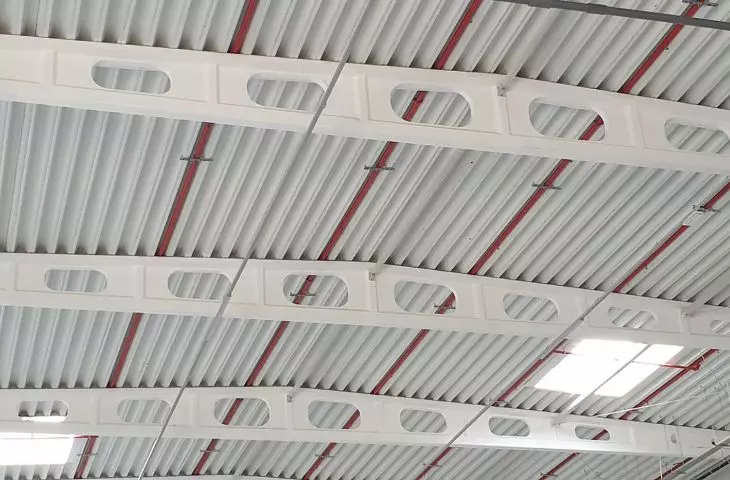

TT floor slabs
TT prestressed concrete floor slabs are characterized by a ribbed cross-section and a smooth bottom surface. These elements are mainly used for higher floor loads or large roof spans. They are produced in a standard width of 2400 mm. The ends of the panels can be undercut to reduce the overall structural height. TT panels give great flexibility in the location and dimensions of openings in the ceiling. Height [mm]: from 400 to 800. width [mm]: from 1500 to 2400. thickness of ribs [mm]: 120 and 200. maximum span [m]: 24. fire resistance: R60-R120.
Consolis prefabricated elements
© CONSOLIS

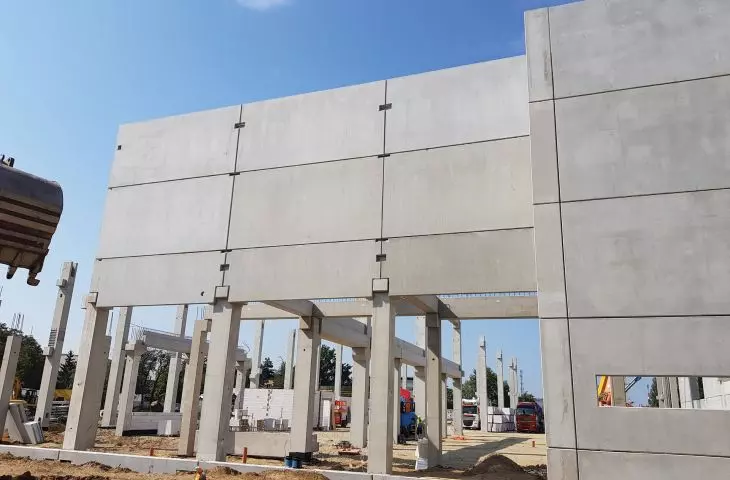

Walls and foundations
Prefabricated reinforced concrete walls are produced in a wide range of sizes and applications, as structural single-layer load-bearing and self-supporting walls, layered walls, facade walls with various surface finishes, foundation walls and others.Structural walls can act as structural stiffeners in multi-story buildings, as well as transfer loads from ceilings, they can also be used as fire separation walls.
Consolis Polska offers all assistance in the preparation of the investment - from the planning stage, through design, execution of elements and their delivery to the construction site, to the installation of prefabricated elements.
