Comprehensive finishing of each edge of the facade

15 of November '24

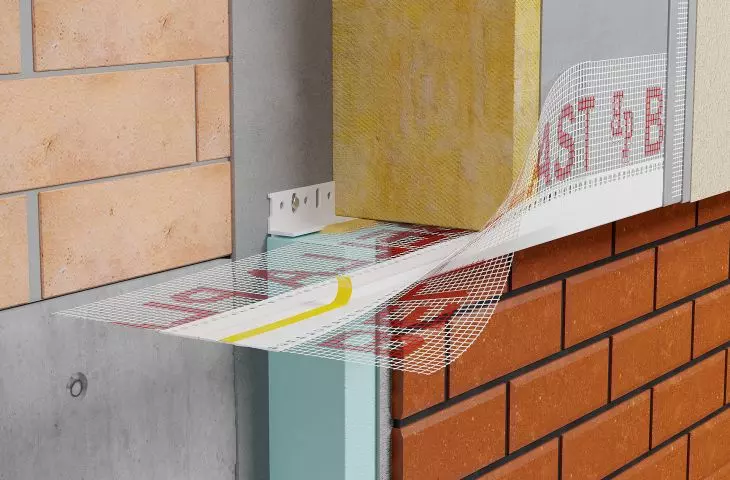

BP14 RF - 25 meters ROLKA drip strip for ETICS rolled up.

...

+10

Trim strips for building thermal insulation systems using the "light - wet " method - ETICS. Bella Plast company for more than 25 years is a leader in the production of trims and finishing profiles for thermal insulation systems.

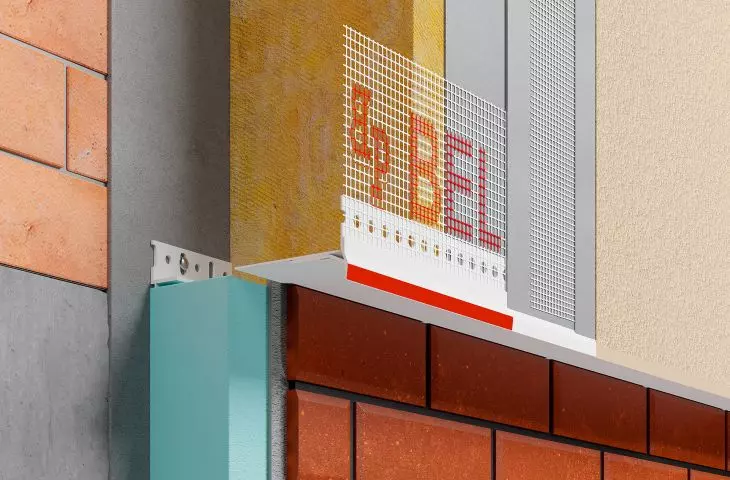

BP30S ECO PLUS COK + BP27 initial skirting board

COMPREHENSIVE FINISHING OF EVERY FACADE EDGE

Bella Plast finishing profiles ensure technically correct termination and fusion of the layers of the system in places where there is an edge, i.e. an area within which all layers of the system: thermal facing, glass mesh, glue and plaster end. The profile is designed to securely bond these layers together without the possibility of delamination in the future.

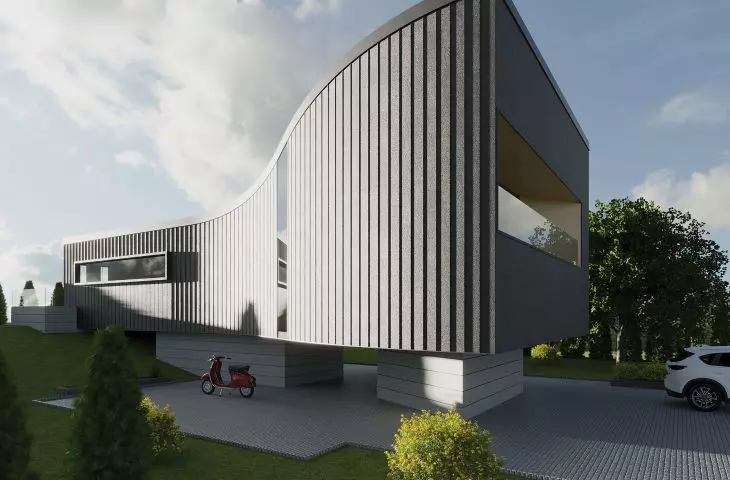

BP19 and BP11 HTS service building - oval facade

Therefore, it is worth taking care of the proper selection of profiles and thus ensure the durability of the thermal insulation facade for many years and increase its aesthetic and design qualities.

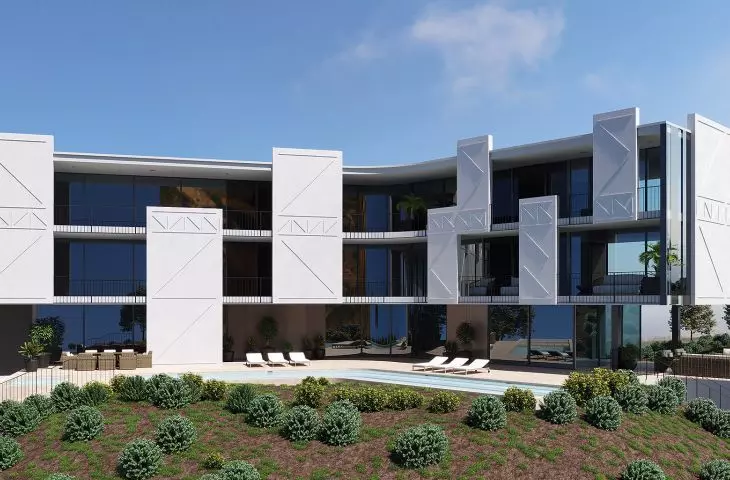

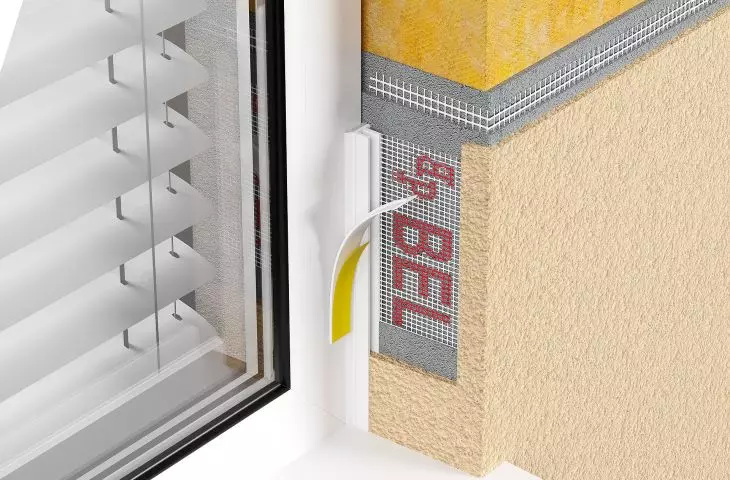

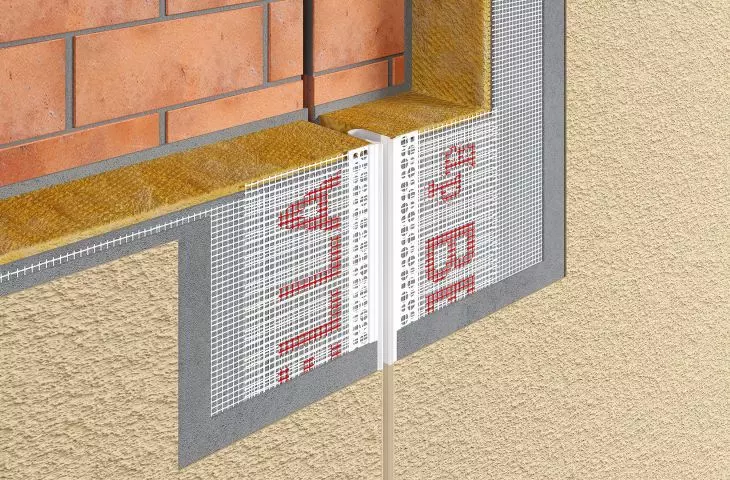

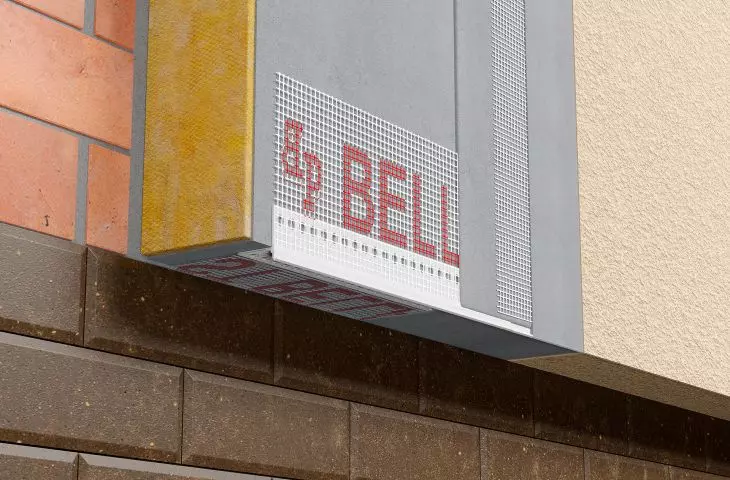

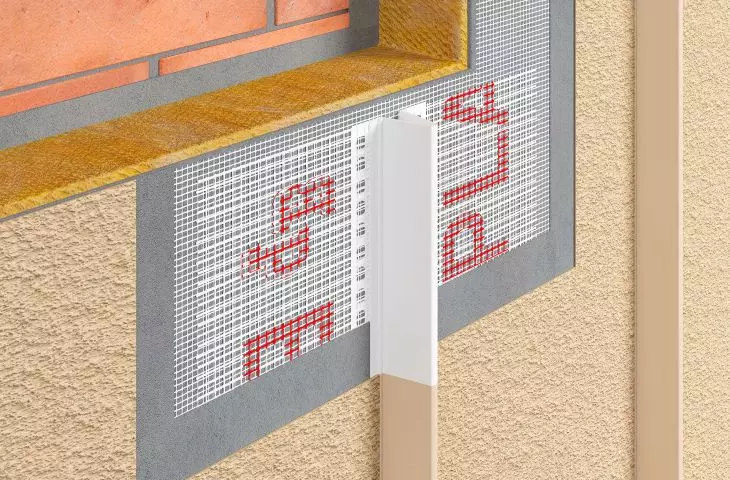

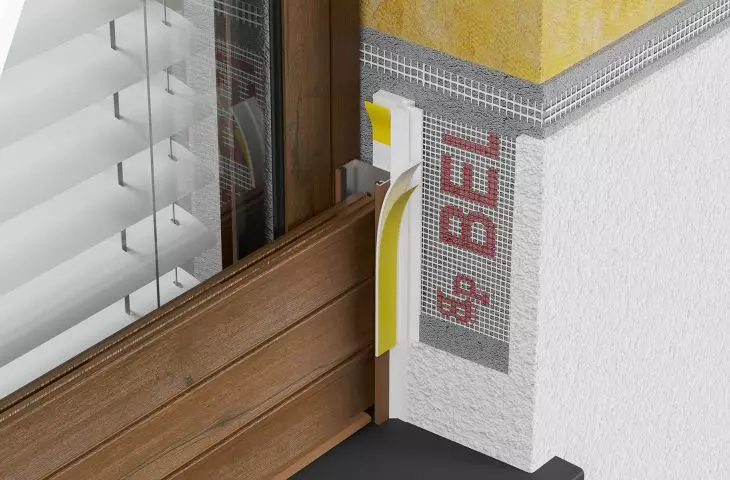

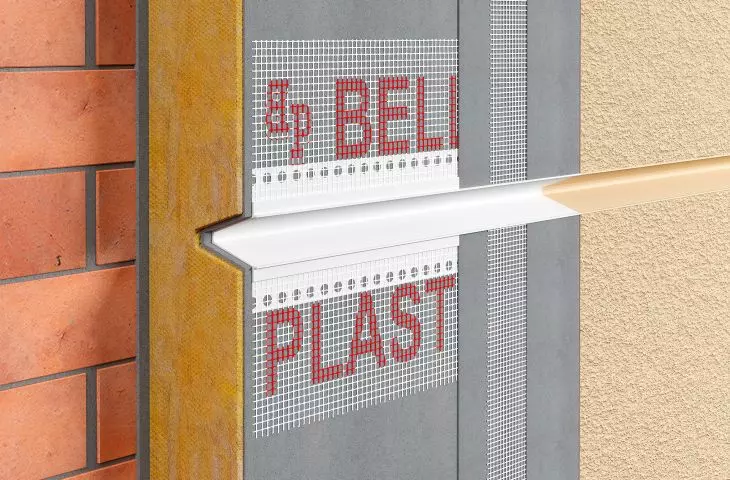

The basic edges in the BSO elevation(jointless thermal insulation systems) include: thejoint between the plaster and the window frame - here we use expansion joint strips(BP13 series), the joint between the plaster and the roller shutter guide: Dilatation strip for roller shutter guides(BP13R), any elements (shapes) protruding outside the facade, such as. balcony, terrace, oriel, or most commonly: the lower end of the facade above the retracted plinth - here we install drip caps(BP14 series, BP30S * COK series, BP14 RF roll-up drip cap NEW), then any corners: around windows, doors, or the corner of the building - here we use reinforcing angles(BP10 series, BP23S) and more specialized profiles: system expansion joint(BP15) or(BP16 angular) in the place of the course of the division of buildings set on separate footings) or when the horizontal span of the facade exceeds 15 m). And many, many other products, among others. decorative rustication strips(BP11 series), decorative imitation sheet metal "on the seam"(BP19) most advantageously used with a triangular cavity rustication strip(BP11HTS) or finishing facade strips(BP22 series) used at the border of the change of plaster grain and/or its color.

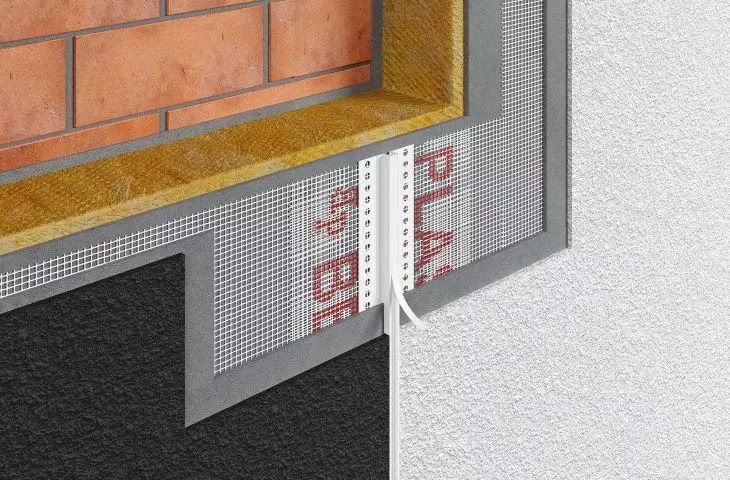

BP15 EXT concealed expansion joint strip

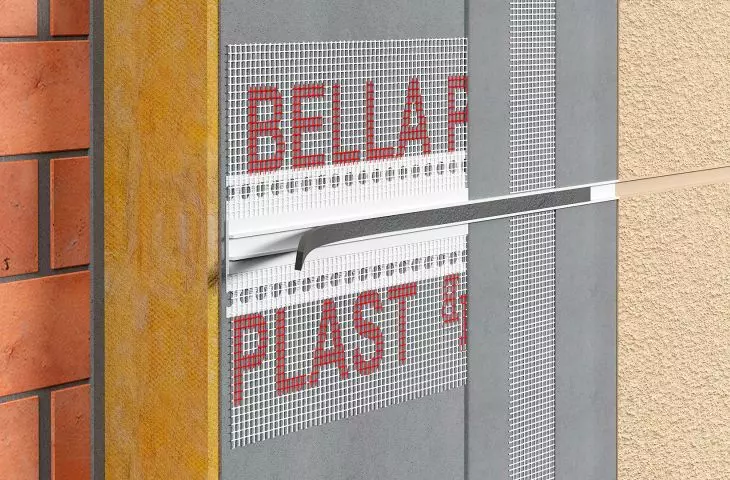

It is also recommended to use PVC starting (plinth) strips(BP30S, BP30S * COK series, BP27) as a lower base for polystyrene or mineral wool panels. Interesting effects on the surface of the facade can also be achieved with rustication strips(BP11 MINI MAX) - with a groove dimension of 7 mm wide, 3 mm deep as an ideal joint between imitation stone facade panels made with decorative plasters such as sandstone or granite. When using different types of thermal insulation panels, such as polystyrene and mineral wool, it is worth using BP15 EXT flush-mounted expansion joint strip at the point of connection of such panels or in any other case when there is a need to level the stresses on the surface of the facade.
