DallDrain spot drains from Dallmer - reliable, easy to install, extremely aesthetic
Dallmer has been offering innovative drainage solutions for many years - products of the highest class, both in terms of performance, design, workmanship and everyday use.

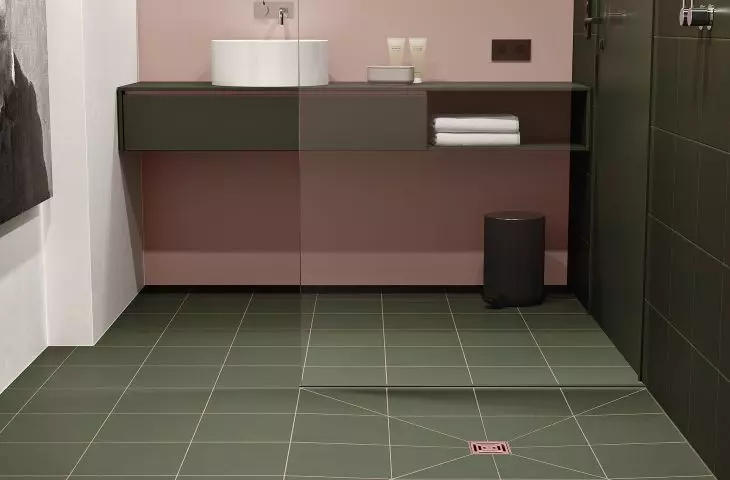

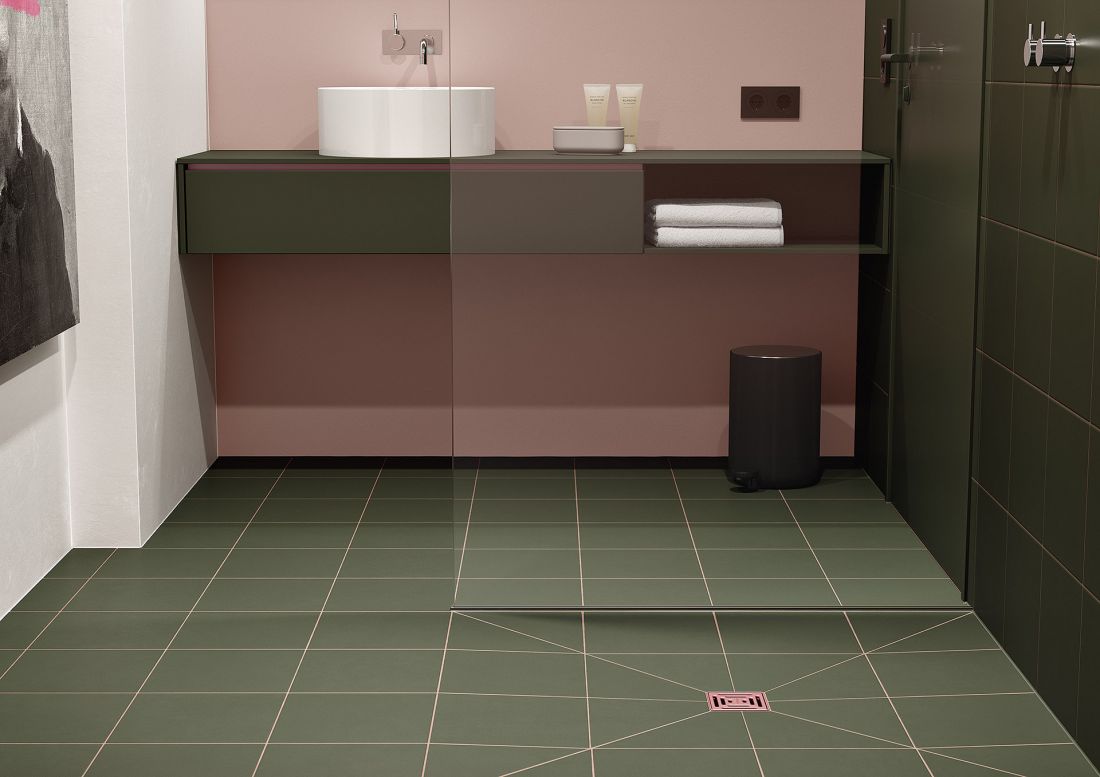

ColourCollection grate Light pink RAL 3015
© DALLMER
The DallDrain drain system is an easy-to-install, extremely flexible point drains, with a wide range of accessories such as caps and grates. With these accessories, the DallDrain system guarantees safe and uncomplicated installation in any situation and in any wet room in the building.
The system provides a choice of three drain bodies, guaranteeing ideal drainage solutions for every possible installation situation:
- DallDrain with an installation height of 85 mm (DN50, water seal height of 50 mm)
- DallDrain Plan with an installation height of 55 mm (DN40, dry siphon) - a body with an extremely flat design!
- DallDrain vertical (DN 50, water closure height 50 mm)

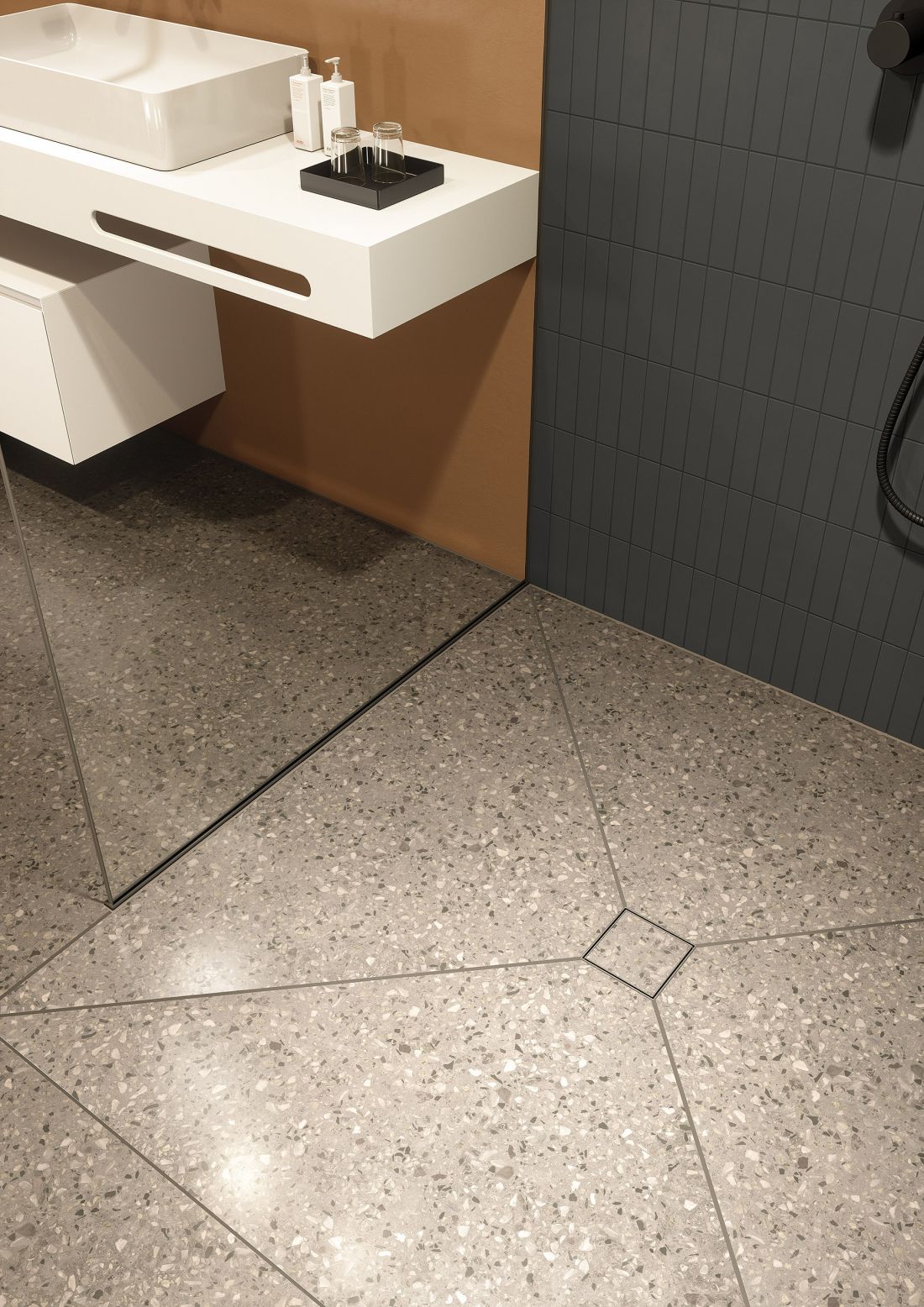

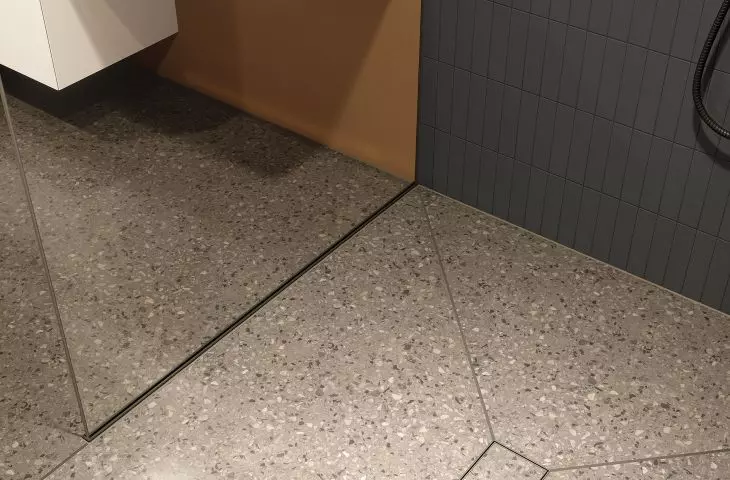

DallDrain with Individual cap
© DALLMER
The bodies can be combined with one of three
cowls, depending on your preference and design:
- Select - designed to meet the highest demands, an exclusive version of the elegant solid steel grate with a stainless steel frame. It also comes in a non-slip version.
- Individual - an almost invisible version of the grate for inserting tile, with a stainless steel frame, so that the drain visually blends with the floor covering. The frameless version, on the other hand, is completely invisible and is designed for natural stone and sandable floor coverings
- Pure - an economical alternative that combines a stainless steel grate and a plastic frame.

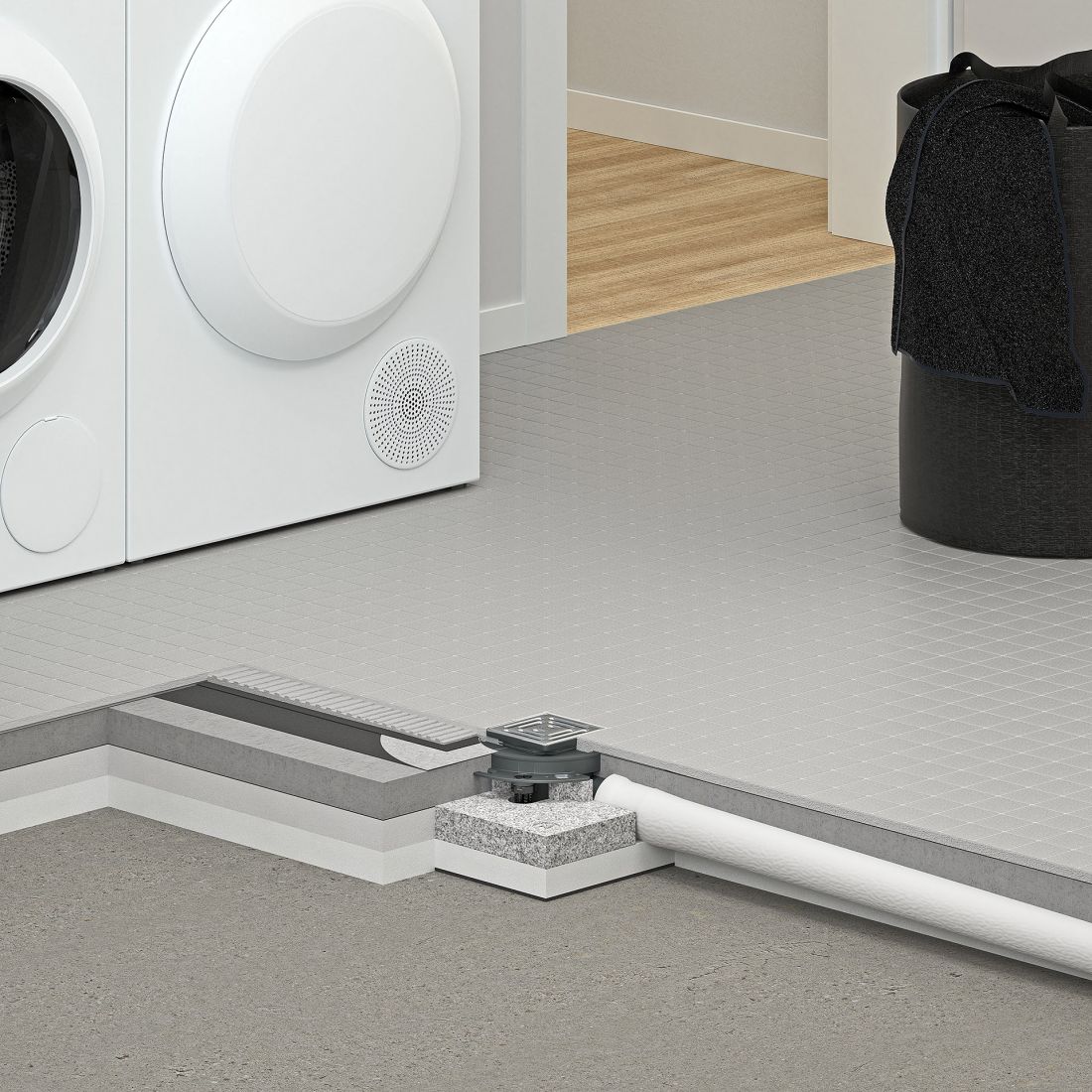

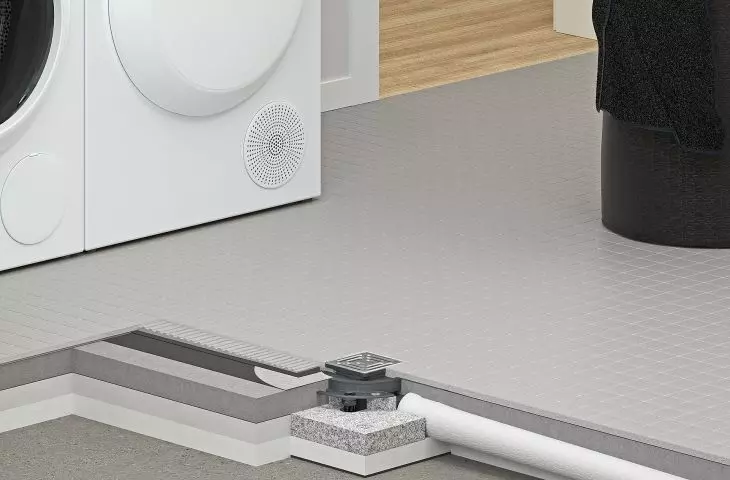

DallDrain installed with mounting aid
© DALLMER
Trends in interior design, for several seasons now, have been moving toward colorful bathrooms, which are increasingly becoming a way to express personal style. Dallmer is placing expressive, colorful accents in the shower area, in the form of ColourCollection matte-painted stainless steel grates, which provide even wider bathroom design options than before
The ColourCollection series is a perfect match for DallDrain floor drains The collection includes stainless steel grates in black and white and 14 RAL shades. The wide range of colors makes it possible to realize the most diverse ideas - whether the goal is a monochromatic interior or a design based on strong contrasts. In addition to the rich color palette, the DallDrain ColourCollection grates are also distinguished by Dallmer's characteristic detailed and precisely executed hole pattern. The grates in the series are available in two sizes: 100 × 100 mm and 120 × 120 mm.

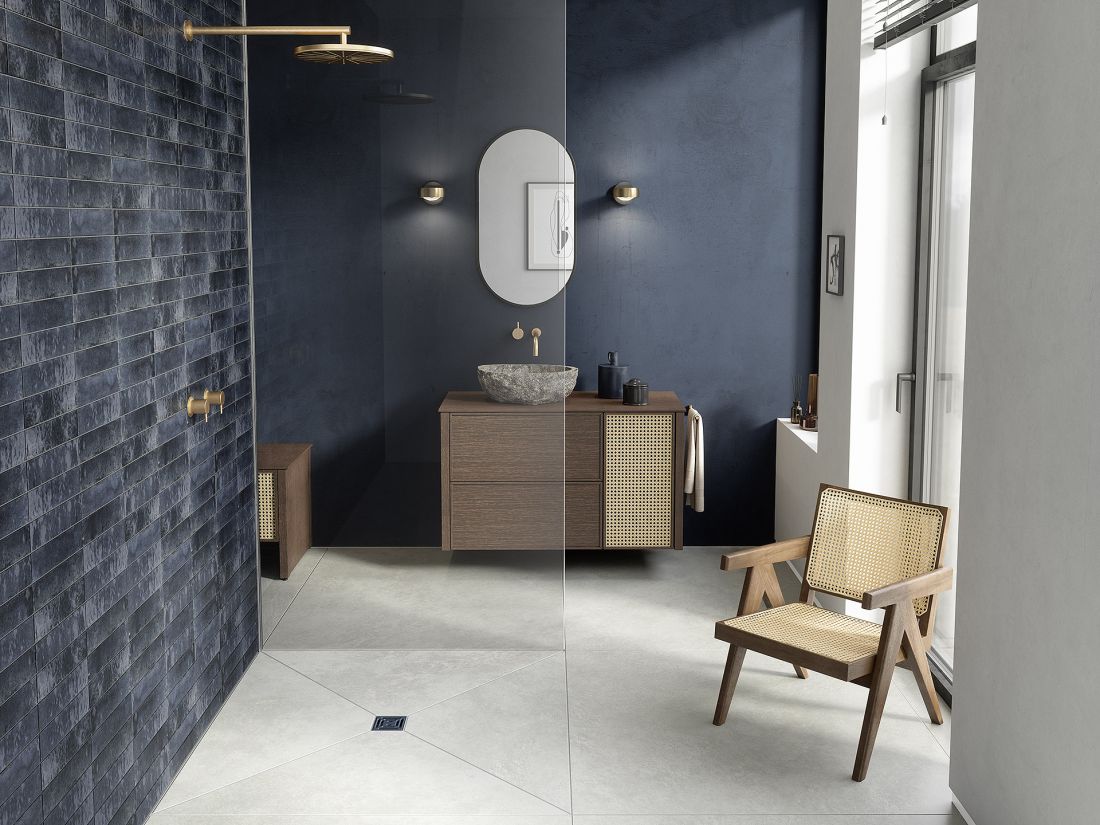

ColourCollection grating Gray garnet RAL 5008
© DALLMER
Why is DallDrain so versatile
and easy to install? Here are its biggest advantages:
- mounting feet designed for height adjustment and sound insulation
- a flexible, press-fit sealing cuff for connection to composite seals, in accordance with DIN 18534
- easily removable siphon for quick cleaning, ensuring optimum hygiene while providing free access to the sewer line
- movable drain spigot, with ball-and-socket joint, for stress-free connection to the sewer line
- new type of screed reinforcement element for low installation height, protecting the drain spigot, ball joint and floor structure (DallDrain Plan)
- steplessly shortened extension with backflow seal for precise height adjustment
- two-part installation aid to save time during installation
- soundproofing mat, providing increased sound insulation from an installation height of 59 mm
- a wide range of grates in 100 x 100 mm, 120 x 120 mm and 150 mm x 150 mm, in standard stainless steel finish or 16 RAL colors.

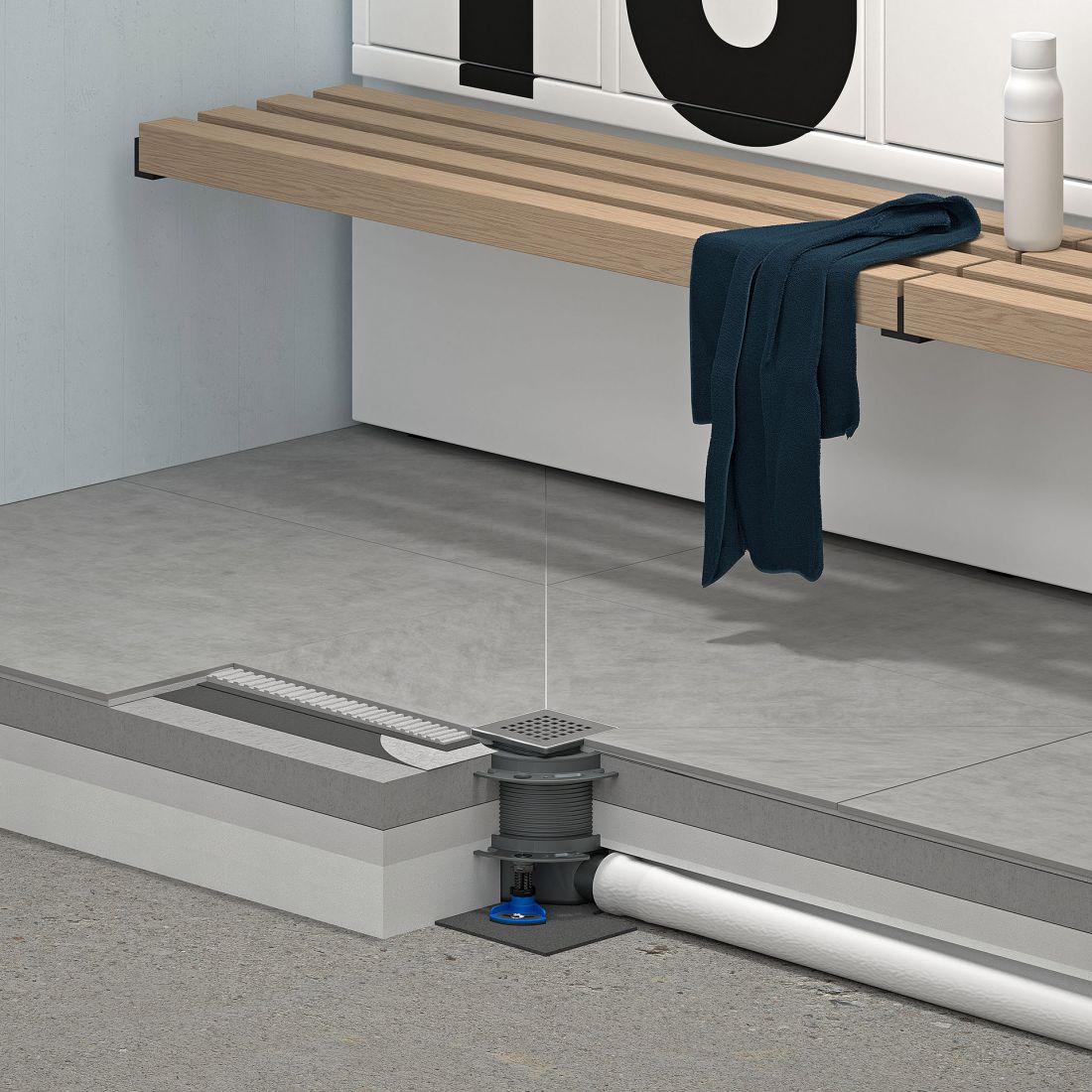

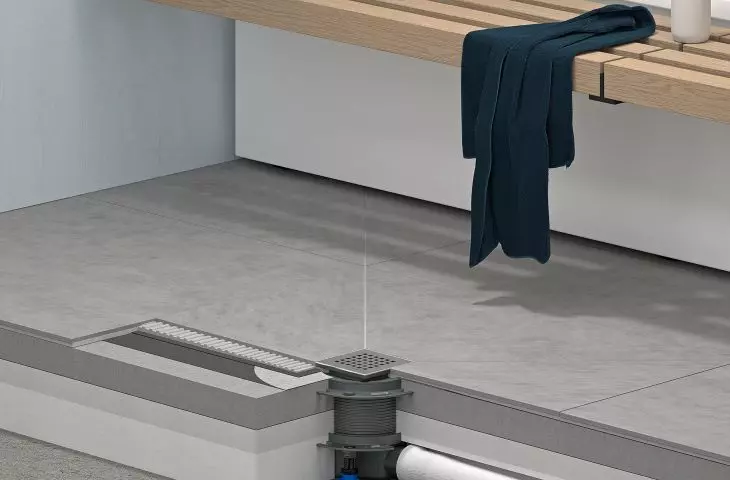

With extension and Select Quadra cap
© DALLMER
