Ventilation elements perfectly integrated into the wall or suspended ceiling, not interfering with the architectural design, yet easy to install and extremely efficient? The dream of many architects, designers and homeowners is about to come true.

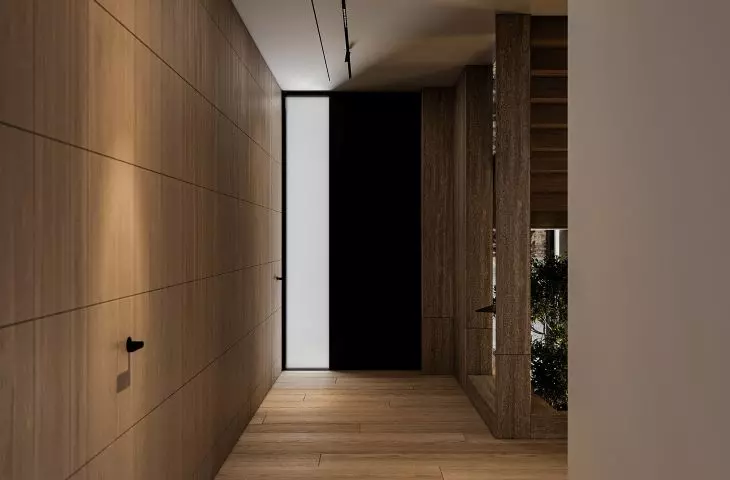

Creates an unobstructed line on the ceiling
© LINDAB
Introducing two solutions from the Ergovent brand, available from Lindab, created for unobstructed interior design and efficient ventilation: a frameless, gypsum supply/exhaust anemostat and an in-line diffuser.
A modern and almost invisible ceiling element
The supply and exhaust anemostat is made of gypsum and comes in two shapes - round (RONDO) and square (KVADRO). It fits all air duct systems with standard connection diameters, which are 100 mm, 125 mm or 160 mm. Installing it in a plasterboard ceiling, we get a perfectly smooth surface, without joints. Only the minimalist ring-shaped opening for airflow remains visible. Its front panel is easy to remove thanks to magnetic brackets. The anemostat, together with the ceiling, can be painted with paint of the same color. A big advantage of this solution is also the issue of possible renovations, during which it is enough to put a new coat of paint on the anemostat to make it look like new again. Unlike classic anemostats, there is no need to replace the front, which over the years could, for example, change color.

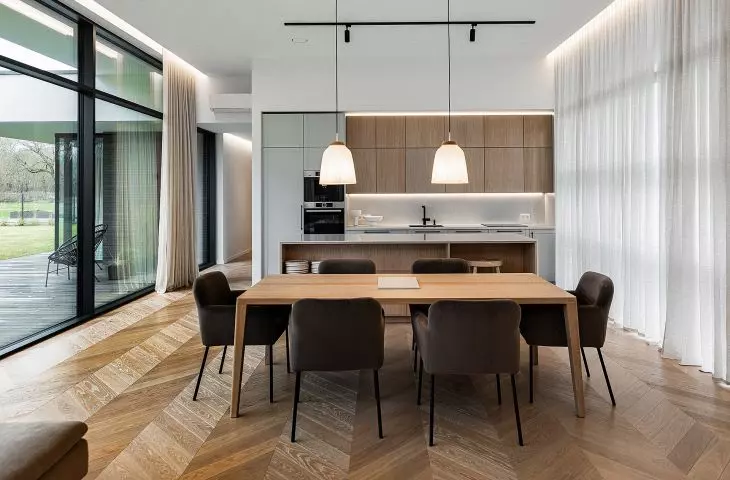

Perfectly ventilates even kitchens
© LINDAB
It is also worth mentioning that in 2023 alone, the Ergovent anemostat won three major international competitions: Design Plus - an award given at ISH 2023, the German Innovation Award 2023 and the Red Dot Design Award in the "Heating and Air Conditioning Technology" category.

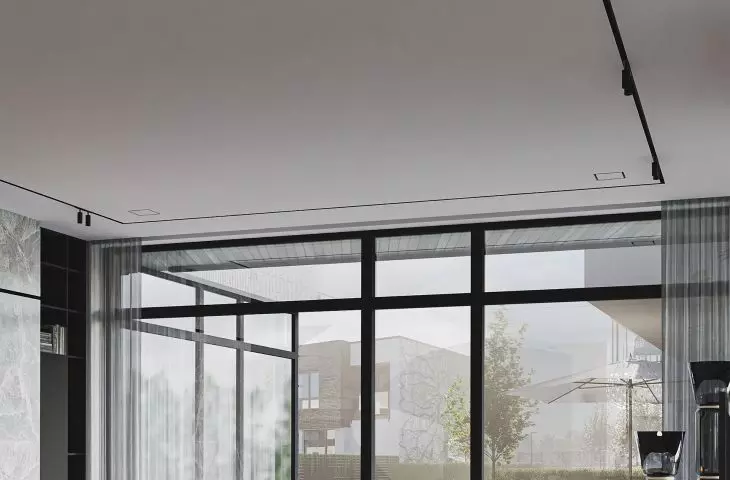

Blends in perfectly with its surroundings
© LINDAB
What else distinguishes the Ergovent brand anemostat?
- Mounted with reliable magnetic mounts
The grille of the anemostat is held securely in place by magnetic holders, adhering with their entire surface to the steel ring placed in the cap. - Convenient drywall fastening system
The side fasteners can be easily adapted to different types of drywall: single, double or non-standard width. Their attachment to the board can be done easily and quickly with self-tapping screws. - Special edge for putty application
The anemostat provides a special place for applying putty, which greatly facilitates aesthetic and accurate finishing of the ceiling or wall in which the device is installed. - Adjustment of airflow
Inside the anemostat, under the grille, there are polyurethane dampers, which are used to regulate the air flow. - Anti-vibration seal between the frame and the connector
Ensures quiet and safe operation of the unit, ensuring the comfort of the occupants. - Aerodynamic, convex shape reduces air whirls
Standard air diffusers direct the air flow toward the ceiling, which causes dirt to accumulate around the diffuser.
The Ergovent diffuser, on the other hand, directs the airflow directly downward preventing dirt accumulation because the air does not come in contact with the ceiling.

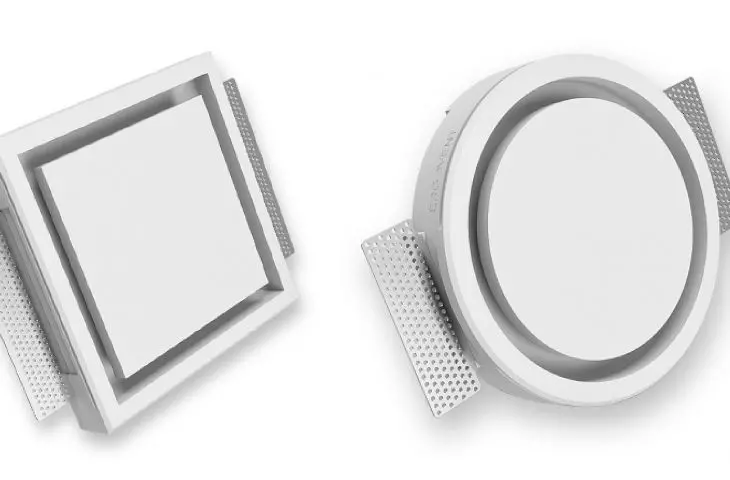

The Ergovent ventilator comes in two versions: KVADRO and RONDO
© LINDAB
Delicate, elegant line
The possibility of complete concealment in ceilings and walls made of plasterboard is a distinguishing feature of the Ergovent linear diffuser. After installation, the entire unit is finished with plasterboard, and the diffuser can be painted in the color of the ceilings or walls. Only a simple gap remains visible, which gives the ceiling a designer look.
The diffuser is suitable for plastic flexible duct systems (75 and 90 mm). Thanks to perfectly designed duct connections, the same diffuser can be installed both vertically and horizontally. Convenient locking system of connected ducts ensures quick and easy connection to flexible ducts.
Perfectly complements the interior design
© LINDAB
The solution comes in three models:
- LINEO PRO Line Single - mounted directly to the concrete ceiling before the installation of the suspended ceiling; the diffuser is 1 m long, with no possibility of extension;
- LINEO PRO Single Profile - mounted directly to aluminum profiles of suspended ceilings; this model has a convenient and quick fastening method, and the diffuser is 1 m long, with no possibility of extension;
- LINEO PRO Profile Puzzle - mounted directly to aluminum profiles of suspended ceilings, with the possibility of connecting to the next diffuser of the same type to obtain the desired length of the diffuser (Puzzle lock* technology allows connecting the diffuser segments in a very precise and fast way).

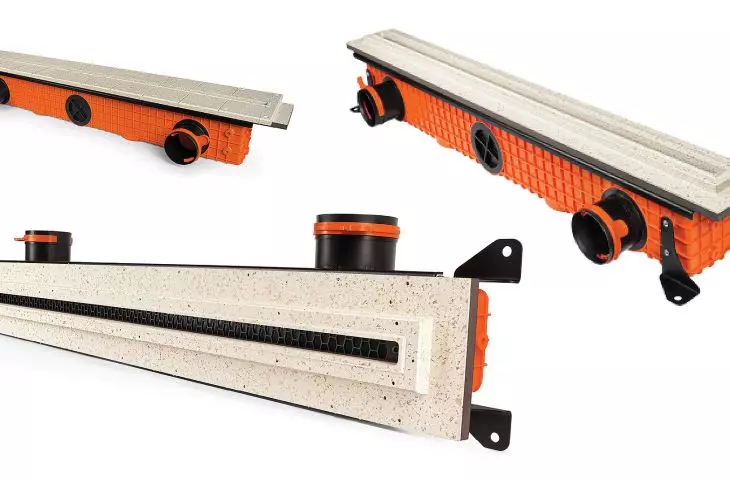

Ergovent linear diffuser is available in three models
© LINDAB
What else characterizes the Ergovent LINEO PRO diffuser?
- Ergonomic and easy airflow control through a built-in balancing valve, which is located inside the diffuser and can be conveniently controlled from the outside.
- The bottom part of the diffuser is made of a rigid recycled material that has properties similar to gypsum board.
- Multi-meter ventilation systems can be easily assembled with a puzzle-type connector.
- Multifunctional plenum box, made of anti-static, anti-bacterial plastic.
- Duct connections are simple and convenient to fix.
For more information: www.lindab-polska.pl
