The AdamS factory has already produced more than 2 million windows, offering both PVC and aluminum joinery. Equipping every building with modern windows that meet the norms and standards required today.
However, of great interest to professionals are products in which the most modern technologies have been used, allowing to design and build not only in accordance with architectural trends, but also taking care of the highest standards of energy efficiency.
These are the PASSIV-LINE ULTRA windows, which were the first in Poland to be certified by the Polish Passive Building Institute, and the HST CORNER VIEW lift-and-slide window system ideal for developing corner terrace exits.
PVC and aluminum joinery - state-of-the-art technology
© ADAMS
PASSIV LINE ULTRA
When designing a passive house, it is worth taking an interest in the windows of the PASSIV-LINE ULTRA line. This is the warmest certified window designed for passive and low-energy construction!
AdamS is the first certified manufacturer of passive windows. It has obtained a certificate confirming the production of PASSIV-LINE ULTRA windows from certified components designed for passive construction, which have been tested by the Passive House Institute in Darmstadt. The certificate was issued by the Polish Günter Schlagowski Institute for Passive Building and Renewable Energy.
System design:

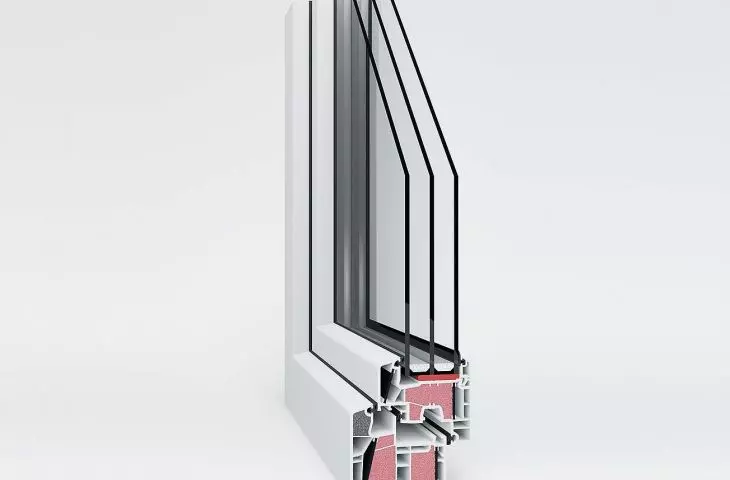

Advanced design of the PASSIV-LINE ULTRA window.
Choosing these windows, we are sure that they will meet all the technical requirements for a passive house, thanks to their advanced design:
- Theprofiles have thermoplastic fiberglass-reinforcedinserts made of BASF's Ultradur High Speed material and a polyurethane foam filling of the chambers.
- Triple-glazed, double-chambered package with Ug=0.5 (W/m2K) with ECLAZ glazing, which allows 10% more light Lt and solar energy g to be transmitted into the room, allowing heat energy to be extracted from the sun.
- They are equipped with the SWISSPACER ULTIMATE warm frame, recognized by the Darmstadt Institute as necessary to meet the requirements for passive windows. The frame eliminates thermal bridges at the interface between the frame and the glass.
- They have a high airtightness Q100 = 0.06m3/(hm), which is one of the necessary parameters for passive windows.
- V-Perfect technology = profile aesthetics.
PASSIV-LINE ULTRA windows are manufactured using V-Perfect technology, which involves precision welding of profiles, resulting in a seamless effect that becomes almost invisible.
HST CORNER VIEW

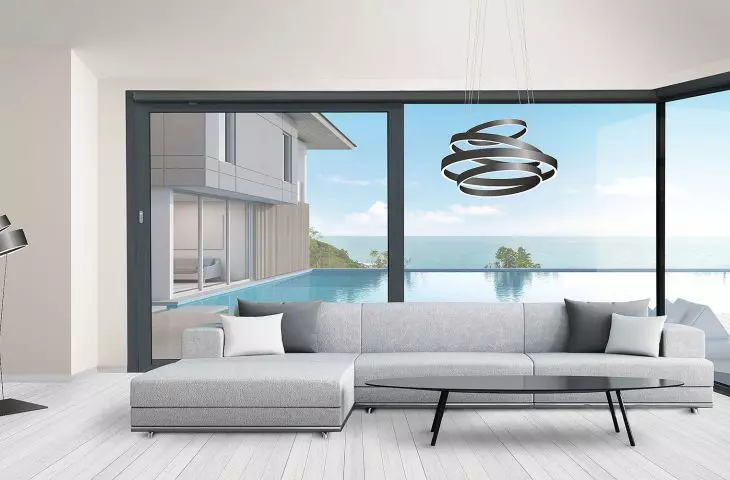

The HST CORNER VIEW system was designed for modern architecture, which values large glazing, willingly combines the surroundings of the house with its interiors, and cares about maximum illumination of rooms. Equally important are user comfort and energy efficiency.
PVC and aluminum joinery - state-of-the-art technology
© ADAMS
HST CORNER VIEW lift-and-slide patio doors have a lowered fixed sash, a low threshold and a corner glass connection with STEP technology. These are their main advantages, thanks to which you can build comfortable, safe passages to the terrace or garden, take care of optimal lighting and use of living space.

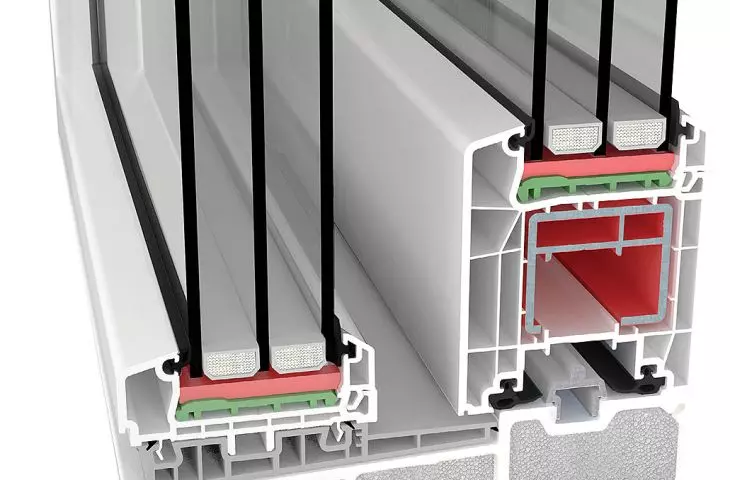

System design:
The novelty and innovation of these windows is due to the use of technical solutions that have not been used in any PVC sliding doors so far.
- The composite door thresholds have polyurethane cores and are reinforced with fiberglass GRP, which dramatically reduces the values of linear thermal bridges around the perimeter of the contact between the structure and the wall reveal. The guide rail is also reinforced with GRP fiberglass.
- The lowered profile line in fixed glazing increases the share of glazing area in the total window area, thus lowering the heat transfer coefficient. This also has the effect of significantly increasing passive solar heat gain in autumn and winter.
- State-of-the-art sealing solutions result in the HST CORNER VIEW lift-and-slide door system achieving Class 4 air permeability, which in practice allows it to be used in all types of buildings, including those equipped with a mechanical supply and exhaust ventilation system with recuperation.
- Specialized Siegenia HST Portal hardware allows sashes weighing up to 400 kg to move freely and without the slightest resistance. In addition, we can use Siegenia MHS electric drive and control the operation of the door by remote control.
For more information, visit www.adams.com.pl/architekci
For more information, visit the company's AdamS A. Pędzich Sp. K. page on the A&B portal.
