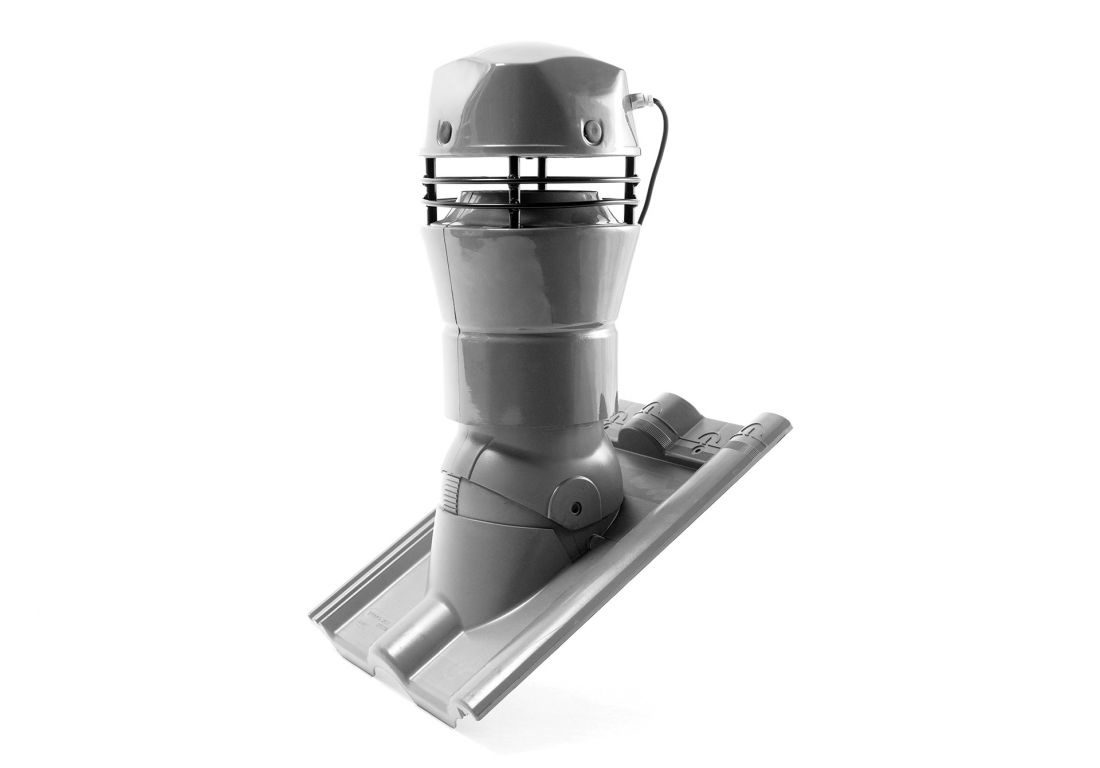

FENKO hybrid cowl
This is a modern solution for permanent and safe ventilation for single-family houses. They combine the advantages of a low-noise two-speed fan and a gravity cowl to ensure optimal gravitational draught values in all types of building ventilation ducts. The unit, made of durable polyester-glass laminate, is mounted on the top of a chimney outside the house, and guarantees performance higher than or equal to standard ventilation units installed inside bathrooms or kitchens.
Fenko
© UNIWERSAL
Fenko guarantees maximum utilization of natural gravity ventilation in case of favorable weather conditions, and continuous operation or increased ventilation draught thanks to the functionality of mechanical fan operation in two gears (rpm 1000/min and 1400/min). Fenko is characterized by high efficiency in extracting air from the room. For mechanical operation it is respectively 120m3/h for the first gear and 180 m3/h for the second gear of the motor speed.

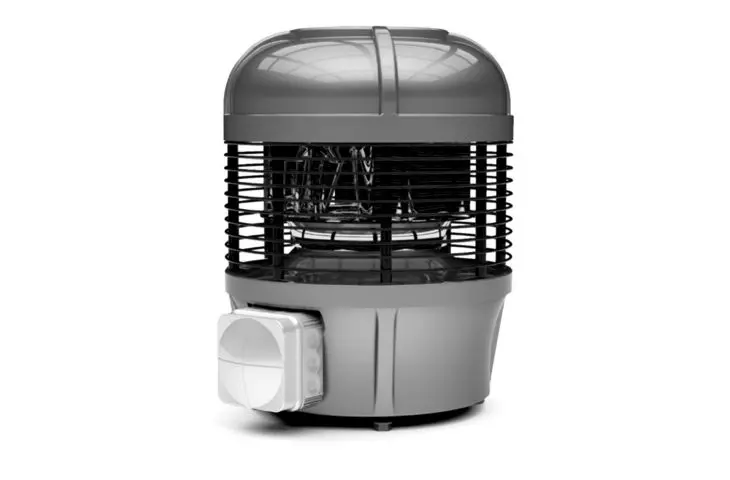

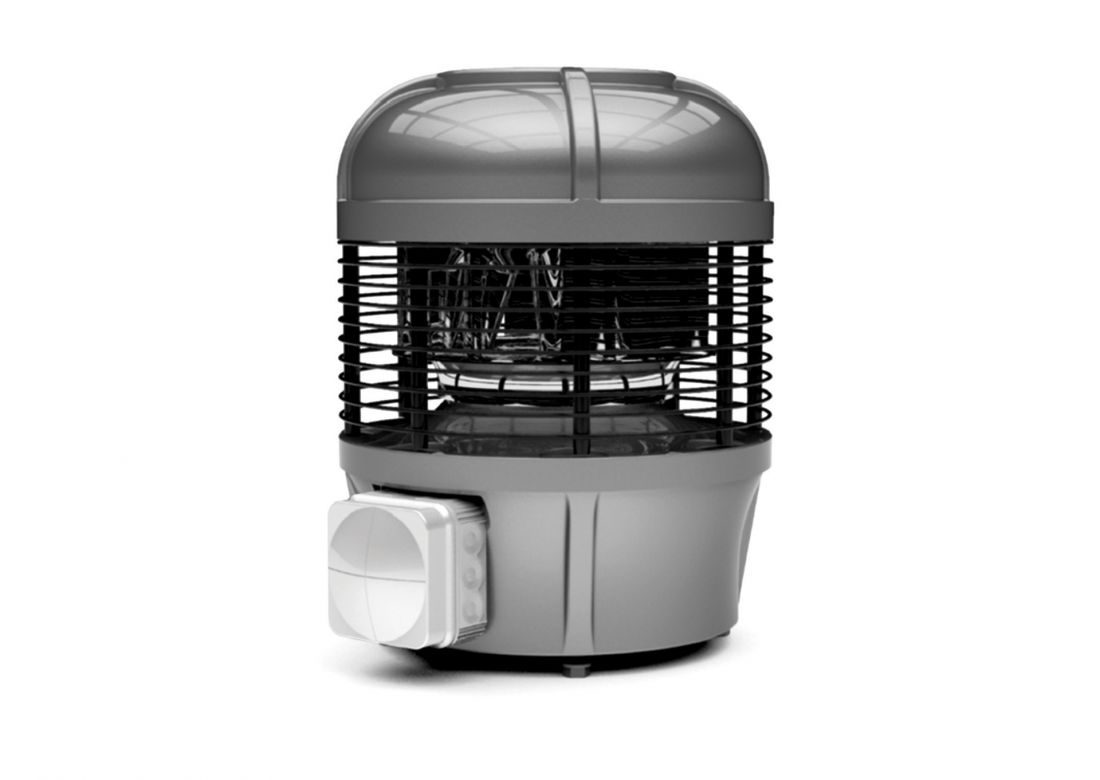

MAG-160
This is a three-speed energy-saving roof fan created specifically for the needs of modern residential construction. It is designed to provide optimal airflow in multi-story buildings (up to 10 stories). It meets the requirements of building standards in terms of efficiency, trouble-free and quiet operation. The advantage of the device is also compact construction and modern design. Efficient and many years of failure-free operation on collective ventilation ducts of multi-family housing is provided by a three-speed electronically commutated EC motor. The durability of the MAG-160 energy-saving fan to environmental factors is enabled by the durable construction material, which is a polyester-glass composite.
Mag-160
© UNIWERSAL
The design of the body and dome effectively prevents rainwater from entering the ventilation duct. The MAG-160 fan ensures continuous operation and constant compliance with hygienic norms for air circulation of multi-family residential buildings. Quiet operation allows to maintain the norms of sound intensity for areas of residential and commercial development (for example, at a distance of 8 m from the fan and at operation at the highest power of 1750 [rpm] the sound pressure is 42 dBA).
MAG-160 was created in accordance with the principles of sustainable development and ecological design. Controlled by the MagTime programmer, it allows to control the operation of up to 4 units at the same time, thus varying the amount of air pumped in different risers and at different times during the day.

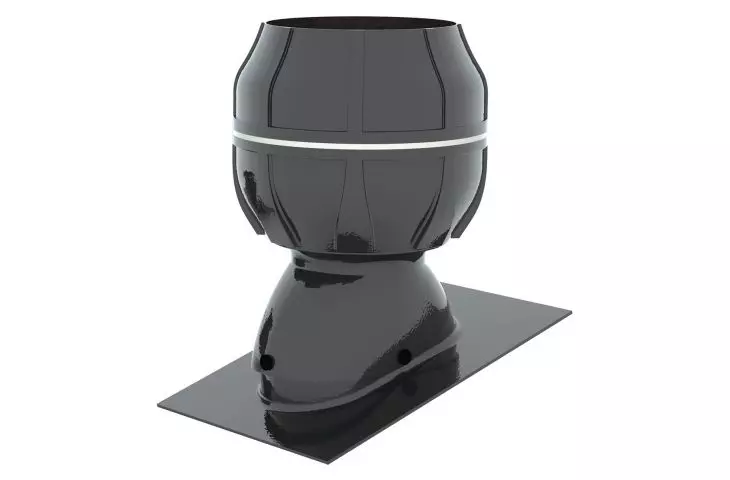

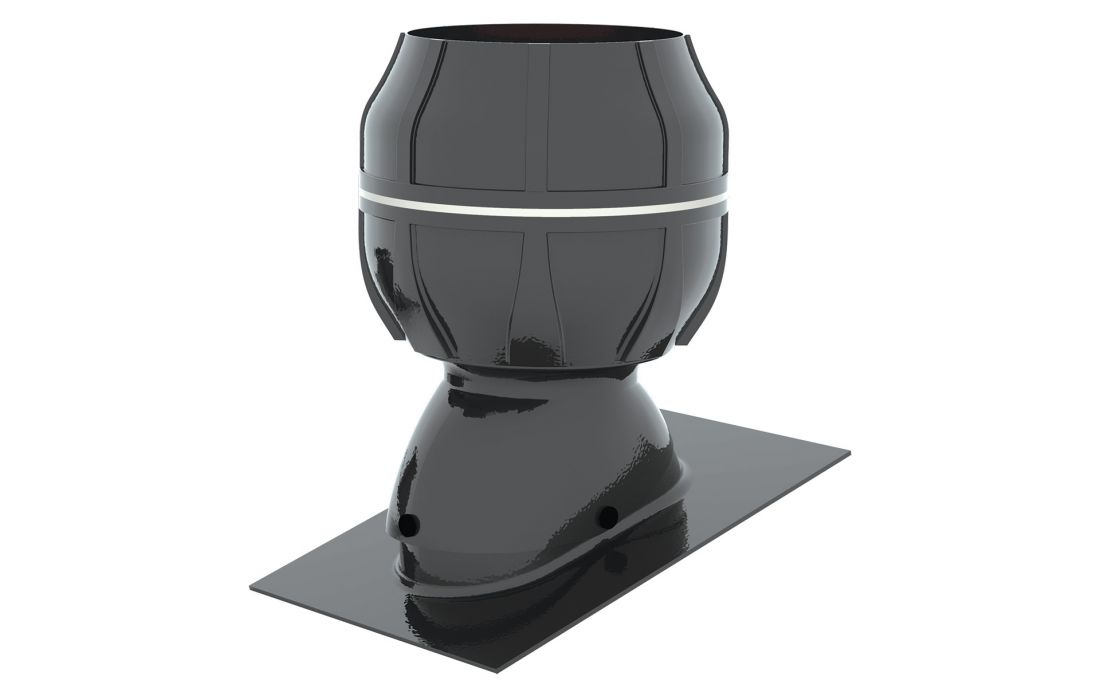

VERO-150
This is a modern high-efficiency (up to 600m3/h) and low-noise roof fan for kitchen hoods, thanks to which we can effectively and quickly get rid of unpleasant odors arising during cooking. We offer it in common household installations with a duct inlet diameter of Ø 150 mm. To ensure that the noise does not disturb the peace of the household, the device is mounted outside the building, on the chimney. With the hood inside the kitchen is connected by means of ventilation fittings. The housing, base and radial impeller with backward-bent blades are made of polyester-glass laminate.
Vero-150
© UNIWERSAL
This is an extremely durable composite, resistant to intense and variable weather conditions. In addition, this type of material does not significantly weigh down the roof structure and makes the fan stand out with an attractive and modern design. Vero-150 is a low-noise and high-performance fan. The fan's motor is a three-speed, this allows you to select the amount of air sucked out of the hood so that it is appropriate for any intensity of steam and other kitchen odors. Automated operation is achieved by controlling 3 variants of fan speed with the ProVero controller, which is surface-mounted at the hood.

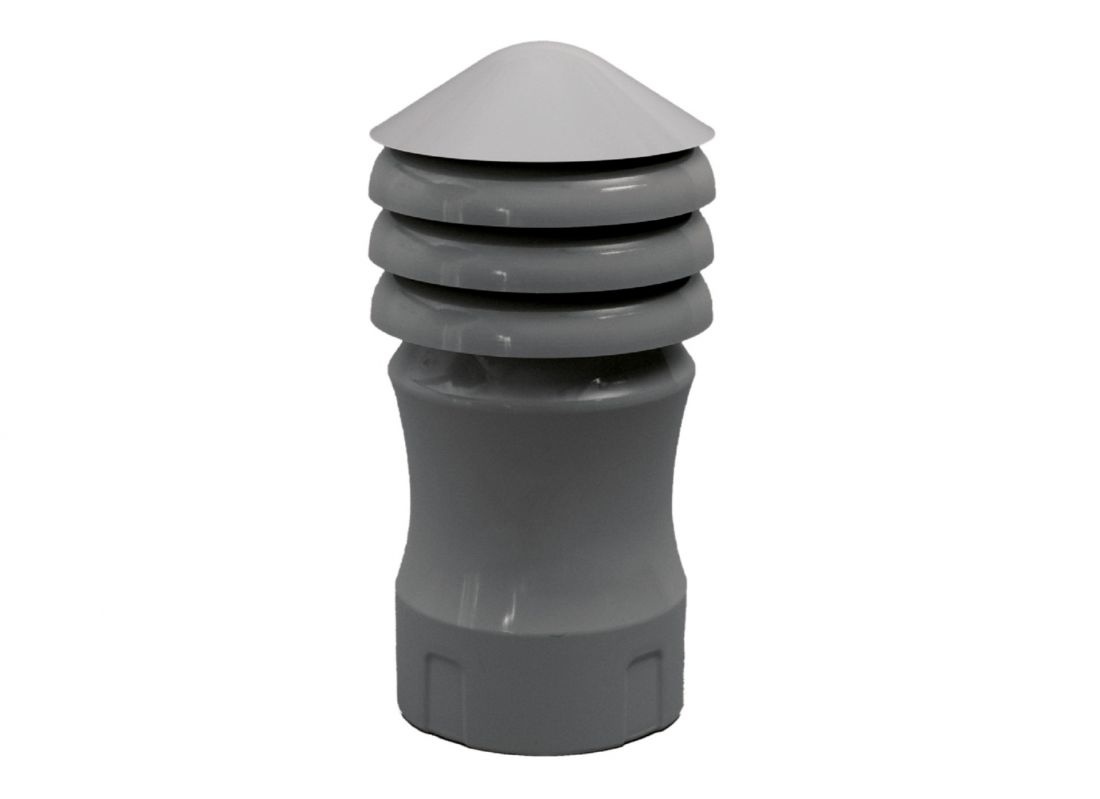

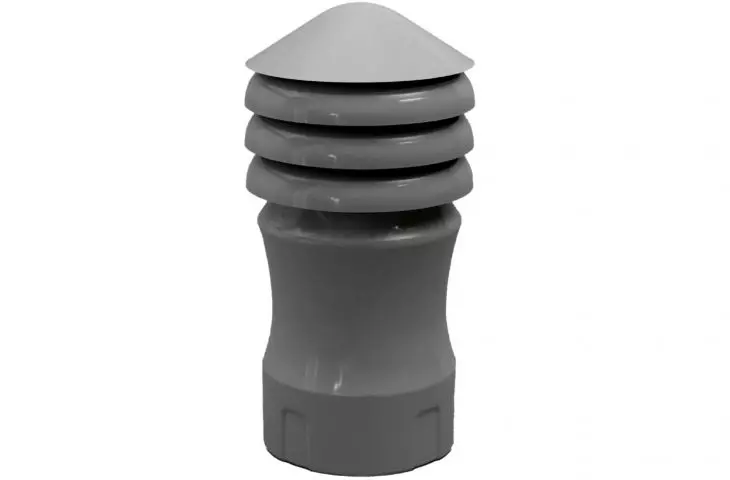

ZEFIR ventilators
These are devices that completely protect the ventilation duct from the inflow of outside air, and the ingress of rainwater into the ventilation duct. Durable, aesthetic, made of polyester-glass laminate colored in any way according to the investor's wishes. Zephyr vents with bases and termination mounted on a standard ventilation chimney. The dimensions of the bases and ventilators are matched to the standard dimensions of ventilation chimneys with ventilation blocks inside them.
Zephyr
© UNIWERSAL
In connection with the widespread system of conducting gravitational ventilation based on hollow - ventilation-smoke type P, it is necessary to create a cowl to protect the ventilation duct from air supply. The ZeFir-150 cowl has a modified shape and dimensions to fit the variants of single-row and double-row gravity ventilation chimney.
