ELEKTRA specializes in electric heating systems for both residential and industrial construction. The company was founded in 1985 and is now one of the largest manufacturers of electric heating systems in Central Europe. Since its inception, the company has focused on the quality of its products, resulting in numerous awards.
Electric heating for residential and industrial buildings
© ELEKTRA

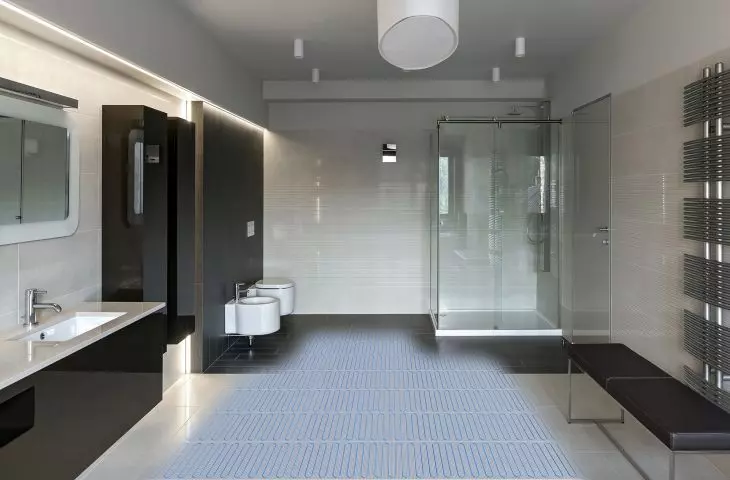

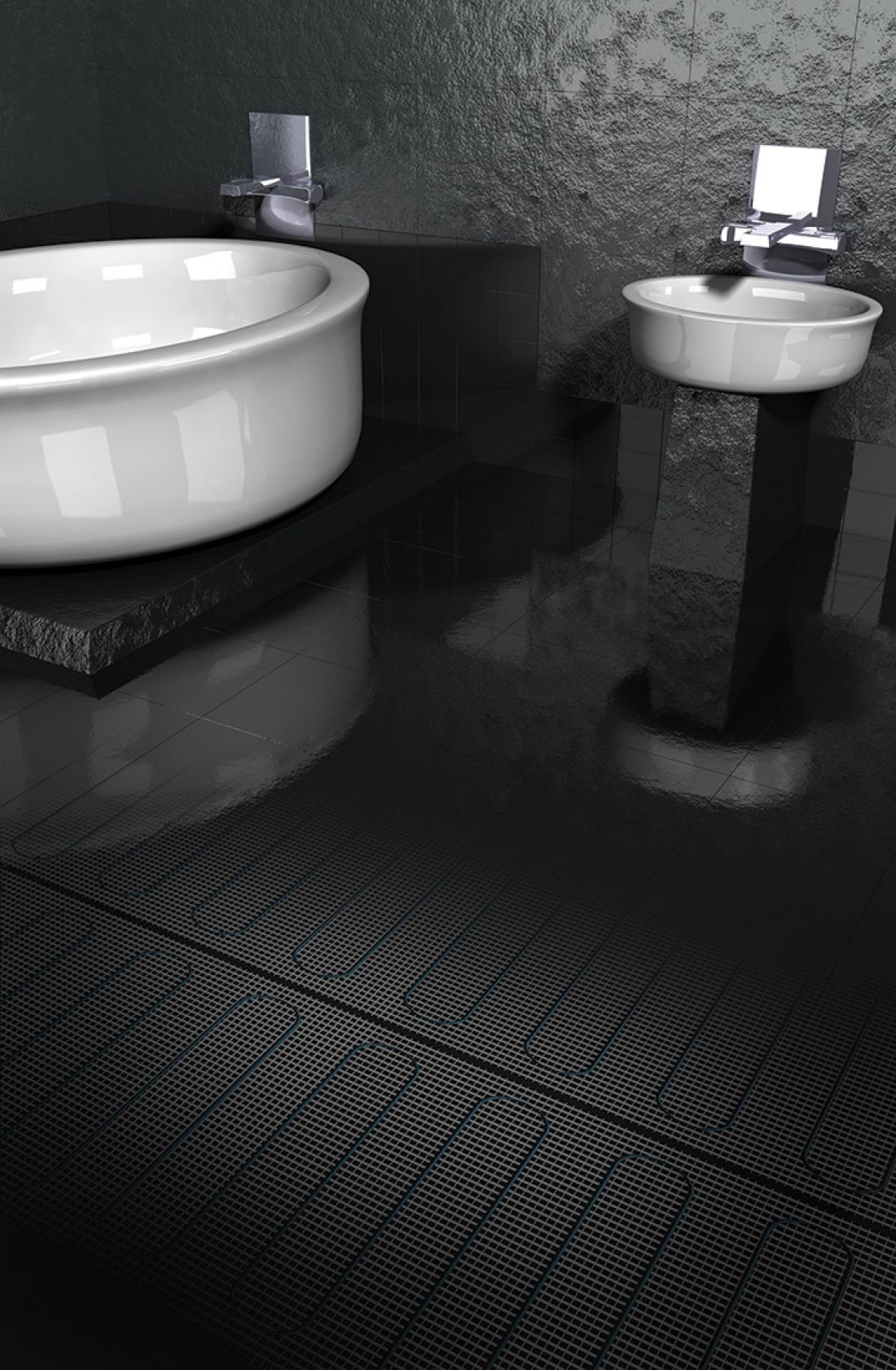

ELEKTRA floor heating
Used indoors, in detached houses, multi-family housing, public buildings.
Finishing materials that can be used with ELEKTRA underfloor heating:
- Ceramic tiles and stone flooring
- Certified carpeting
- PVC floor coverings with approval
- Parquet, floor panels, layered board.
Electric heating for residential and industrial buildings
© ELEKTRA
Advantages:
- Easy installation
- Installations in mortar layer, self-leveling screed(MG, MD mats, DM conduits, UltraTec), concrete screed(VCD conduits), directly under floor panels or layered board(WoodTec™ foils)
- 20-year warranty
- Excellent for allergy sufferers.
Electric heating for residential and industrial buildings
© ELEKTRA
Products:
- ELEKTRA DM, ELEKTRA UltraTec heating cables: single-sided cables with power of 10 W/m and dimensions of ~4.3 mm (ELEKTRA DM), ~2 x 3 mm(ELEKTRA UltraTec). The wires can be used in rooms with complex shapes.
- ELEKTRA VCD heating cables: single-sided powered, with power of 10, 17 W/m and dimensions ~5 x 7 mm. They are used, as basic heating. Arranged in the concrete screed at the stage of construction.
- ELEKTRA MD double-sided powered heating mats are made of heating cables attached to fiberglass mesh (500 mm wide). They are used, as supplementary heating (warm floor) and basic heating system. They are also designed for self-assembly. The unit power of the mat is 100 or 160 W/m².
- ELEKTRA WoodTec₂™ single-sided powered heating foils are made of heating cables on one side attached to a fiberglass mesh (500 mm wide), on the other covered with aluminum foil. Designed for dry installation, they are mainly used as supplementary heating (warm floor) under panels and layered board. The power of the foil is 70 and 140 W/m².
Electric heating for residential and industrial buildings
© ELEKTRA
Control:
Electric underfloor heating is most effective and economical when its operation is supervised by a smart controller.
ELEKTRA MWD5 WiFi is the latest touchscreen, programmable, electronic temperature controller equipped with WiFi. It is designed to control the installation of electric floor heating via an app.
Electric heating for residential and industrial buildings
© ELEKTRA
Snow and ice protection
Outdoors for ice protection of garage exits, sidewalks, ramps, water pipes, drinking water pipes, valves, actuators, roofs, roof drains, gutters and downpipes.

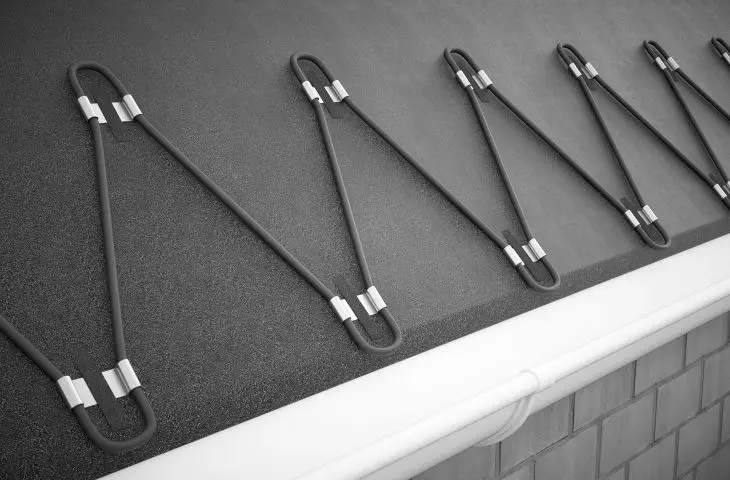

- ELEKTRA TuffTec™ heating cables - for laying in areas exposed to harsh installation and/or working conditions. Resistant to temporary exposure temperature (240°C), which allows installation directly in asphalt. Designed to protect outdoor surfaces from snow and ice, such as garage exits, sidewalks, roofs, gutters and downpipes. Unit power of 30 W/m.
- ELEKTRA SnowTec®Tuff heating mats - designed for laying in areas exposed to harsh installation and/or working conditions (high mechanical strength). Resistant to temporary exposure temperature (240°C), which allows installation directly in asphalt. Used for snow and ice protection of outdoor surfaces, such as garage exits, sidewalks and ramps. Unit power of 400 W/m².
- ELEKTRA SelfTec® 16 ready2heat heating cables - terminated with a power cable with an airtight plug, designed for self-assembly - do not require the use of a regulator, only switching on during snowfall. Unit power (+10°C) 16 W/m.
- ELEKTRA SelfTec® DW / DW F heating cables - used both outside and inside pipes. Unit power (+10°C) 10 or 16 W/m.
- ELEKTRA SelfTec® PRO heating cables - designed for extended installations, installed by installers due to the need to terminate the cable and connect it to the supply cable. Unit power of 10, 20 or 33 W/m.
- ELEKTRA SelfTec® PRO TC heating cables - advanced antifreeze protection system for elements susceptible to damage caused by low temperature, resistant to high temperatures during operation and in the off state. Unit power of 30 W/m².
- ELEKTRA FreezeTec® heating cables - available in specified lengths, do not require additional control. They consist of a heating cable integrated with a thermostat and a power cable with a hermetic plug. Designed for simple installations (actuators, valves and pipes up to 50 mm in diameter), for self-assembly. Unit power of 12 W/m.
- ELEKTRA SnowTec® heating mats - ready-to-lay elements, designed to protect outdoor surfaces from snow and ice, such as garage exits, sidewalks, ramps. Unit power of 300 W/m².
- ELEKTRA VCD25 heating cables - single-sided powered, intended for protection against snow and ice of external surfaces with complex shapes (stairs, sidewalks, etc.). Unit power of 25 W/m.

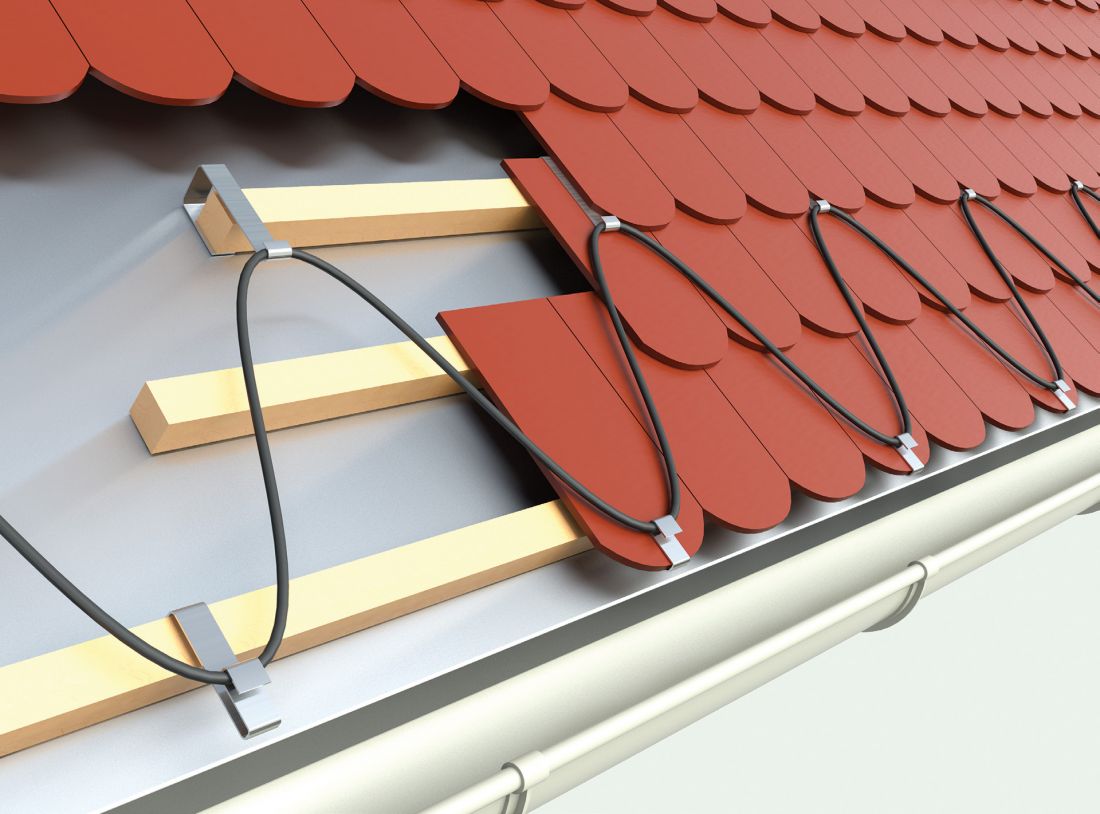

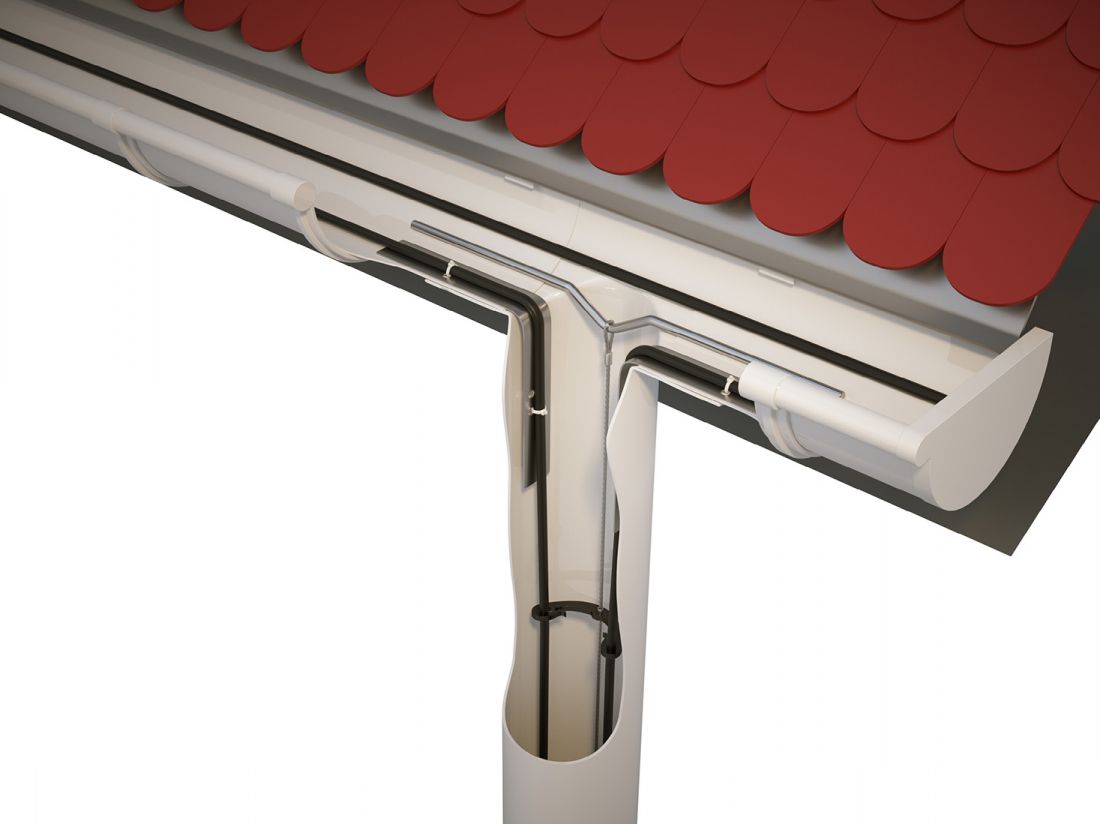

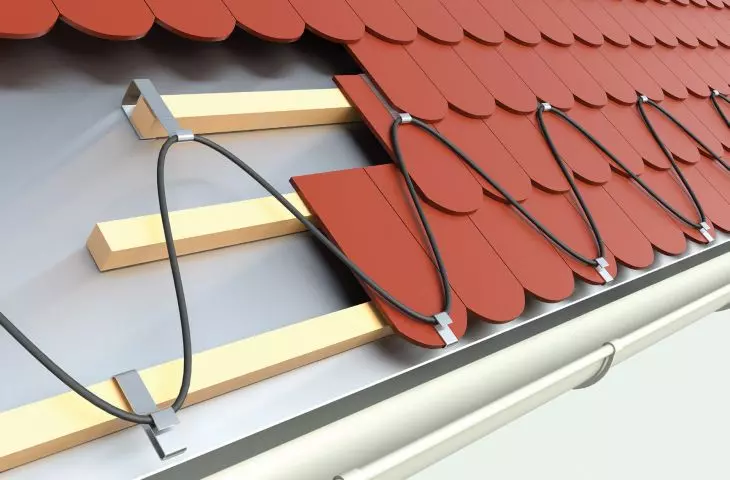

- ELEKTRA VCDR heating cables - available in specified lengths, terminated with a power cable. The outer coating of the cable is resistant to high temperatures and UV radiation. Designed to protect gutters and downpipes and protect roof slopes and roof edges from frost, snow or ice. Unit power of 20 W/m.
