Roof-top gas air heaters
From the series "Heating, ventilation, air conditioning - inspiration and solutions 2020".
The heating of large-volume facilities requires unconventional heating systems, thanks to which the thermal comfort of the occupants of the facility is ensured and heating costs are minimized. Roof-top gas air heaters are one of the main solutions to guarantee the correct amount of exchange of ventilated air with the temperature inside the building.

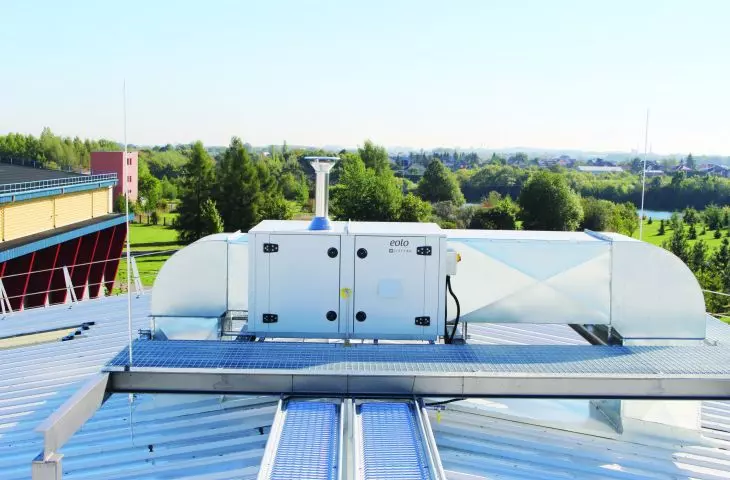

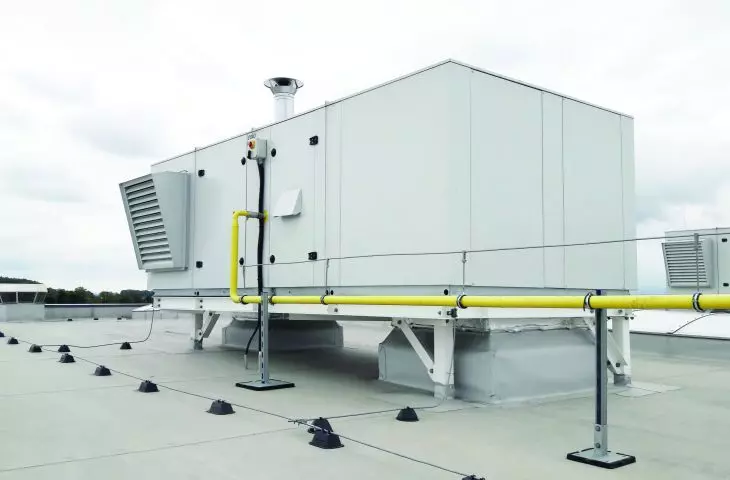

EOLO RT type ROOF-top gas air heater
© Systema Polska
Quality first
The seemingly simple solution of a heating and ventilation unit such as the Roof-top requires, in addition to the proper selection of a number of components, so that the end result is also high-quality components. Roof-top gas air heaters are equipped with the PREMIX burner, and depending on the type of exchanger they have modulation of efficiency: for exchangers with condensate drainage from 30%, and for units with built-in exchangers without condensate drainage from 60%. The current portfolio is characterized by high combustion efficiency, with a minimum load of > 95%. A wide range of products, allows precise selection of the device, so that it perfectly meets the heat requirements of the building.

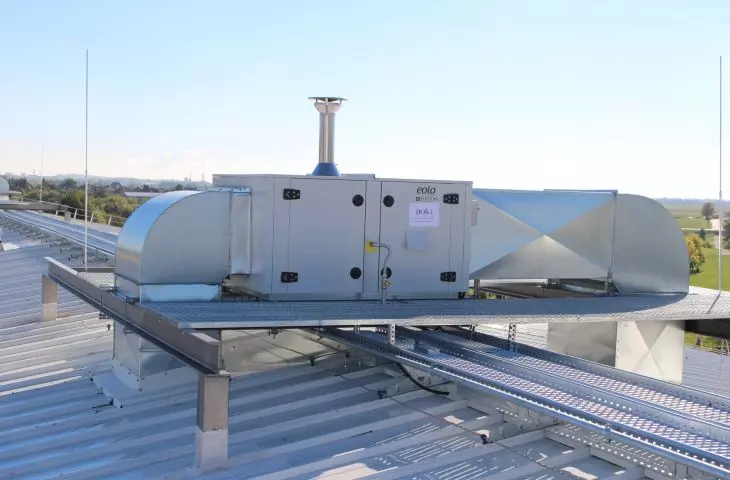

EOLO RT ROOF-top gas air heater
© Systema Polska
Current models of Roof-top air heaters
The more than 140 models of Roof-top gas air heaters include units equipped with both condensate-draining and non-condensate-draining exchangers. The current portfolio has been expanded to include fans with EC motors giving you a choice of solutions with different fan compression as standard. A single unit reaches from 16 kW (heater) to 315 kW (Roof-top).

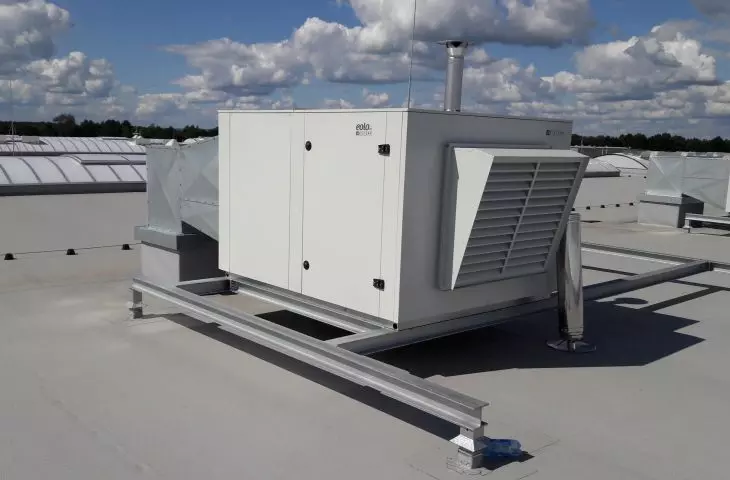

EOLO RT gas-fired ROOF-top air heater
© Systema Polska

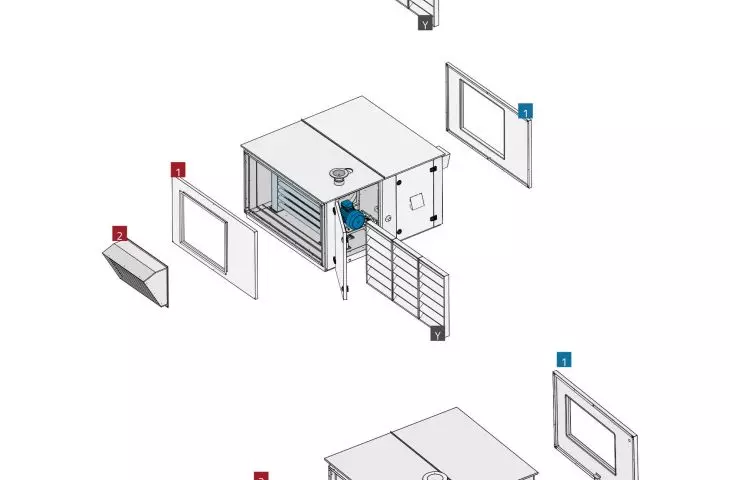

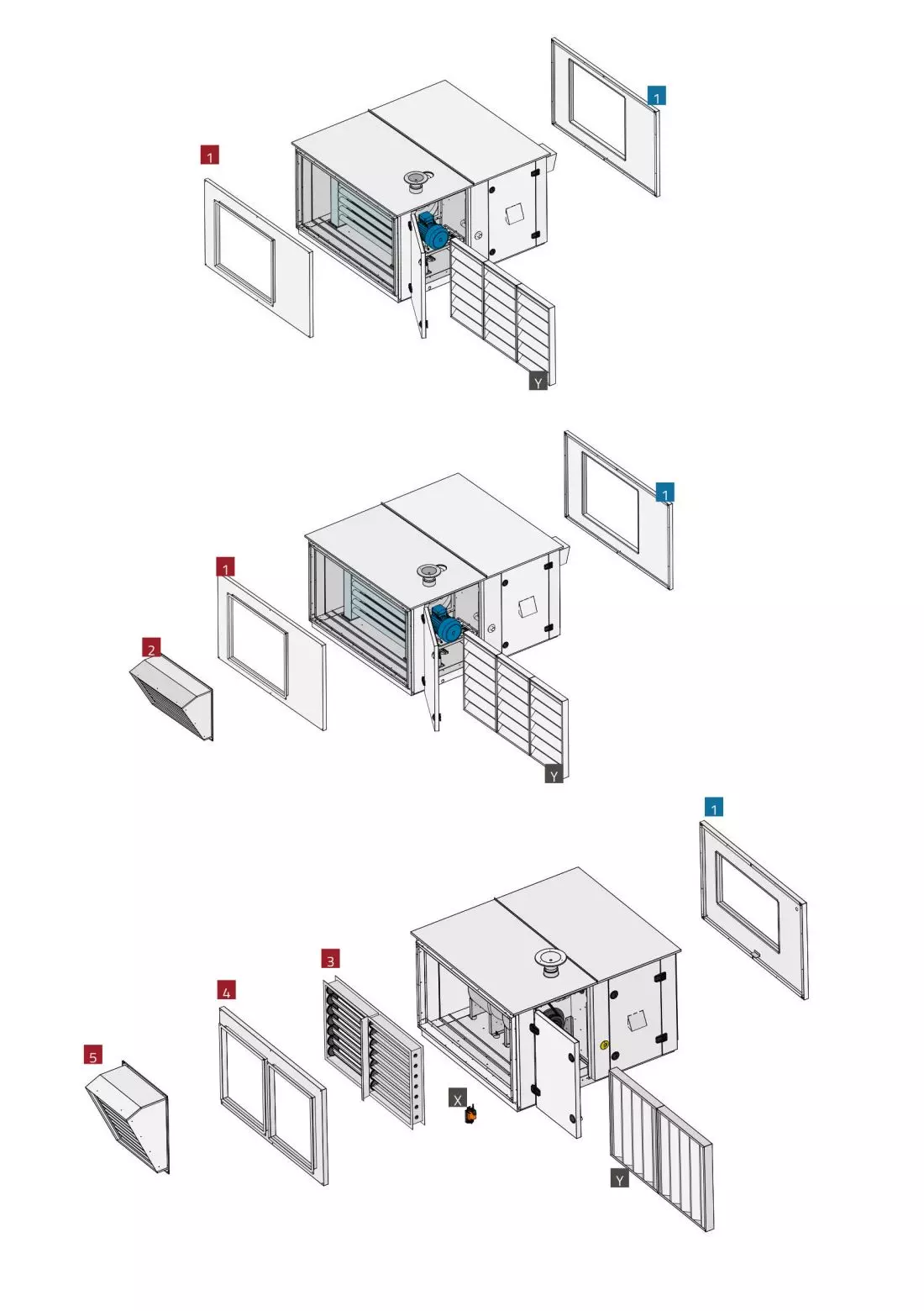

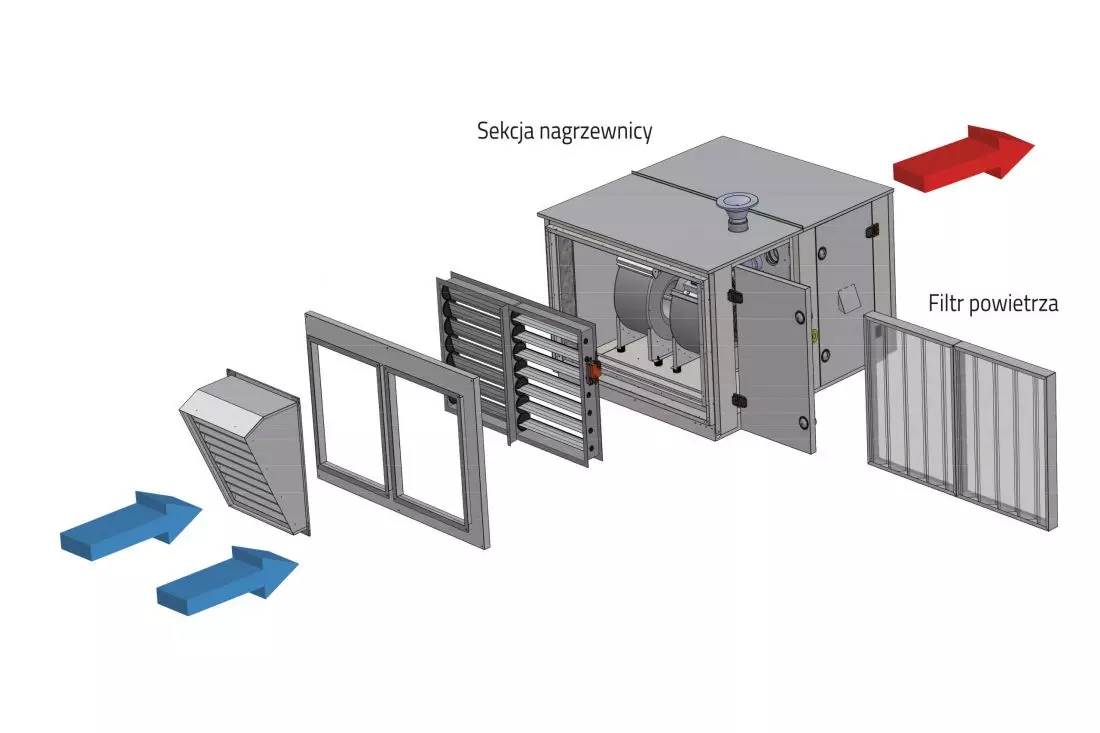

Roof-top - Modular design of the heater
The modular design of gas air heaters allows many possibilities for product configuration. The heater section is the base from which the customer can freely "design" his own model by adding mixing chamber sections, air intake and exhaust sections. Despite the standardization of individual components, the product can be easily adapted to the actual construction of the building. Roof-top's housing is made of powder-coated galvanized steel. The thickness of the insulation of the panels is 5cm for the floor by 10 cm for the roof of the unit.

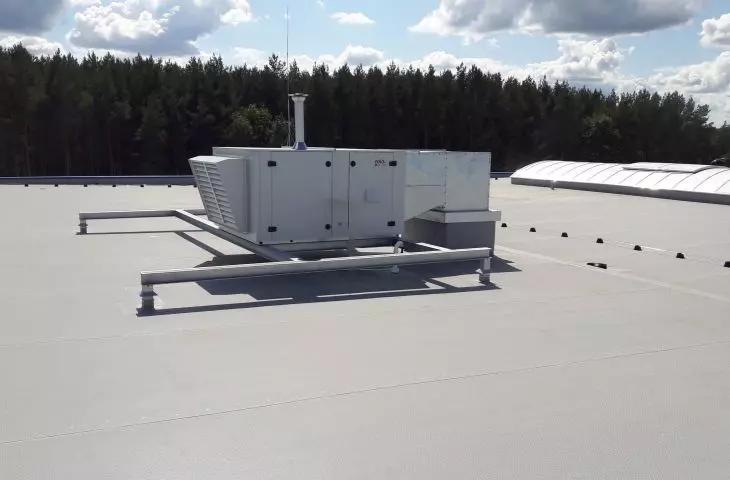

ROOF-top type EOLO RT gas air heater
© Systema Polska
Device selection
Thanks to the equipment selection program, the customer can independently size the heat demand for the object, and using data sheets select the right model. The units are freely configurable in terms of the degree of filtration, definition of airflow and fan compression.

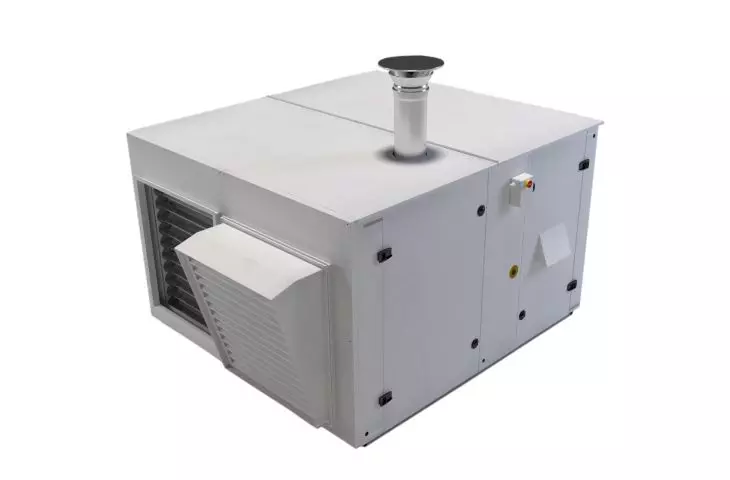

Gas air heater EOLO RT type ROOF-top
© Systema Polska
Technical competence and reliability
Thecompany's credibility is documented through its certificates and patents. All performance tests of gas air heaters have been carried out by the Institute of Oil and Gas in Krakow and have been awarded an EU Type Test Certificate, confirming that Systema Polska's gas heaters meet the requirements of Regulation (EU) 2016/426 of the European Parliament and Council of March 9, 2016.
For more information, visit the company's Systema Polska Sp. z o.o. page on the A&B portal.
