NON-OPENING AND TILTING SKYLIGHTS

Comprehensive solutions for a variety of facilities - skylights from Kera Awak

We design complex solutions for a variety of large-scale facilities: production halls, logistics centers, warehouses, sports facilities, high-rise buildings and shopping centers.

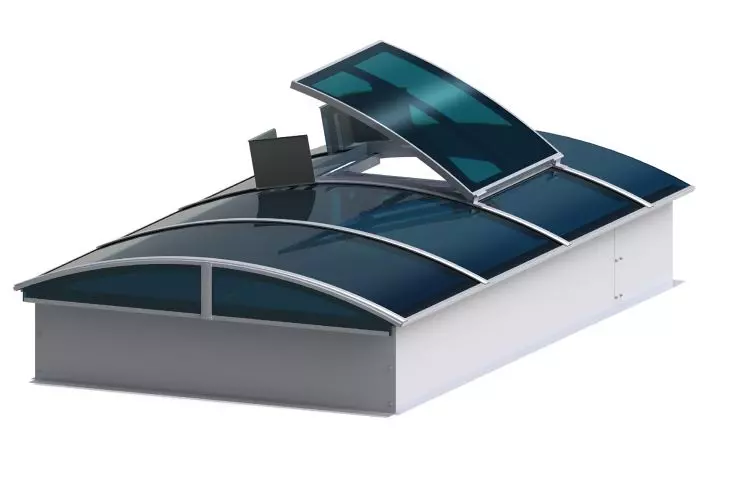

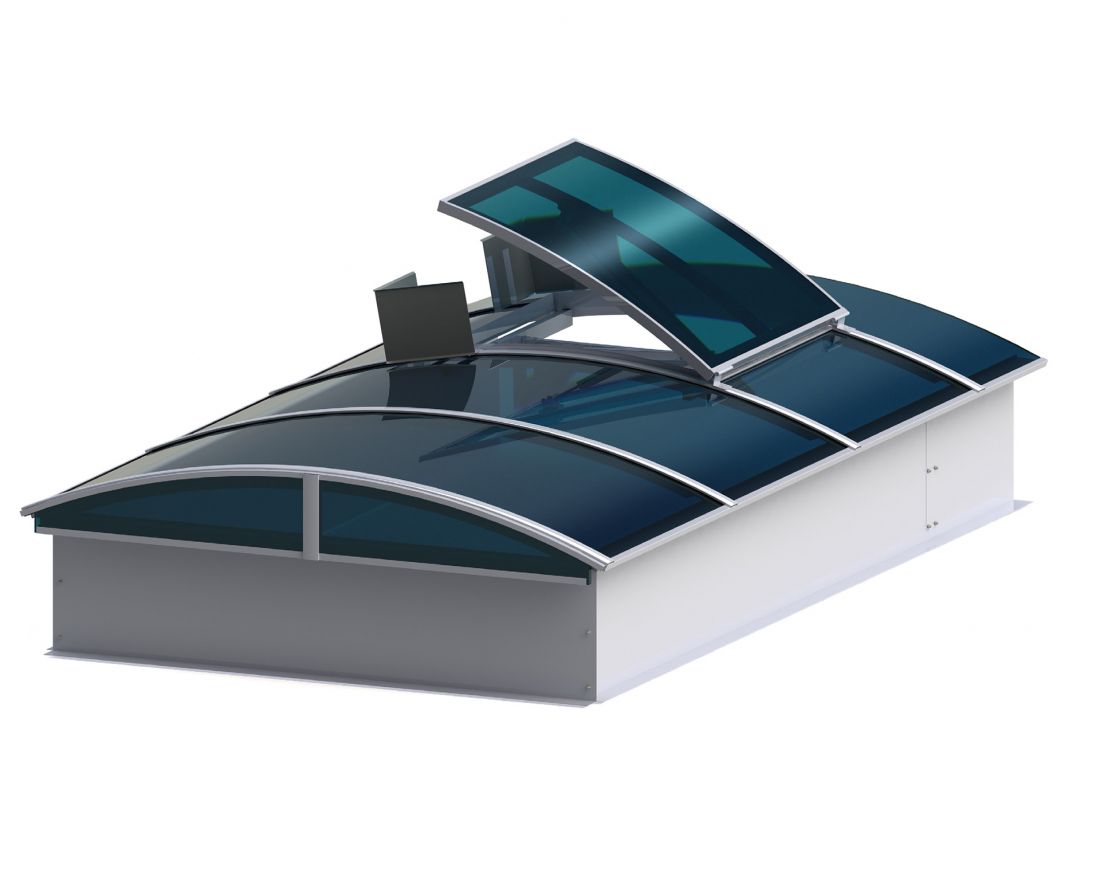

LIGHT BANDS WITH VENTILATION AND SMOKE REMOVAL FUNCTION

The light strands take the form of long and light-transmitting surfaces, allowing the facility to be illuminated. We can equip light strips with ventilation, smoke or smoke/ventilation flaps. Additional options are: grilles and anti-fall grips or insect nets.

Technical parameters:

DL 750-1125 - resistance to downward load up to 750 N/m2
UL 1500 - resistance to upward load up to 1500 N/m2
SB 300-1200 - resistance to impact with a large soft body
1.1-2.5 W/(m2K) - heat transfer coefficient for the entire product (coefficient depends on the choice of covering and base)
covering made of cellular polycarbonate or Kera Fire Protect NRO panels.

LIGHT BANDS WITH VENTILATION AND SMOKE REMOVAL FUNCTION

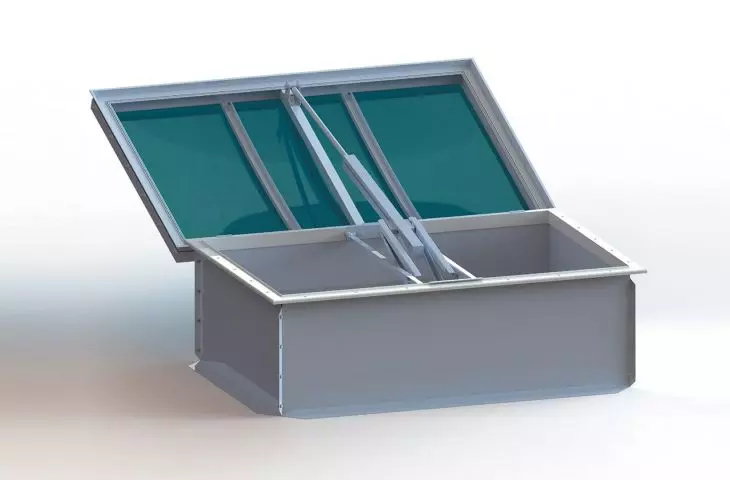

SINGLE AND DOUBLE LEAF SMOKE DAMPERS

This is an important component of gravitational smoke removal, used to discharge harmful substances generated during a fire. The cover of the dampers is made of a material permeable to sunlight, which allows illumination of the rooms. It is possible to equip smoke dampers with grilles or anti-drop handles or insect netting. For single-leaf flaps, on request, the product can also act as a roof hatch.

Technical parameters:

Single-wing flaps from 100x100 cm to 200x300 cm; Double-wing flaps even up to 300x300 cm
Re1000 - 1000 cycles of opening and closing the flap leaf to the ventilation position (opening not longer than 60 s.).
SL250/SL550/SL900 - demonstrate reliable operation under loads of 250 N/m2, 550 N/m2 or 90 0N/m2
WL1500 - resistance to wind load equal to 1500 Pa
B300 - temperature resistance of 300°C
1.1-2.5 W/(m2K) - heat transfer coefficient for the whole product (coefficient depends on the choice of covering and base)
covering of cellular polycarbonate, NRO Kera Fire Protect panels and acrylic/polycarbonate dome (1-5 layers).

SINGLE AND DOUBLE LEAF SMOKE DAMPERS

NON-OPENING AND TILTING SKYLIGHTS

Skylights can be used in large-area buildings: production halls, warehouses, shopping arcades, or office spaces. With the use of weather automation, they perform the function of room ventilation. They can appear in fire class E30/EI30. They meet the requirements of Broof(t1) class. Equipped with systemic fall protection solutions: steel grilles or anti-fall brackets.

Technical parameters:

Any size from 60x60 cm to 200x300 cm
DL 750 - resistance to downward load up to 750 N/m2
UL 1500 - resistance to upward load up to 1500 N/m2
SB 300-1200 - resistance to impact with a large soft body
0.9-1.8 W/(m2K) - heat transfer coefficient for the whole product (coefficient depends on the choice of covering and base)
covering of cellular polycarbonate, NRO Kera Fire Protect panels and acrylic/polycarbonate dome (1-5 layers).

ROOF SHUTOUTS

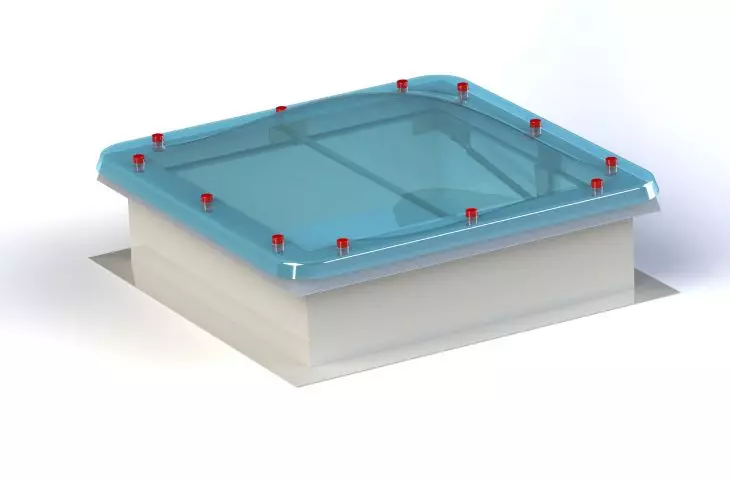

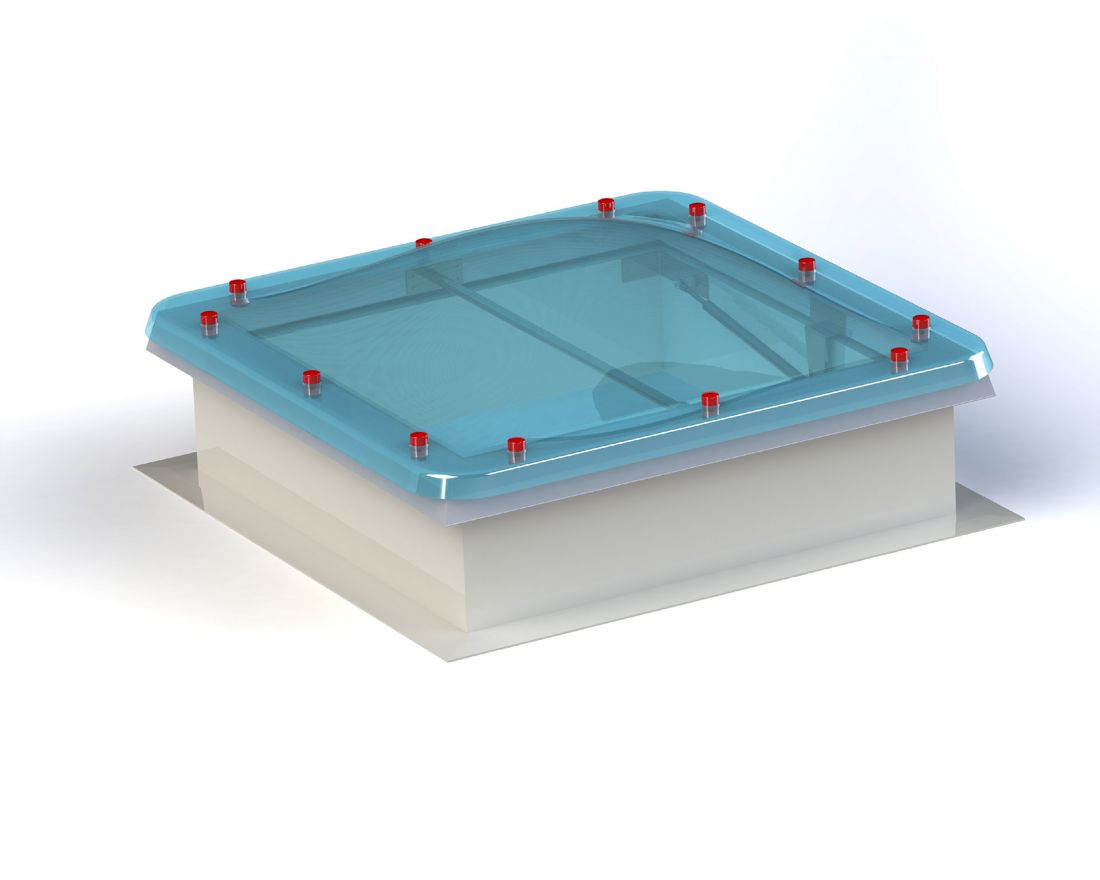

ROOF HATCHES

Roof hatches allow safe and comfortable access to the roof. Thanks to the use of covering made of light-transmitting materials, they also function as natural lighting for staircases.

Technical parameters:

size from 80x80 cm to 150x150 cm in various size configurations (non-standard and oversized hatches on request)
DL 750 - resistance to downward load up to 750 N/m2
UL 1500 - resistance to upward load up to 1500 N/m2
SB 300 - resistance to impact with a large soft body
0.9-2.5 W/(m2K) - heat transfer coefficient for the whole product (coefficient depends on the choice of covering and base)
covering made of cellular polycarbonate, NRO Kera Fire panels.
