Comfortable access to the roof terrace
SKY DOOR
An innovative product created to gain comfortable access to the roof terrace.

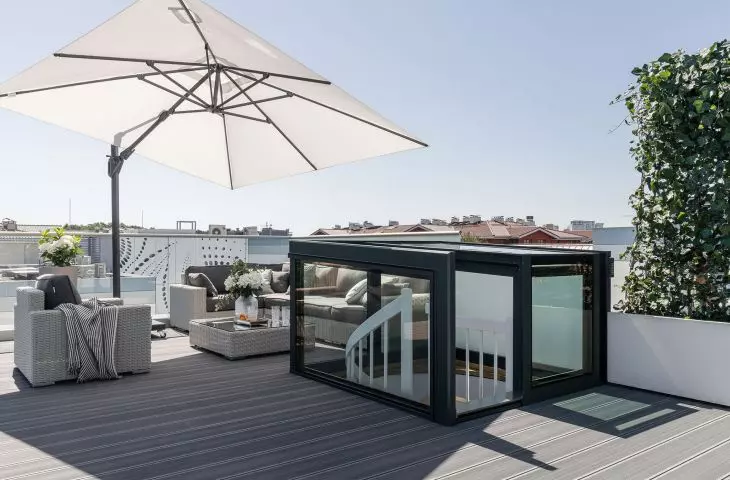

Free-standing , glazed roof box
© SKY DOOR
We designed Bausan Aluminium Sp. Z o.o. | SKY DOOR as a freestanding, glazed roof box. Access to the terrace is gained through a sliding sash driven by a modern, silent motor.

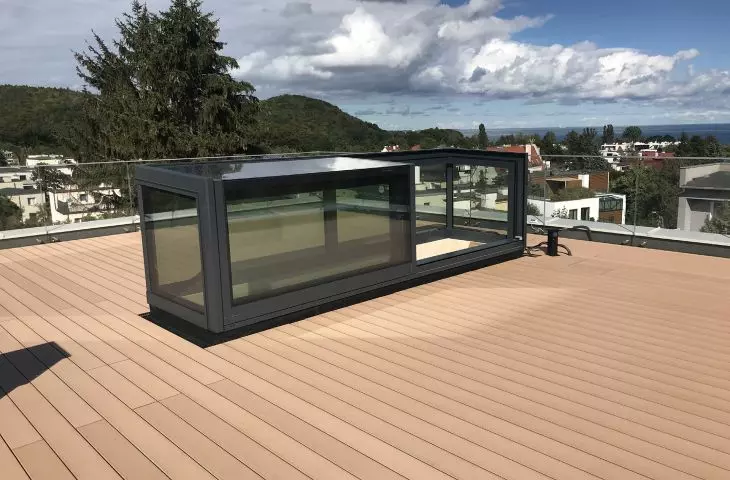

Freestanding , glazed roof box
©SKY DOOR
It is an ideal solution for existing and planned buildings, where the maximum allowable building height has already been reached.

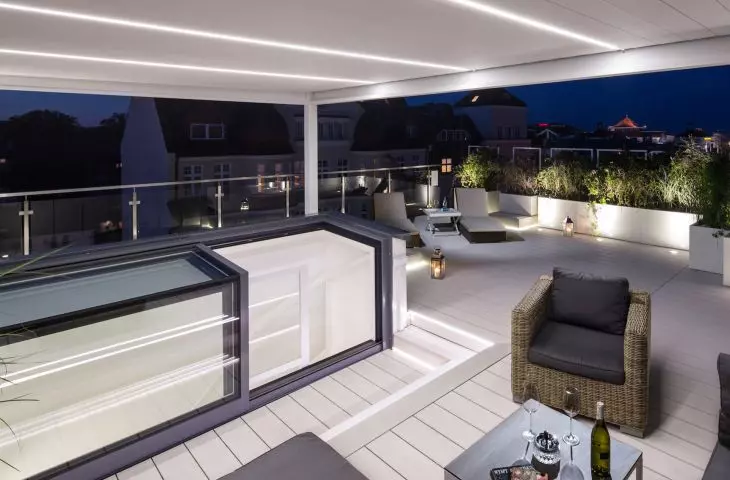

Free-standing , glazed roof box
©SKY DOOR
FUNCTIONALITY
-
comfortable access to the roof terrace
-
more daylight
-
excellent thermal performance. Wind and waterproof.
-
glazing with 3-glazing package Ug = 0.5W/m2K
-
opening manually or automatically with the possibility of using a rain sensor, external keypad with fingerprint reader and connection to a smart home system
-
dimension of the base of the structure up to 6 m2.
Free-standing , glazed roof box
©SKY DOOR
TECHNICAL PARAMETERS OF THE SYSTEM:
It has been tested at the Institute of Building Technology, in terms of:
-
Resistance to wind load(PN-EN 12210:2016-05) - class C4/B4 (1600 Pa).
-
Resistance to tearing loads(PN-EN 14963:2006) - class UL 1500 (1500 Pa)
-
Resistance to pressure loads(PN-EN 14963:2006) - class DL 1750 (1750 Pa)
-
Air permeability(PN-EN 12207:2017-01) - class 3 (600 Pa)
-
Watertightness(PN-EN 14963:2006) - met
-
Water tightness(PN-EN 12208:2001) - class 9A (600 Pa)
-
Thermal insulationEN 6946 - Uw < 1.1 /m2K.
More information about the company Bausan Aluminium Sp. Z o.o. | SKY DOOR in the PdA portal.
