Vitrintec provides solutions in the field of aluminum and glass systems. From design to production and distribution, we place great emphasis on the quality of the products we offer. Vitrintec systems are all about innovative approaches to creating glass architecture.

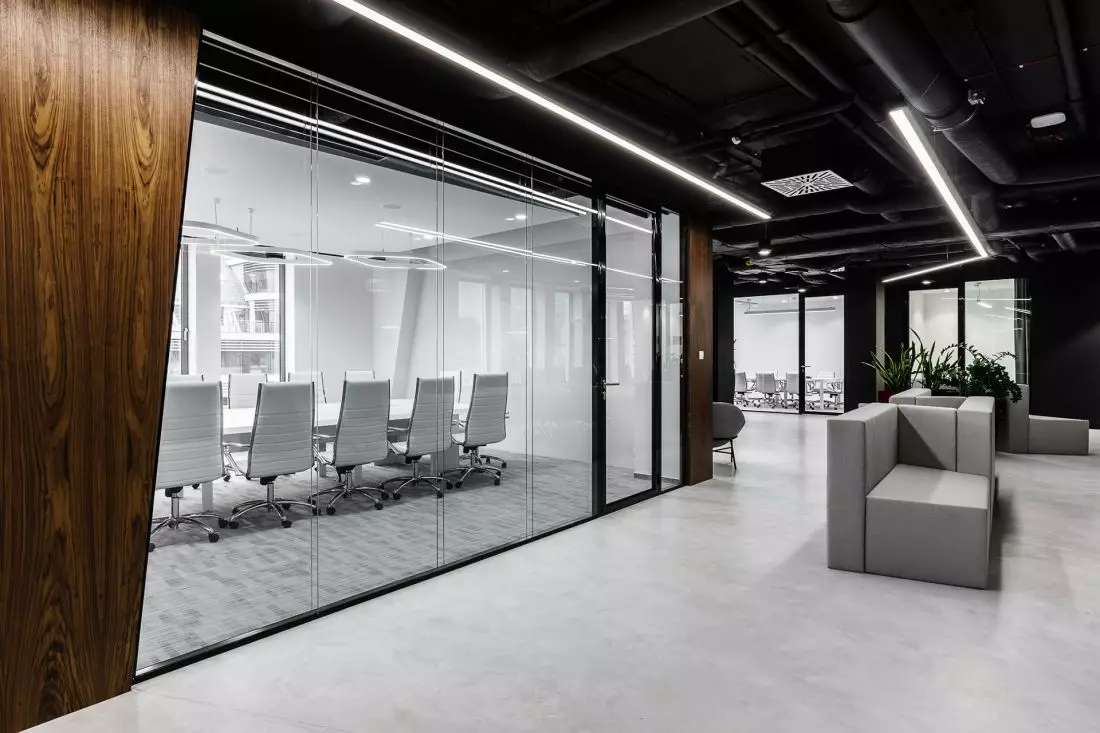

Vitrintec implementation
© VITRINTEC
Our solutions improve the functioning of office spaces, public places and modern residential premises. The versatility and compatibility of individual systems ensures their wide application.
Thus, we have developed products with an extremely minimalist geometry, which, thanks to modern design solutions, are guaranteed to provide high sound insulation and fire resistance. Vitrintec products meet the requirements stipulated by law and standards, and also carry documents of National Technical Assessment and European Technical Assessment.
Pure
The flagship product is the extremely minimalist Pure single-glazed system. Its acoustic insulation of Rw 39 dB will be perfect as a space divider in the main part of the office. The hallmark of this system is the small aluminum profiles with a depth of only 22 mm and a height of 25 mm or 30 mm.

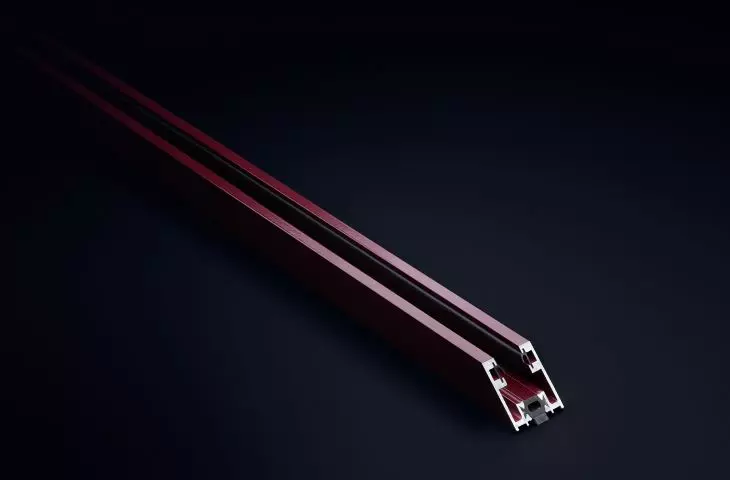

Pure FS is a single-glazed system using fire-resistant glass and system profiles with a height of 30 mm and a depth of 40 mm. The system is designed for the arrangement of very light, transparent glass buildings, in which a minimal amount of aluminum and invisible seals create the impression of 100% transparency. Pure FS has a fire insulation rating of EI30 and a sound insulation rating of Rw 40 dB.

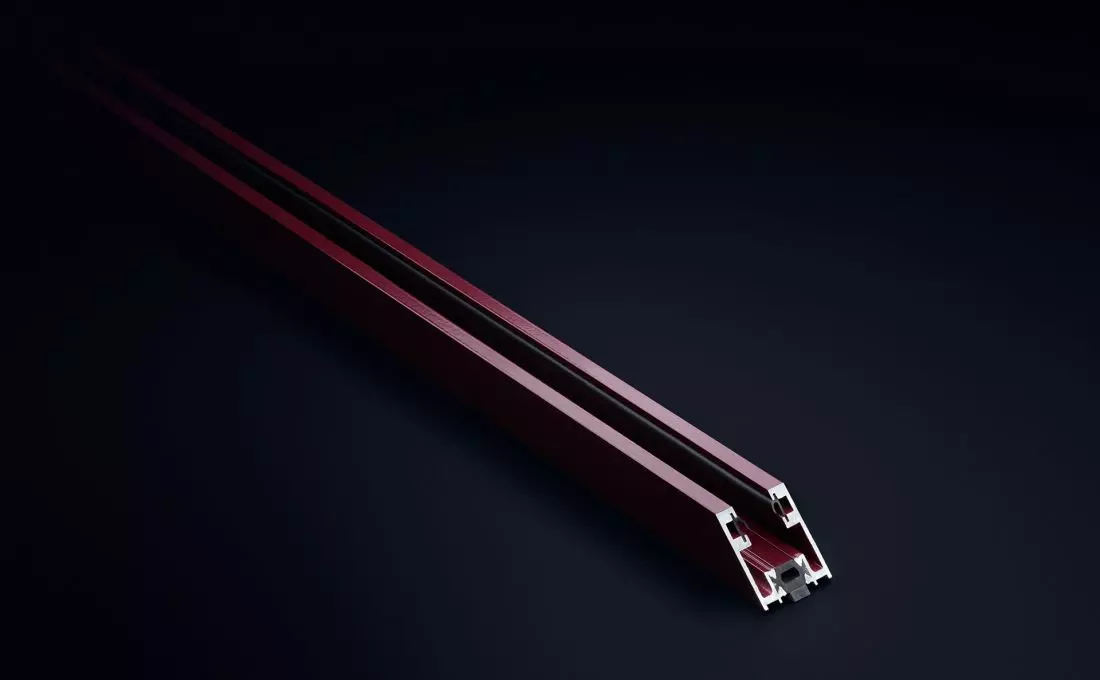

PURE FS
© VITRINTEC
Silence
Using the Silence system, it is possible to achieve high acoustic insulation parameters reaching Rw 49 dB. It is a double-glazed system that is a guarantee for the realization of even the most demanding architectural visions. It gives a wide range of possibilities for creating curved walls and hexagonal broken walls. Profiles in the Silence system come in two heights 25 mm and 30 mm.
Silence FS is a double-glazed system, thanks to aluminum profiles with a height of 30mm and a depth of 78mm, it is characterized by an original design. The system is distinguished by its easy installation and modularity. Using this system it is possible to achieve high parameters of fire insulation EI30 and acoustic insulation reaching Rw 46 dB.

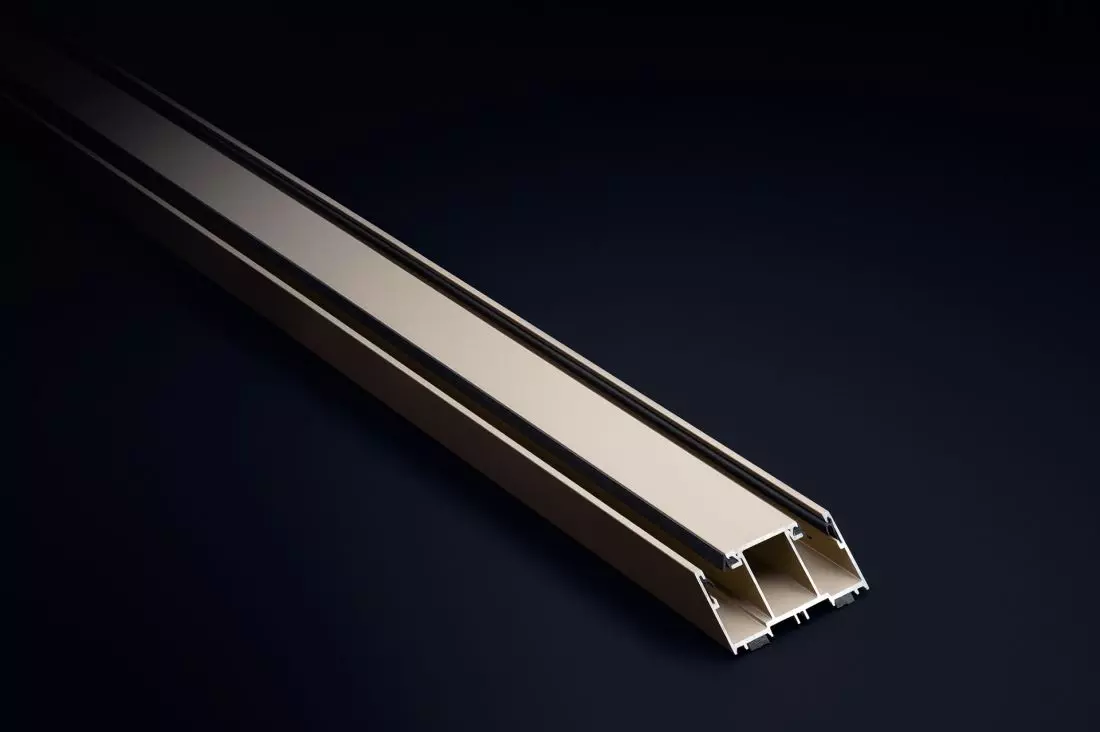

Silence
© VITRINTEC
Ultra Silence
The system has a profile height of 25 mm or 30 mmm and a depth of 100 mm. Ultra Silence allows to achieve very high parameters of sound insulation reaching Rw 57 dB.
An extension of this system, Ultra Silence FS is an elegant and flexible system that provides functionality in modern architectural projects. It is characterized by a common height for the fireproof systems of the Vitrintec FIRE STOP family of 30 mm.
The depth of the profile is 100 mm. The system allows to achieve very high parameters of sound insulation reaching Rw 50 dB and fire insulation EI30.
Each of our systems comes in a muntin version, thus Vitrintec offers a family of LOFT-type systems.

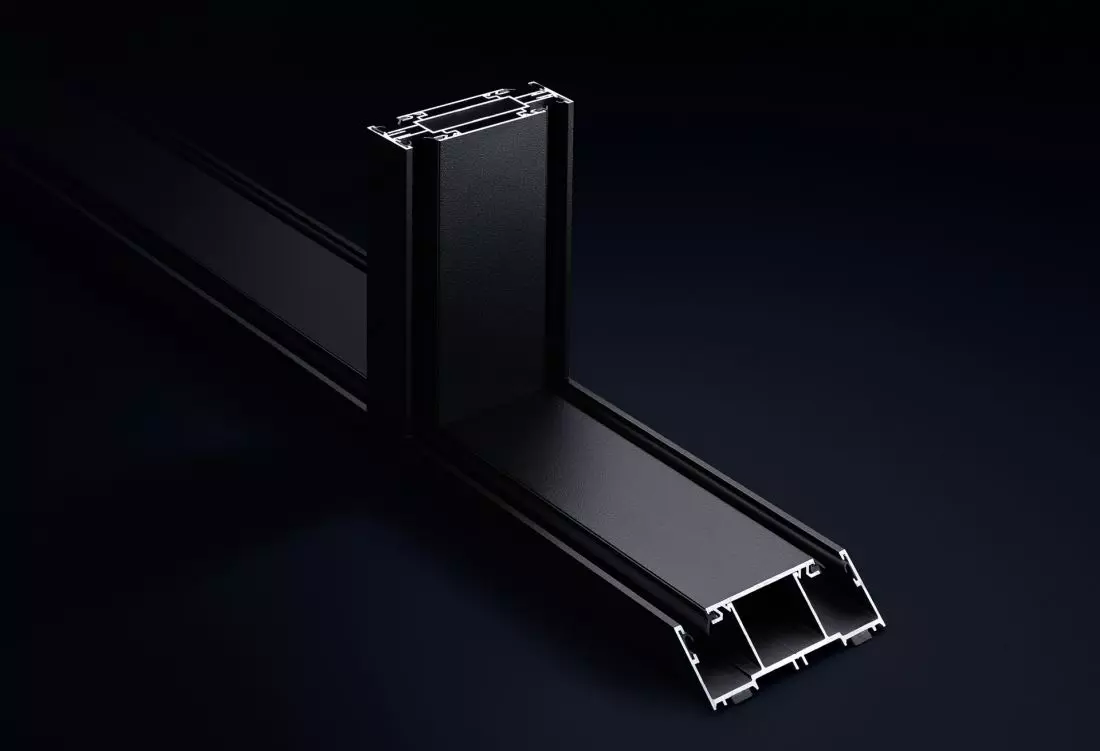

Ultrasilence Loft
© VITRINTEC
Hidden gaskets guarantee fast installation
We have developed an innovative system of hidden gaskets thanks to which the aesthetic value of the offered solutions has been significantly improved. The lightness and construction of profiles and hidden gaskets installed before the glazing stage facilitate and significantly speed up work, and thus reduce the costs associated with the prefabrication and installation of systems.
Mobile comfort
We are the first manufacturer in Poland to offer acoustic fully glazed mobile walls. Vitrintec 's product provides sound insulation Rw of up to 49 dB with a glass panel, and Rw of up to 44 dB with a furniture board. Thus, the mobile wall is a solution for offices with open spaces that lack additional places for meetings or individual conversations. Dividing the interior with a wall provides privacy

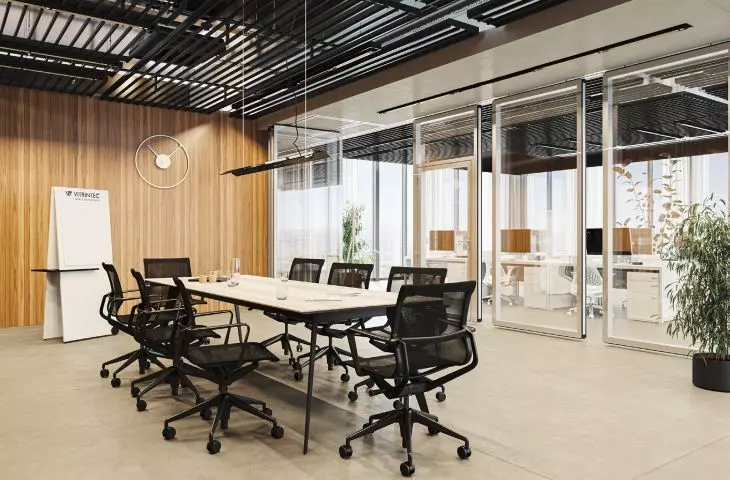

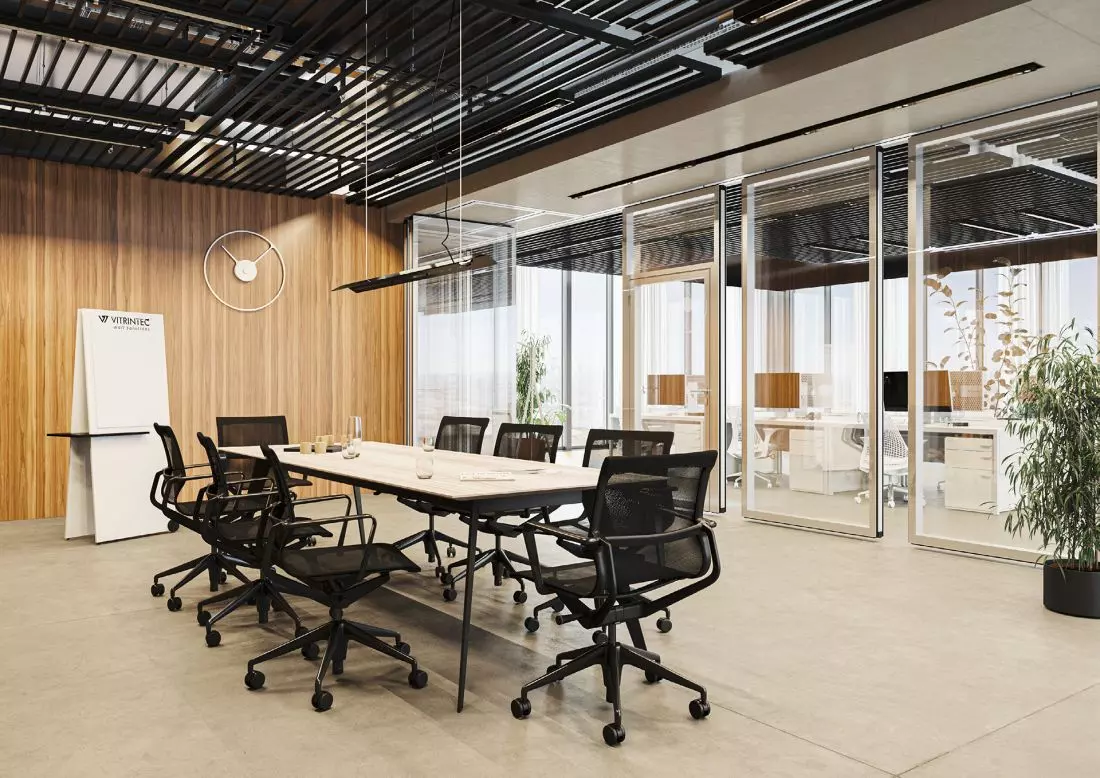

Mobile wall
© VITRINTEC
RedDot award-winning product
Our products make it possible to functionally divide space and provide adequate conditions for evacuation. We offer a family of fireproof systems, which includes Pure FS, Silence FS and Ultra Silence FS. The systems, moreover, have sound insulation of up to Rw 52 dB. Their minimalist geometry has contributed to winning a prestigious award in the design world - RedDot.
Eco-friendly machinery
The profiles shown, are the lowest profiles available on the market so that the use of aluminum is reduced to a minimum. This is one of many nods to nature.
Since the beginning of the company's existence, we have been operating in accordance with the principles of sustainable production, so the production halls on which our systems are manufactured are powered by green energy from photovoltaic cells, in addition, we work with modern, electro-efficient numerically controlled machines.
We also have an extensive machinery park, which includes two production lines for aluminum prefabrication and complex glass processing.
For more information, visit the company's Vitrintec page on the PdA portal
